PS-45
LEYU
| Availability: | |
|---|---|
| Quantity: | |

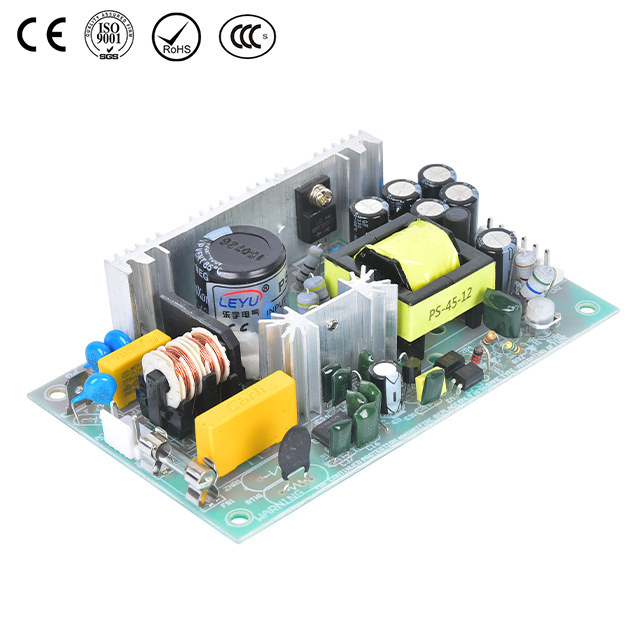

Are you looking for a compact and efficient 45W open-frame power supply? LEYU's PS series supports 90-264VAC input and offers a variety of single DC output voltages, including 5V, 12V, 15V, and 24V. This series is designed for embedded applications, providing reliability, comprehensive protection circuits, and cost-effective solutions for your power system needs.
| OUTPUT | ||||
| MODEL | PS-45-5 | PS-45-12 | PS-45-15 | PS-45-24 |
| DC Voltage | 5V | 12V | 15V | 24V |
| Rated Current | 8A | 3.7A | 3A | 1.9A |
| Rated Power | 40W | 44.4W | 45W | 45.6W |
| Ripple&Noise | 100mV | 100mV | 100mV | 150mV |
| Voltage Tolerance | ±3% | ±2% | ±2% | ±2% |
| Line Regulation | ±1% | ±1% | ±1% | ±1% |
| Load Regulation | ±3% | ±2% | ±2% | ±2% |
| Set up,Rise,Hold Up Time | 800ms,30ms,60msat full load | |||
| INPUT | ||||
| Voltage Range | 90-264VAC 47-440Hz;127-370VDC | |||
| Efficiency | 74% | 76% | 77% | 78% |
| Inrush Current | Cold-start current15A/115V 30A/230VAC | |||
| Leakage Current | <0.75mA/240VAC | |||
| PROTECTION | ||||
| Over Load | 53-75W rated output power | |||
| Protection type:hiccup mode,recovery automatically after fault conditionis removed | ||||
| ENVIRONMENT | ||||
| Working Temp., Humidity | -10℃~+60℃(Refert ooutput derating curve),20%~90%RH non-condensing | |||
| Storage Temp., Humidity | -20℃~+85℃, 10%~95%RH | |||
| Vibration | 10~500Hz,2G 10min,/1cycle,Period for 60min,Each along X, Y, Z axes | |||
| SAFETY | ||||
| Withstand Voltage | I/P-O/P: 3KVAC I/P-FG: 2KVAC O/P-FG: 0.5KVAC | |||
| Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/70% RH | |||
| STANDARD | ||||
| Safety Standard | Meet UL60950-1.TUV EN60950-1 approved | |||
| EMC Standard | EN5022 CLASS B EN61000-3-2-3, EN61000-4-2,3,4,5,6,8,11,EN55024, light industry level, criteria A | |||
| OTHERS | ||||
| Dimension | 127*76.2*28mm(L*W*H) | |||
| Weight | 0.19Kg | |||
| Packing | 72PCS/15.6Kg/1.35CUFT | |||
Universal AC Input / Full Range: Accepts 90-264VAC or 127-370VDC, making it suitable for global use.
Multiple Output Voltage Choices: Available in standard models for 5V, 12V, 15V, and 24V DC output to power a wide range of devices.
Compact Open-Frame Design: The PCB mountable open frame chassis allows for easy integration into your equipment, saving valuable internal space.
Comprehensive Protection: Built-in safeguards include Short Circuit Protection (SCP), Over Voltage Protection (OVP), and Over Load Protection (OLP) for enhanced system safety.
High Efficiency & Reliability: Features efficiencies up to 78% and undergoes 100% full-load burn-in testing to ensure long-term performance.
Safety Standards: Designed to meet UL60950-1, EN60950-1
EMC Standards: Compliance with EN5022 CLASS B EN61000-3-2-3, EN61000-4-2,3,4,5,6,8,11,EN55024, light industry level
Withstand Voltage: I/P-O/P: 3KVAC I/P-FG: 2KVAC O/P-FG: 0.5KVAC
Industrial Automation: Control systems, PLCs, and industrial panels.
Commercial Equipment: Point-of-Sale (POS) systems, ticketing machines, and access control systems.
Q1:What is the difference between an open frame and an enclosed power supply?
A1:An open frame power supply consists of just the PCB and components, designed to be built into equipment with its own enclosure. An enclosed supply comes in a metal or plastic box ready for standalone use.
Q2:What does "universal input" mean?
A2:This means that the power supply can accept any voltage from 90V AC to 264V AC (110V in the US, 220V in Europe) without manual switching.
PS-45-5:5V DC Output
PS-45-12:12V DC Output
PS-45-15:15V DC Output
PS-45-24:24V DC Output
If you need other voltage outputs, please contact our sales team.
