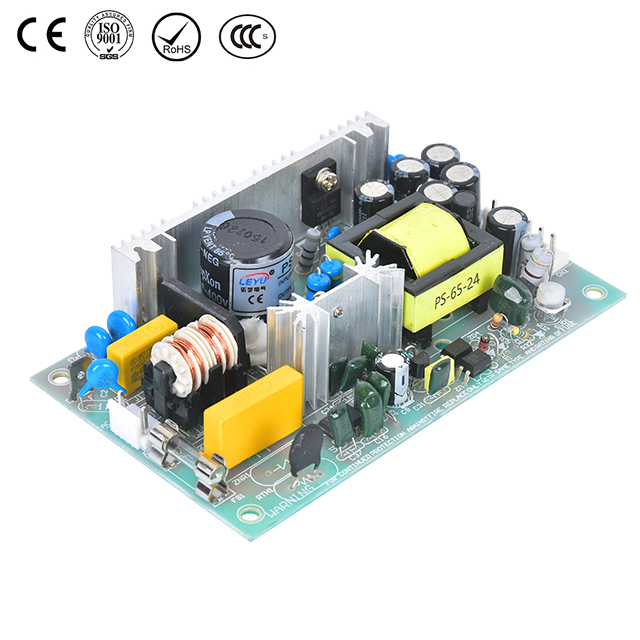

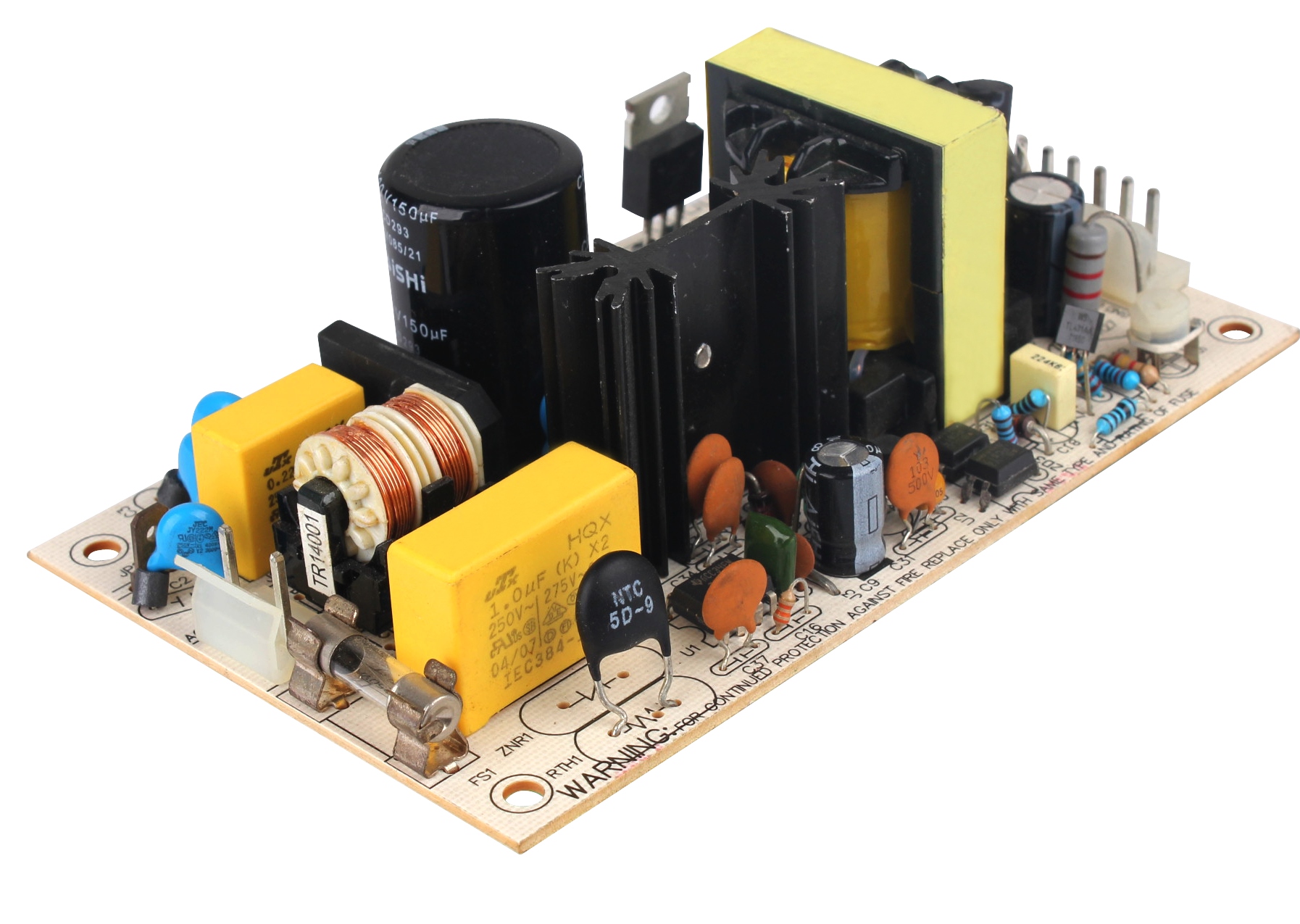

PS-65
LEYU
| Availability: | |
|---|---|
| Quantity: | |
OUTPUT | ||||
MODEL | PS-65-5 | PS-65-12 | PS-65-15 | PS-65-24 |
DC Voltage | 5V | 12V | 15V | 24V |
Rated Current | 12A | 5.2A | 4.2A | 2.7A |
Rated Power | 60W | 62.4W | 63W | 64.8W |
Ripple & Noise | 100mV | 100mV | 100mV | 100mV |
Voltage Tolerance | ±3% | ±2% | ±2% | ±2% |
Line regulation | ±1% | ±1% | ±1% | ±1% |
Load regulation | ±3% | ±2% | ±2% | ±2% |
Setup, Rise, Hold Up Time | 800ms,20ms,60ms at full load | |||
INPUT | ||||
Voltage Range | 90~264VAC 47~440Hz;127~370VDC | |||
Efficiency | 76% | 79% | 79% | 80% |
Inrush Current | Cold-start current 20A/115V 40A/230VAC | |||
Leakage current | <0.75mA/240VAC | |||
PROTECTION | ||||
Over Load | 73-105W rated output power | |||
Protection type: hiccup mode, recovery automatically after fault condition is removed | ||||
ENVIRONMENT | ||||
Working Temp., Humidity | -10℃~+60℃; 20%~90% RH non-condensing | |||
Storage Temp., Humidity | -20℃~+85℃, 10%~95%RH | |||
Vibration | 10~500Hz,2G 10min,/1cycle,Period for 60min,Each axes | |||
SAFETY | ||||
Withstand Voltage | I/P-O/P: 3KVAC I/P-FG: 2KVAC O/P-FG: 0.5KVAC | |||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/70% RH | |||
STANDARD | ||||
Safety Standard | Meet UL60950-1.TUVEN60950-1 approved | |||
EMC Standard | EN5022 (CISPR22) CLASS B, EN61000-3-2-3, EN61000-4-2.3.4.5.6.8.11, ENV50204, light industry level, criteria A | |||
OTHERS | ||||
Dimension | 127*76*42mm(L*W*H) | |||
Weight | 0.21Kg | |||
Packing | 54PCS/14.2Kg/1.35CUFT | |||

Universal Input Voltage
This power supply can accept a wide input range of 85V AC to 264V AC. This ensures stable operation under fluctuating mains conditions.
2.High Reliability
Overload Protection (OLP)
Overvoltage Protection (OVP)
Short Circuit Protection (SCP)
These features ensure that both the power supply and critical loads remain safe in case of faults.
3.Suitable for Harsh Environments
This power supply can operate in a wide temperature range of -10°C to 60°C.
Industrial Automation: Suitable for control panels for PLC and motor control.
Communications: Suitable for powering routers, switches, and small network cabinets.
Electrical Enclosures: Suitable for OEM machinery and electrical equipment that require a stable Class II power source.
Q1: How many voltage you can supply?
A1: 5V, 12V, 15V, 24V (Depend on items).
Q2: How about the quality?
A2: Wehave thebest professionalandexperiencedengineerand strictQA and QC system.Repair rateunder0.1%~0.2%.
