Benefits of Using High-Efficiency DC to DC Converters

Where These Things Actually Get Used?

• Vehicle Electronics — Running infotainment systems, telematics, or lighting off a truck's 24V battery? A DC-DC converter gives you stable 12V or 5V regardless of whether the alternator is charging or the battery is running low.

• Communication Equipment — This is where low ripple really matters. Radio equipment and network gear need clean power. The SD series with 1500VAC I/O isolation helps prevent ground loops and interference.

• Industrial Controls — PLCs, sensors, and actuators often run on different voltages than the main bus. Having a reliable converter means less downtime.

• Battery Backup Systems — The SD-75 series actually specifically mentions suitability for battery backup systems and transportation vehicles. When you're switching between charging and discharging, wide input range becomes critical.

What About Efficiency?

This is where good design shows up. Look at the SD-350D as an example — at 48V output, it hits 89% efficiency. The SD-500 series pushes 90% on certain models. That's not just bragging rights. At 500W, a 10% efficiency difference means 50W of heat you don't have to deal with.

The SD-60 through SD-350 models run at fixed 83KHz switching frequency. That's high enough to keep components small but not so high that you run into weird parasitic issues.

Installation Reality Check

I'll be honest — these aren't drop-in modules for a breadboard. The SD-15 (78x51x28mm) is pretty compact, but the SD-200 series comes in at 215x115x50mm. Plan your enclosure space accordingly.

Also pay attention to derating. Most models operate from -10°C to +60°C (the SD-200 and up go to -20°C), but you need to check the derating curve. Running these at full load at 60°C ambient? Not gonna happen without airflow.

The higher-power models (SD-250, SD-350, SD-500) use forced air cooling with built-in DC fans. That's fine, but remember — fans fail. Have a plan for that.

EMC Compliance Matters More Than You Think

If you're selling equipment in any regulated market, you care about EMC. The SD series complies with EN55022 (CISPR22) Class B for emissions and EN61000-4-2,3,4,6,8 for immunity. The SD-25 and up specify "heavy industry level" for immunity, which means they actually survive real-world conditions.

The specification notes are honest about something important: "The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives." Don't assume your system passes just because the power supply does.

Making Your Choice

The SD series runs from 15W all the way to 500W. Pick based on your actual load, not what you think you might need someday. Running a 500W converter for a 100W load hurts efficiency at light loads.

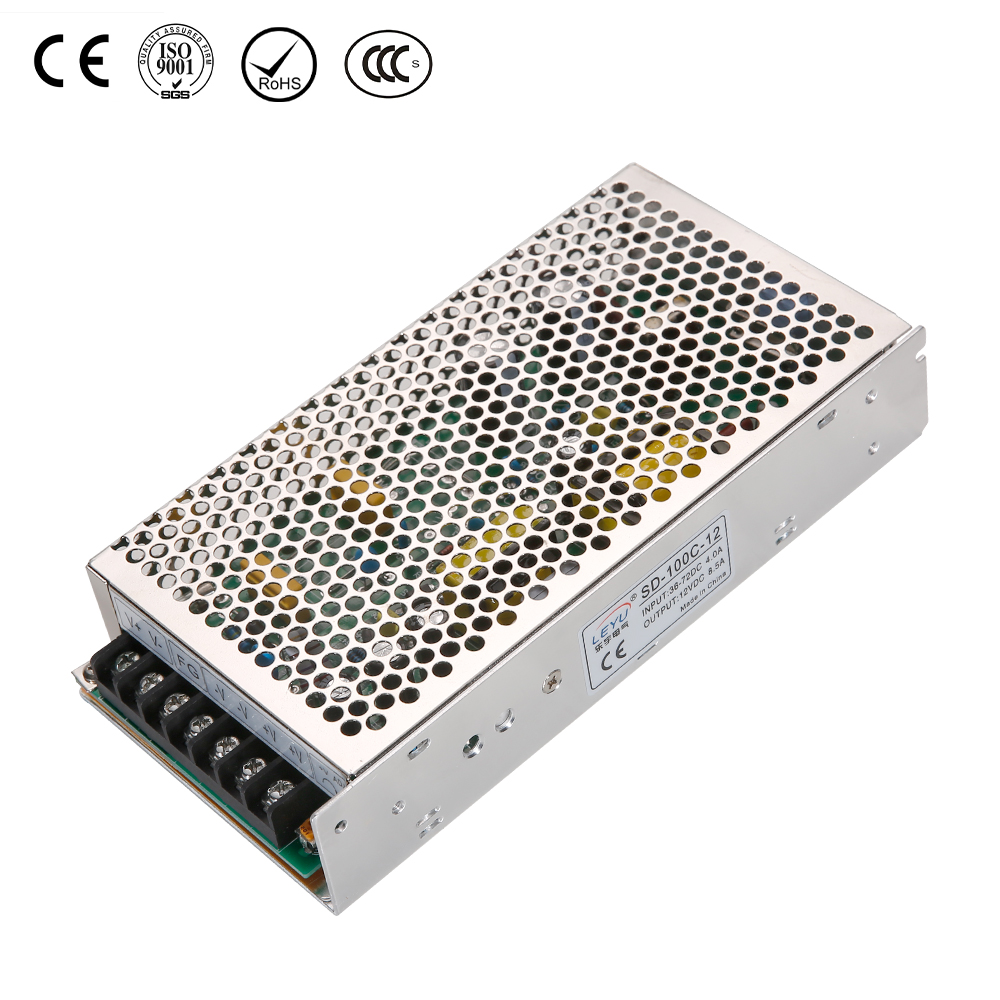

Output options cover 5V, 12V, 24V, and 48V. The SD-100 and SD-120 even offer 48V output for telecom applications.

Input code tells you everything:

• A: 9.2-18VDC

• B: 19-36VDC

• C: 36-72VDC

• D: 72-144VDC (and often accepts 85-132VAC as a bonus)

The Bottom Line

A good DC-DC converter isn't exciting. It won't get your project featured on a blog. But it's the difference between something that works reliably for years and something that fails at the worst possible moment.

The SD series has been around long enough to prove itself. Two-year warranty, 100% full load burn-in testing, and real specifications (not optimistic numbers from a marketing department). That's what you want when your equipment can't afford to fail.

Spend the extra few dollars on a proper converter. Your future self will thank you when you're not debugging random resets at 2 AM.
