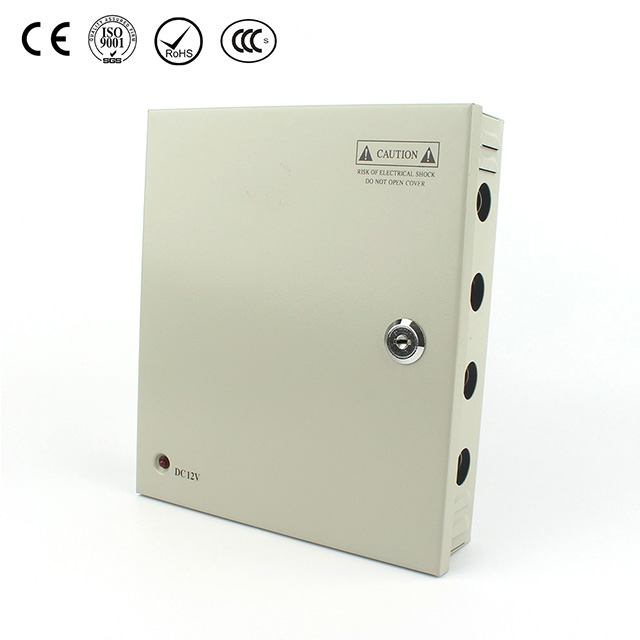

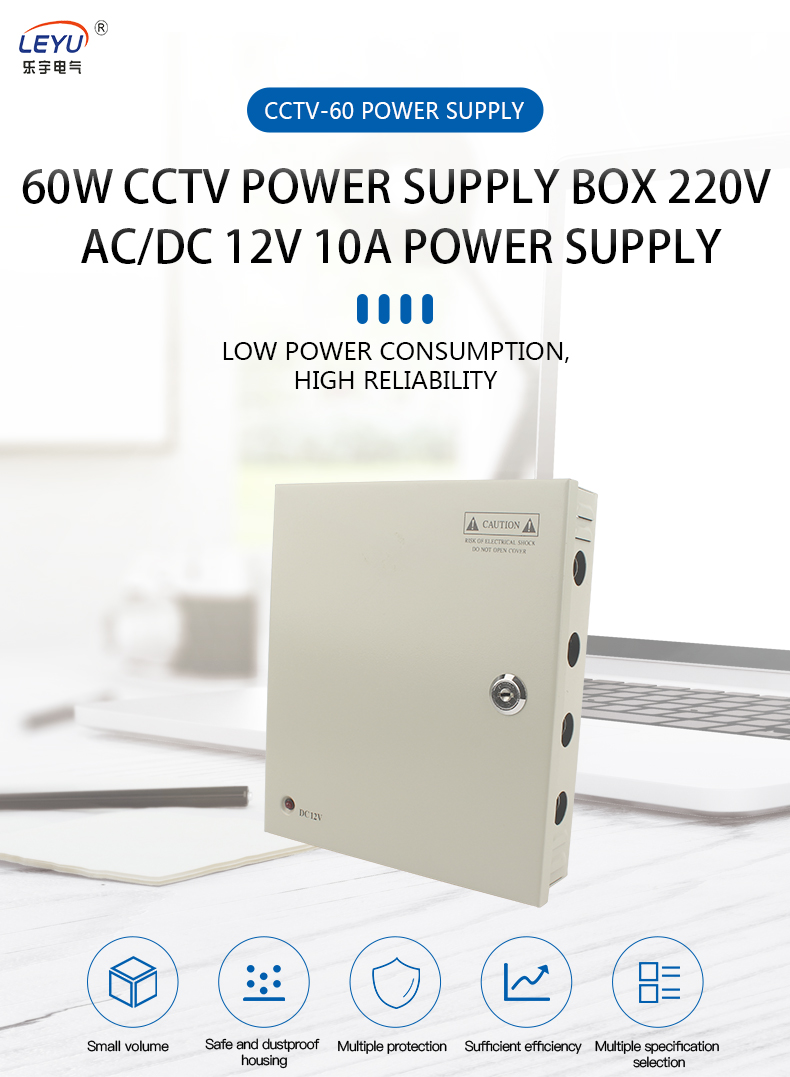

The CCTV-60 series is a 12V 60W multi-channel switching power supply designed for CCTV surveillance systems, security cameras and LED lighting. It provides stable 12V DC output with low ripple, multiple safety protections and CE certification. Available in 4CH, 9CH and 18CH models, it ensures reliable and long-lasting power for monitoring and lighting equipment.
CCTV-60 -12
LEYU
| Availability: | |
|---|---|
| Quantity: | |
MODEL | CCTV-60-12-9CH | CCTV-60-12-18CH | CCTV-60-12-4CH | |
OUTPUT | DC VOLTAGE | 12V | 12V | 12V |
OUTPUT POWER | 60W | 60W | 60W | |
CURRENT RANGE | 0-1.25Amp(Each channel) , Total 0-5Amp for 4 channels | 0-0.55Amp(Each channel) , Total 0-5Amp for 9 channels | 0-0.28Amp(Each channel) , Total 0-5Amp for 18 channels | |
RIPPLE & NOISE(max.) | 120mVp-p | |||
VOLTAGE ADJ. RANGE | ±10% | |||
LINE REGULATION | ±1.0% | |||
LOAD REGULATION | ±2.0% | |||
VOLTAGE TOLERANCE | ±2.0% | |||
SETUP,RISE TIME | 800ms, 50ms at full load | |||
HOLD UP TIME | 60ms | |||
INPUT | VOLTAGE RANGE | 110VAC or 220V AC selected | ||
AC CURRENT(Typ.) | 1.3A/115V 0.65A/230V | |||
FREQUENCY RANGE | 47-63Hz | |||
EFFICIENCY(Typ.) | 0.78 | |||
INRUSH CURRENT(Typ.) | COLD START 18A/115VAC 36A/230VAC | |||
LEAKAGE CURRENT | <1.0mA/240VAC | |||
PROTECTION | OVER LOAD | 115%~135% of rated power; Pulsing hiccup shut down | ||
OVER VOLTAGE | Rated output voltage of 105%~150% start overvoltage protection | |||
Protection: burst mode,load of abnormal conditions removed the automatic recovery | ||||
SHORT CIRCUIT | voltage off and reset input for recovers | |||
ENVIRONMENT | WORKING TEMP. | -0°C ~ +45°C (Refer to output load derating curve) | ||
WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
STORAGE TEMP.,HUMIDITY | -20°C ~ +85°C 10~95% RH | |||
TEMP. COEFFICIENT | ±0.05%/°C | |||
COOLING METHOD | BY FREE AIR CONVECTION | |||
SAFTY & EMC | SAFTY STANDARDS | CE EN60950-1 Approved | ||
WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC | |||
ISOLATION RESISTANCE | I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC | |||
EMI CONDUCTION | Compliance to EN55022 | |||
HARMONIC CURRENT | Compliance to EN61000-3-2,-3 | |||
EMS IMMUNITY | Compliance to EN55024 | |||
Other | Application | 1.Digital and electronic products | ||
2.LED, CCTV supervisory system | ||||
3.CCTV monitoring camera | ||||
The Leyu CCTV‑60 series is a professional 12V 60W multi‑channel switching power supply designed for long‑duration surveillance and LED systems. It provides stable regulated DC power, supports 4‑channel, 9‑channel, and 18‑channel configurations, and adopts industrial‑grade circuit design with reference to mainstream specifications in the security power industry. With complete safety protection, compliance with EU safety and EMC standards, and natural convection cooling, this series ensures stable power supply for 24/7 monitoring equipment in various installation environments.

Standard 12V DC output with 60W total power, supporting 4CH / 9CH / 18CH flexible configurations
Wide AC input compatible with 110VAC or 220VAC, suitable for global power grids
Built‑in overload, overvoltage, and short‑circuit protection with automatic recovery after fault removal
Low ripple & noise design to ensure stable operation of cameras and LED equipment
Natural air cooling without fans, enabling quiet and reliable long‑term running
CE EN60950‑1 certified, with complete EMC performance matching EN55022 and EN55024 standards
Stable output performance: Strict voltage regulation and low ripple reduce screen flicker and equipment damage
High compatibility: Supports most security cameras, LED strips, and digital electronic devices
Safe and reliable: Multi‑level protection and high isolation voltage lower failure risks in engineering applications
Easy installation & maintenance: Multi‑channel shunt design simplifies wiring and facilitates centralized power management
Cost‑effective: Industrial‑grade quality with competitive pricing, suitable for large‑scale engineering deployment
Environmental adaptability: Operates steadily within 0°C ~ +45°C and supports wide‑range storage conditions
CCTV surveillance cameras and security monitoring systems
LED lighting, light strips, and auxiliary indication modules
Digital electronic equipment and low‑voltage DC modules
Integrated security systems for communities, buildings, stores, and factories
Engineering projects requiring centralized multi‑port 12V power distribution

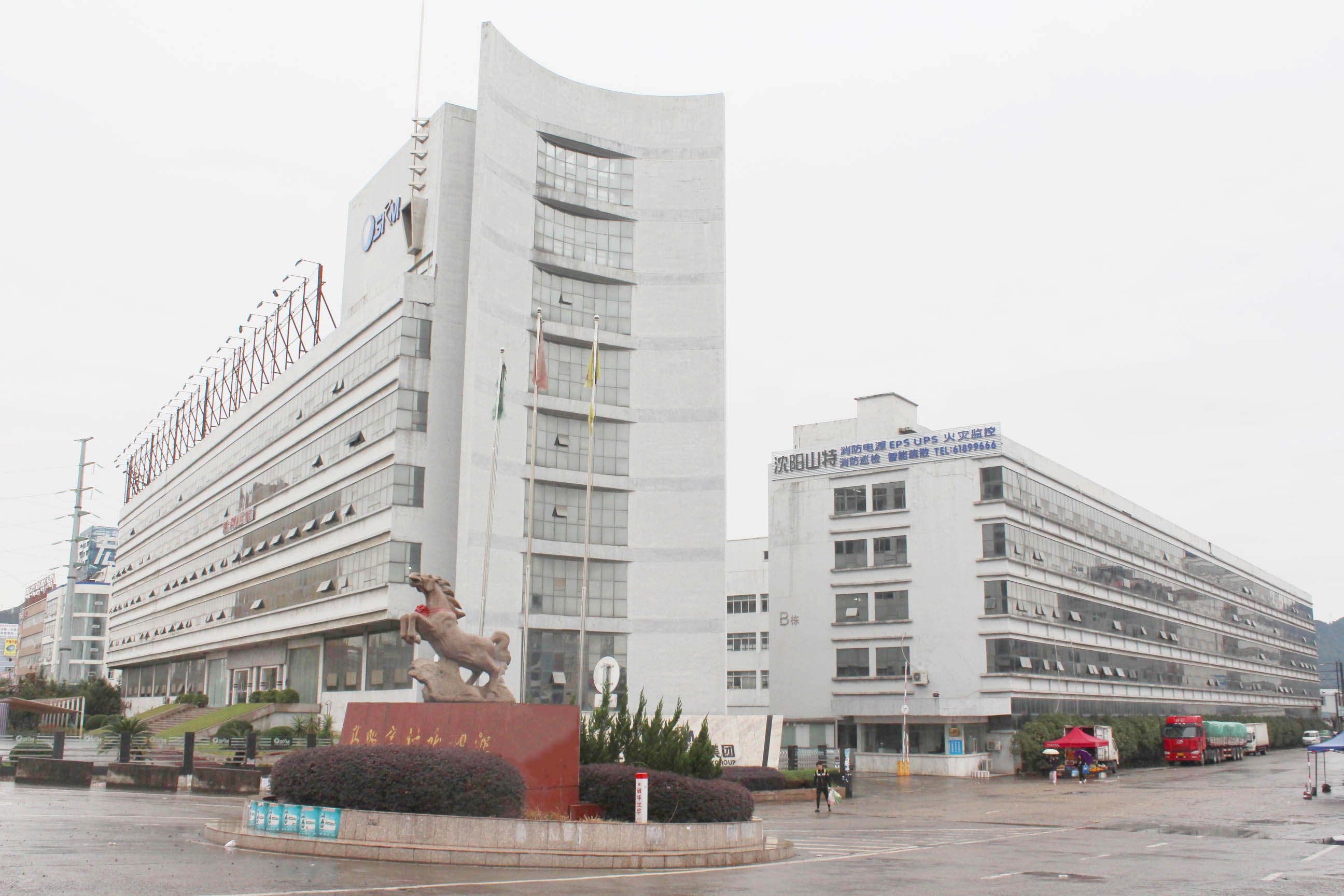

Leyu , based in Wenzhou Leqing, enjoys a developed economy and convenient air, water, rail, and road transport. For 14 years, we have specialized in designing and producing switching power supplies and off-grid solar inverters, with CE, ROHS, CCC, IP67, and ISO9001 certifications. Our modern production and testing equipment ensure reliable performance—our 0.3‰ defect rate far exceeds the national 3% standard.
We offer OEM/ODM services (design, prototyping, production, testing, delivery) backed by senior engineers and strong R&D partnerships. Leyu products are exported to over 50 countries across Europe, the Americas, Southeast Asia, South America, and Africa. Our young, energetic foreign trade team (avg. 3 years’ experience) and our commitment to sincere, attentive service have built a trusted brand. As a high-tech enterprise integrating R&D, production, sales, and technical support, Leyu strives to become a national-class electrical company.
2021
Late 2020
Taking Another Step Forward
The company obtained multiple intellectual property rights (patents/trademarks, etc.) and established a new company, continuously expanding its business landscape and moving toward a higher stage of development.
A New Era of Operations
An International Operations Department was formed by seven people, covering multiple platforms The establishment of the Operations Department marked the beginning of a new digital, multi channel era for "Leyu".
Moving to New Premises
The Foreign Trade Department moved entirely out of the factory into a brand new office building, neighboring Yueqing Ali and Times Square, upgrading both the working environment and brand image.
Shenzhen Presence
Foreign trade business expanded to Shenzhen with the establishment of a branch office, getting closer to cutting-edge markets and resources.
Factory Upgrade
The factory underwent comprehensive renovation and relocation, improving production capacity and environmental standards.
Independent Department & Market Expansion
The Foreign Trade Department was formally established, extending the sales network from Southeast Asia to Europe and accelerating internationalization.
Stepping into Foreign Trade
The company shifted its focus to foreign trade, successfully obtained foreign trade qualification certification, and officially started its overseas market journey.
Renaming and New Beginning
Our efforts have begun to bear fruit, and our annual construction performance has successfully exceeded 1000 rooms. This milestone marks our initial success in the market and has gradually established a good reputation in the industry, laying a solid foundation for our future development.
Leyu always puts customers at the center, integrates sincere service into every step, and with solid technology, reliable quality, efficient response, and worry-free transportation, becomes your trustworthy long-term partner.
Leyu provides full-process technical support from product design, drawing, and R&D to testing, ensuring that customized needs are professionally fulfilled.
Leyu has established a rapid response mechanism, patiently listens to customer feedback, and promptly resolves any issues during use, so customers have no worries.
Leyu strictly implements quality control that is 100 times better than the national standard (0.3‰ failure rate). All products are certified with CE, ROHS, CCC, IP67, etc., and undergo 100% full-load burn-in testing.
Leyu cooperates with multiple reliable logistics partners to provide efficient and safe domestic and international shipping solutions, ensuring products reach customers on time and in perfect condition.
Our defect rate is 0.3‰, 100 times lower than the national standard of 3‰. Every unit is 100% burn-in tested for long-term reliability.
We hold CE, RoHS, CCC, and IP67 certifications. Our products meet international safety and environmental standards, ready for any market.
From industrial automation to off-grid solar, our switching power supplies and inverters have been verified in over 50 countries, performing reliably worldwide.
Built with precision engineering and backed by responsive support, we protect every power connection you make — from sample to bulk order.
We put customers first — listening to your needs, providing premium products, and offering outstanding service to fully meet your expectations.

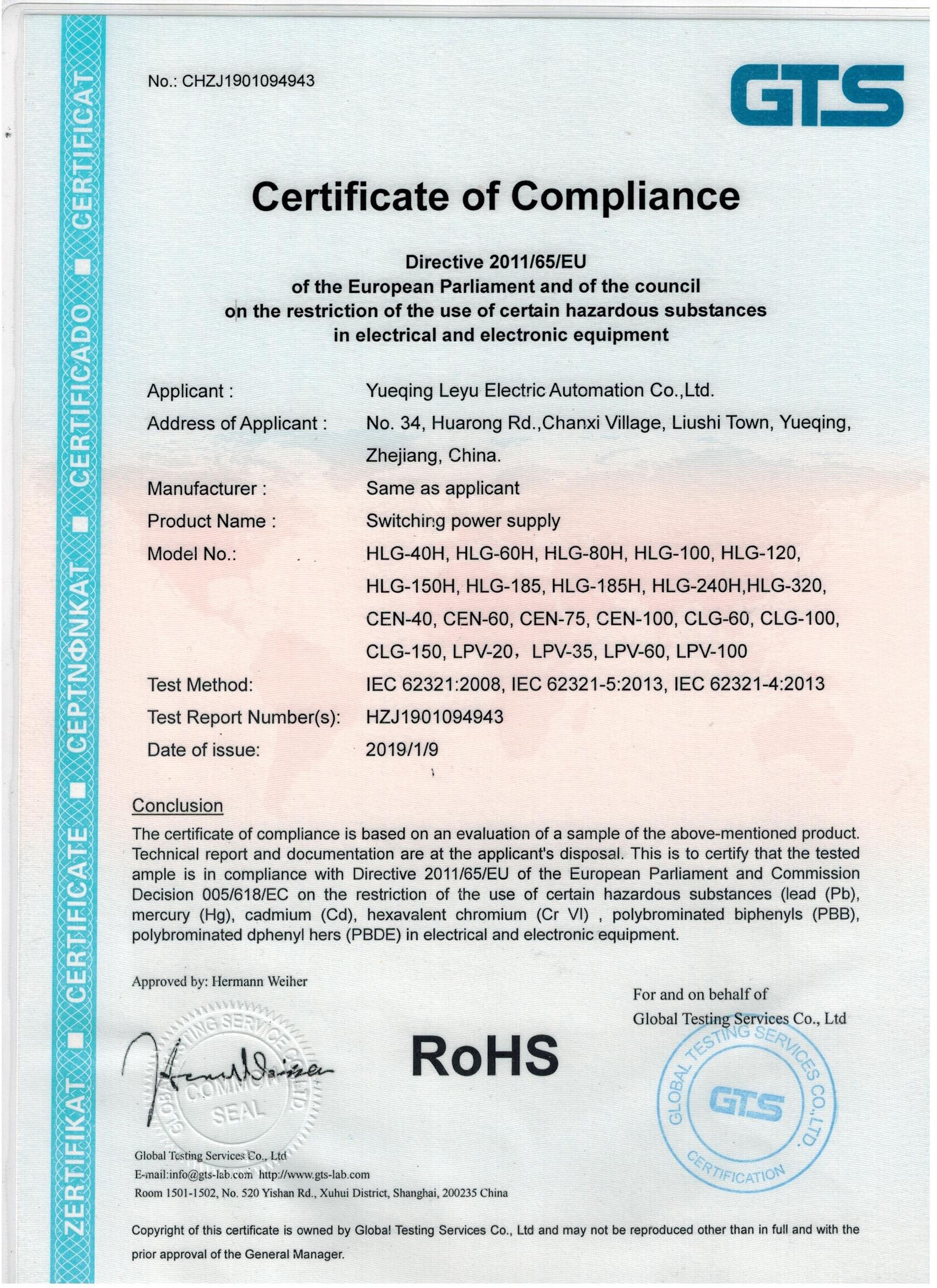

ROHS-HLG Certificate

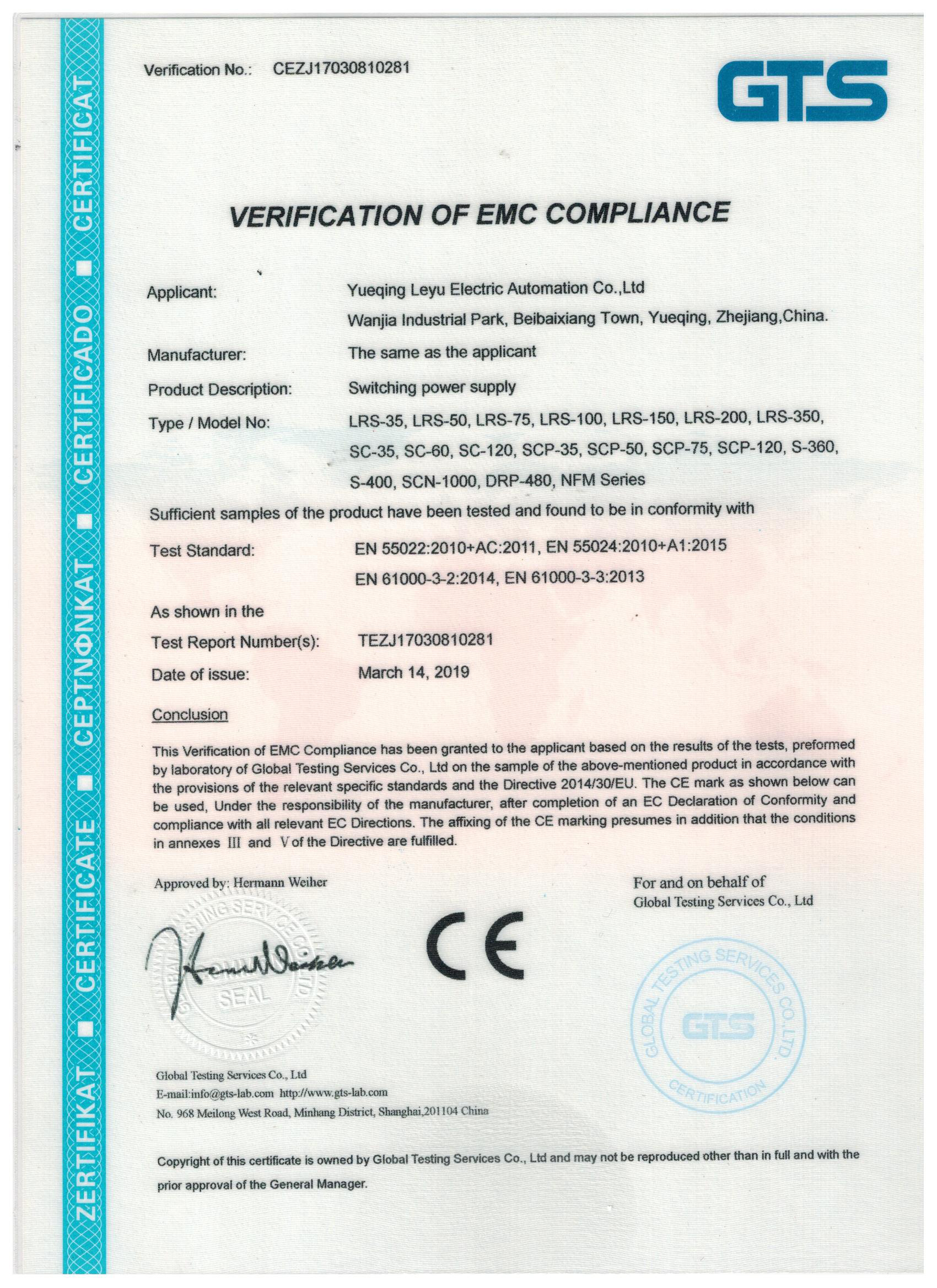

CE-LRS

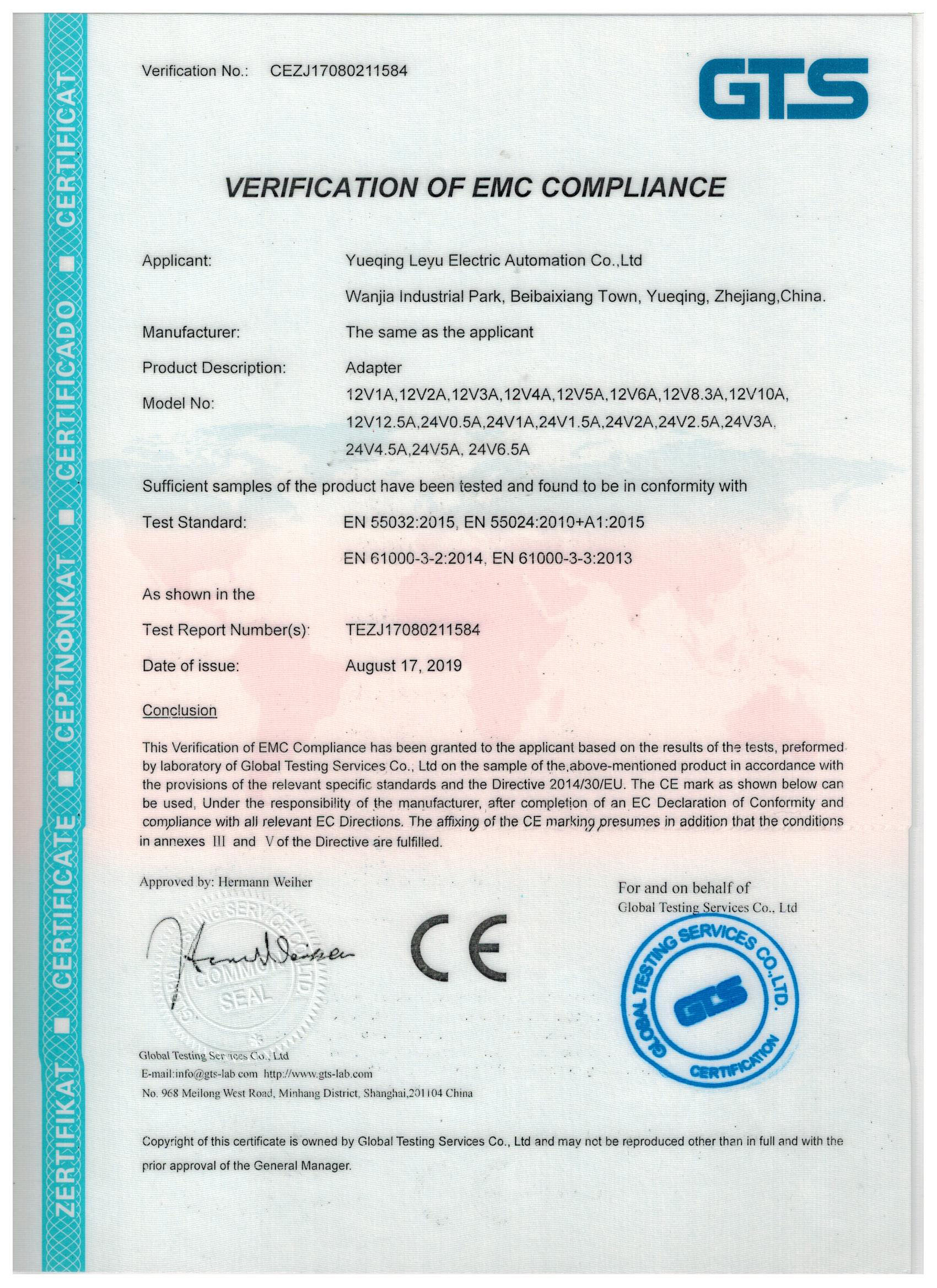

GTS

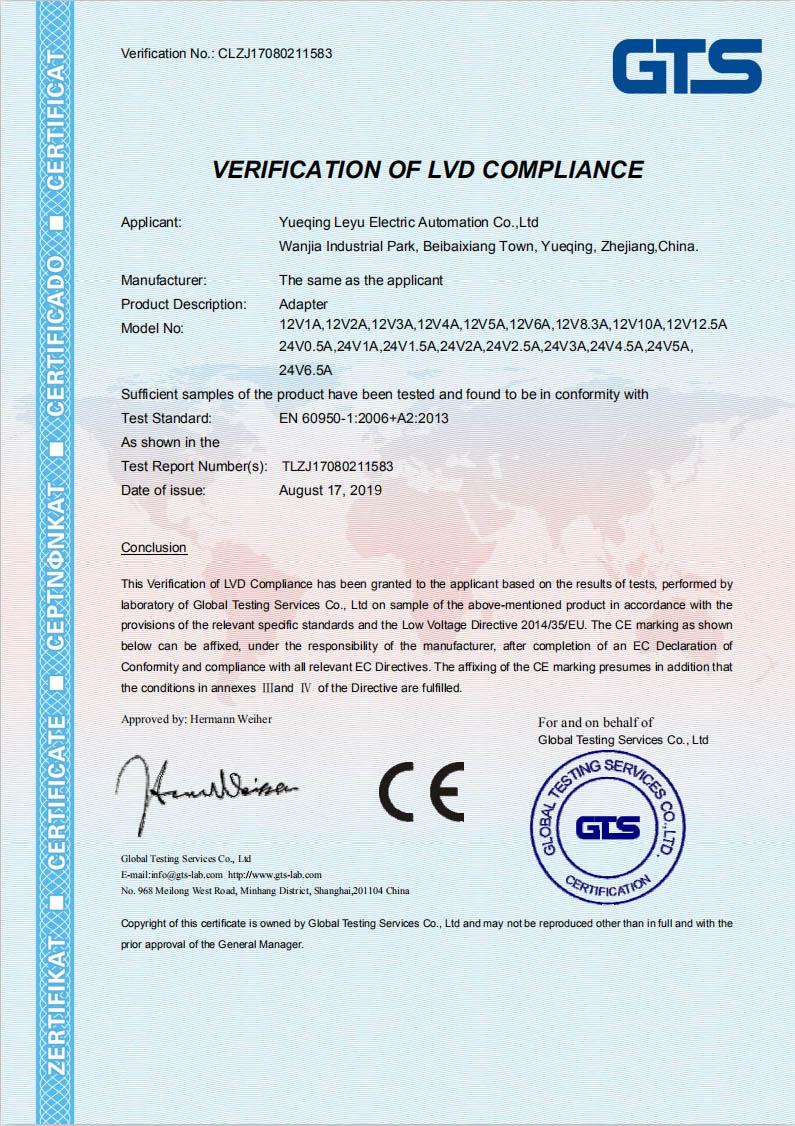

CE-Adapter

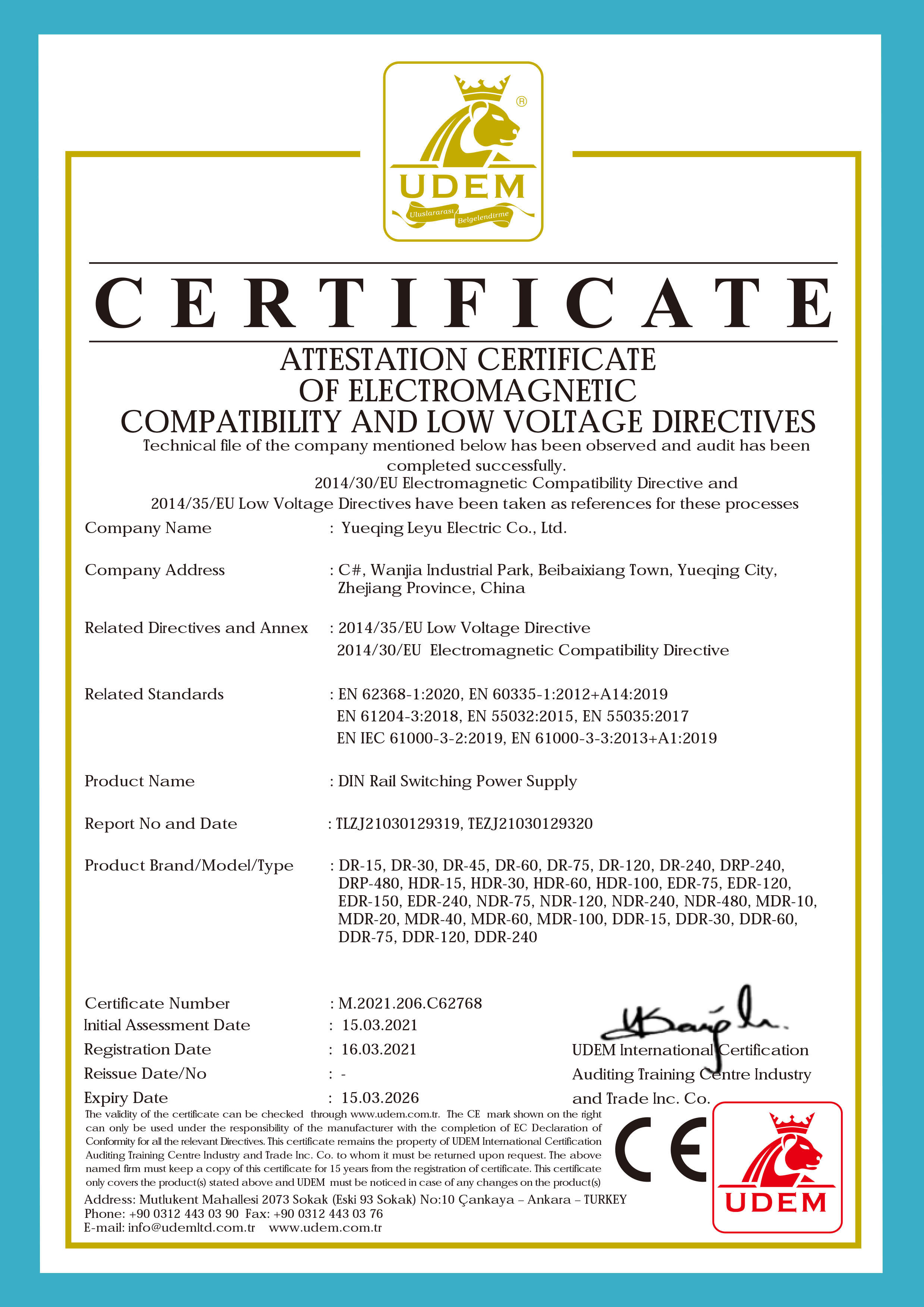

CE
