SD-50A-24
Leyu
| Availability: | |
|---|---|
| Quantity: | |

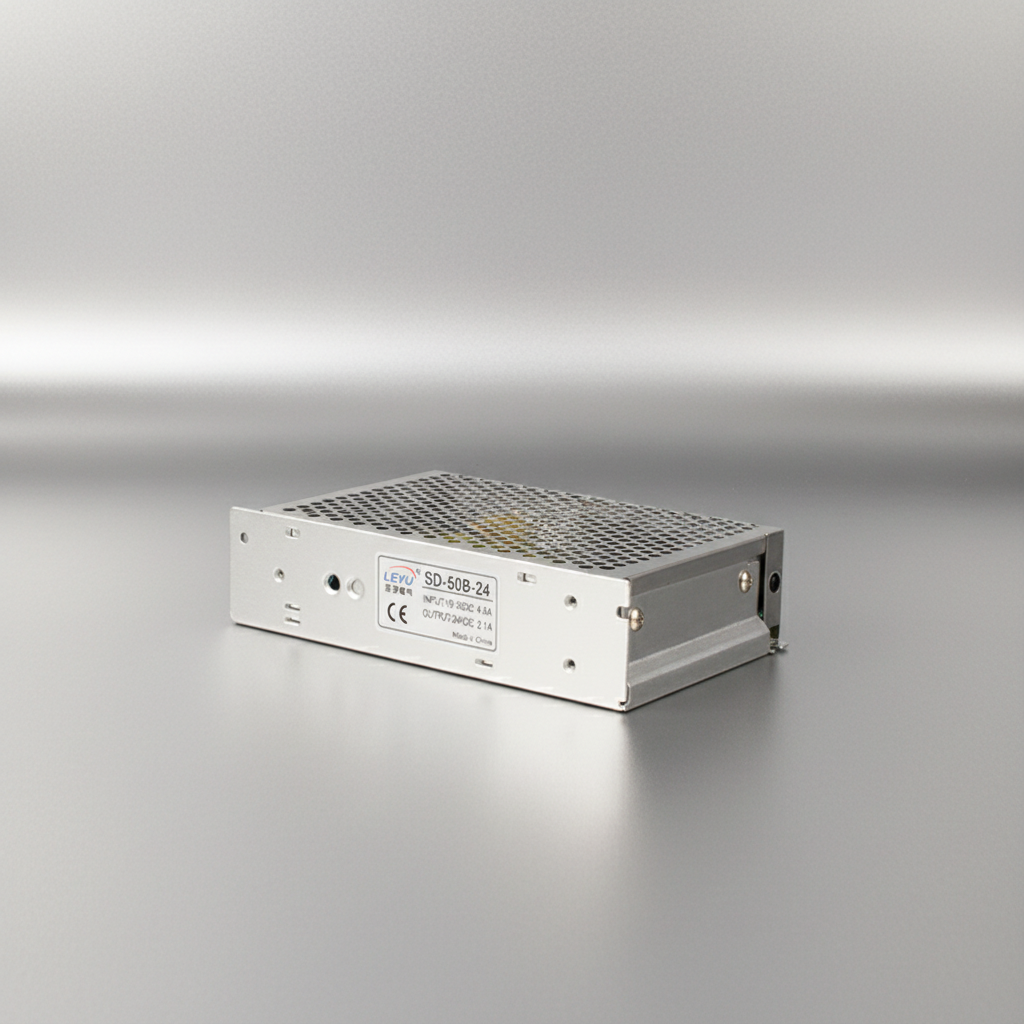

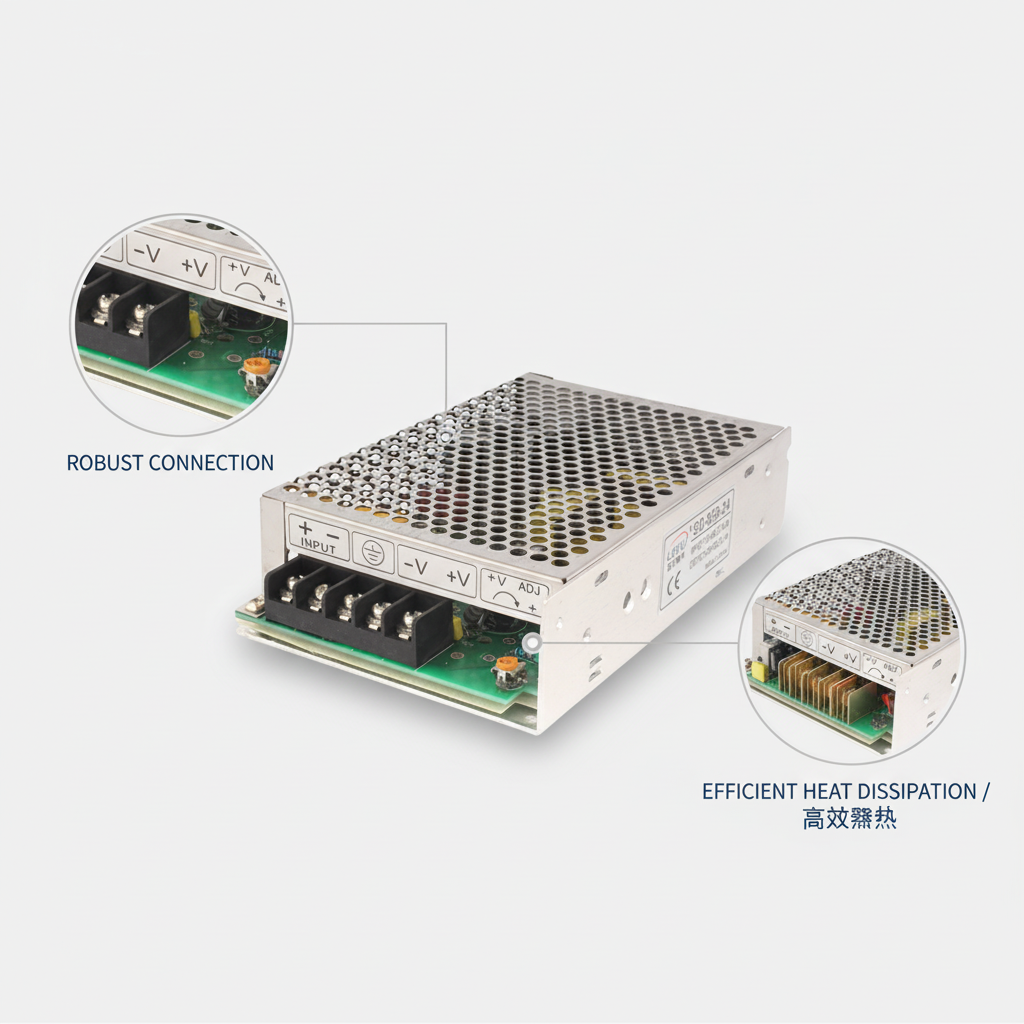

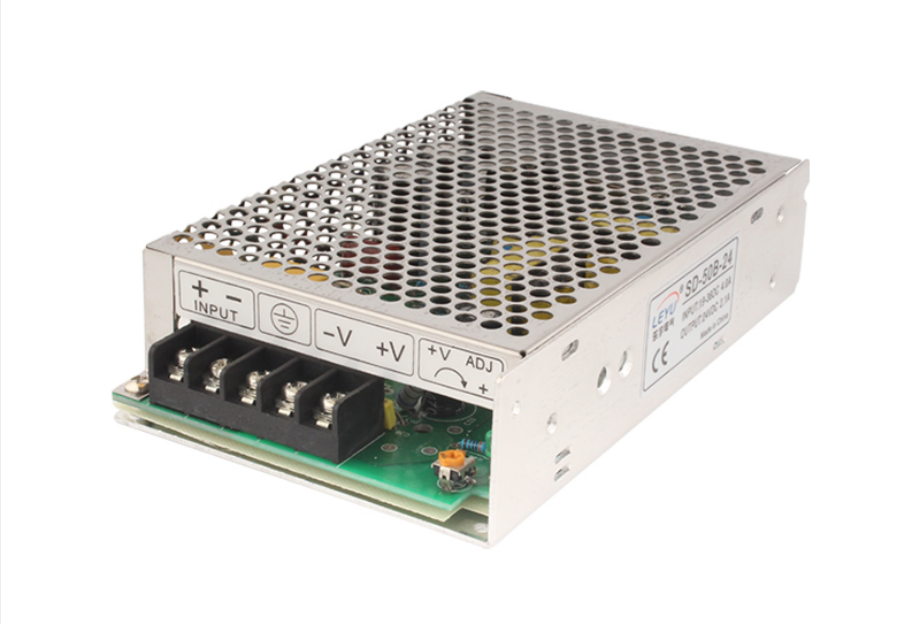

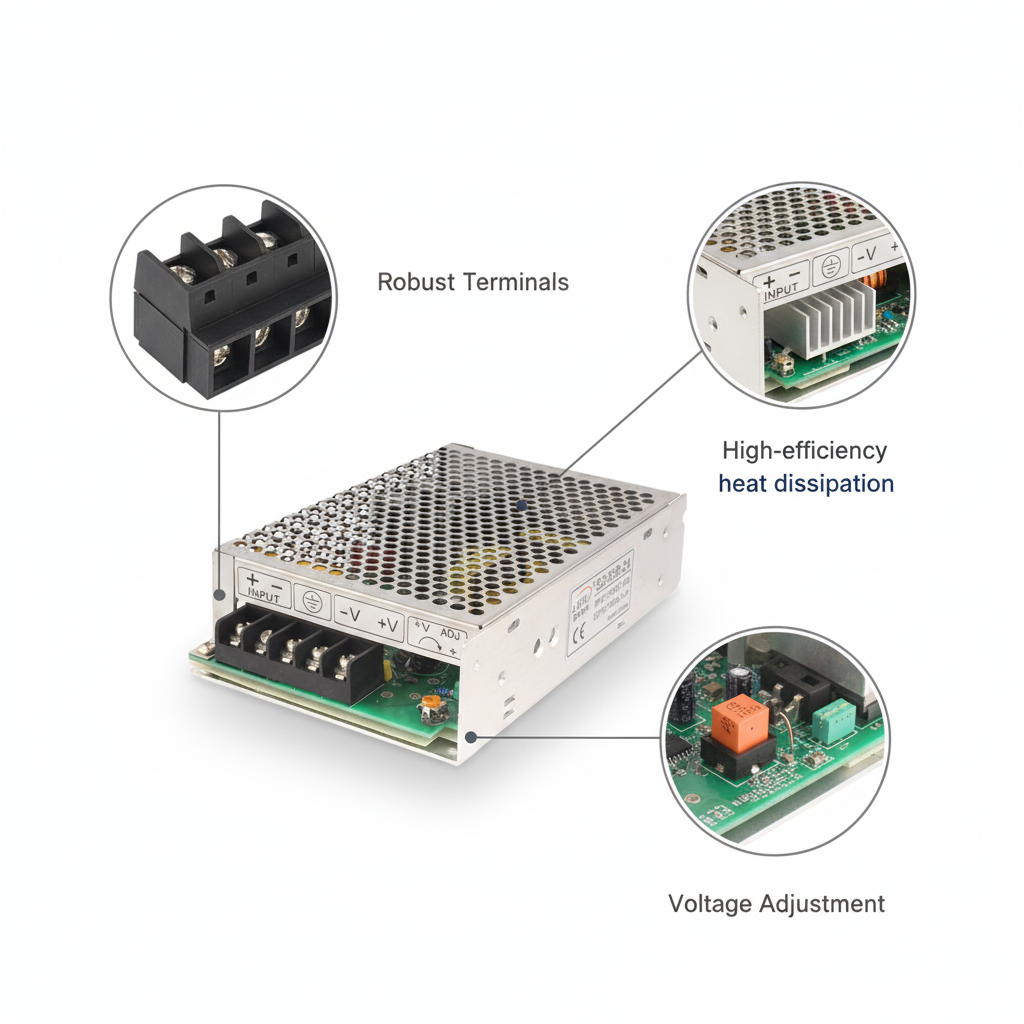

50W Single Output DC-DC Converter SD-50 series
The LEYU SD Series 50W DIN rail power supply delivers stable 24V DC output with 2.1A current, designed specifically for space-constrained industrial control panels. Featuring ultra-slim housing (just 30mm width) and standard 35mm DIN rail mounting, it provides reliable power for PLCs, sensors, HMIs, and other automation devices in demanding environments.
Ultra-compact dimensions: only 30mm width saves valuable panel space
Standard 35mm DIN rail mounting for quick installation and easy replacement
Low profile design allows more components in the same cabinet
Wide input voltage range: 85–264V AC (universal use worldwide)
Stable 24V DC output with 2.1A continuous current
Low ripple and noise: <50mVp-p ensures clean power for sensitive electronics
High efficiency up to 89% reduces energy loss and heat generation
2:1 wide input range
1500VAC I/O isolation
Built-in EMI filter, low ripple noise
100% full load burn-in test
Fixed switching frequency at 83 KHz
Low cost High reliability 2 years warranty
Short circuit protection – automatic recovery
Overload protection (105–150% rated output)
Over voltage protection (115–135% rated output)
Over temperature protection with automatic shut-off
100% full load burn-in test ensures quality and reliability
Q: Can this power supply be used in parallel for higher current?
A: The SD series is designed for single-unit operation. For higher current requirements, we recommend using a higher wattage model.
Q: Is there a DC OK signal for remote monitoring?
A: Yes, the green LED indicator shows DC OK status. For remote monitoring, please check our SDseries with relay output.
Q: What is the derating curve above 50°C?
A: The output current derates linearly from 100% at +50°C to 50% at +70°C .
Q: Does it support both AC and DC input?
A: Yes, it accepts both AC (85–264V) and DC (90–375V) input, making it versatile for different power systems .
10+ years experience in industrial power supply manufacturing
Strict quality control with 100% burn-in testing
Fast delivery from local stock
Technical support from experienced engineers
3-year warranty and long-term product availability

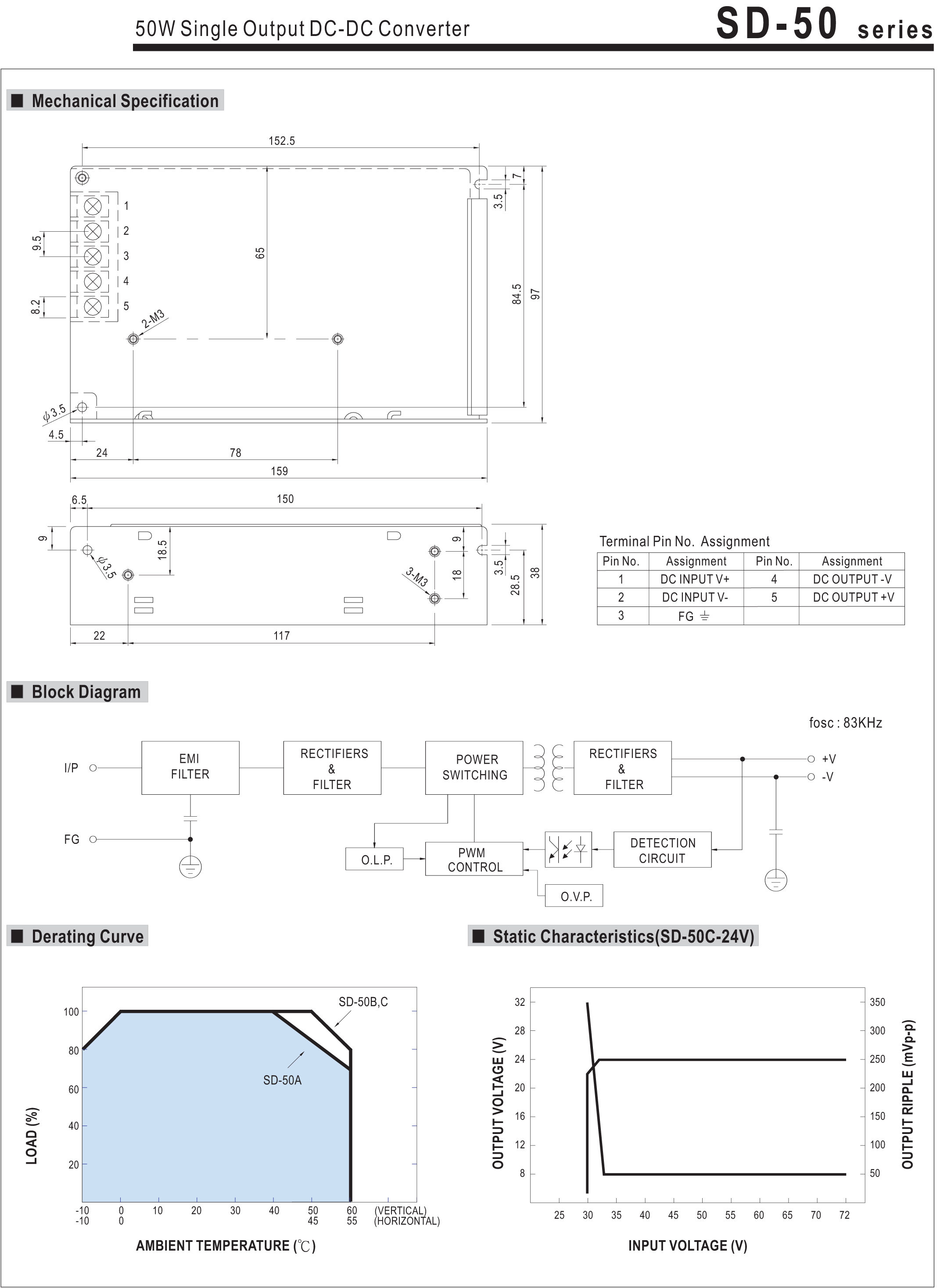

SPECIFICATION | |||||||||
OUTPUT | |||||||||
Model | SD-50A-5 | SD-50B-5 | SD-50C-5 | SD-50A-12 | SD-50B-12 | SD-50C-12 | SD-50A-24 | SD-50B-24 | SD-50C-24 |
DC Voltage | 5V | 12V | 24V | ||||||
Rated Current | 10A | 4.2A | 2.1A | ||||||
Current Range | 0~10A | 0~4.2A | 0~2.1A | ||||||
Rated Power | 50W | 50.4W | 50.4W | ||||||
Ripple & Noise | 100mVp-p | 120mVp-p | 150mVp-p | ||||||
Voltage Adj. Range | 4.5~5.5VDC | 11~16VDC | 23~30VDC | ||||||
Voltage Tolerance | ±2.0% | ±1.0% | ±1.0% | ||||||
Line Regulation | ±0.5% | ±0.3% | ±0.2% | ||||||
Load Regulation | ±0.5% | ±0.3% | ±0.2% | ||||||
Setup, Rise, Hold Up Time | 2.5s,50ms,------at full load | ||||||||
Voltage Range | A:9.2~18VDC B:19~36VDC C:36~72VDC | ||||||||
Efficiency | 70% | 73% | 76% | 72% | 75% | 78% | 74% | 80% | 83% |
DC Current | A:7A/12V | B:3A/24V | C:1.5A/48V | ||||||
Over Load | 105~150% rated output power | ||||||||
Protection type: Hiccup mode,recovers automatically after fault condition is removed | |||||||||
Over Voltage | 5.75~6.75V/10%load | 16.8~20V/10%load | 31.5~37.5V/10%load | ||||||
Protection type: Hiccup mode,recovers automatically after fault condition is removed | |||||||||
Working Temp. | -10~+60℃ (Refer to "Derating Curve") | ||||||||
Working Humidity | 20~90% RH non-condensing | ||||||||
Storage temp., Humidity | -20~+85℃ ,10~95%RH | ||||||||
Temp. Coefficient | ±0.03%/℃ (0~50℃) | ||||||||
Vibration | 10~500Hz,2G10min./1cycle,60min.each along X, Y,Z axes | ||||||||
Safety Standards | Design refer to LVD | ||||||||
Withstand Voltage | I/P-O/P:1.5KVAC I/P-FG:2.0KVAC O/P-FG:0.5KVAC | ||||||||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC /25℃ /70%RH | ||||||||
EMC Emission | Compliance to EN55022(CISPR22)Class B | ||||||||
EMC Immunity | Compliance to EN61000-4-2,3,4,6,8, EN55024, heavy industry level, criteria A | ||||||||
Dimension | 159*97*38mm(L*W*H) | ||||||||
Weight | 0.48Kg | ||||||||
Packing | 24pcs/12.7Kg/0.75CUFT | ||||||||
NOTE | |||||||||
1. All parameters NOT specially mentioned are measured at 12,24,48VDC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | |||||||||
