| Quantity: | |
|---|---|
MODEL | AD-155A | AD-155B | AD-155C | |||
OUTPUT | ||||||
Output number | CH1 | CH2 | CH1 | CH2 | CH1 | CH2 |
DC voltage | 13.8V | 13.3V | 27.6V | 27.1V | 54V | 53.5V |
Rated Current | 10.5A | 0.5A | 5A | 0.5A | 2.7A | 0.2A |
Current Range | 0~11.5A | 0-0.5A | 0~5.5A | 0-0.5A | 0-2.7A | 0-0.5A |
Rated Power | 151.55W | 151.55W | 156.5W | |||
Ripple & Noise | 150mVp-p | -------- | 150mVp-p | -------- | 240mVp-p | -------- |
Voltage Adj. Range | CH1:12~14.5V | CH1:24~29V | CH1:48-58V | |||
Voltage Tolerance | ±2.0% | -------- | ±1.0% | -------- | ±1.0% | -------- |
Line Regulation | ±0.5% | -------- | ±0.5% | -------- | ±0.5% | -------- |
Load Regulation | ±0.5% | -------- | ±0.5% | -------- | ±0.5% | -------- |
Setup, Rise Time | 1000ms, 90ms/230VAC 2000ms, 90ms/115VAC at full load | |||||
Hold Up Time | 24ms/230VAC 20ms/115VAC at full load | |||||
INPUT | ||||||
Voltage Range | 88~264VAC 47~63Hz; 124~370VDC | |||||
AC Current | 2.5A/115VAC 1.5A/230VAC | |||||
Efficiency | 80% | 84% | 84% | |||
Inrush Current | Cold start 20A/115VAC 40A/230VAC | |||||
Leakage Current | <1mA /240VAC | |||||
PROTECTION | ||||||
Over Load | CH1:105 ~ 135% CH2:0.51 ~ 0.9A rated output power | |||||
Protection type: AC Charging Mode: Hiccup mode, recovers automatically after fault condition is removed UPS Mode: Protected by internal fuse | ||||||
Over Voltage | CH1:15.87~18.63V | CH1:31.74~37.26V | CH1:62.1 ~ 72.9V | |||
Protection type:Shut down o/p voltage, re-power on to recover | ||||||
Battery Low | 10V±0.8V | 19.5V(+1.5V,-1V ) | 39V±2V | |||
ENVIRONMENT | ||||||

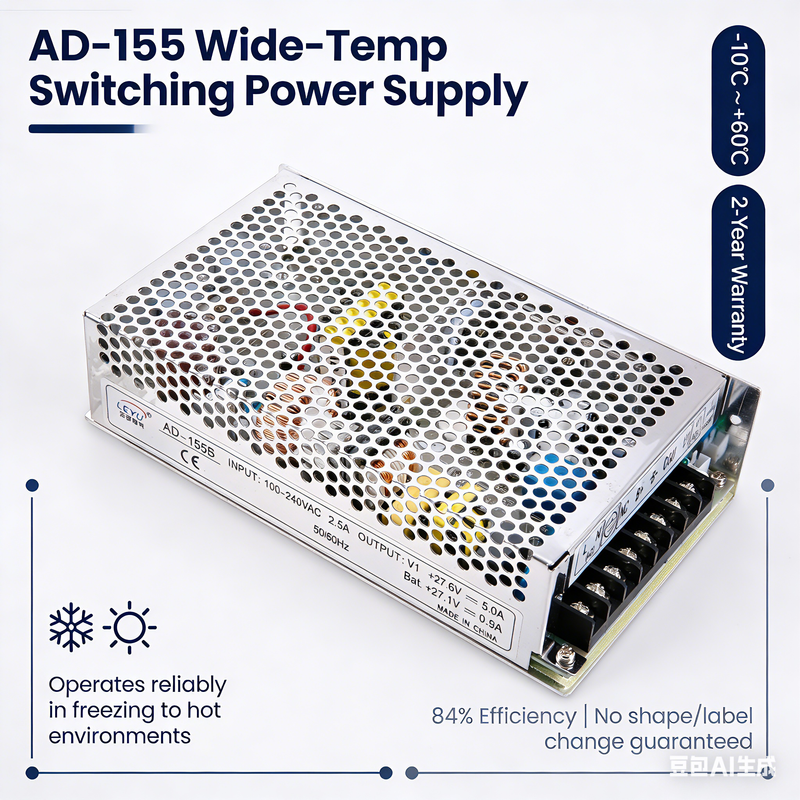

Working Temp. | -10~+60℃ (Refer to “Derating Curve”) | |||||
Working Humidity | 20~90%RH non-condensing | |||||
Storage Temp., Humidity | -20~+85℃,10~95%RH | |||||
Temp. Coefficient | ±0.03%/ ℃(0~50℃ ) | |||||
Vibration | 10~500Hz,2G10min./1cycle,60min.each along X, Y,Z axes | |||||
SAFETY &EMC | ||||||
Safety Standards | UL60950-1, TUV EN60950-1 | |||||
Withstand Voltage | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |||||
Isolation Resistance | I/P-O/P,I/P-FG,O/P-FG:100M Ohms/500VDC /25℃ /70%RH | |||||
EMC Emission | Compliance to EN55022(CISPR22) Class B, EN61000-3-2,-3 | |||||
EMC Immunity | Compliance to EN61000-4-2,3,4,5,6,8,11,EN55024,light industry level, criteria A | |||||
OTHERS | ||||||
Dimension | 199*110*50mm (L*W*H) | |||||
Weight | 0.88Kg | |||||
Packing | 16pcs/carton/15kg/0.95CUFT | |||||
NOTE | ||||||
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | ||||||

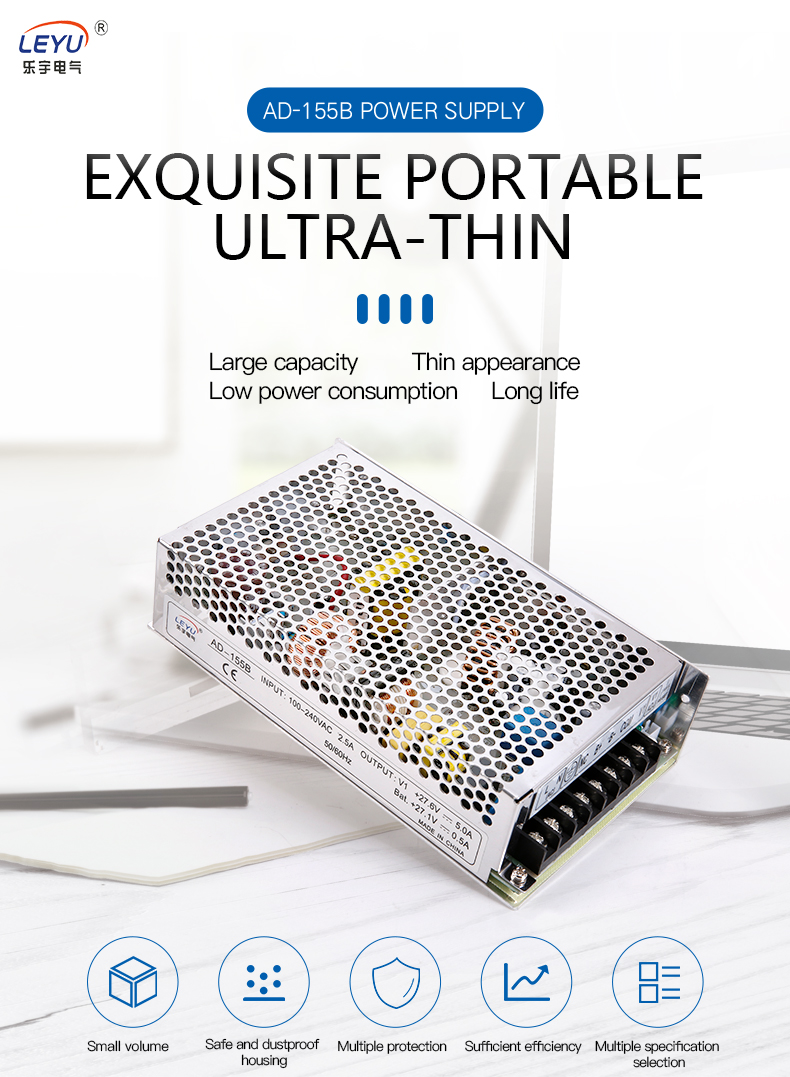

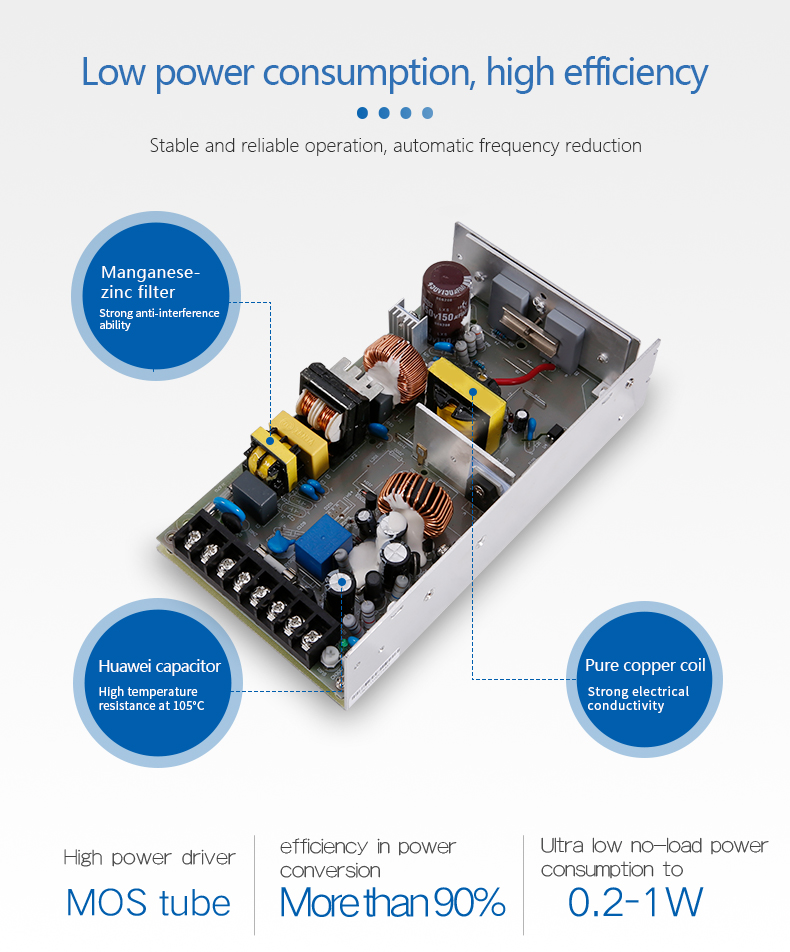

Leyu Electric (Yueqing Leyu Electric Automation Co., Ltd.) presents the AD-155 series, a switching power supply with a built‑in battery charger and UPS function. It is available in three models: AD‑155A, AD‑155B, and AD‑155C . The series comes in a metal case measuring 199×110×50mm and weighing 0.88kg, suitable for charging backup batteries while simultaneously powering loads.
Dual output design: CH1 is the main output (for load), CH2 is the float charge output (for lead‑acid battery) – both are electrically isolated.
Automatic UPS switchover: When AC input is present, the power supply powers both the load and the battery. When AC fails, the battery automatically discharges to the load through the CH1 circuit (external wiring required), achieving uninterrupted power supply.
Comprehensive battery protection: Features battery low voltage detection (AD‑155B threshold 19.5V±1.5V) and reverse polarity protection, preventing deep discharge or damage from incorrect connection.
Wide input voltage: 88‑264VAC or 124‑370VDC – worldwide compatible.

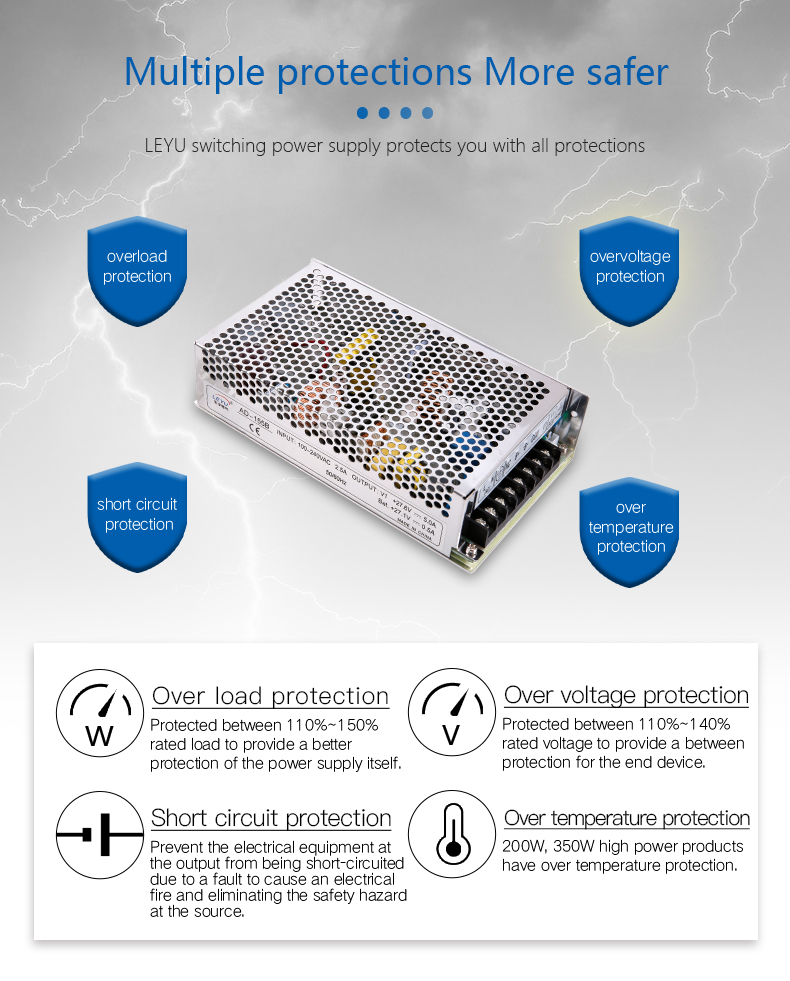

Protection functions: Short circuit, overload (main output 105‑135% hiccup mode; float charge output 0.51‑0.9A current limiting or fuse protection), overvoltage (main output 31.74‑37.26V, requires power cycle to recover).
100% full‑load burn‑in test, 2‑year warranty.
Integrated design: Combines an AC‑DC power supply and a battery charger in one unit – no external charging module needed, saving panel space and wiring costs.
True UPS functionality: Unlike a simple power supply + charger combination, the AD‑155 automatically switches to battery power when AC fails (with correct battery and load connection), keeping the system running continuously.
Matched float charge current: CH2 provides 0.5A or 0.2A constant‑voltage float charge, suitable for 7‑12Ah backup batteries (specific capacity depends on model selection).
Wide adjustable output voltage: Main output voltage can be adjusted via potentiometer (e.g., AD‑155B 24‑29V) to suit different battery charging requirements.
Full certifications: Compliant with UL60950‑1, TUV EN60950‑1, and EMC meeting Class B and light industrial immunity levels.
Security & surveillance systems (access control, alarm panels, camera backup power)
Industrial automation controllers (PLC, HMI, RTU backup power)
Communication base stations, small switch backup power
Medical equipment (portable instrument battery charging)
Smart home gateways, building automation systems
Q: Does the AD‑155 series require an external battery to operate?
A: No. The battery terminals can be left open; the power supply will still deliver the main output voltage. However, the UPS function only works when a battery is connected.
Q: How do I achieve automatic switchover to battery power during an AC failure?
A: Connect the load to the CH1 output terminals and the battery positive/negative to the BAT+/BAT- terminals. When AC fails, the internal circuit automatically switches the load to the battery (ensure the battery voltage range matches the CH1 rated voltage).
Q: What battery capacity is recommended?
A: 7‑12Ah lead‑acid batteries are recommended. The float charge current (0.5A or 0.2A) is safe for long‑term float charging without damaging the battery. Larger capacity batteries will increase charging time but are still safe.
Q: What happens if the battery is connected in reverse?
A: The product has built‑in reverse polarity protection. Connecting in reverse will not immediately damage the unit, but the power supply will not work properly. Correcting the polarity restores normal operation.
Q: How long is the warranty for the Leyu AD‑155 series?
A: 2 years from the date of manufacture. Non‑artificial faults are covered by free repair or replacement.
Download：
AD-155.doc
