20W IP67 Waterproof Switching Power Supply, encased in a durable, sealed plastic housing, this compact AC/DC power adapter is designed to withstand dust, moisture, and temporary immersion, making it the perfect solution for outdoor and industrial applications.
This versatile power supply unit (PSU) offers a user-selectable DC output, allowing you to choose the precise voltage required for your project from 5V,12V,15V, 24V, 36V.
SPECIFICATION | |||||
OUTPUT | |||||
Model | LPV-35-5 | LPV-35-12 | LPV-35-15 | LPV-35-24 | LPV-35-36 |
DC Voltage | 5V | 12V | 15V | 24V | 36V |
Rated Current | 5A | 3A | 2.4A | 1.5A | 1A |
Current Range | 0 ~ 6A | 0 ~ 3A | 0 ~ 2.4A | 0 ~ 1.5A | 0 ~ 1A |
Rated Power | 30W | 36W | 36W | 36W | 36W |
Ripple & Noise | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 150mVp-p |
Voltage Tolerance | ±6.0% | ±5.0% | |||
Line Regulation | ±1.0% | ||||
Load Regulation | ±4.0% | ±2.0% | |||
Setup, Rise Time | 500ms, 20ms/230VAC 500ms, 20ms/115VAC at full load | ||||
Hold Up Time | 50ms/230VAC 16ms/115VAC at full load | ||||
INPUT | |||||
Voltage Range | 90 ~ 264VAC 127 ~ 370VDC | ||||
Frequency Range | 47 ~ 63Hz | ||||
Efficiency | 77% | 84% | 84% | 85% | 85% |
AC Current | 1.1A/115VAC 0.57A/230VAC | ||||
Inrush Current | Cold Start 55A at 230VAC | ||||
Leakage Current | 0.25mA / 240VAC | ||||
PROTECTION | |||||
Over Load | 110 ~ 150% rated output power | ||||
Protection type: Hiccup mode, recovers automatically after fault condition is removed | |||||
Over Voltage | 5.75~6.75V | 13.8~16.2V | 17.25~20.25V | 27.6~32.4V | 41.4~48.6V |
Protection type: Shut down o/p voltage, re-power on to recover | |||||
ENVIRONMENT | |||||

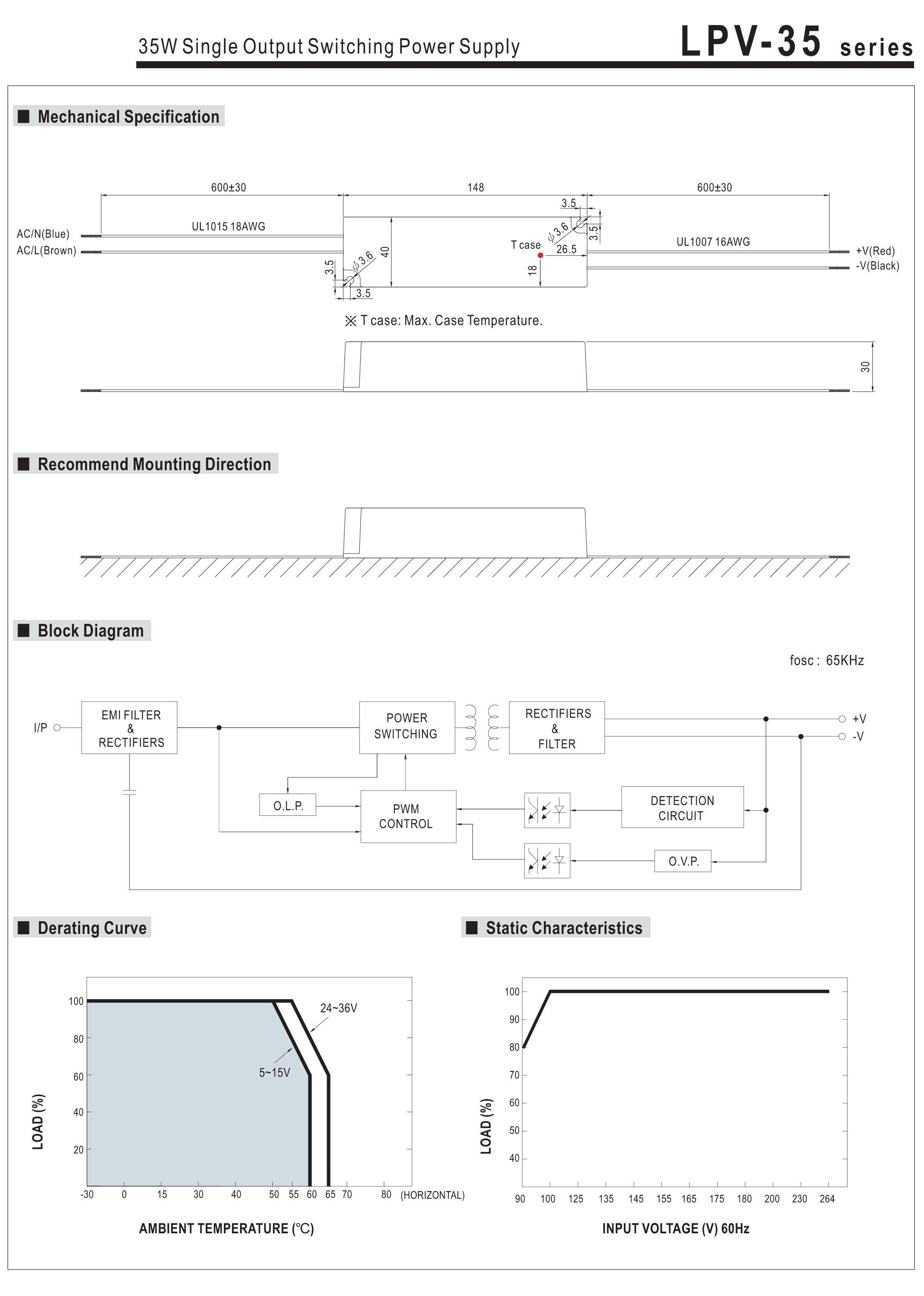

Working Temp. | -30 ~ +65℃ (Refer to “Derating Curve”) | ||||
Working Humidity | 20 ~ 90% RH non-condensing | ||||
Storage Temp., Humidity | -40 ~ +80℃, 10 ~ 95% RH | ||||
Temp. Coefficient | ±0.03%/℃ (0 ~ 45℃) | ||||
Vibration | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | ||||
SAFETY & EMC | |||||
Safety Standards | UL1310 class 2,CAN/CSA No.223-M91,CB IEC61347-2-13, IP67 approved, design refer to TUV EN60950-1 | ||||
Withstand Voltage | I/P-O/P:3KVAC | ||||
Isolation Resistance | I/P-O/P>100M Ohms / 500VDC / 25℃ / 70% RH | ||||
EMC Emission | Compliance to EN55022 (CISPR22) Class B, EN61000-3-2 Class A,EN61000-3-3 | ||||
EMC Immunity | Compliance to EN61000-4-2, 3, 4, 5, 6, 8,11, EN55024, light industry level, criteria A | ||||
OTHERS | |||||
Dimension | 148*40*30mm (L*W*H) | ||||
Weight | 0.34Kg | ||||
Packing | 40pcs/14.6Kg/0.63CUFT | ||||
NOTE | |||||
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. | |||||
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. | |||||
3. Tolerance: includes set up tolerance, line regulation and load regulation. | |||||
4.Derating may not be needed under low input voltage. Please check the static characteristics for more details. | |||||
Full Sealed IP67 Integrity: Every seam and connection is meticulously sealed, ensuring operation in wet and dusty environments.
Enhanced Thermal Management: Engineered with an optimized internal layout and component selection for efficient heat dissipation at 35W load, promoting stability and extending service life.
Wide Range Input Voltage: Supports AC 90-264V input, ensuring stable operation even in areas with unstable or fluctuating grid voltages.
Five-Channel Voltage Selection: User-selectable output via a durable rotary switch for 5V,12V, 15V, 24V, or 36V DC, offering exceptional flexibility for diverse equipment without needing multiple adapter models.
Advanced Safety & Stability Circuits: Incorporates full protections including Overload (OLP), Over Voltage (OVP), Short Circuit (SCP) to safeguard both the power supply and your valuable connected equipment.
Professional Security Setups: Multi-camera CCTV systems, PTZ cameras
Industrial Control & Automation: PLCs, HMI interfaces, motorized actuators
Outdoor Telecommunications: field communication terminals.
Commercial LED Installations: outdoor LED displays, illuminated signage, and architectural lighting strips.
This 35W power supply bridges the gap between standard adapters and heavy-duty industrial units. It combines the convenience of a compact, sealed adapter with the robust performance needed for critical applications. By integrating superior protection, flexible voltage output, and a design focused on longevity, it reduces maintenance costs and system downtime, delivering outstanding total cost of ownership.
We support multidimensional customization, including but not limited to:
Electrical parameter adjustment: Input/output voltage specifications can be adjusted within a certain power range to meet the grid requirements of specific regions or the special voltage/current needs of equipment.
Mechanical structure and interface customization:
Enclosure and labeling: We can provide your brand logo and customized model labels.
Connection method: Customize the length and gauge of output cables according to your installation habits, or replace them with more suitable waterproof connectors.
Packaging and delivery: Product packaging can be customized according to your requirements, support mixed shipments, and provide private label packaging services.
Q:Can it output two different voltages at the same time?
A: No. This is a single-output power supply. The voltage selection switch can only select one fixed voltage (such as 24V) for output. If multiple different voltages are needed, multiple power supplies are required.
Q: If my application scenario is very special, how can I confirm whether this power supply is suitable?
A: We have a professional technical support team. Before purchasing, please provide us with the details of your specific application environment (temperature, humidity, vibration, etc.), the detailed parameters of the load equipment, and any special requirements. We will provide you with a one-on-one suitability assessment and selection advice.
Q: What is the warranty period for the product? What does the warranty cover?
A: We provide a 2-year warranty for this industrial-grade power supply. Issues caused by improper installation, overuse, physical damage, etc., are not covered under the warranty.
Q: Can I purchase samples for testing? What is the sample policy?
A: Of course. We encourage customers to test samples before placing bulk orders. We offer a sample service, typically allowing the purchase of 1-3 units per sample order. Samples enjoy the same quality assurance as bulk orders. For sample prices, shipping costs, and delivery times, please contact our sales team directly.
Q: What is the minimum order quantity (MOQ) for this power supply?
A: We offer flexible cooperation options. The MOQ for standard products is usually 10 units, but it can be negotiated and adjusted for different models, custom requirements, or long-term cooperation agreements. Please feel free to contact us for an accurate quote and minimum order information tailored to your needs.
