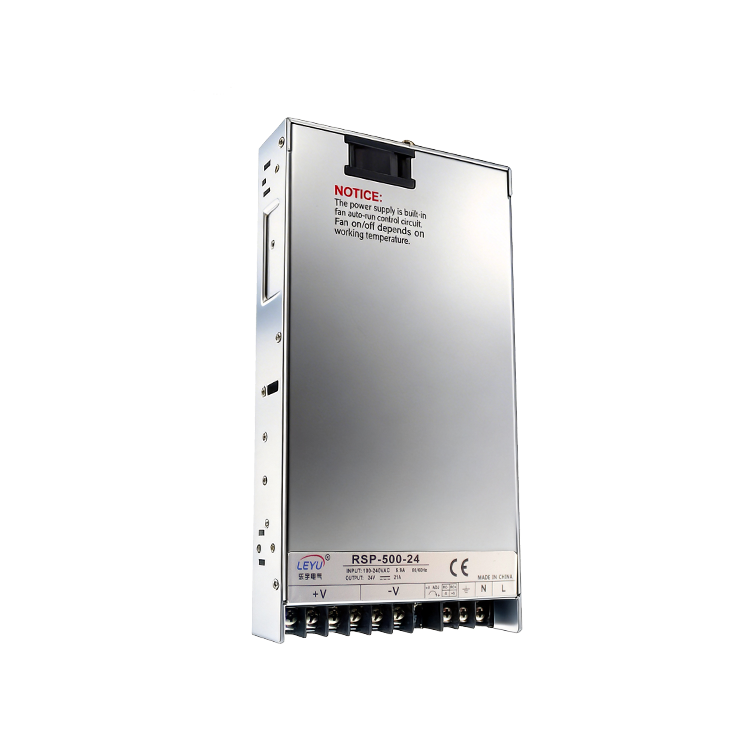

500W Single Output with PFC Function Power Supply RSP-500 12v 24v 48v Adjustable

OUTPUT

DC VOLTAGE

3.3V

4V

5V

12V

15V

24V

27V

48V

RATED CURRENT

90A

90A

90A

41.7A

33.4A

21A

18.6A

10.5A

CURRENT RANGE

0~90A

0~90A

0~90A

0~41.7A

0~33.4A

0~21A

0~18.6A

0~10.5A

RATED POWER

297W

360W

450W

500.4W

501W

504W

502.2W

504W

RIPPLE & NOISE (max.)

120mVp-p

120mVp-p

150mVp-p

150mVp-p

150mVp-p

150mVp-p

150mVp-p

150mVp-p

VOLTAGE ADJ. RANGE

2.8~3.6V

3.6~4.3V

4.5~5.5V

10~13.2V

13.5~18V

20~26.4V

26~30V

41~56V

VOLTAGE TOLERANCE

±2.0%

±2.0%

±2.0%

±1.0%

±1.0%

±1.0%

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.5%

±0.5%

±0.3%

±0.3%

±0.2%

±0.2%

±0.2%

LOAD REGULATION

±1.0%

±1.0%

±1.0%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

SETUP, RISE TIME

1500ms, 80ms/230VAC 3000ms, 80ms/115VAC at full load

HOLD UP TIME

18ms/230VAC 14ms/115VAC at full load

INPUT

VOLTAGE RANGE

85~264VAC 120~370VDC

FREQUENCY RANGE

47~63Hz

POWER FACTOR

PF>0.95/230VAC PF>0.98/115VAC at full load

EFFICIENCY

81%

83%

84%

88%

88%

89%

89.5%

90.5%

AC CURRENT

4.2A/115VAC 2.1A/230VAC 5.3A/115VAC 2.65A/230VAC

INRUSH CURRENT

20A/115VAC 40A/230VAC

LEAKAGE CURRENT

<2mA/240VAC

PROTECTION

OVER LOAD

105~130% rated output power

Protection type: Constant current limiting, recovers automatically after fault condition is removed

OVER VOLTAGE

3.8~4.5V

4.5~5.3V

5.75~6.75V

13.8~16.2V

18.8~21.8V

27.6~32.4V

32.9~38.3V

58.4~68V

Protection type: Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

Shut down o/p voltage, recovers automatically after temperature goes down

FUNCTION

REMOTE CONTROL

POWER ON:open or 0~0.8VDC between RC+(Pin 4)&RC-(Pin3) on CN100

POWER OFF:4~10VDC between RC+(Pin 4)&RC-(Pin3) on CN100

REMOTE SENSE

Compensate voltage drop on the load wiring up to 0.3V

FAN CONTROL

RTH2±50°C±10°C Fan on; RTH2±40°C±10°C Fan off (Fan always on for 3.3~5V,Fan ON/OFF control for 12~48V)

ENVIRONMENT

WORKING TEMP.

-30~+70°C (Refer to "Derating Curve")

WORKING HUMIDITY

20~90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40~+85°C, 10~95% RH

TEMP. COEFFICIENT

±0.03%/°C (0~50°C)

VIBRATION

10~500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS

UL62368-1, TUV EN62368-1, EAC TP TC 004, CCC GB4943.1, BSMI CNS14336-1approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH

EMC EMISSION

Compliance to EN55032 (CISPR32) Class B, EN61000-3-2,3, EAC TP TC 020,GB/T 9254, CNS13438 Class B

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2, criteria A, EAC TP TC 020

OTHERS

MTBF

187.7K hrs min. MIL-HDBK-217F (25°C)

DIMENSION

230*127*40.5mm (L"W"H)

PACKING

1.3Kg; 9pcs/12.7Kg/0.7CUFT

NOTE:
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the derating curve for more details.
5. Fan always on for 3.3~5V, Fan ON/OFF control for 12~48V.
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies."
7. The ambient temperature derating of 3.5°C/1000m with fanless models and of 5°C/1000m with fan models for operating altitude higher than 2000m(6500ft).
