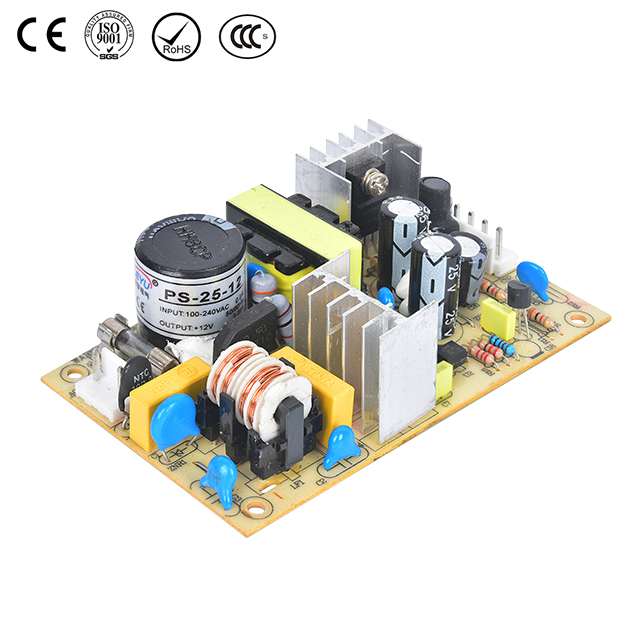

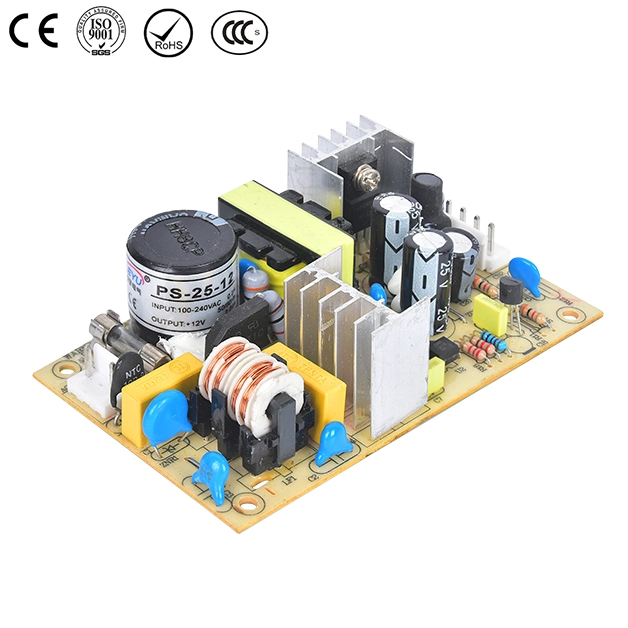

Open Frame Single Output 25W Power Supply Module Board Switch AC-DC for Industrial Control

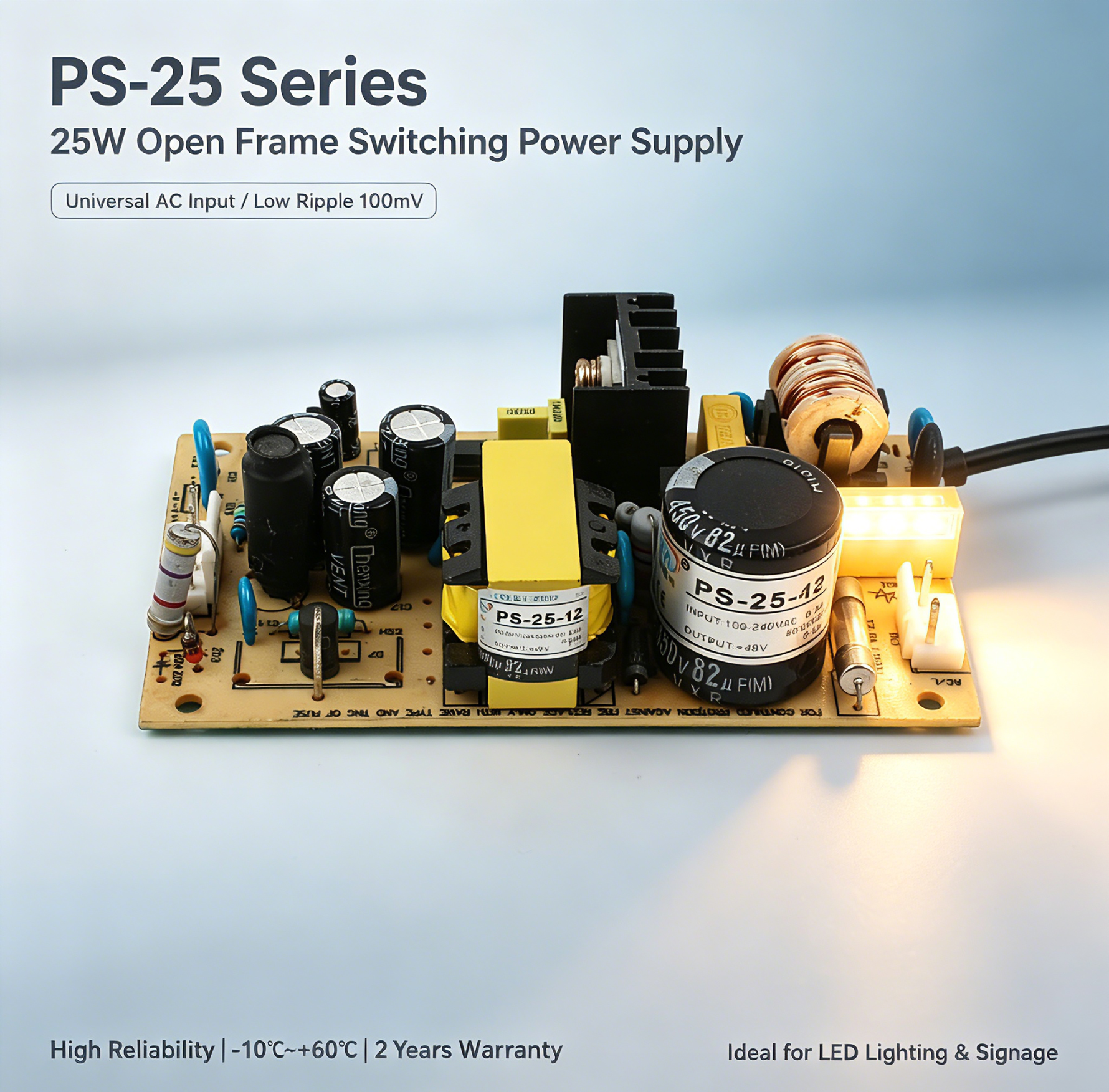

25W Single Output Open Frame Switching Power Supply

MODEL	PS-25-5	PS-25-12	PS-25-15	PS-25-24
OUTPUT
DC Voltage	5V	12V	15V	24V
Rated Current	5A	2.1A	1.7A	1A
Rated Power	25W	25.2W	25.5W	24W
Ripple & Noise	80mV	100mV	100mV	240mV
Voltage Tolerance	±2%	±2%	±2%	±2%
Line regulation	±0.5%	±0.3%	±0.3%	±0.2%
Load regulation	±2%	±1%	±1%	±0.5%
Setup, Rise Time	200ms,20ms/230VAC    200ms,30ms/115VAC at full load
Hold Up Time	100ms/230VAC        20ms/115VAC at full load
INPUT

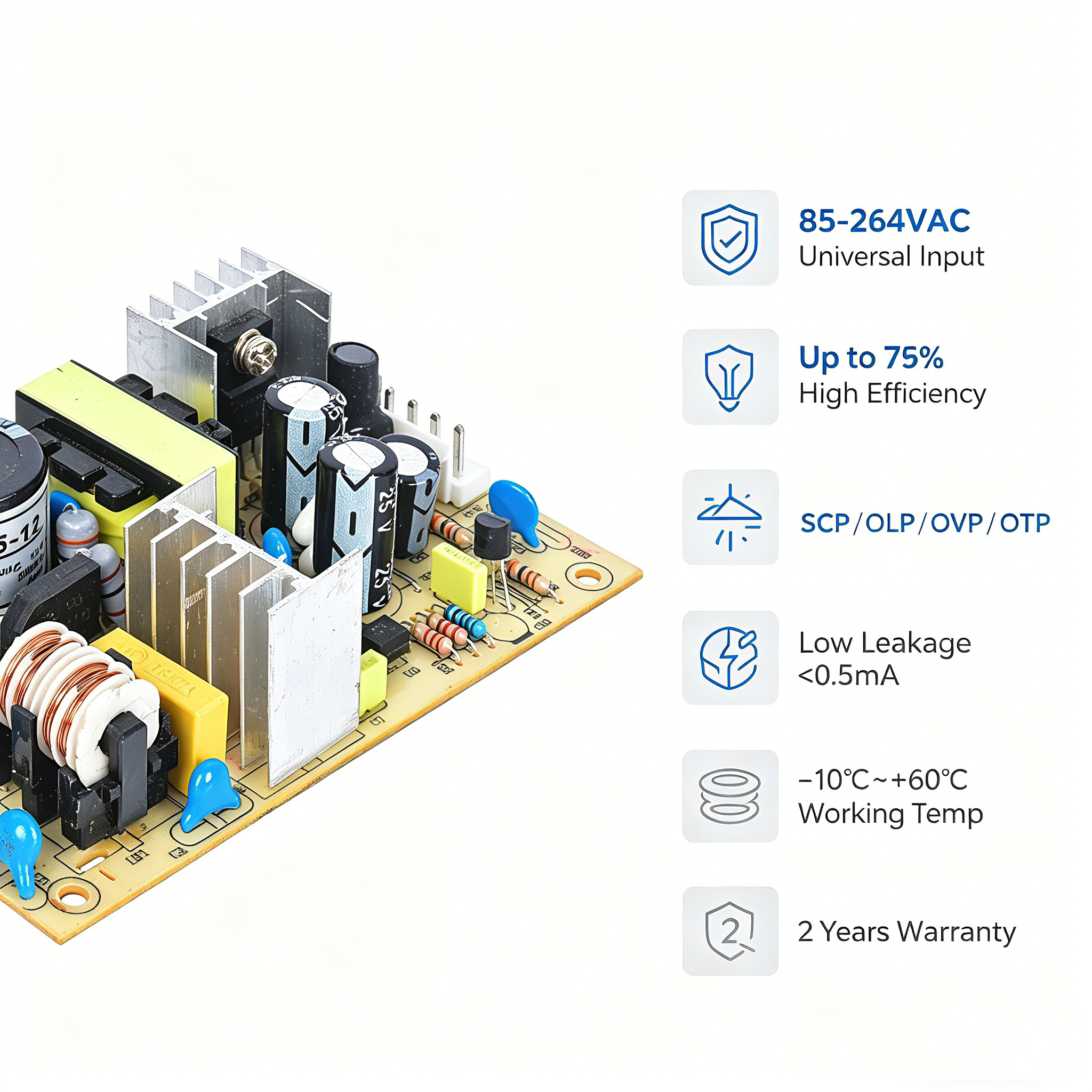

Voltage Range	85-264VAC   47-63Hz; 120-370VDC
Efficiency	74%	78%	78%	79%
Inrush Current	Cold-start current 36A
Leakage current	<0.5mA/240VAC

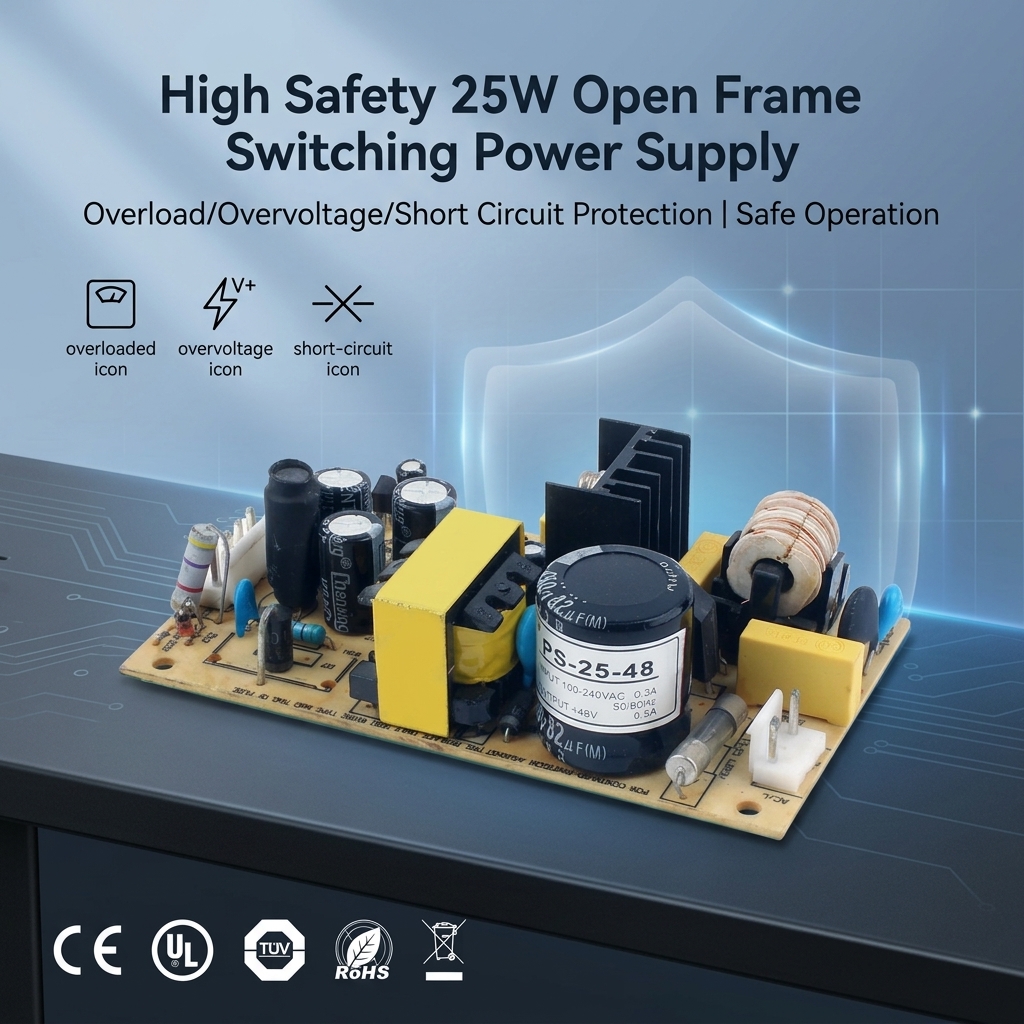

PROTECTION
Over Load	Above 105% rated output power
	Protection type: hiccup mode, recovery automatically after fault condition is removed
ENVIRONMENT
Working Temp., Humidity	-10℃~+60℃; 20%~90% RH
Vibration	10~500Hz,2G 10min,/1cycle,Period for 60min,Each X, Y, Z axes
SAFETY
Withstand Voltage	I/P-O/P: 3KVAC   I/P-FG: 2KVAC   O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/70% RH
STANDARD
Safety Standard	Meet UL60950-1.TUV EN60950-1 approved
EMC Standard	EN5022 CLASS B EN61000-3-2-3, EN61000-4-2.3.4.5, light industry level criteria A
OTHERS

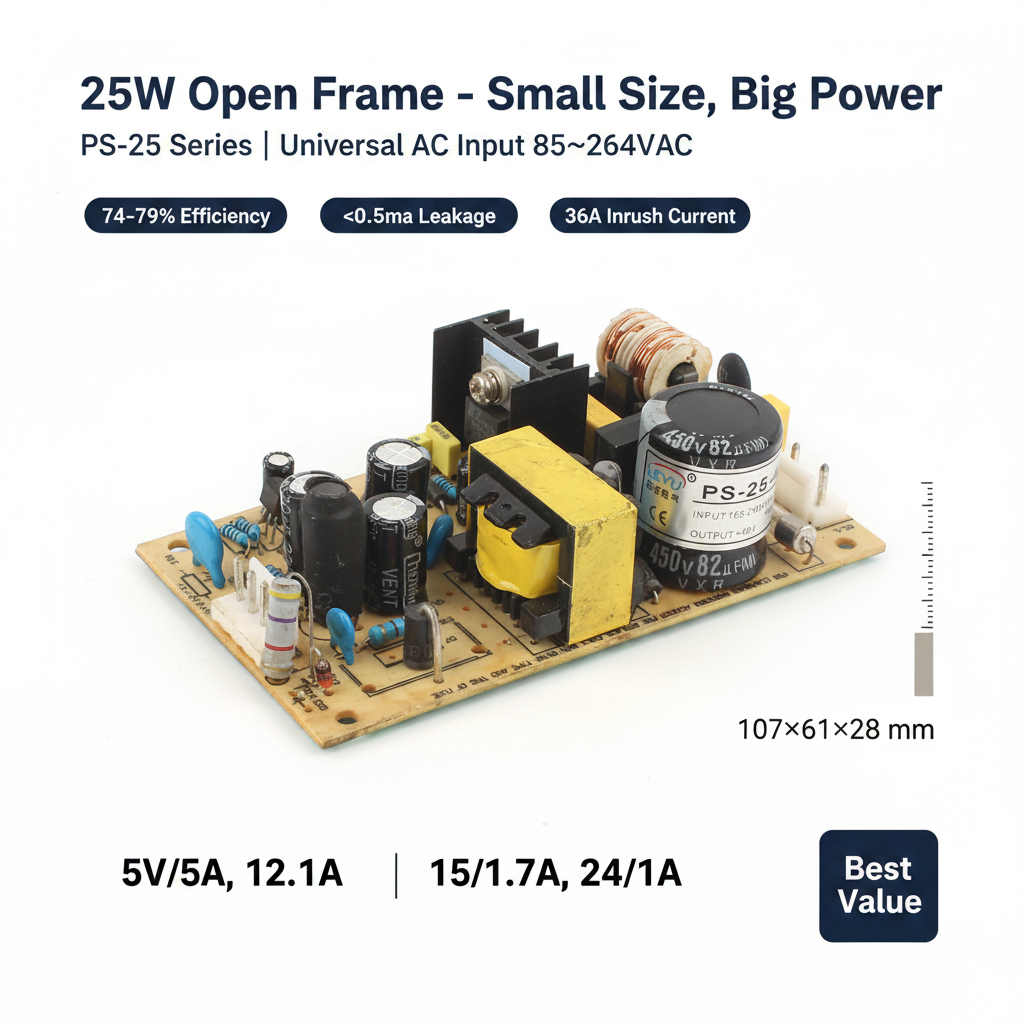

Dimension	107*61*28mm(L*W*H)
Weight	0.14kg
Packing	96PCS/15Kg/1.3CUFT

Product Overview

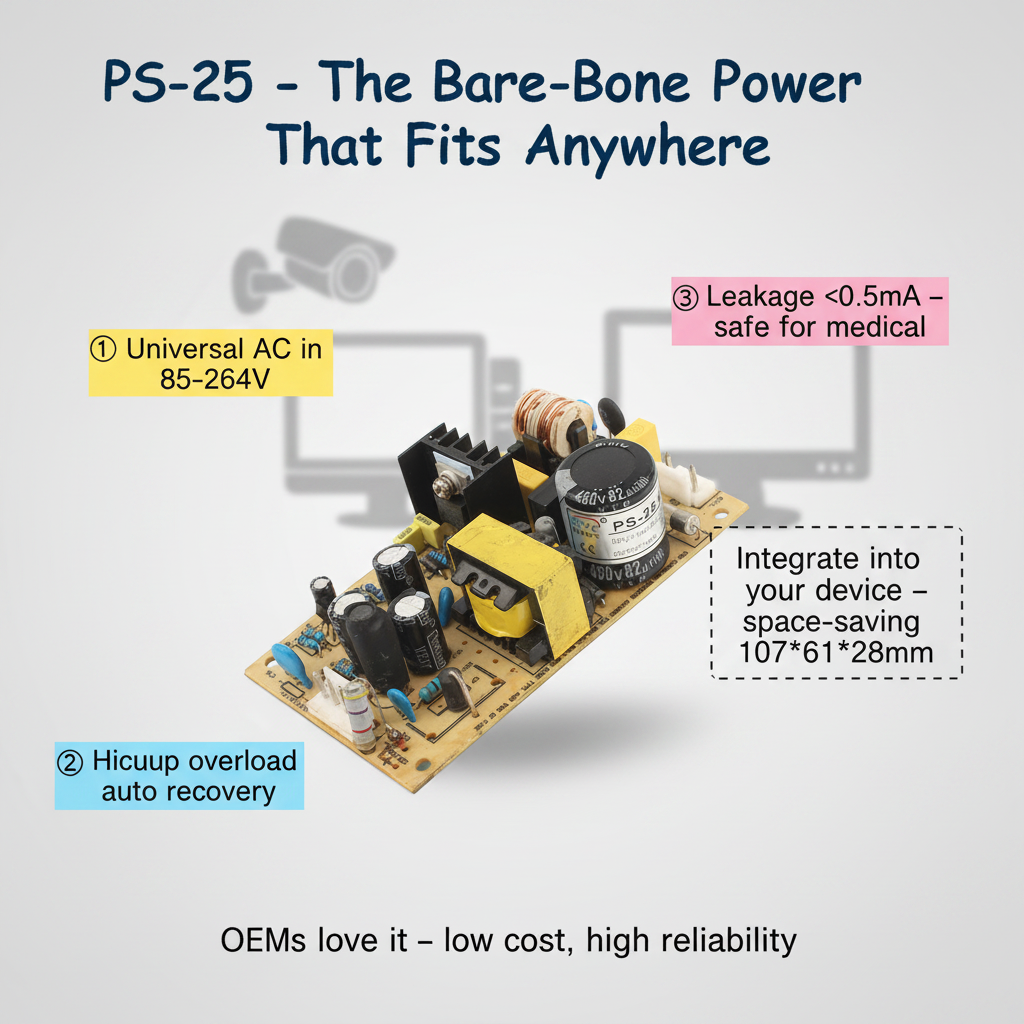

This 25W open-frame switching power supply is a high-performance, single-output PCB-mounted power solution designed for embedded applications. Its compact chassis-mount design with no external enclosure makes it a choice for reliable power within devices. Four different industry-standard DC outputs are available—5V, 12V, 15V, or 24V—to perfectly match your specific project requirements.

Features

Open-frame design: Uses a shell-less structure to minimize space occupation and promote heat dissipation.

Four output options: Four commonly used voltage models (5V, 12V, 15V, 24V) to meet a wide range of application needs.

Overload Protection (OLP): 150% rated output power, hiccup mode, recovery automatically after fault condition is removed

Application

Industrial Automation: As a control circuit power supply.

LED Lighting: Driving LED strips and signs (especially 12V and 24V models).

Telecommunications: Powering routers, switches, and communication devices.

Consumer Electronics: Internal power supply for audio amplifiers, portable chargers, and electronic instruments.

Why Choose LEYU?

Certification Quality: Complies with CE and RoHS standards, ensuring safety and environmental protection.

Long-term Warranty: Enjoy the peace of mind with the standard 2-year warranty.

OEM/ODM Support: We provide customized services for bulk orders. Please contact us to meet your specific needs.

In-stock Supply: Samples are available for testing. Wholesale orders are safely shipped in standard export cartons.

Order Information

To place an order, please select the required model according to the output voltage. For bulk purchases or customized voltage requirements, please contact the sales team.

Contact us today to get the wholesale price list or request samples!
