| Quantity: | |
|---|---|
| Model | ZDR-150-12 | ZDR-150-15 | ZDR-150-24 | ZDR-150-36 | ZDR-150-48 | |
| Dc output voltage | 12V | 15V | 24V | 36V | 48V | |
| Rated current | 115 VAC | 10.2A | 8.5A | 5.3A | 3.6A | 2.7A |
| 230 VAC | 11.3A | 9.5A | 6.2A | 4.2A | 3.2A | |
| Current range | 0-11.3A | 0-9.5A | 0-6.2A | 0-4.2A | 0-3.2A | |
| Rated power | 115 VAC | 120W | 125W | 125W | 125W | 130W |
| 230 VAC | 135W | 142W | 150W | 150W | 150W | |
| Ripple & Noise (Max) | 150mVp-p | 150mVp-p | 200mVp-p | 220mVp-p | 240mVp-p | |
| Voltage regulation range | 10.9-13.2V | 13.6-16.5V | 21.8-26.4V | 32.7-39.6V | 43.6-52.8V | |
| Voltage accuracy | ±1% | ±1% | ±1% | ±1% | ±1% | |
| Linear adjustment rate | ±1% | ±1% | ±1% | ±1% | ±1% | |
| Load adjustment rate | ±1% | ±1% | ±1% | ±1% | ±1% | |
| Start & rise time | 2000mS，30mS/115VAC(Full load）；1000mS，30mS/230VAC | |||||
| Holding time | 30mS/230VAC(Full load）10mS/115VAC(Full load） | |||||
| Input voltage | 85-264VAC 120-370VDC | |||||
| Input frequency | 47-63Hz | |||||
| efficiency | 87% | 87% | 88% | 88% | 88% | |
| Input current | 3A/115VAC1.6A/230VAC | |||||
| Power factor | 0.65/230VAC(Full load） | |||||
| Inrush current | 70A/230VAC（Cold start） | |||||
| Leakage current | ||||||
| Overload protection | 110%-150% of rated power | |||||
| Protection mode: hiccup protection, automatically recovered after abnormal conditions are removed | ||||||
| Over-current protection | 110%-150% of the rated current | |||||
| Protection mode: hiccup protection, automatically recovered after abnormal conditions are removed | ||||||
| Short circuit protection | Output positive negative short circuit | |||||
| Protection mode: hiccup protection, automatically recovered after abnormal conditions are removed | ||||||
| Operating temperature | -30℃~70℃ (refer to derating curve) | |||||
| Working humidity | 20~90%RH no condensation | |||||
| Store temperature/humidity | -40℃ to 85℃10~95%RH, no condensation | |||||
| Vibration resistance | 10~500HZ, 5G10 minutes/cycle,X, Y, Z 60 minutes each | |||||
| Withstand voltage | Input to output :800VAC | |||||
| Insulation impedance | Input to output :100MOhms/500VDC/25℃/70%RH | |||||
| Safety specification | ||||||
| Product size | 50*90*54.5mm（W*H*D） | |||||
| package | 0.327kg/pcs | |||||
| Note | 1. All parameters are measured at 230VAC voltage input, rated load and 25℃ when not specified. 2. Ripple and noise voltage is measured at 20MHz bandwidth oscilloscope with 12-inch twisted pair end with 0.1μ and 47μ capacitance, and measured at 20MHZ bandwidth. 3. Accuracy: including setting error, linear adjustment rate and load adjustment rate. 4. If the input voltage is low, the output needs to be derated. For details, see the static characteristic diagram. 5. The starting time is measured when the cold machine is started, and frequent switching of the machine may increase the starting time. | |||||

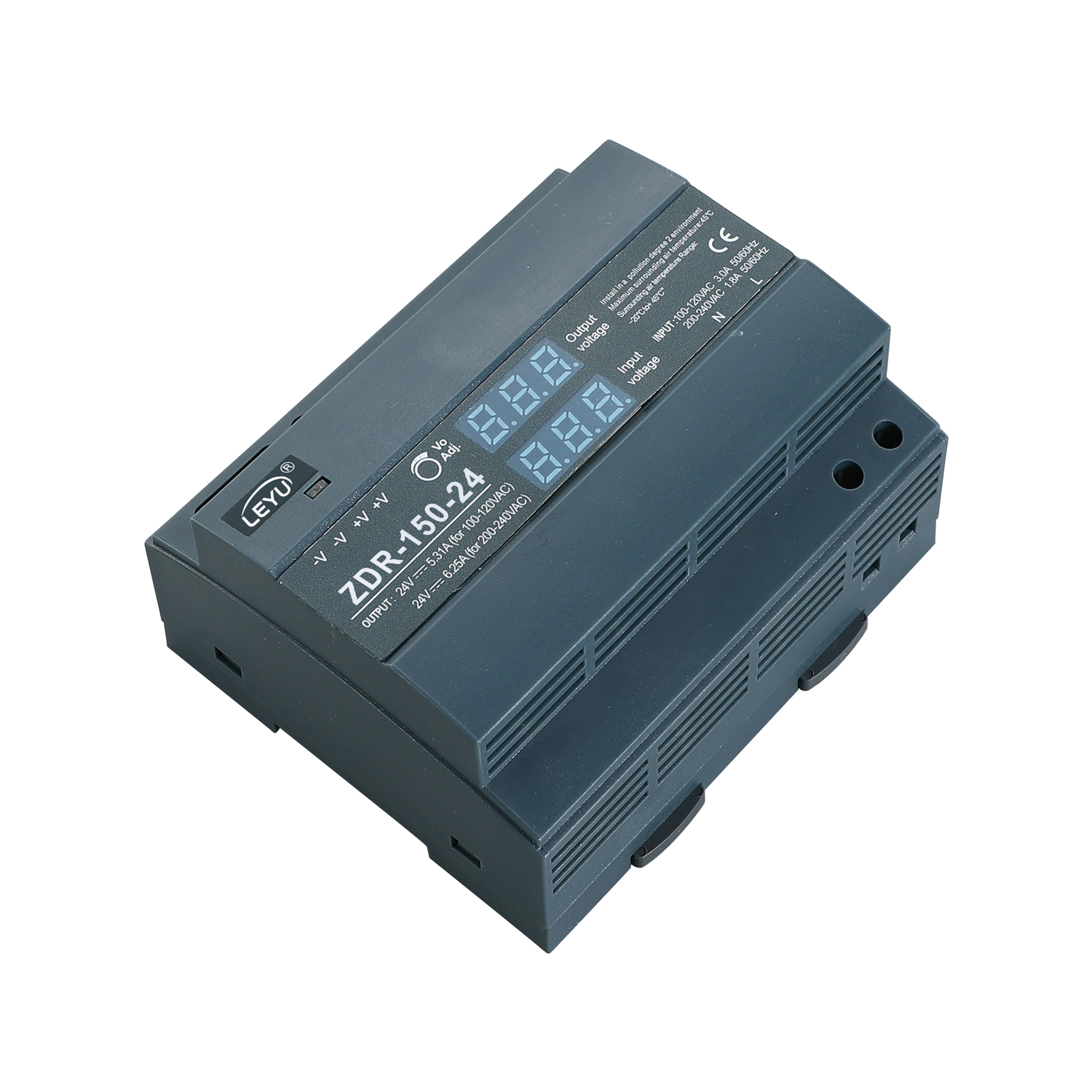

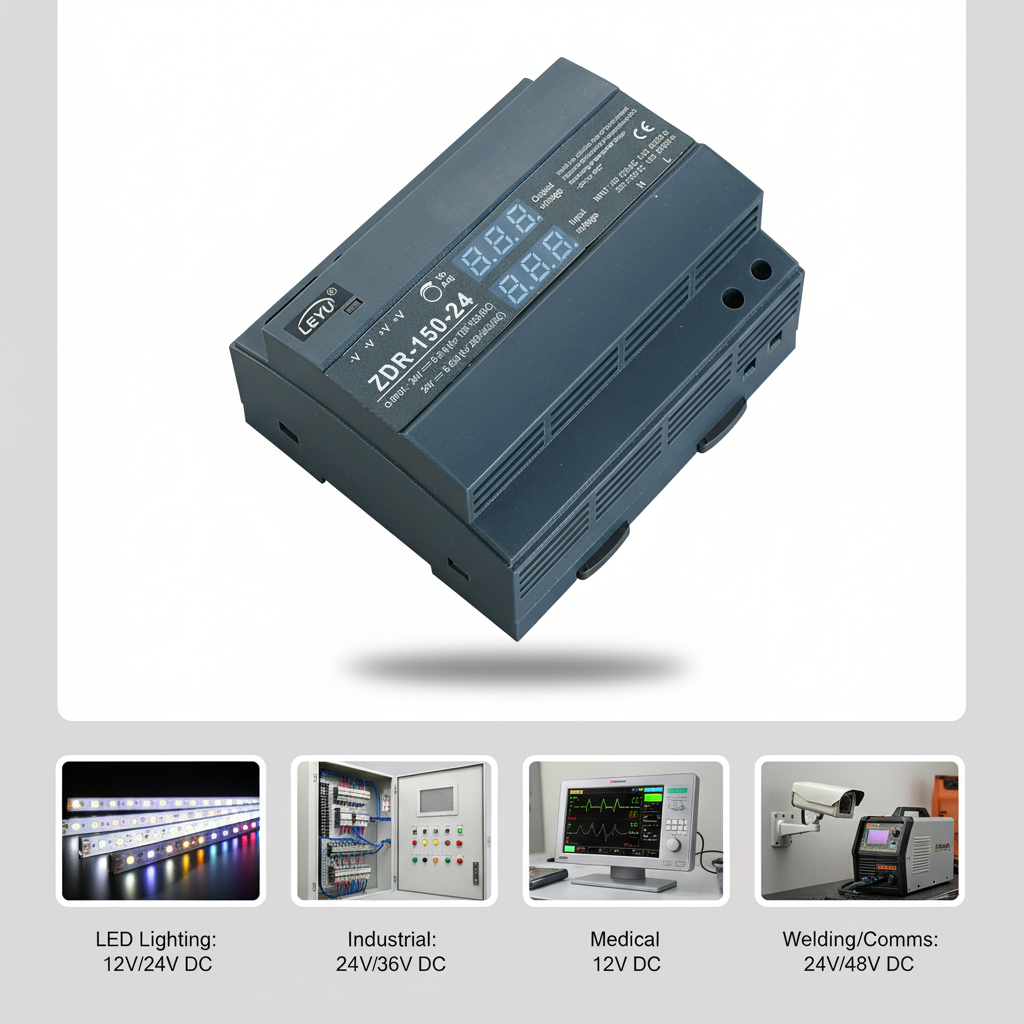

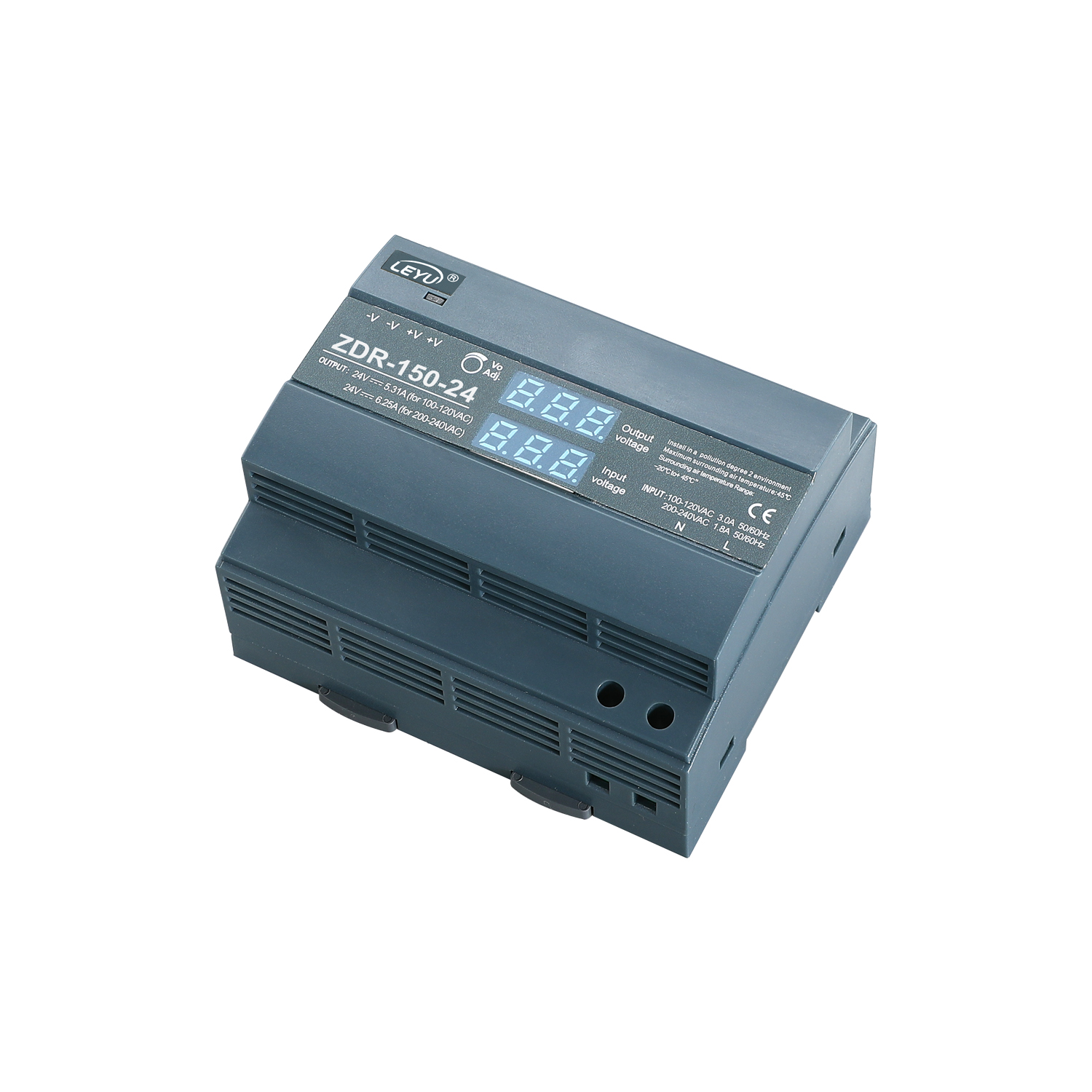

The ZDR-150 is a high-performance, ultra-thin DIN rail mount industrial power supply, designed to provide reliable DC power for automation equipment, control cabinets, LED lighting systems, and industrial machinery. It supports a wide input voltage range of 85–264VAC and delivers up to 150W of output power (at 230VAC), with available models in 12V, 15V, 24V, 36V, and 48V.
Featuring an advanced high-efficiency design reaching up to 88%, the ZDR-150 integrates overload, over-current, and short-circuit protection. It operates reliably across a wide temperature range from -30℃ to +70℃. Its ultra-thin profile (only 54.5mm depth) saves valuable space in control cabinets, making it an ideal choice for industrial power distribution, automation retrofitting, and OEM applications.
Ultra-thin DIN rail design – Only 54.5mm depth, saves space in control cabinets; compatible with TS-35/7.5 or 15 rail
Wide input voltage range – 85~264VAC or 120~370VDC, suitable for global use
High efficiency – Up to 88% efficiency reduces heat generation and improves system reliability
Multiple output options – Available in 12V, 15V, 24V, 36V, 48V to match various loads
Comprehensive protections – Short circuit, over-current, and overload protection (hiccup mode, auto-recovery)
Wide operating temperature – -30℃ ~ +70℃ (derating may apply), ideal for harsh industrial environments
100% full-load burn-in test – Ensures reliability and stability of every unit
Long lifecycle – Built with high-grade components; 2-year warranty
LED indicator for power-on status
Withstand voltage: 800VAC input to output
Vibration resistance: 10~500Hz, 5G, 60 minutes per axis
Safety compliant with CE, RoHS standards (UL pending as per spec)
Lower installation cost – The ultra-thin form factor allows multiple units to be mounted side-by-side in low-height cabinets, reducing enclosure size and material expenses.
High adaptability – Universal AC input accepts 85–264VAC without manual switching, easily handling grid fluctuations across different countries.
Reliable in extreme environments – Operates from -30℃ to +70℃, suitable for cold storage, outdoor cabinets, and high-temperature workshops.
Ideal for automation systems – Low ripple & noise (≤240mVp-p) and ±1% voltage regulation ensure stable power for PLCs, servo drives, sensors, and other sensitive loads.
Reduced maintenance – Hiccup mode automatically recovers after fault removal, minimizing on-site service calls.
Meets international safety standards – Strict dielectric strength and insulation resistance testing; suitable for CE‑compliant and export equipment.
Q1: Can ZDR-150 series power supplies be connected in parallel for higher output power?
A1: Not recommended for direct parallel connection. For higher output power, please use a single unit with larger rating or a dedicated redundancy/parallel module.
Q2: Does this power supply support 110VAC input? Will the output power change?
A2: Yes, it works with 110VAC (85~132VAC range). However, at 115VAC input, the maximum output power is derated to 120~135W depending on the model. Please refer to the derating curve in the datasheet.
Q3: What is the operating temperature range of the power supply? Is derating required?
A3: Operating temperature range is -30℃ ~ +70℃. Derating is required above 50℃; please refer to the derating curve provided in the datasheet.
Q4: Is this power supply suitable for LED lighting?
A4: Yes. With stable output voltage and low ripple, the ZDR-150 is well suited for LED strip lights, outdoor lighting, signage, etc. We recommend the 24V or 48V models for LED applications.
Q5: How does the power supply recover after overload protection?
A5: The power supply uses hiccup protection mode. Once the overload condition is removed, it will automatically recover output without needing to cycle power.
Q6: Is CE certification provided? Can it be used for equipment exported to Europe?
A6: Yes, the power supply is designed to meet relevant safety and EMC standards, enabling your final equipment to achieve CE compliance. Please contact us for certificate copies if needed.
Q7: What are the dimensions and mounting method of the power supply?
A7: Dimensions are 150×90×54.5mm (W×H×D). It mounts on standard DIN rail TS-35/7.5 or 15.
The ZDR-150 series stands out with its ultra-thin profile (only 54.5mm depth), making it ideal for cramped DIN rail enclosures. Full load burn-in testing and hiccup-mode protection ensure long-term reliability. With global input voltage and wide operating temperature range, it suits both factory floors and outdoor cabinets.
Order today – available in 12V, 15V, 24V, 36V, and 48V outputs. Contact us for OEM/ODM customization and bulk pricing.
Leyu based in Wenzhou Leqing, enjoys a developed economy and convenient air, water, rail, and road transport. For 14 years, we have specialized in designing and producing switching power supplies and off-grid solar inverters, with CE, ROHS, CCC, IP67, and ISO9001 certifications. Our modern production and testing equipment ensure reliable performance—our 0.3‰ defect rate far exceeds the national 3% standard.
We offer OEM/ODM services (design, prototyping, production, testing, delivery) backed by senior engineers and strong R&D partnerships. Leyu products are exported to over 50 countries across Europe, the Americas, Southeast Asia, South America, and Africa. Our young, energetic foreign trade team (avg. 3 years' experience) and our commitment to sincere, attentive service have built a trusted brand. As a high-tech enterprise integrating R&D, production, sales, and technical support, Leyu strives to become a national-class electrical company..
Sincere service is our creed, patiently listen to every customer's small opinions and suggestions is the philosophy we pursue, is the driving force of our continuous progress, is also the basis for us to win the trust of the market.
Design products according to customer requirements
Design drawings
Develop products according to requirements
Test demonstration, batch production
Personnel quality inspection, assembly and transportation
2-year warranty from shipment date. 30-day DOA replacement with advance shipping. Free technical support via email/WhatsApp, response within 24 hours. Defective units repaired or replaced within 7 working days. Lifetime online assistance for all ZDR-150 series power supplies.
Free lifetime technical support for ZDR-150 series. Our engineers provide installation guidance, wiring diagrams, and troubleshooting via email or WhatsApp. Response within 24 hours on business days. Remote video assistance available for complex issues. We help you select the right model and solve application problems quickly.

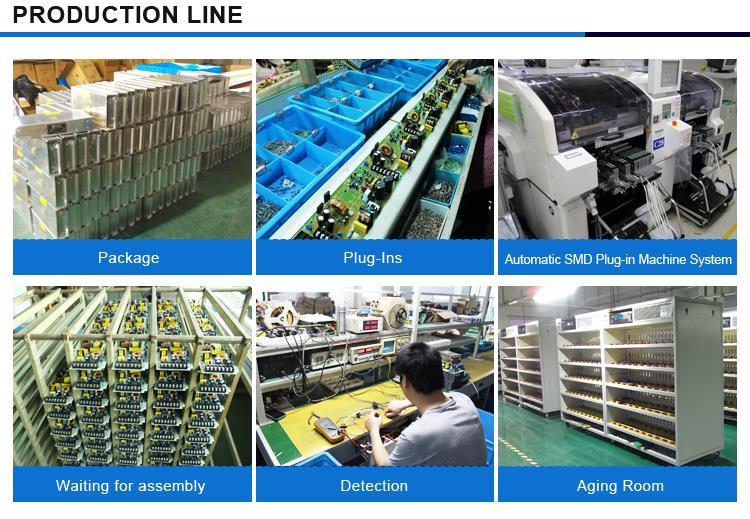

Every ZDR-150 unit undergoes 100% full load burn-in test before shipping. Strict quality control includes incoming component inspection, in-process testing, and final functional check. We follow ISO9001 standards. Ripple, efficiency, and protection parameters are verified. Only products passing all tests are packed for delivery.
