Compliance to EN61000-4-2,3,4,6,8,light industry level,criteria A
OTHERS
Dimension
199*98*38mm(L*W*H)
Weight
0.55Kg
Packing
30pcs/16.5Kg
NOTE
1. All parameters NOT specially mentioned are measured at 24,48,96VDC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
Product Introduction

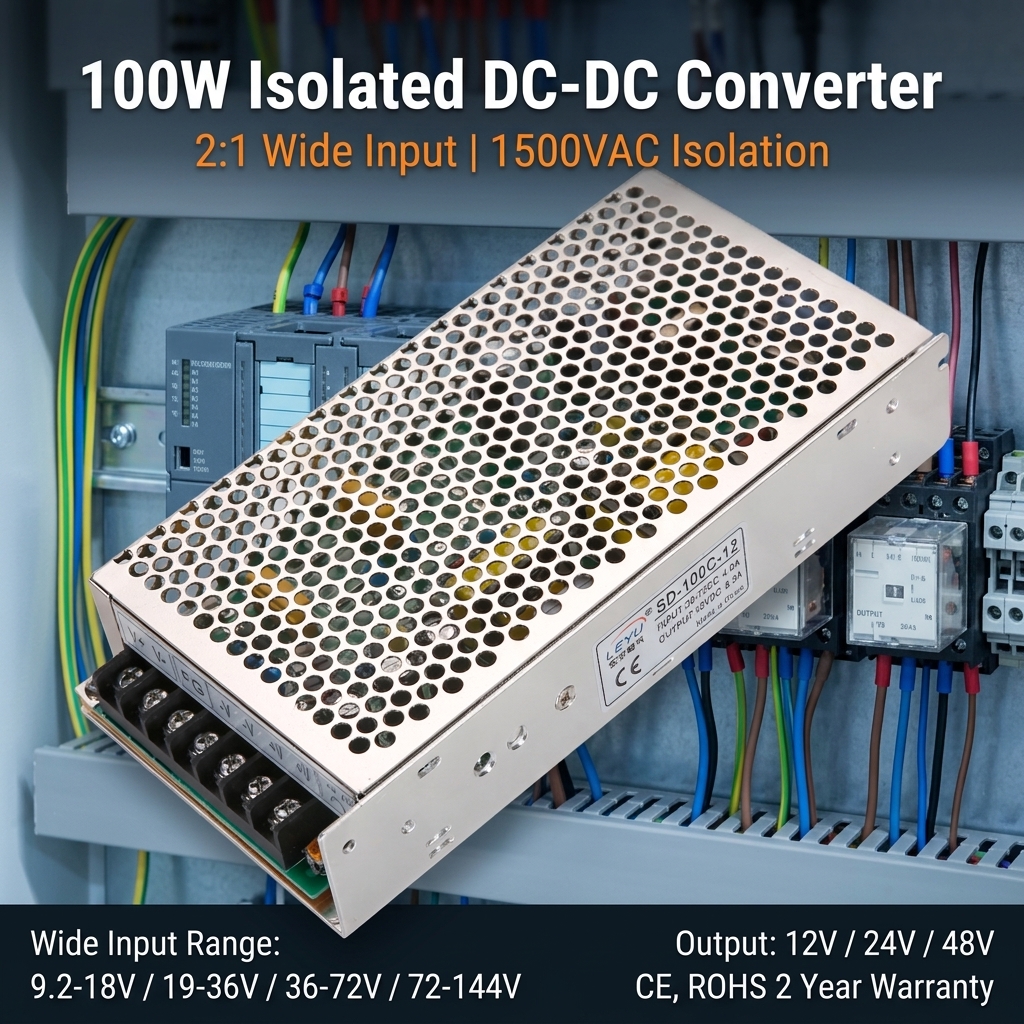

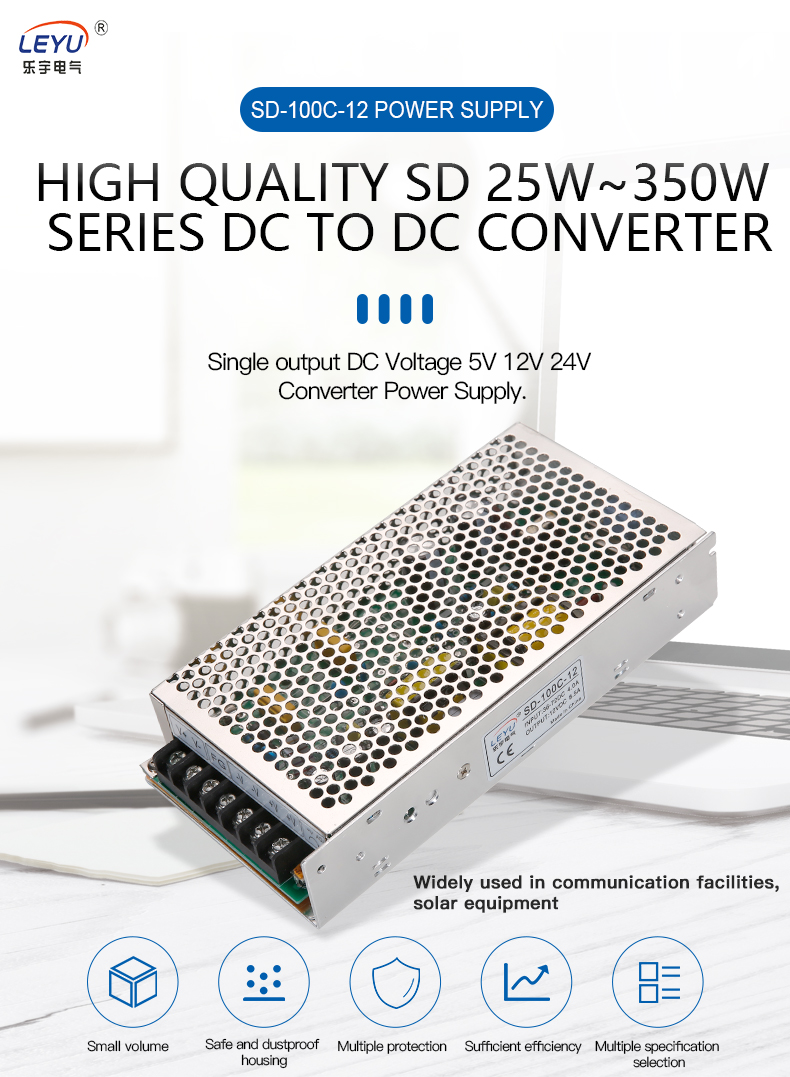

The Leyu SD-100 series is a high-performance 100W single-output DC-DC switching power supply converter, suitable for a wide range of industrial DC-to-DC power conversion applications. This series adopts an enclosed chassis-mount design and features a 2:1 wide input voltage range, enabling stable conversion of different DC input levels to the required DC output voltage.
The SD-100 series offers multiple models covering four output voltage options: 5V, 12V, 24V, and 48V, with rated currents of 20A, 8.5A, 4.2A, and 2.1A respectively, and rated power ranging from 100W to 102W. The input voltage range includes four configurations: Type A (9.2–18VDC), Type B (19–36VDC), Type C (36–72VDC), and Type D (72–144VDC or 85–132VAC), meeting different application requirements for input voltage matching.
The overall dimensions of the series are 199×98×38mm (L×W×H), with a net weight of 0.55kg per unit and a packing weight of 16.5kg for 30 units. The compact industrial design allows easy integration into various cabinets and equipment.
Product Features

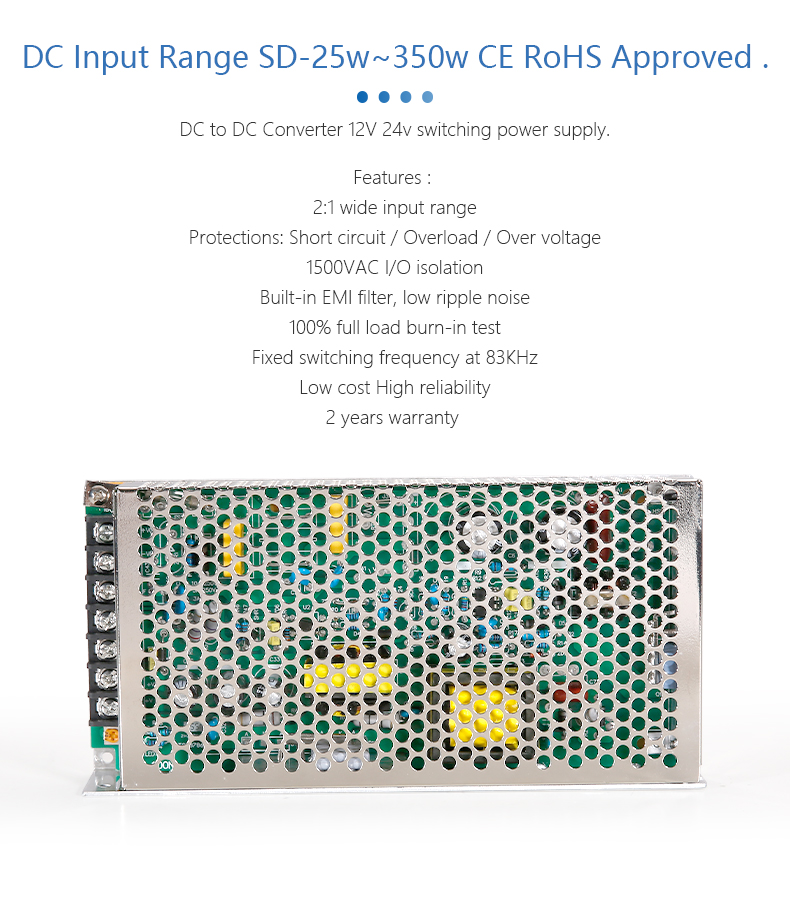

The Leyu SD-100 series DC-DC switching power supply offers multiple technical features:
Input & Output Performance
2:1 wide input range design adapting to different DC input voltage levels
Fixed switching frequency of 83KHz, with high conversion efficiency: 74%–76% for 5V output, 75%–80% for 12V output, 78%–83% for 24V output, and 78%–83% for 48V output
Adjustable output voltage range: 4.5–5.5VDC for 5V series, 11–16VDC for 12V series, 23–30VDC for 24V series, 43.2–52.8VDC for 48V series
Protection Functions
Short circuit protection (automatic recovery)
Overload protection (105%–135% of rated output power, hiccup mode with automatic recovery after fault removal)
Over voltage protection (5V: 5.75–6.75V, 12V: 16.8–20V, 24V: 31.5–37.5V, 48V: 60.2–79.2V, hiccup mode with automatic recovery)
Environmental Adaptability
Operating temperature range: -10 to +60°C (refer to derating curve)
Operating humidity: 20%–90% RH (non-condensing)
Storage temperature/humidity: -20 to +85°C, 10%–95% RH
Temperature coefficient: ±0.03%/°C (0–50°C)
Vibration resistance: 10–500Hz, 2G, 10 min/cycle, 60 min each along X, Y, Z axes
Safety & EMC
Input/output isolation voltage: 1500VAC

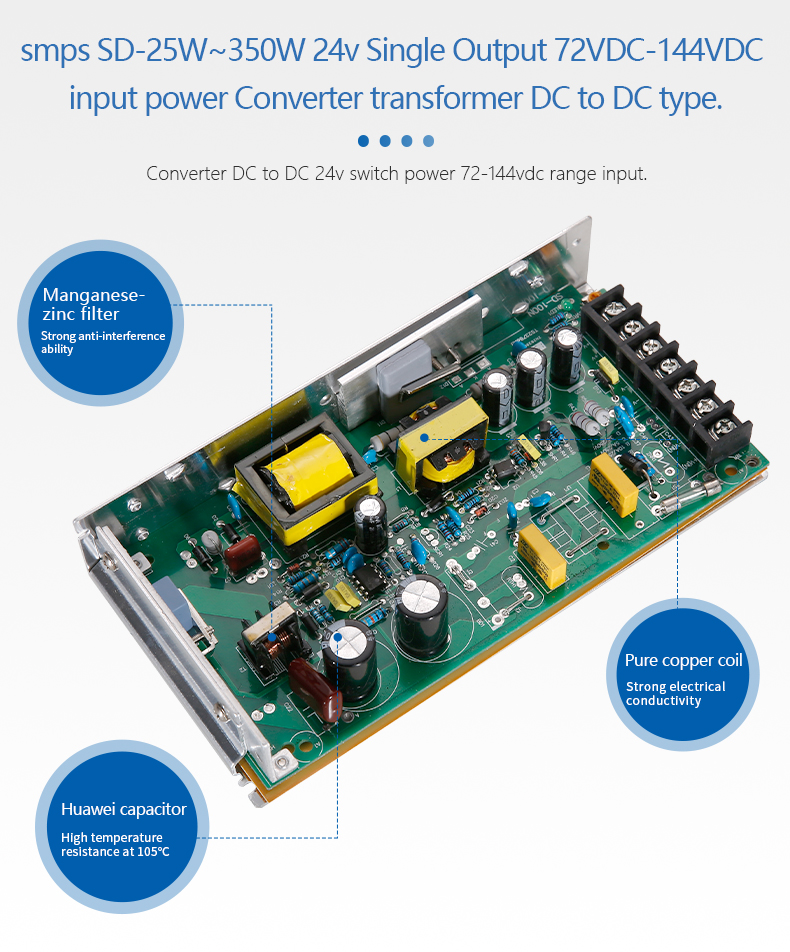

Built-in EMI filter, low ripple & noise (100mVp-p for 5V output, 120mVp-p for 12V output, 150mVp-p for 24V/48V output)
Safety standard: IEC60950-1 CB approved (for Type D only)
EMC emission: Compliant with EN55022 (CISPR22) Class B
EMC immunity: Compliant with EN61000-4-2,3,4,6,8, light industry level, criteria A
Product Advantages
Reliable Quality, Guaranteed Production
Founded in 2005 and located in Yueqing, Wenzhou – known as the "Kingdom of Electrical Appliances" – Leyu Electric is a high-tech enterprise integrating R&D, production, sales, and technical services. The company is equipped with advanced manufacturing processes and comprehensive testing equipment, with over 70 production staff. Most operations are automated, ensuring strong production capacity and fast delivery. Products are manufactured strictly in accordance with national standards, offering stable performance and reliable quality. Leyu products have been exported to Southeast Asia, the Middle East, the Americas, Africa, Europe, and other regions.
100% Full Load Burn-in Test
Each SD-100 series unit undergoes a 100% full load burn-in test before leaving the factory, ensuring that every product has been verified under full load operation for a sufficient period, effectively reducing early failure rates and improving long-term operational reliability.
Two-Year Warranty
Leyu offers a two-year warranty for the SD-100 series, reflecting full confidence in product quality and providing customers with long-term peace of mind.
High Isolation & Low Noise Design
The 1500VAC input/output isolation voltage ensures system safety and isolation requirements. The built-in EMI filter effectively reduces ripple and noise, making it suitable for precision equipment demanding high power quality.
Outstanding Cost-Effectiveness Compared to similar products from international brands, the Leyu SD-100 series offers competitive pricing while maintaining performance specifications. Adhering to the core philosophy of "stable performance, reasonable price, reliable quality," Leyu provides customers with high-value industrial-grade power solutions.
Product Applications
The Leyu SD-100 series DC-DC switching power supply is widely used in various industrial equipment and electronic systems, including:
Security & Surveillance Systems: Providing stable DC power for CCTV cameras and video surveillance equipment
Industrial Automation & Control Equipment: PLC control systems, industrial robots, automated production lines, etc.
LED Lighting: LED drivers, LED display power supplies, etc.
Communication Equipment: Telecom base stations, network switches, data transmission equipment, etc.
Power Equipment: Power monitoring instruments, distribution automation equipment, etc.
Instrumentation: Laboratory instruments, measurement and testing equipment, etc.
Smart Home & 3D Printing: Smart home control systems, 3D printer power modules, etc.
Medical & Research Equipment: Medical instruments, laboratory research power systems, etc.
Frequently Asked Questions
1. How to distinguish between different models of the SD-100 series? The letters A, B, C, D in the model number represent different input voltage ranges: A = 9.2–18VDC, B = 19–36VDC, C = 36–72VDC, D = 72–144VDC or 85–132VAC. The numbers 5, 12, 24, 48 indicate the output voltage. The model can be found directly on the product label.
2. Does Type D support AC input? Yes. The SD-100D series supports 72–144VDC DC input and is also compatible with 85–132VAC AC input, making it suitable for applications requiring both AC and DC compatibility.
3. Do I need external capacitors on input/output? The specification sheet recommends using a 12" twisted pair terminated with a 0.1µF & 47µF parallel capacitor when measuring ripple and noise. However, no external capacitors are required for normal application. The product design already accounts for stability under typical operating conditions.
4. How does the power supply recover after overload protection? The SD-100 series adopts "hiccup mode" overload protection. Once the load returns to the normal range, the power supply automatically resumes normal operation without manual intervention. Over voltage protection uses the same mechanism – automatic recovery after fault removal.
5. Can multiple units be used in parallel? Direct parallel connection of multiple SD-100 units to increase output power is not recommended, as current sharing must be considered. For higher power requirements, Leyu offers other series with higher power ratings.
6. What should I pay attention to regarding installation orientation? The SD-100 series uses natural convection cooling. Ensure adequate ventilation around the unit and avoid obstructing natural airflow. When operating at high ambient temperatures, derate the output according to the derating curve.
7. Is the SD-100 series independently developed by Leyu? Yes. Leyu Electric has its own R&D and manufacturing capabilities for switching power supplies. Products are manufactured strictly in accordance with national standards, with advanced equipment, excellent processes, stable performance, and reliable quality.
8. What about warranty service and technical support? Leyu provides a two-year warranty for the SD-100 series and has a dedicated technical support team. For specific after-sales policies or technical inquiries, please contact Leyu Electric’s official customer service or local authorized distributor.
