| Quantity: | |
|---|---|

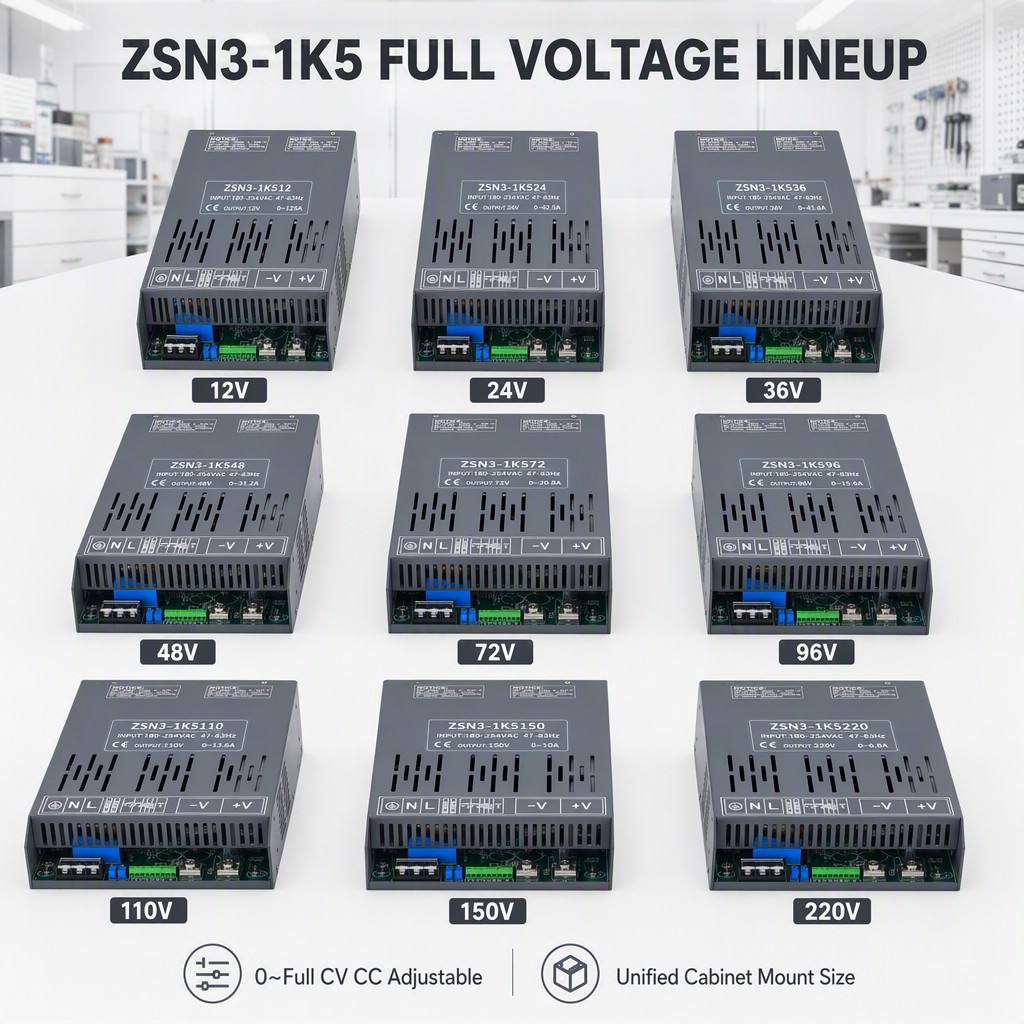

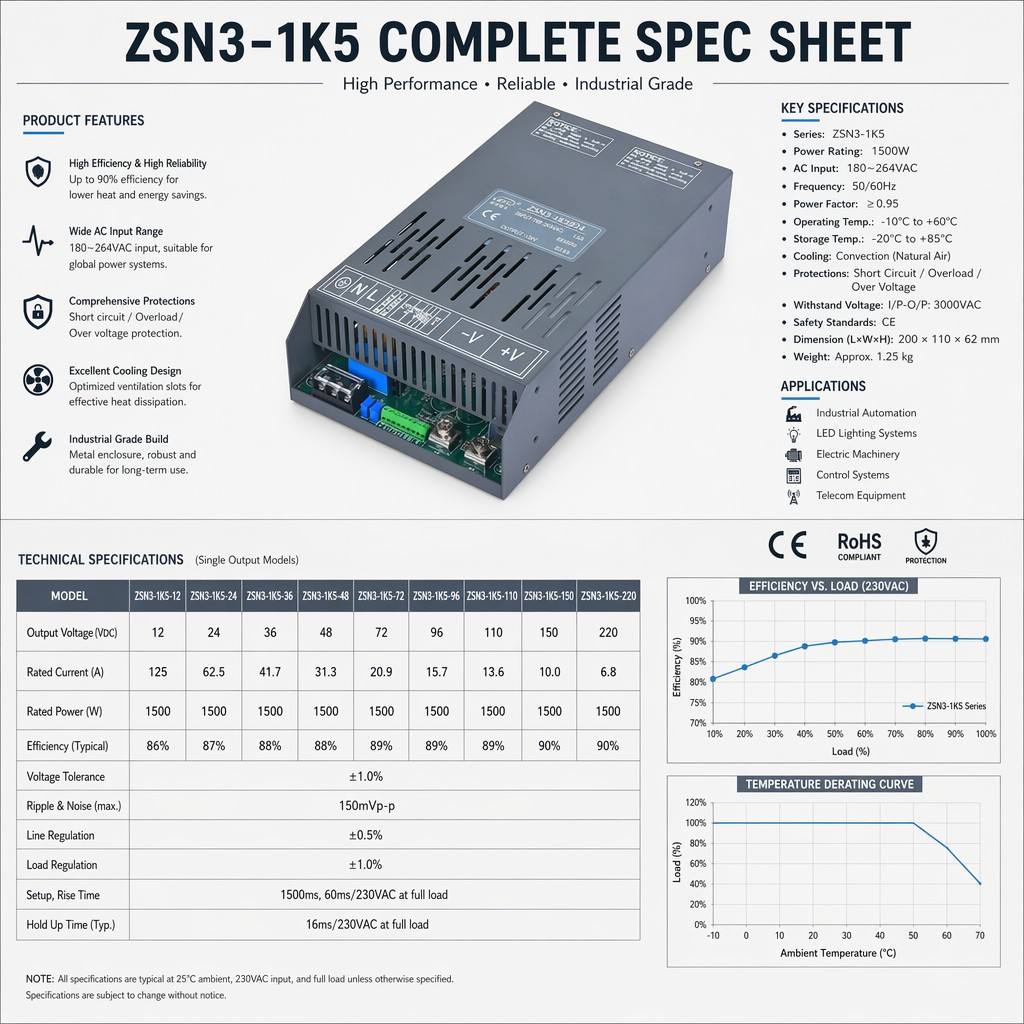

Model | ZSN3-1K5-12 | ZSN3-1K5-24 | ZSN3-1K5-36 | ZSN3-1K5-48 | ZSN3-1K5-72 | ZSN3-1K5-96 | ZSN3-1K5-110 | ZSN3-1K5-150 | ZSN3-1K5-220 | ||
OUTPUT | DC Voltage | 12V | 24V | 36V | 48V | 72V | 96V | 110V | 150V | 220V | |
Rated Current | 125A | 62.5A | 41.6A | 31.2A | 20.8A | 15.6A | 13.6A | 10A | 6.8A | ||
Current Range | 0 - 125A | 0 - 62.5A | 0 - 41.6A | 0 - 31.2A | 0 - 20.8A | 0 - 15.6A | 0 - 13.6A | 0 - 10A | 0 - 6.8A | ||
Rated Power | 1500W | ||||||||||
Ripple | 200mV | 200mV | 260mV | 350mV | 500mV | 600mV | 850mV | 900mV | 1000mV | ||
Optimal Range of Constant Current | 6 - 12V | 12 - 24V | 18 - 36V | 24 - 48V | 36 - 72V | 48 - 96V | 55 - 110V | 75 - 150V | 110 - 220V | ||
voltage accuracy | ± 1.0% | ||||||||||
linear adjustment rate | ± 1.0% | ||||||||||
load regulation | ± 1.0% | ||||||||||
Setup, Rise, Hold Up Time | 1500mS，100mS/230VAC(at full load） | ||||||||||
INPUT | Voltage Range | 180 - 264VAC / 245 - 370VDC | |||||||||
Frequency Range | 45Hz - 65Hz | ||||||||||
power factor | PF≧0.65/230VAC(at full load) | ||||||||||
Efficiency | 85 % | 86 % | 87 % | 89 % | 90 % | 90 % | 90 % | 91 % | 91 % | ||
AC Current | ＜ 13A | ||||||||||
Leakage Current | ＜ 3.0mA / 240VAC | ||||||||||
PROTECTION | short circuit | Enter a constant current | |||||||||
Over Temp | The output is turned off, and it automatically resumes or restarts when the temperature drops | ||||||||||

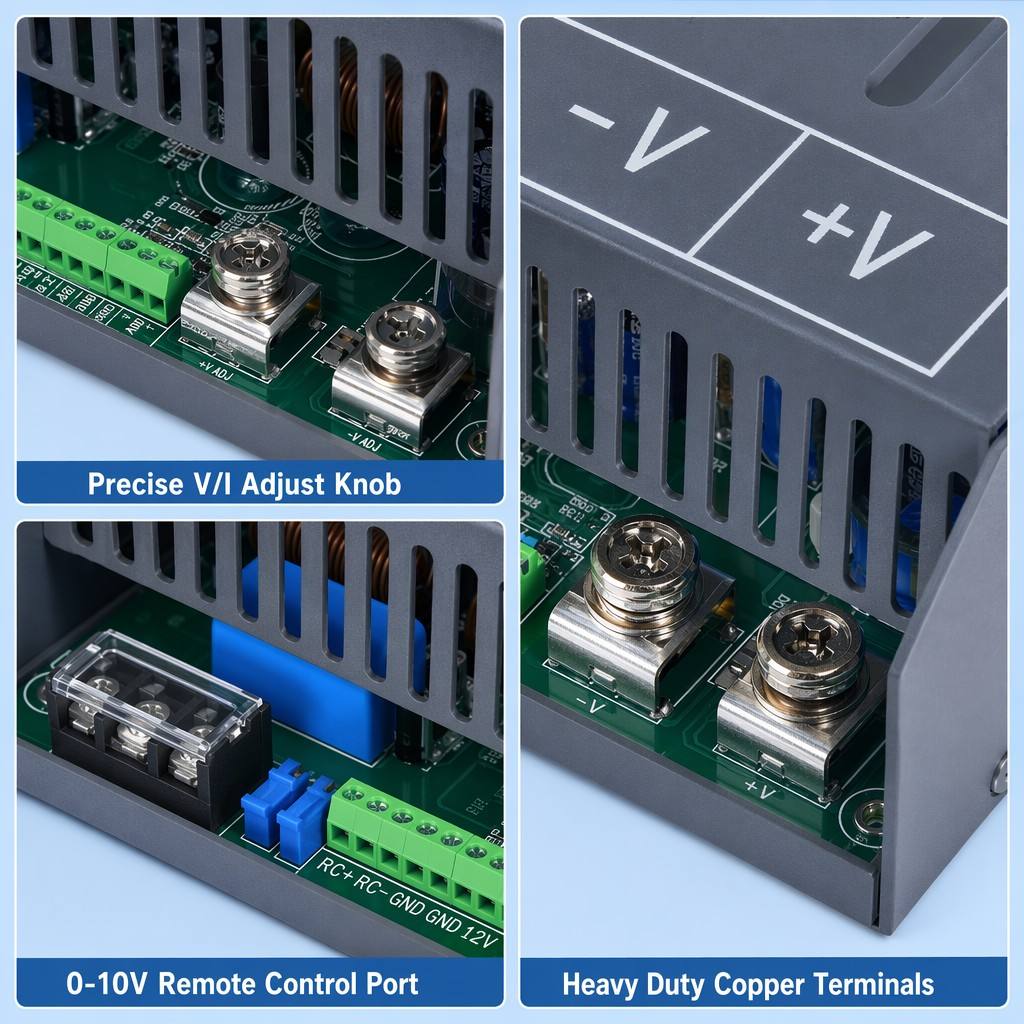

FUNCTION | output voltage adjustment | 0 - 13.2V | 0 - 26.4V | 0 - 39.6V | 0 - 52.8V | 0 - 79.2V | 0 - 105.6V | 0 - 121V | 0 - 165V | 0 - 242V |
constant current output adjustment | 0 - 125A | 0 - 62.5A | 0 - 41.6A | 0 - 31.2A | 0 - 20.8A | 0 - 15.6A | 0 - 13.6A | 0 - 10A | 0 - 6.8A | |

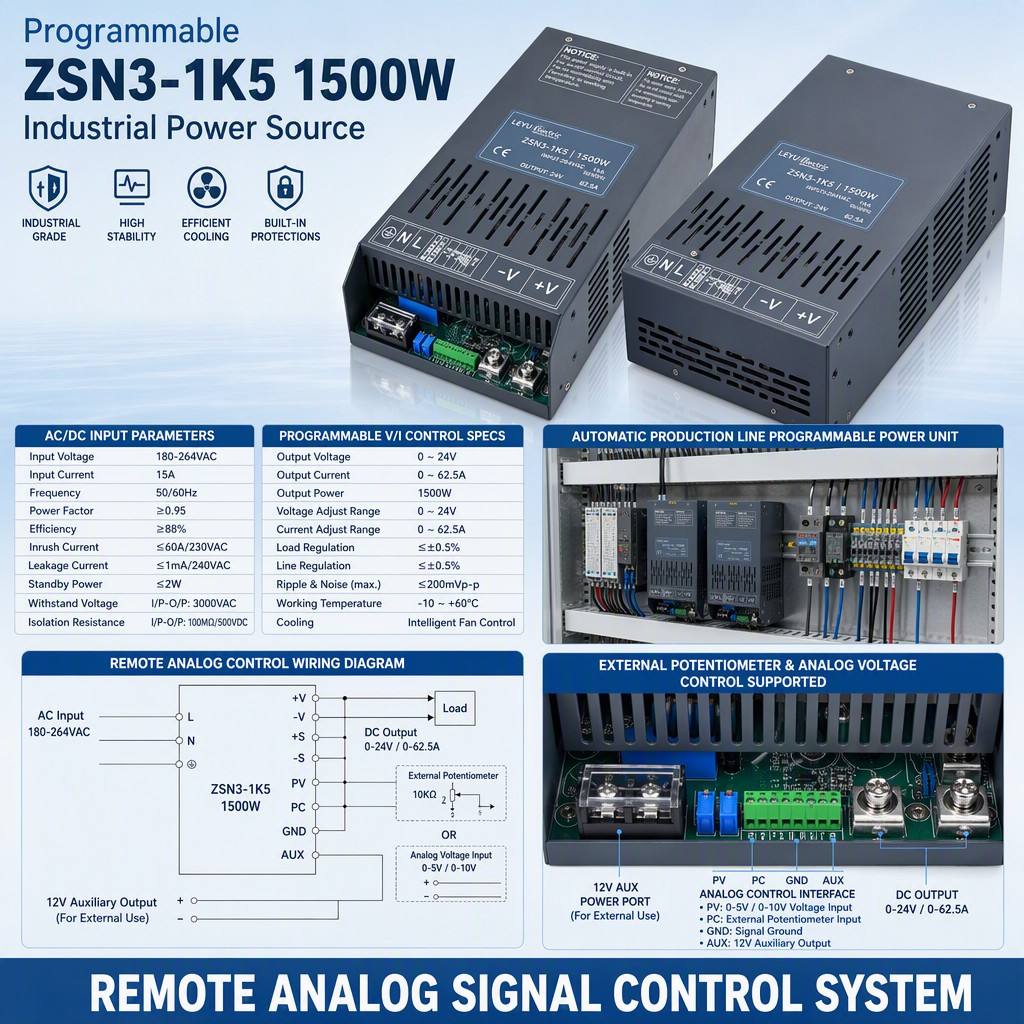

External potentiometer | External potentiometer control (voltage, current) | |||||||||

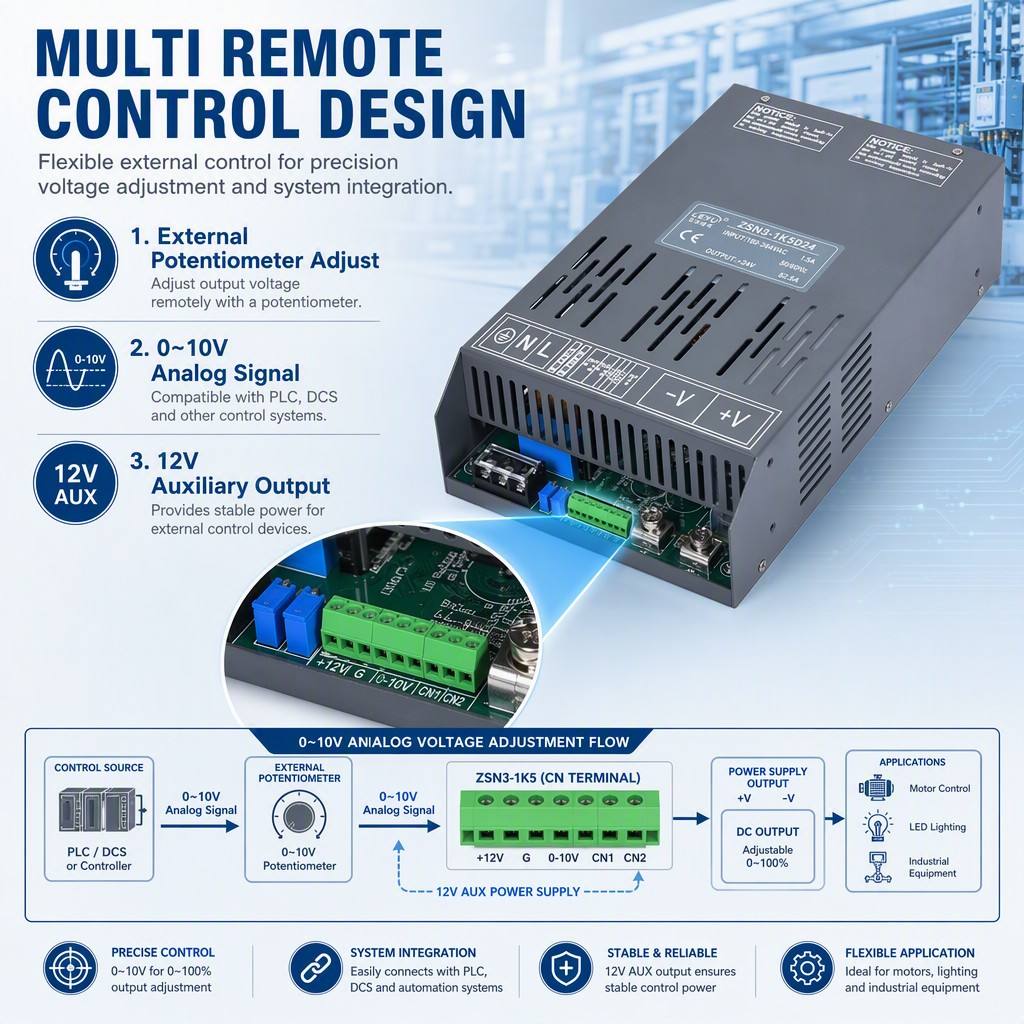

Analog voltage control | 0 - 5V / 0 - 10V Control (voltage, current) | |||||||||
Auxiliary power supply | 12V 0.5A | |||||||||
remote control switch | By default, it will be powered on and powered off at a high level （3V-12V） | |||||||||
ENVIRONMENT | Working Temp | -20 - +60℃ | ||||||||
Working Humidity | -20 - 90% RH No condensation | |||||||||
Storage Temp., Humidity | -40 - +85℃, 10 - 95% RH No condensation | |||||||||
vibration resistance | 10 - 500Hz, 2G 10 min/cycle, 60 minutes each in X, Y, and Z axes | |||||||||
SAFETY | Insulation resistance | Input-to-output:100Mhms/500VDC/25℃/70%RH | ||||||||
Withstand Voltage | I/P-O/P :1.2KVAC I/P-FG:1.2KVAC O/P-FG:0.5KVAC | |||||||||
OTHERS | Dimension | 277*155*70mm（L*W*H） | ||||||||
Weight | 2.4 KG | |||||||||
Intelligent Analog Integration

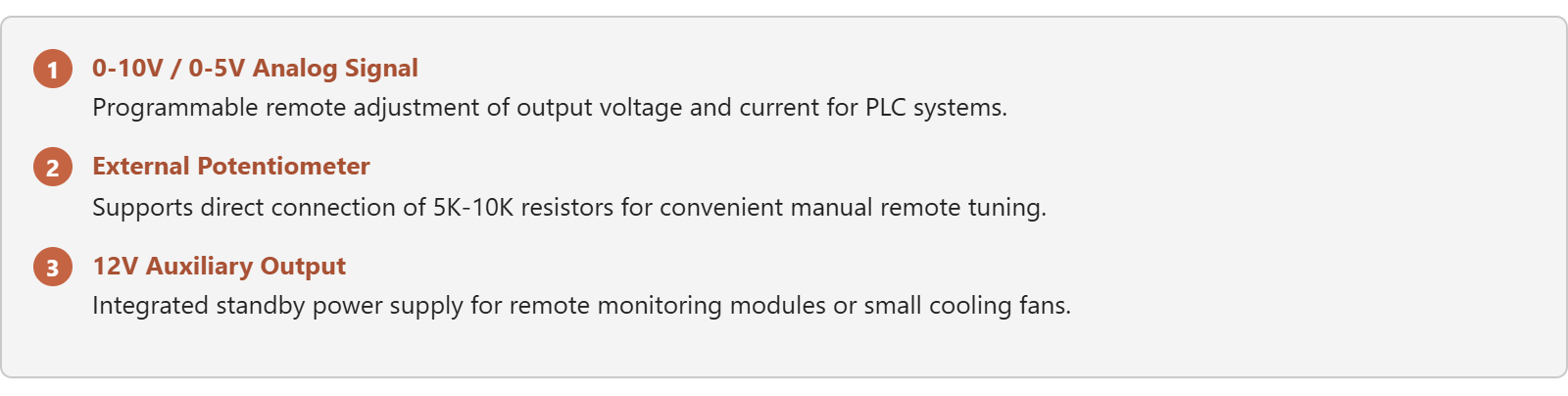

Supports independent voltage and current control via 0-5V or 0-10V external analog signals
Argument : The ZSN3-1K5 simplifies complex system integration for industrial automation.
Evidence : Unlike standard power supplies, this unit features a dedicated 0-10V analog interface, allowing PLCs or external controllers to adjust the output in real-time. This eliminates the need for manual intervention and ensures a perfect fit for automated battery testing or chemical processing lines.
Argument: Guaranteed stable 1500W performance under continuous 24/7 heavy-duty workloads.
Evidence : Every unit undergoes a 100% full-load burn-in test before shipment. Built with high-grade 105°C rated capacitors and an intelligent forced-air cooling system, the ZSN3-1K5 maintains its rated MTBF (Mean Time Between Failures) even in challenging factory environments up to 60°C.
Q: Can the output current be adjusted to zero?
A: Yes, the ZSN3-1K5 supports full-range adjustment for both voltage and current starting from 0V/0A.
Q: Is it possible to control the power supply remotely via PLC?
A: Absolutely. It supports 0-5V or 0-10V analog control signals, which is the standard for modern PLC integration.
Q: Does the unit support 3-phase input?
A: No, this model is designed for high-power single-phase AC input (180-264VAC) or DC input (245-370VDC).
