Features:
Single and two phase wide input range 180~550VAC
Built-in active PFC circuit compliance to EN61000-3-2
High efficiency 91% and low power dissipation
Protections: Short circuit / Overload / Over voltage / Over temperature
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
UL 508(industrial control equipment)approved
EN61000-6-2/EN50082-2) industrial immunity level
Built-in DC OK relay contact
100% full load burn-in test
2 years warranty
WDR-240-24
Leyu
| Availability: | |
|---|---|
| Quantity: | |

SPECIFICATION
MODEL | WDR-240-24 | WDR-240-48 | |
OUTPUT | DC VOLTAGE | 24V | 48V |
RATED CURRENT | 10A | 5A | |
CURRENT RANGE | 0 ~ 10A | 0 ~ 5A | |
RATED POWER | 240W | 240W | |
RIPPLE & NOISE (max.) | 150mVp-p | 150mVp-p | |
VOLTAGE ADJ. RANGE | 24 ~ 28V | 48 ~ 55V | |
VOLTAGE TOLERANCE | ±1.0% | ±1.0% | |
LINE REGULATION | ±0.5% | ±0.5% | |
LOAD REGULATION | ±1.0% | ±1.0% | |
SETUP, RISE TIME | 800ms, 150ms/400VAC 1500ms, 150ms/230VAC at full load | ||
HOLD UP TIME (Typ.) | 18ms / 400VAC 18ms / 230VAC at full load | ||
INPUT | VOLTAGE RANGE | 180 ~ 550VAC 254 ~ 780VDC | |
FREQUENCY RANGE | 47 ~ 63Hz | ||
POWER FACTOR (Typ.) | PF≥0.84/400VAC PF≥0.84/230VAC | ||
EFFICIENCY (Typ.) | 91% | ||
AC CURRENT (Typ.) | 1A/400VAC 2A/230VAC | ||
INRUSH CURRENT (Typ.) | COLD START 50A | ||
LEAKAGE CURRENT | <3.5mA / 530VAC | ||
PROTECTION | OVERLOAD | 105 ~ 130% rated output power | |
Protection type: Constant current limiting, unit will shut down after 3 sec., auto-recovery after 1 minute if the fault condition is removed | |||
OVER VOLTAGE | 29 ~ 33V | 56 ~ 65V | |
Protection type: Shut down o/p voltage, auto-recovery after 1 minute if the fault condition is removed | |||
OVER TEMPERATURE | 90°C ±5°C (TSW) detect on heatsink of power switch | ||
Protection type: Shut down o/p voltage, recovers automatically after temperature goes down | |||
FUNCTION | DC OK REALY CONTACT RATINGS (max.) | 60Vdc/0.3A, 30Vdc/1A, 30Vac/0.5A resistive load | |
ENVIRONMENT | WORKING TEMP. | -30 ~ +70°C (Refer to "Derating Curve") | |
WORKING HUMIDITY | 20 ~ 95% RH non-condensing | ||
STORAGE TEMP., HUMIDITY | -40 ~ +85°C, 10 ~ 95% RH | ||
TEMP. COEFFICIENT | ±0.03%/°C (0 ~ 50°C) | ||
VIBRATION | Component: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | ||
OTHERS | MTBF | 141.1K hrs min. MIL-HDBK-217F (25°C) | |
DIMENSION | 63*125.2*113.5mm (W*H*D) | ||
PACKING | 1.06Kg; 12pcs/13.7Kg/1.22CUFT | ||
NOTE | 1. All parameters NOT specially mentioned are measured at 400VAC input, rated load and 25°C of ambient temperature. | ||
The Leyu WDR-240 Series is a 240W single-output industrial DIN rail power supply, supporting single-phase and two-phase wide voltage input (180–550VAC) as well as 254–780VDC input. It features an active PFC circuit, achieves up to 91% efficiency, and uses free air convection cooling – no fan required for stable operation.
The series is available in two output voltage models: 24V (10A) and 48V (5A). It can be mounted on TS-35/7.5 or TS-35/15 standard DIN rails and is widely used in industrial control cabinets, automation equipment, and on-site power distribution systems.
Ultra-wide input range: 180–550VAC (single‑phase / two‑phase) and 254–780VDC – suitable for locations with unstable grid voltage
Built-in active PFC, compliant with EN61000‑3‑2 harmonic standard
High efficiency of 91%, low heat dissipation – no forced air cooling required
Complete protections: short circuit, overload (constant current limiting + shutdown after 3 sec), overvoltage, overtemperature
Free air convection cooling (fanless) – ideal for dusty or silent environments
UL 508 (industrial control equipment) approved, meets industrial immunity level EN61000‑6‑2
Built‑in DC OK relay contact for remote power status monitoring
100% full load burn‑in test, 2‑year warranty

Wider input voltage coverage: Unlike most DIN rail power supplies that only support 85–264VAC, the WDR‑240 can directly accept 380V, 400V or even 550V industrial voltages, reducing the need for external transformers.
Fanless design: Eliminates fan wear and dust accumulation, suitable for long‑term continuous operation with zero noise.

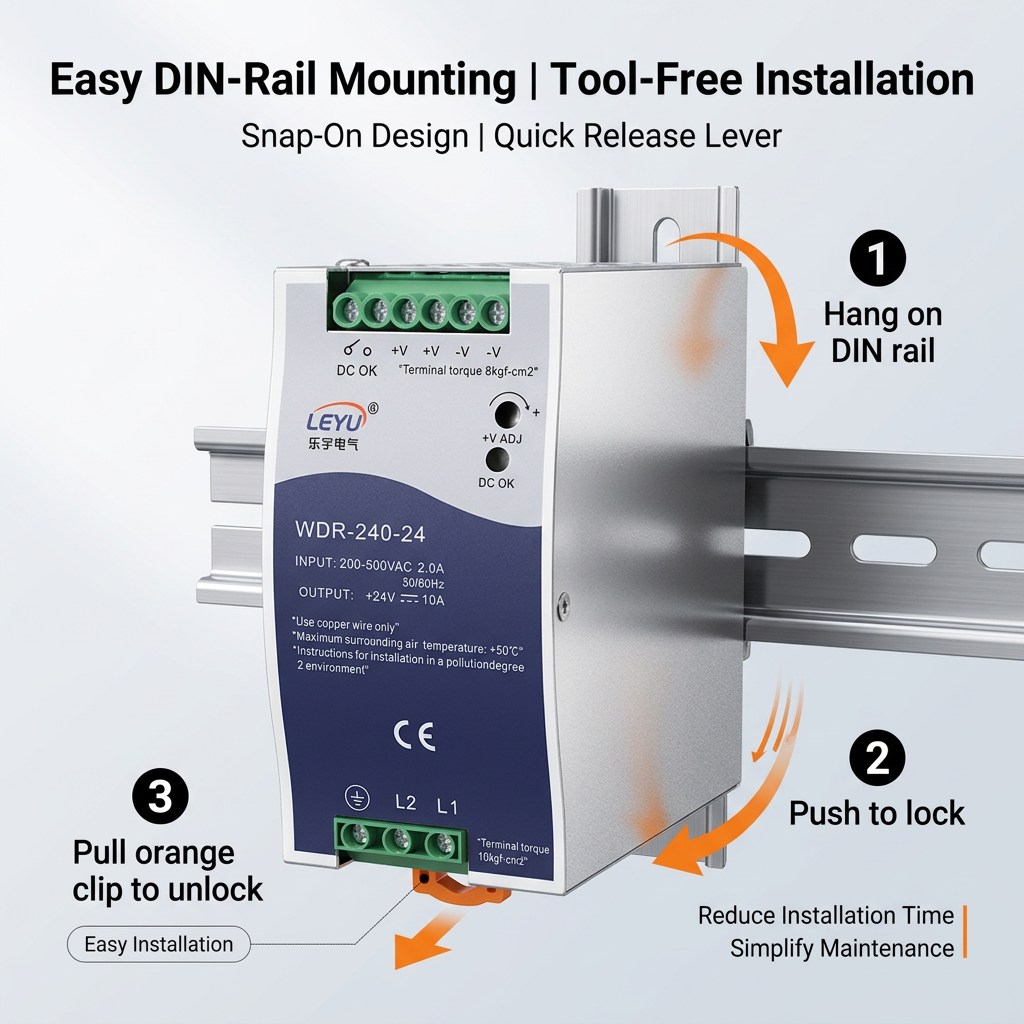

Easy installation: DIN rail clip mounting, quick replacement, saves cabinet space (dimensions 63×125.2×113.5mm).
High reliability: MTBF of 141.1K hours (MIL‑HDBK‑217F, 25°C), plus heavy industrial level EMC immunity (Criteria A).
Energy efficient: Power factor ≥0.84, reducing reactive losses – meets green factory requirements.
Industrial automation lines: Powering PLCs, sensors, relays, solenoid valves
Power monitoring and distribution cabinets: Directly take power from PT or busbar using the wide input range
Factory equipment retrofits: Replace failed power supplies without modifying front‑end wiring
Building automation & HVAC: Provide stable 24V or 48V power to controllers and field instruments
Solar and energy storage auxiliary power: DC side can directly connect to 254–780VDC (e.g., 600V PV array)
Any industrial equipment needing TS‑35 DIN rail mounting
Q: Can the WDR‑240 be connected to both 220V and 380V?
A: Yes. Its input range is 180–550VAC, so single‑phase 220V or two‑phase 380V (line‑to‑line) can be connected directly without any switching.
Q: Can outputs be paralleled to increase power?
A: Direct paralleling is not recommended. For higher power, please use a dedicated parallel module from Leyu or choose a higher‑wattage model.
Q: How does overload recovery work?
A: When overload exceeds 105–130% of rated power, the supply enters constant current limiting mode and shuts down after 3 seconds. It will auto‑recover approximately 1 minute after the fault is removed.
Q: What is the operating temperature range? Is derating required?
A: Operating temperature is -30 to +70°C. Derating is required above 50°C (refer to the derating curve). For altitudes above 2000m, fanless models need derating of 3.5°C per 1000m.
Q: What are the DC OK relay contact ratings and how to use it?
A: Contact ratings: 60Vdc/0.3A, 30Vdc/1A, or 30Vac/0.5A (resistive load). It can be connected to a PLC digital input or indicator light to monitor output voltage status.
Q: How much clearance is needed around the unit during installation?
A: Recommended clearances: 40mm top, 20mm bottom, 5mm left and right. If adjacent devices generate heat, 15mm on left/right is recommended.
The Leyu WDR‑240 Series DIN rail power supply is approved to UL508, CB (IEC62368‑1), EAC, and meets industrial EMC requirements. It is a reliable choice to replace traditional line‑frequency transformers and ordinary switching power supplies.
