Compliance to EN55022(CISPR22), GB9254 CLASS B, EN55014 EN 61000-3-2,-3
EMC Immunity
Compliance to EN61000-4-2,3,4,5,6,8,11, EN61000-6-2(EN50082-2), heavy industry level, criteria A
OTHERS
Dimension
99*82*30mm (L*W*H)
Weight
0.23Kg
Packing
60pcs/carton/14.8kg/0.88CUFT
NOTE
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance: includes set up tolerance, line regulation and load regulation.
4. Line regulation is measured from low line to high line at rated load.
5. Load regulation is measured from 0% to 100% rated load.
6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
7. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quickly may lead to increase of the set up time.
Product Description

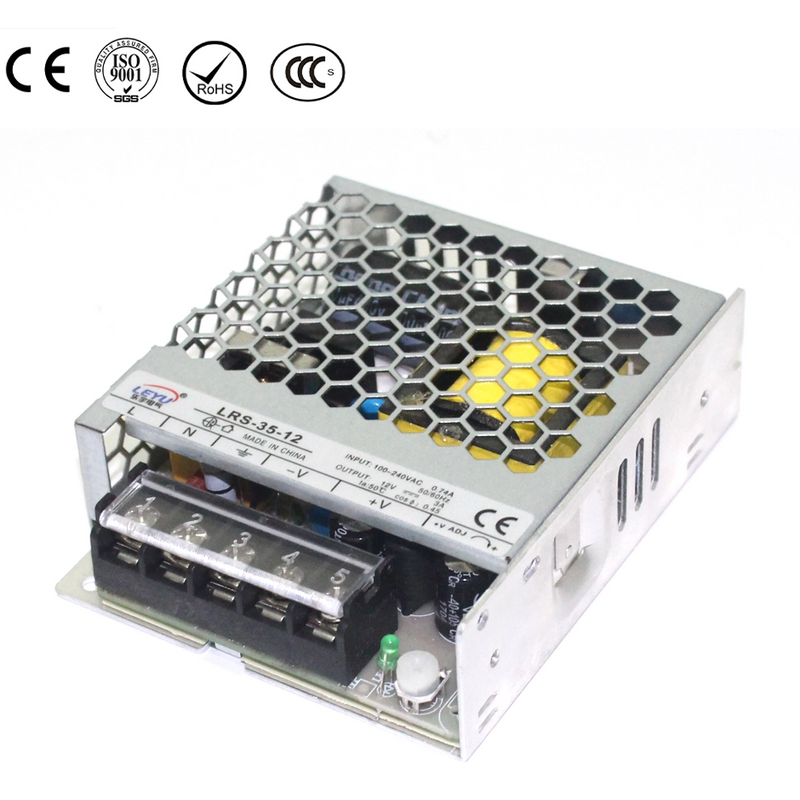

LRS-35W
The LRS-35 series is a 35W single-output enclosed switching power supply that accepts a full range of 85V to 264V AC input. The series offers six output voltage options: 5V, 12V, 15V, 24V, 36V, and 48V. With an ultra-thin design measuring only 30mm in thickness and a metal mesh case, it achieves efficient heat dissipation through free air convection without the need for a fan. The operating temperature range covers -30℃ to +70℃. No-load power consumption is below 0.2W, meeting international energy efficiency standards. This series has obtained multiple safety certifications including UL, TUV, and CCC, making it suitable for power supply needs in various industrial and household equipment.
Product Features
Full-range AC input:
Supports 85~264VAC full-range input, also compatible with 120~373VDC input. Global use without switching.
Ultra-thin body:
Only 30mm thick (1U height), compact dimensions of 99×82×30mm, saving installation space.
Multiple protections:
Short circuit protection, overload protection, and over-voltage protection. Automatically recovers after fault removal or recovers upon re-power-on.
Wide temperature operation:
Stable operation from -30℃ to +70℃. Derating curve must be referenced for high-temperature use.
Metal mesh cooling:
Metal mesh case design enhances heat dissipation. Natural convection cooling, no fan required, suitable for dust-free or silent environments.

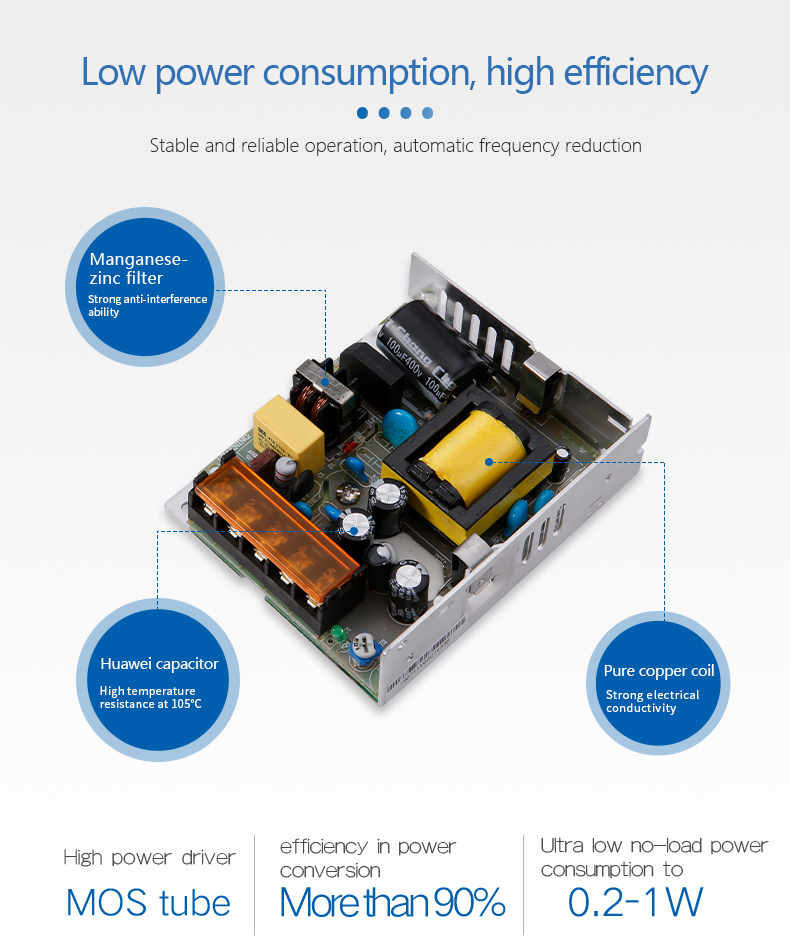

High efficiency & energy saving:
Full-load efficiency up to 82%~89% (depending on model). No-load power consumption less than 0.2W, meeting international energy requirements.
LED operation indicator:
LED lights up when power is on, providing clear power status.
Strong vibration resistance:
Withstands 5G vibration test, suitable for industrial environments with significant vibration.
100% burn-in test:
100% full-load burn-in test before shipment, ensuring long-term stability and reliability.
Complete safety certifications:
Compliant with UL60950-1, TUV EN60950-1, EN60335-1, CCC GB4943 and other standards, meeting requirements for export to multiple countries.
Product Applications
Thanks to its compact size, wide-temperature operation, and complete safety certifications, the LRS-35 series is widely used in the following scenarios:
3D printers: Provides stable DC power for control boards, heated beds, and extruders.
CNC equipment: Powers mainboards and stepper motor drives for engraving machines and laser cutters.
LED lighting: Drives 12V/24V/48V lighting systems such as LED strips, advertising light boxes, and landscape lighting.
Industrial automation: Provides stable power for PLCs, sensors, relays, industrial PCs, and other equipment.
Household appliances: Compliant with EN60335-1 standard, suitable for household appliance products.
Security monitoring: Powers security equipment such as cameras, recorders, and access control systems.
Instruments and meters: Powers laboratory instruments, measurement devices, and electronic test equipment.
Communication equipment: Provides power for routers, switches, base station equipment, etc.
Applicable model reference table:
Model
Output
Typical Applications
LRS-35-5
5V / 7A / 35W
TTL logic circuits, MCU development boards
LRS-35-12
12V / 3A / 36W
3D printers, LED strips, small motors
LRS-35-24
24V / 1.5A / 36W
CNC equipment, PLCs, stepper motors
LRS-35-48
48V / 0.8A / 38.4W
Communication equipment, PoE power, large LED screens
Frequently Asked Questions
Q1: What is the difference between the LRS-35 series and a standard linear power supply? Compared to traditional linear power supplies, switching power supplies are smaller, lighter, and more efficient (up to 89%), but have slightly higher ripple and noise. The LRS-35 series is suitable for most industrial equipment with size and power consumption requirements, and its ripple specifications already meet conventional control circuit needs.
Q2: How does ripple and noise affect equipment, and how can it be reduced? Ripple and noise are inherent AC components in the output of a switching power supply. Excessive ripple may affect precision analog circuits or communication signal quality. Ripple for each LRS-35 model is controlled between 80mVp-p and 200mVp-p. It is recommended to connect a 0.1μF and 47μF capacitor in parallel at the output terminal, or install an LC filter near the load.
Q3: How to select a switching power supply? What parameters should be considered? Three core parameters should be considered: input voltage (must match local mains), output voltage (must match equipment rated voltage), and output power (recommend that total load power does not exceed 80% of the power supply's rated power). In addition, operating ambient temperature, installation space dimensions, and safety certification requirements are also important factors.
Q4: What is the EMC performance of this product? The LRS-35 series EMI radiation complies with EN55022 CLASS B (suitable for residential and light industrial environments). EMC immunity complies with EN61000-4 series standards (heavy industrial level, Class A for industrial environments). It can be directly integrated into various industrial equipment.
Q5: What should I do if the output is abnormal, flickering, or not working? Common causes and solutions:
Check if the input power cord is well connected and if the input voltage is within the 85~264VAC range.
Check if the load exceeds the rated power, which may trigger overload protection.
Check if the LED indicator is on; if not, check the input power.
If the load is short-circuited, the power supply will enter hiccup protection mode; it will automatically recover after the load is disconnected.
If everything above is normal and it still does not work, contact Leyu Electric's after-sales service.
Q6: Can multiple power supplies be connected in parallel to increase power? Direct parallel connection is not recommended. If higher power is required, it is recommended to select a higher power model from the LRS series (e.g., LRS-50, LRS-75, etc.) or use a dedicated parallel power supply solution with current sharing function.
Q7: What do load regulation and voltage accuracy mean? Load regulation refers to the percentage change in output voltage when the load changes from 0% to 100%. The LRS-35 series is controlled within ±0.5% to ±1.0%, indicating very stable output. Voltage accuracy refers to the deviation of the output voltage from the nominal value at the factory. Each model is controlled within ±1.0% to ±2.0%.
