120W Single Output Industrial DIN RAIL Power Supply WDR - 120 series
MODEL | WDR-120-12 | WDR-120-24 | WDR-120-48 | |
OUTPUT | DC VOLTAGE | 12V | 24V | 48V |
RATED CURRENT | 10A | 5A | 2.5A | |
CURRENT RANGE | 0 ~ 10A | 0 ~ 5A | 0 ~2.5A | |
RATED POWER | 120W | 120W | 120W | |
RIPPLE & NOISE (max.) Note.2 | 120mVp-p | 120mVp-p | 150mVp-p | |
VOLTAGE ADJ. RANGE | 12 ~ 15V | 24 ~ 29V | 48 ~ 58V | |
VOLTAGE TOLERANCE Note.3 | ±1.5% | ±1.0% | ±1.0% | |
LINE REGULATION | ±0.5% | ±0.5% | ±0.5% | |
LOAD REGULATION | ±0.5% | ±0.5% | ±0.5% | |
SETUP, RISE, HOLD UP TIME | 2000ms, 70ms, 50ms/400VAC 2000ms, 70ms, 10ms/230VAC at full load | |||
VOLTAGE RANGE | 180 ~ 550VAC 254 ~ 780VDC | |||
FREQUENCY RANGE | 47 ~ 63Hz | |||
EFFICIENCY (Typ.) | 89.5% / 400V | 91% / 400V | 92% / 400V | |
INPUT | AC CURRENT | 0.7A/400VAC 1.2A/230VAC | ||
INRUSH CURRENT (max.) | COLD START 50A | |||
LEAKAGE CURRENT | <3.5mA / 530VAC | |||
OVERLOAD | 105 ~ 130% rated output power | |||
Protection type : Constant current limiting, recovers automatically after fault condition is removed | ||||
PROTECTION | OVER VOLTAGE | 16 ~ 18V | 31 ~ 37V | 60 ~ 67V |
Protection type : Shut down o/p voltage, re-power on to recover | ||||
OVER TEMPERATURE | Shut down o/p voltage, recovers automatically after temperature goes down | |||
FUNCTION | DC OK SIGNAL | Relay contact rating(max.) : 30V / 1A resistive | ||
WORKING TEMP. | 25 ~ +70℃ (Refer to "Derating Curve") | |||
WORKING HUMIDITY | 20 ~ 90% RH non-condensing | |||
ENVIRONMENT | STORAGE TEMP., HUMIDITY | -40 ~ +85℃ , 10 ~ 95% RH | ||
TEMP. COEFFICIENT | ±0.03%/℃ (0 ~ 50℃) | |||
VIBRATION | Component: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6 | |||
SAFETY STANDARDS | UL508, AS/NZS 62368. 1, EAC TP TC 004 approved, IEC62368-1 CB approved by SIQ;(meet EN60204-1) | |||
SAFETY &EMC(Note 4) | WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC | ||
ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH | |||
EMC EMISSION | Compliance to EN55032 (CISPR32), EN61204-3 Class B, EAC TP TC 020 | |||
EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, EN61204-3, EN61000-6-2 (EN50082-2), heavy industry level, criteria A, EAC TP TC 020 | |||
MTBF | 268K hrs min. MIL-HDBK-217F (25℃) | |||

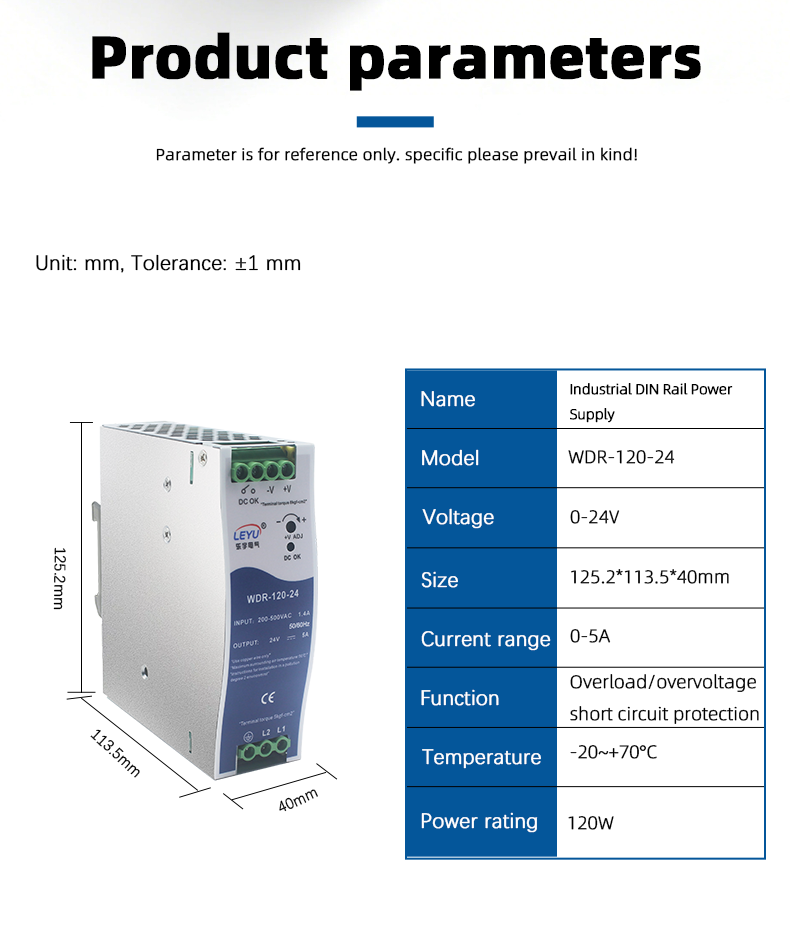

OTHERS | DIMENSION | 40*125.2*113.5mm (W*H*D) | ||
PACKING | 0.65Kg; 20pcs/14Kg/1. 16CUFT | |||
NOTE | 1. All parameters NOT specially mentioned are measured at 400VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair_wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re_confirmed that it still meets EMC directives. 5. Length of set up time is measured at cold first start. Turning ON/OFF the power supply very quick may lead to increase of the set up time. 6. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). ※ product Liability Disclaimer | |||

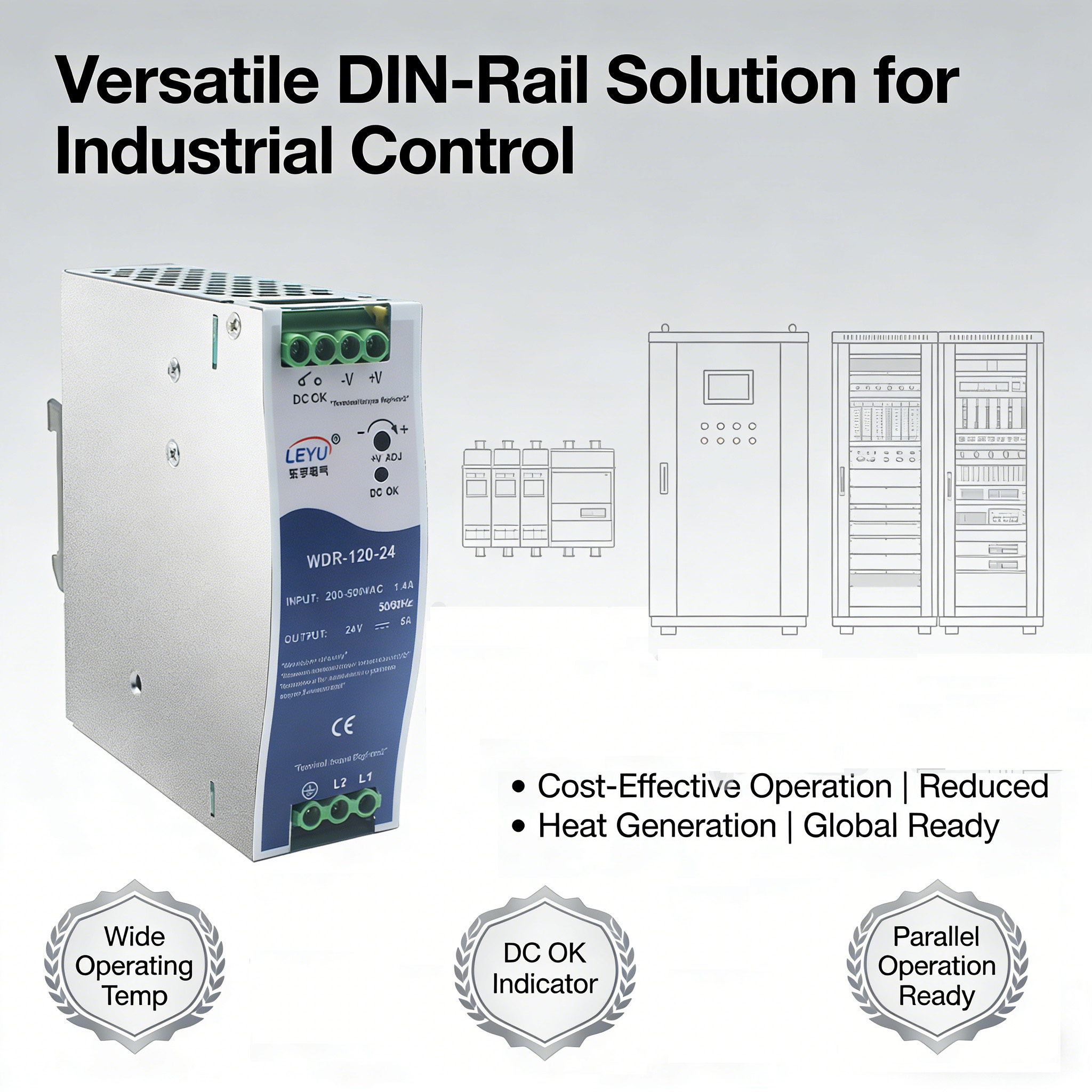

The WDR-120W 24V DIN Rail Power Supply is a high-performance industrial switching power supply designed for demanding automation and control applications. Delivering 120W of continuous power at 24V DC (5A output), this AC to DC converter combines compact construction with high efficiency, making it an ideal choice for control cabinets, PLC systems, industrial machinery, and LED lighting installations.
Engineered with a slim 40mm width, the WDR series saves valuable panel space while maintaining reliable operation in harsh environments. With wide input voltage range (90-264VAC), excellent thermal performance, and comprehensive protection circuits, this power supply ensures stable power delivery even under challenging conditions.
High Efficiency & Energy Saving
Achieves up to 89% efficiency at full load, reducing heat generation and improving system reliability. Low no-load power consumption meets global energy-saving standards.
Compact DIN Rail Design
Slim 40mm width allows easy installation on TS-35/7.5 or TS-35/15 DIN rails, optimizing cabinet space for control panels and industrial enclosures.
Wide Operating Temperature Range
Operates reliably from -25°C to +70°C with power derating above 50°C, suitable for industrial environments with temperature fluctuations.
Comprehensive Protection
Built-in protections include:
– Short Circuit Protection (hiccup mode, auto-recovery)
– Overload Protection (120% – 160% rated output)
– Over Voltage Protection (clamping protection)
– Over Temperature Protection (automatic shutoff and restart)
Global Safety Certifications
Fully certified with CE, RoHS, and UL standards, ensuring compliance for international markets. Designed to meet industrial safety regulations.
High Reliability
100% full-load burn-in testing ensures long operational life and stable performance in continuous-duty applications
The WDR-120W 24V DIN Rail Power Supply is engineered for a wide range of industrial and commercial applications, including:
Programmable Logic Controllers (PLC) – Stable 24V power for PLC modules and I/O systems
Industrial Automation Equipment – Power for sensors, actuators, and control relays
Control Cabinets & Panels – Compact form factor ideal for space-constrained enclosures
LED Signage & Lighting – Constant voltage 24V DC output for LED strips and displays
Machinery & Manufacturing – Reliable power for production line equipment
Building Automation – Power for HVAC controls, access control systems, and security panels
Reliable Power for Critical Systems – Built for 24/7 continuous operation
Space-Saving Design – Fits easily into standard control panels
Global Compliance – Certified for international industrial markets
Competitive Factory Pricing – Direct from manufacturer or authorized distributor
Technical Support – Expert assistance available for installation and application questions
