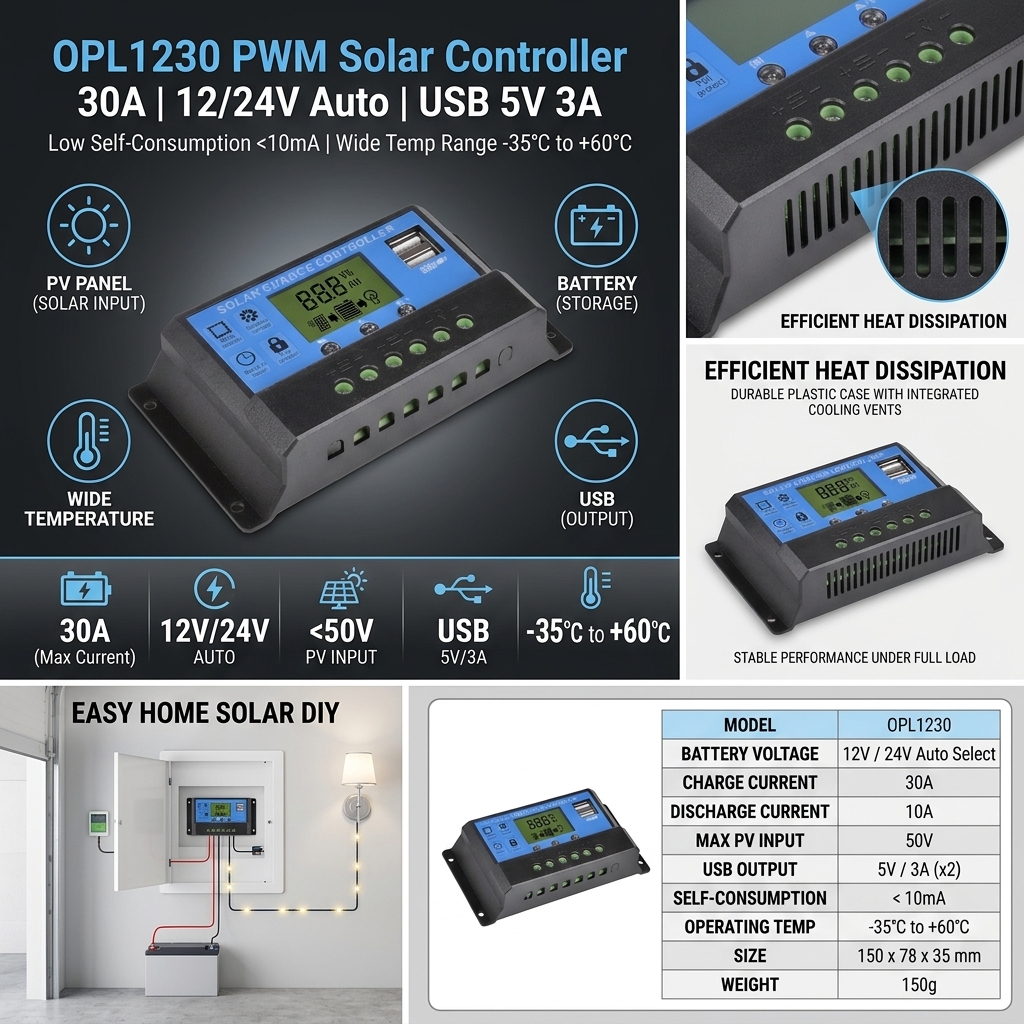

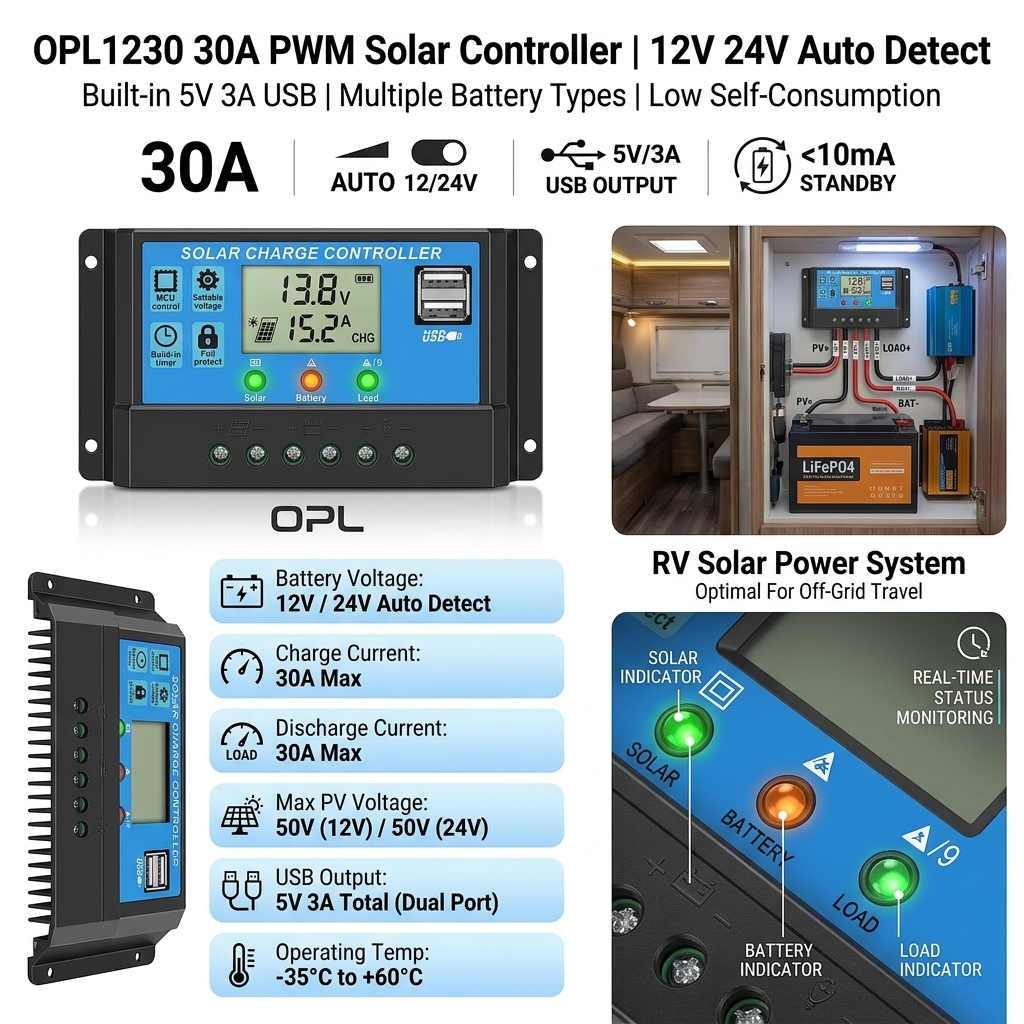

OPL 1230 PWM Solar Controller
LEYU
| Availability: | |
|---|---|
| Quantity: | |

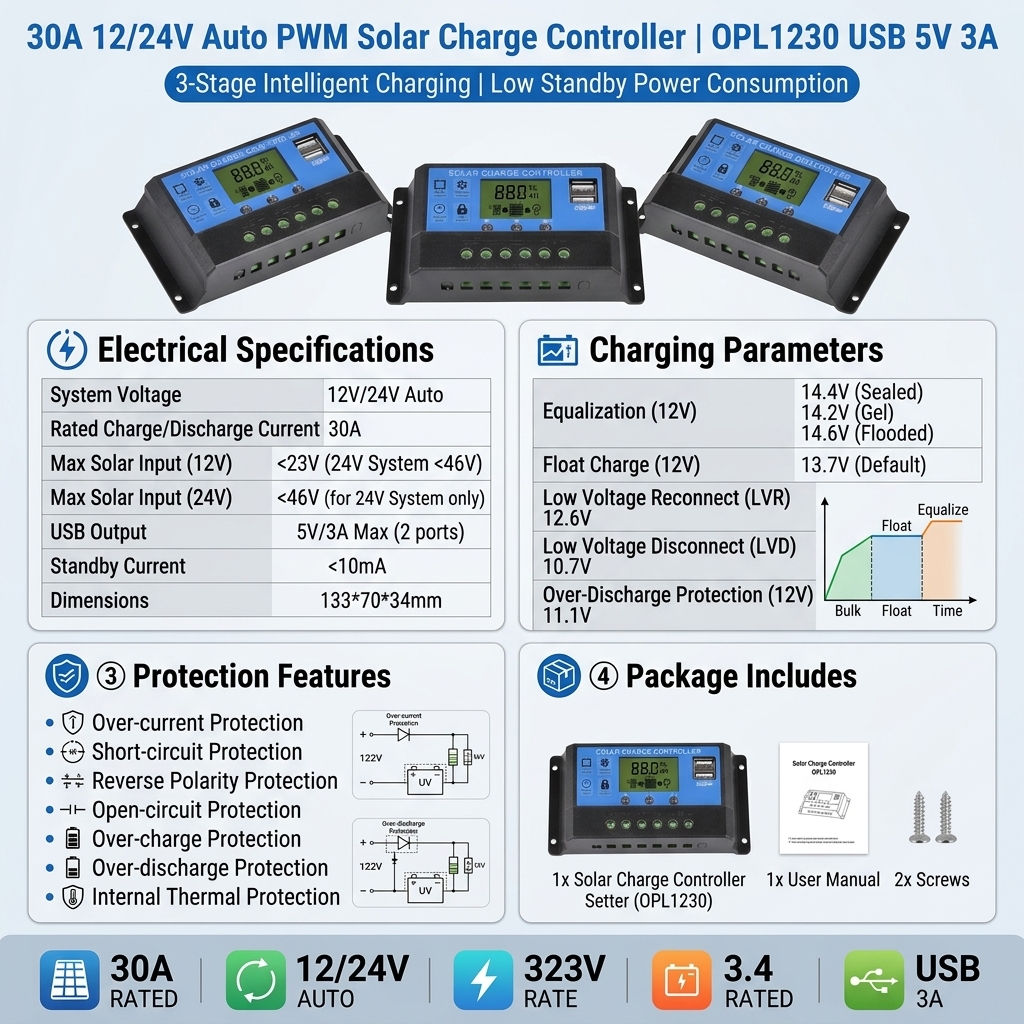

TECHNICAL PARAMETER
Model | OPL1210 | OPL1220 | OPL1230 | OPL4820 | OPL4830 |
Battery voltage | 12V/24V auto | 48V | |||
Charge current | 10A | 20A | 30A | 20A | 30A |
Discharge current | 10A | 20A | 30A | 20A | 30A |
Max Solar input | <50V | <80A | |||
Float charge | 13.7V(default,adjustable) | ||||
Discharge stop | 10.7V(default,adjustable) | ||||
Discharge reconnect | 12.6V(default,adjustable) | ||||
USB output | 5V/2A | ||||
Self-consume | <10ma | ||||
Operating temperature | -35~+60℃ | ||||

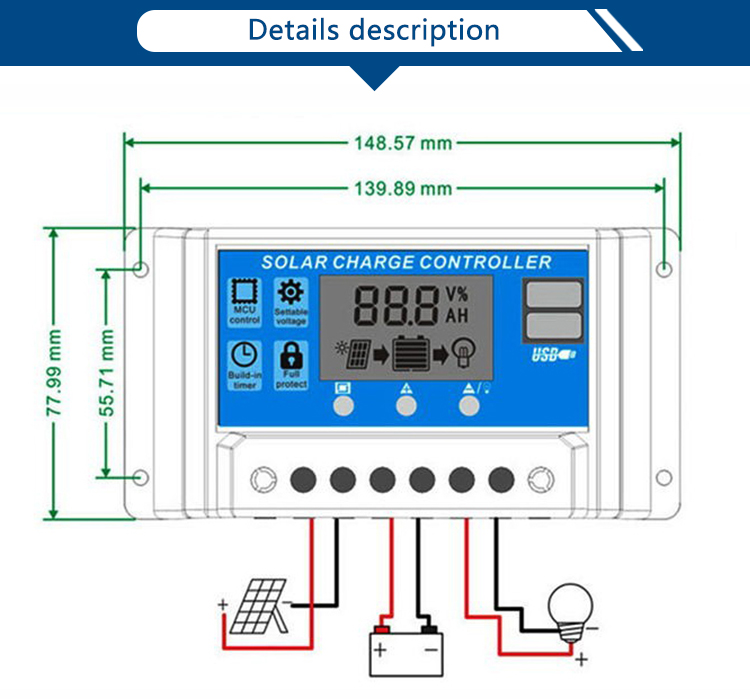

Size/Weight | 150*78*35mm /150g | ||||

The OPL-1230 is a heavy-duty 30A PWM solar charge controller designed for professional off-grid power management. It serves as the intelligent interface between photovoltaic arrays and battery storage, supporting automatic 12V and 24V system detection. Engineered for industrial stability, the OPL-1230 ensures precise voltage regulation and battery health optimization in harsh environments.
Intelligent 12V/24V Auto-Recognition
Automatically detects system voltage upon connection to simplify installation logic.

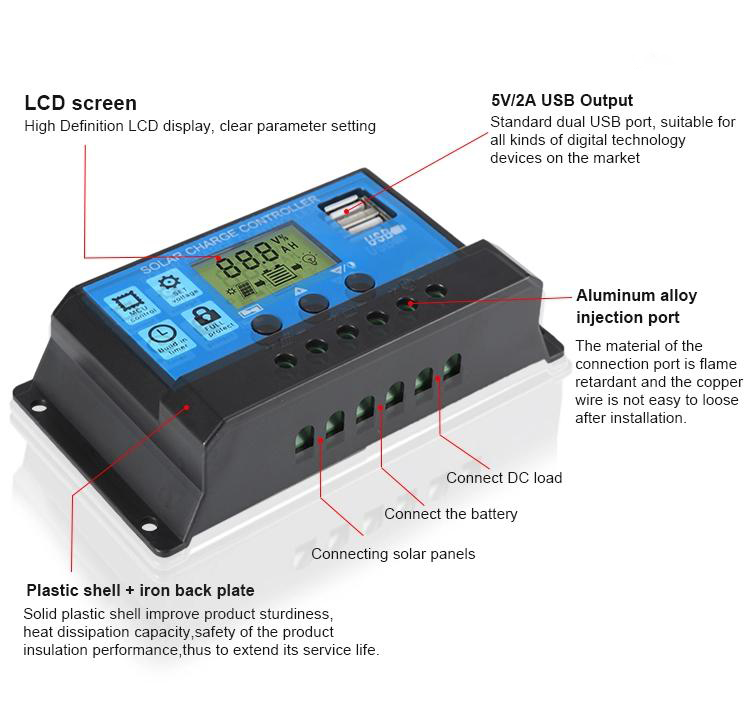

High-Definition LCD Display
Integrated digital interface providing real-time data on PV input, battery voltage, and load status.
Dual USB 5V/2A Outputs
Supports direct charging for mobile devices and small electronics without additional inverters.

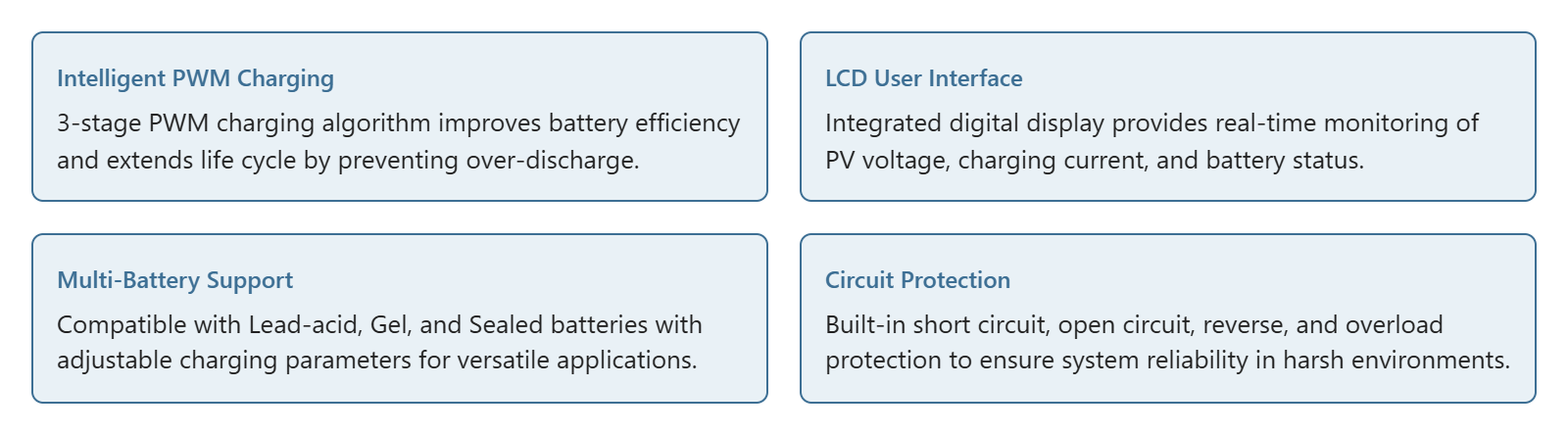

Advanced Battery Life Preservation

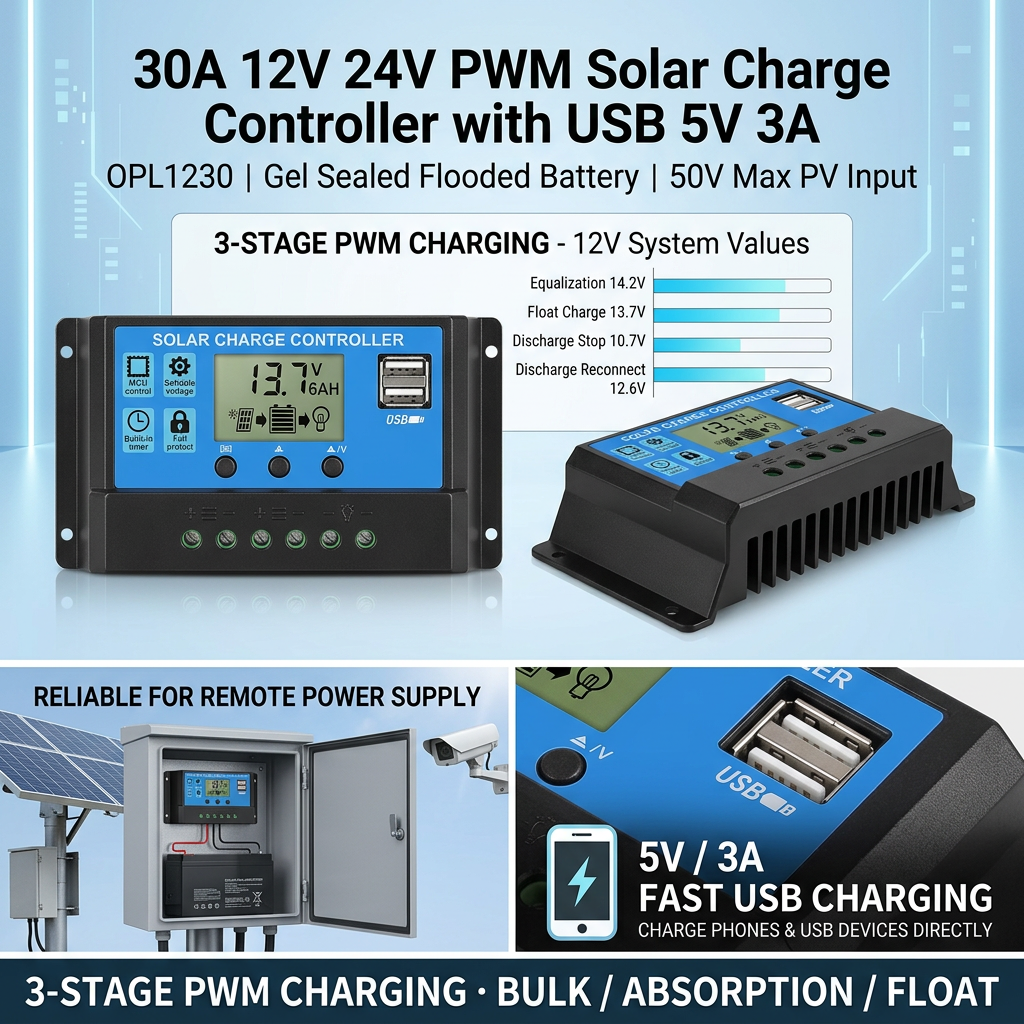

Point: Implements a 3-stage PWM charging algorithm to maximize battery service li.
Argument: By cycling through Bulk, Boost, and Float stages, the OPL-1230 prevents battery sulfation and overheating, extending lead-acid battery cycles by up to 30% compared to non-regulated charging.
Industrial-Grade Operational Safety
Point: Multi-layer circuit protection ensures system uptime and hardware integrity.
Argument: Built-in protections for short-circuit, reverse-polarity, and over-load automatically trigger to isolate faults. The controller features auto-recovery once the fault is cleared, minimizing site visit costs.
Enhanced Energy Harvesting Efficiency
Point: Low-loss power path design reduces internal heat and energy waste.
Argument: The OPL-1230 uses low internal resistance components to ensure that the maximum possible energy from the PV array reaches the battery, maintaining high conversion efficiency even during peak temperature periods.

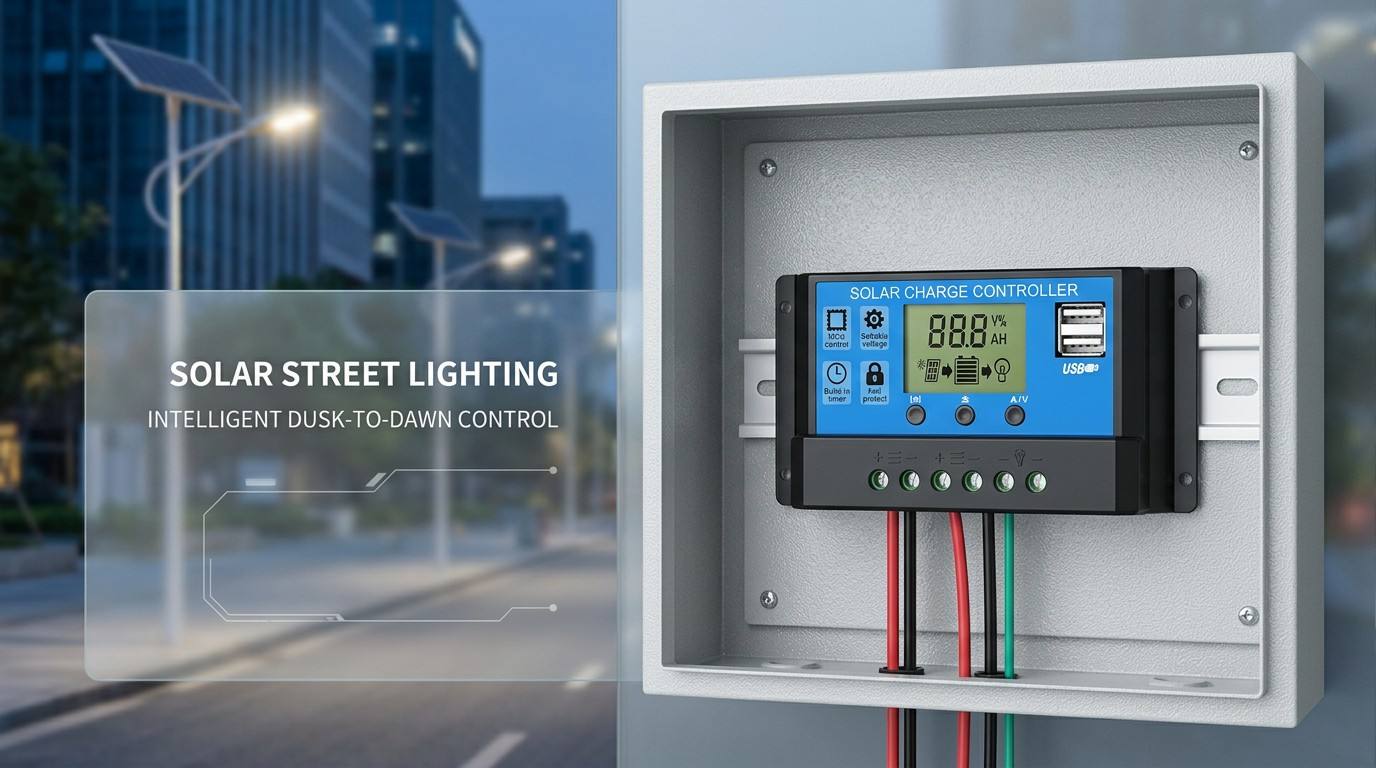

Solar Street Lighting:
Reliable dusk-to-dawn control for municipal and residential lighting projects.

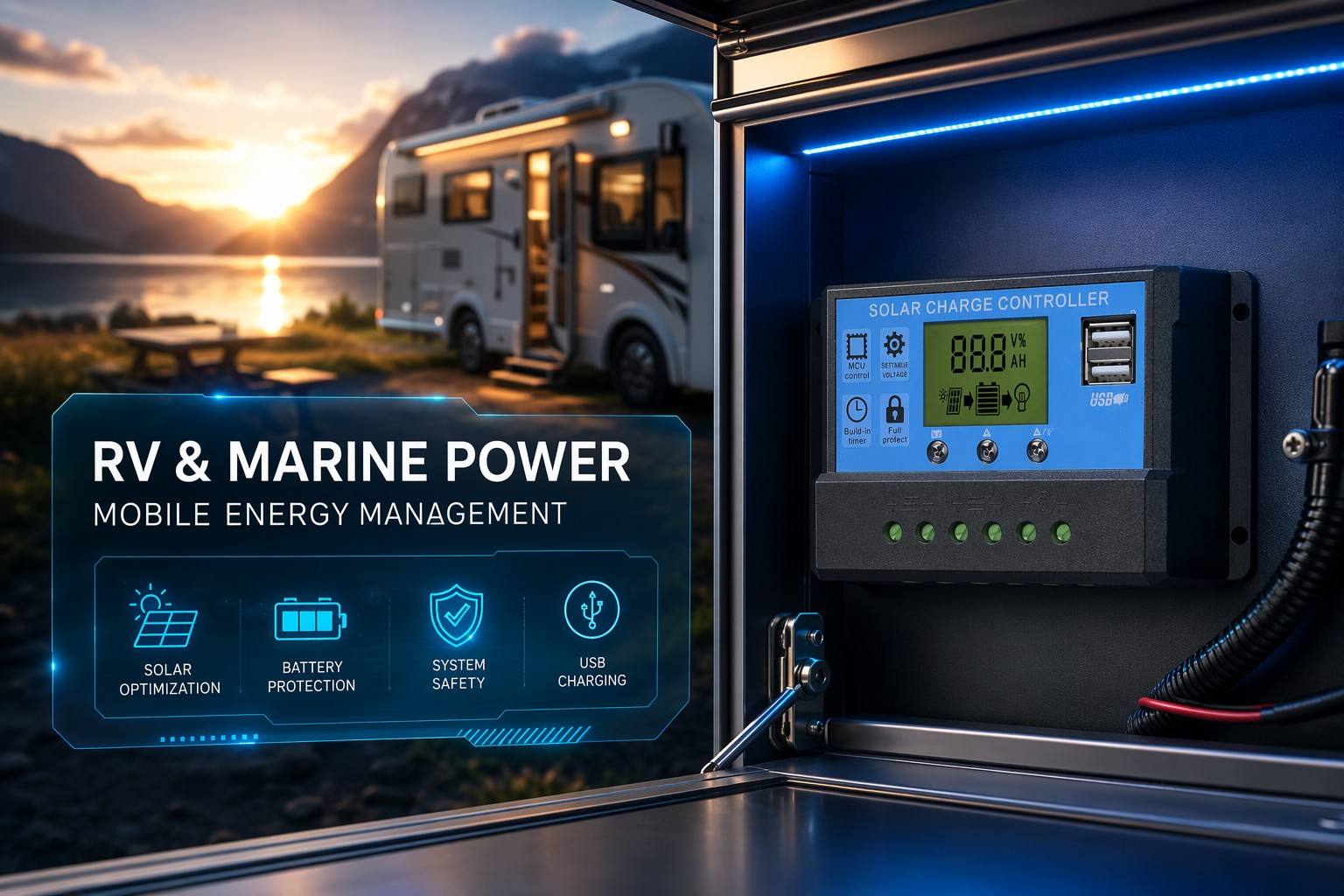

RV and Marine Power:
Stable energy management for mobile off-grid systems in caravans and boats.

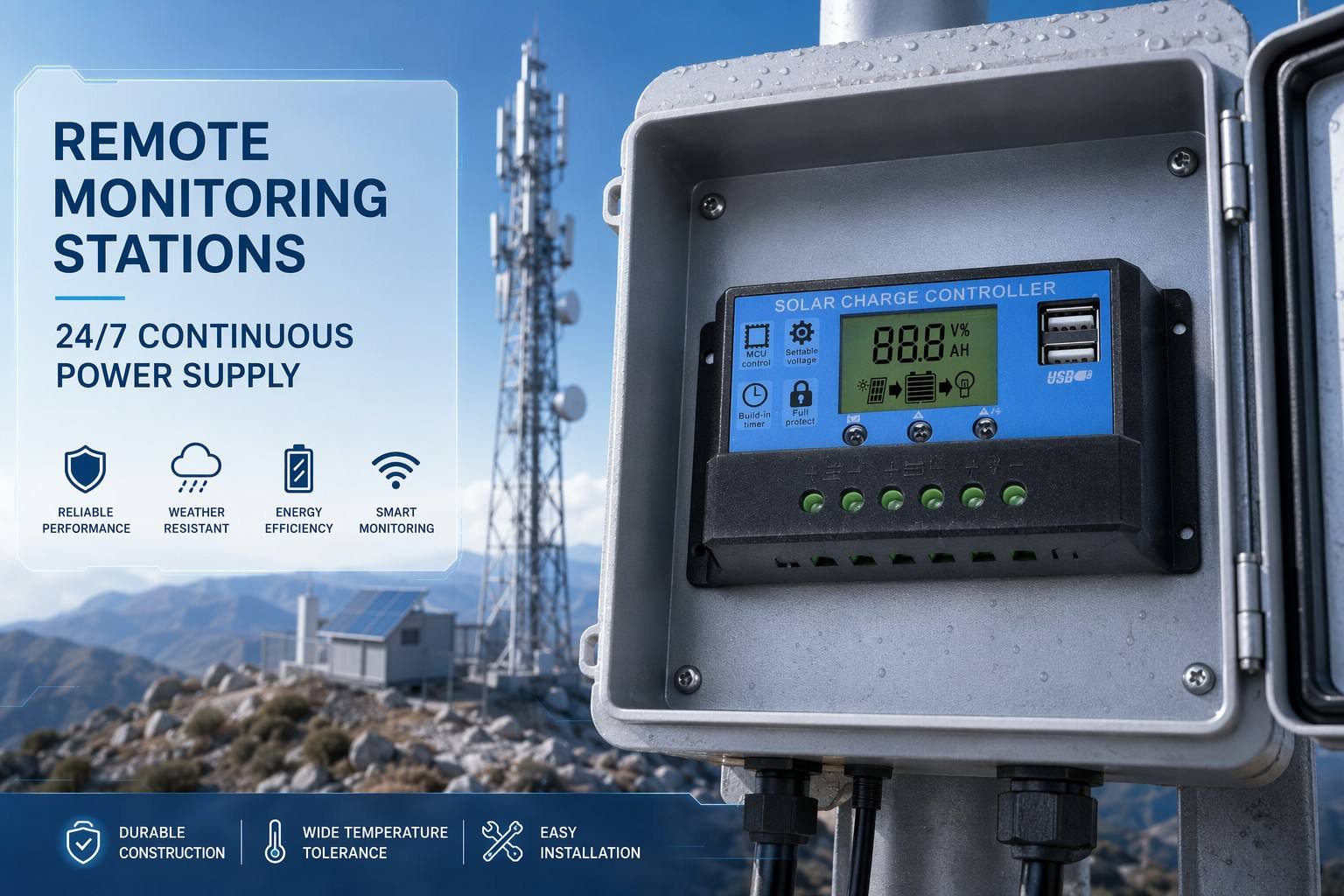

Remote Monitoring Stations:
Continuous power supply for telecommunication towers and weather sensors.

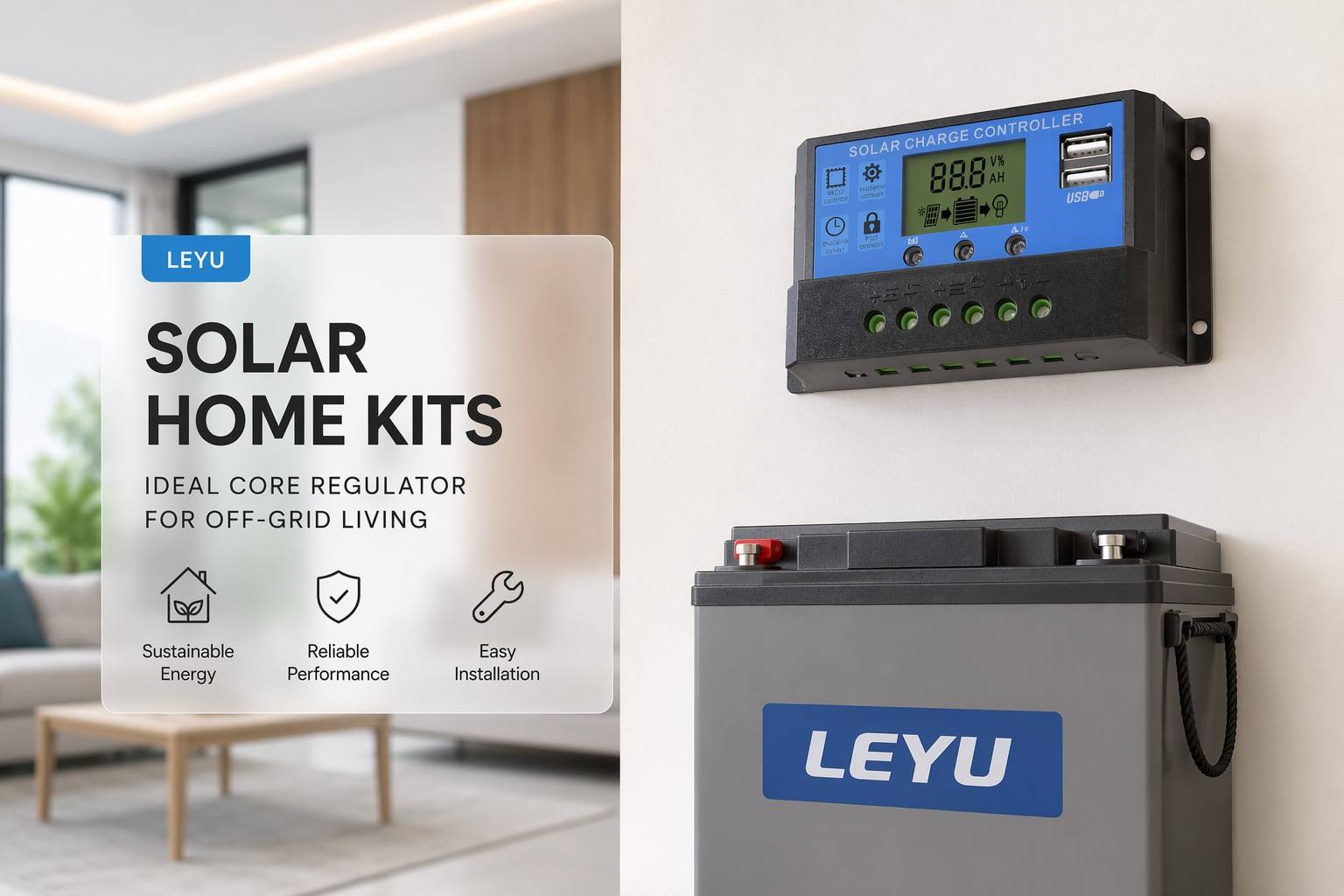

Solar Home Kits:
Ideal core regulator for small-scale off-grid residential solar installations.

Q1: Can I use the OPL-1230 with Lithium batteries?
A: The OPL-1230 is primarily optimized for Lead-Acid batteries (Sealed, Gel, Flooded). Please consult our technical team if your system requires specific Lithium charging profiles.

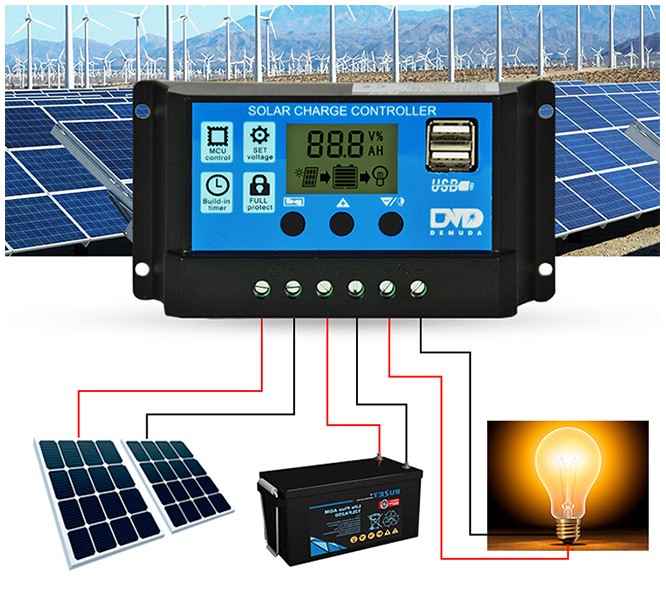

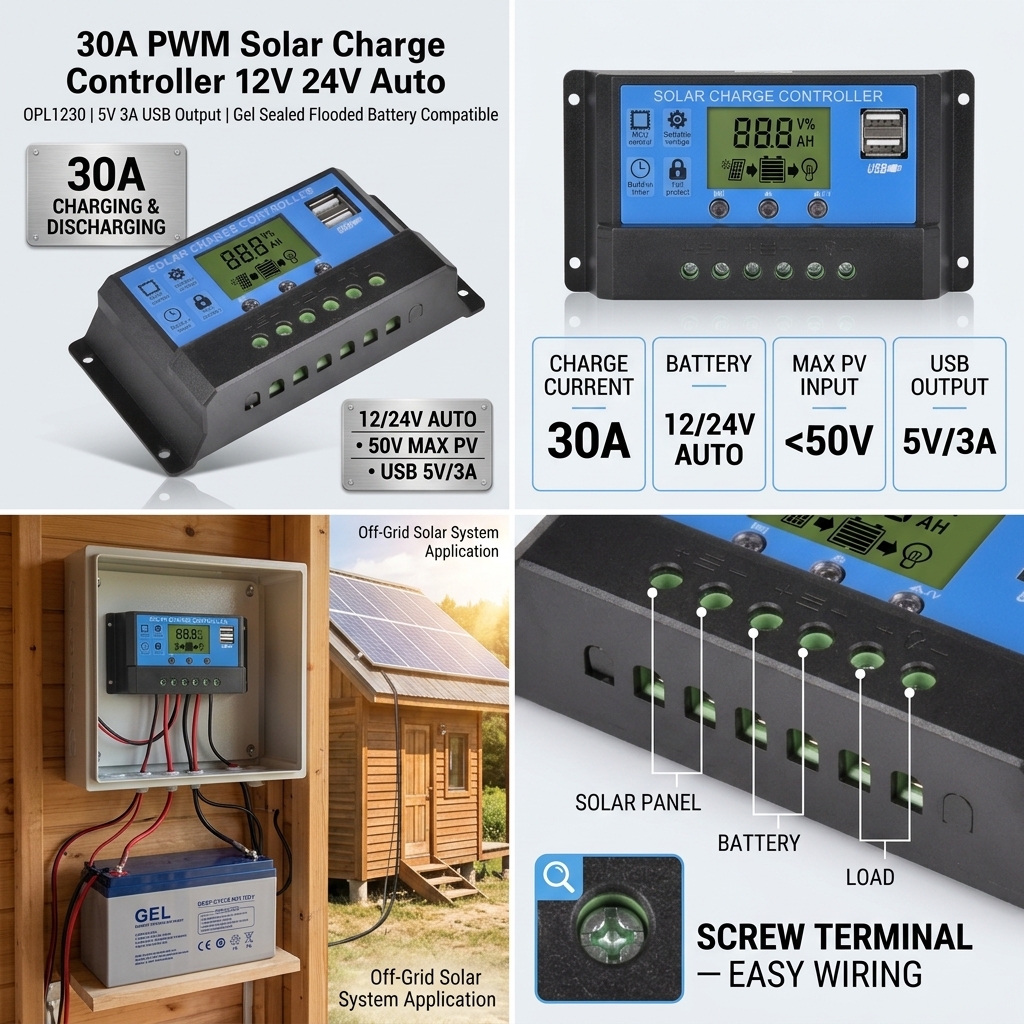

Q2: What is the correct connection sequence?
A: Always connect the Battery first so the controller can recognize the system voltage. Then connect the Solar Panel, and finally the Load. Disconnect in the reverse order.
Q3: Does the controller include temperature compensation?
A: Yes, the OPL-1230 features an internal temperature sensor to adjust charging voltage based on ambient conditions, preventing overcharging in hot climates.
