■ Features
·Universal AC input/ full range
·Universal input 85~264VAC(277VAC operational)
·No load power consumption<0.3W
·Isolation class Ⅱ

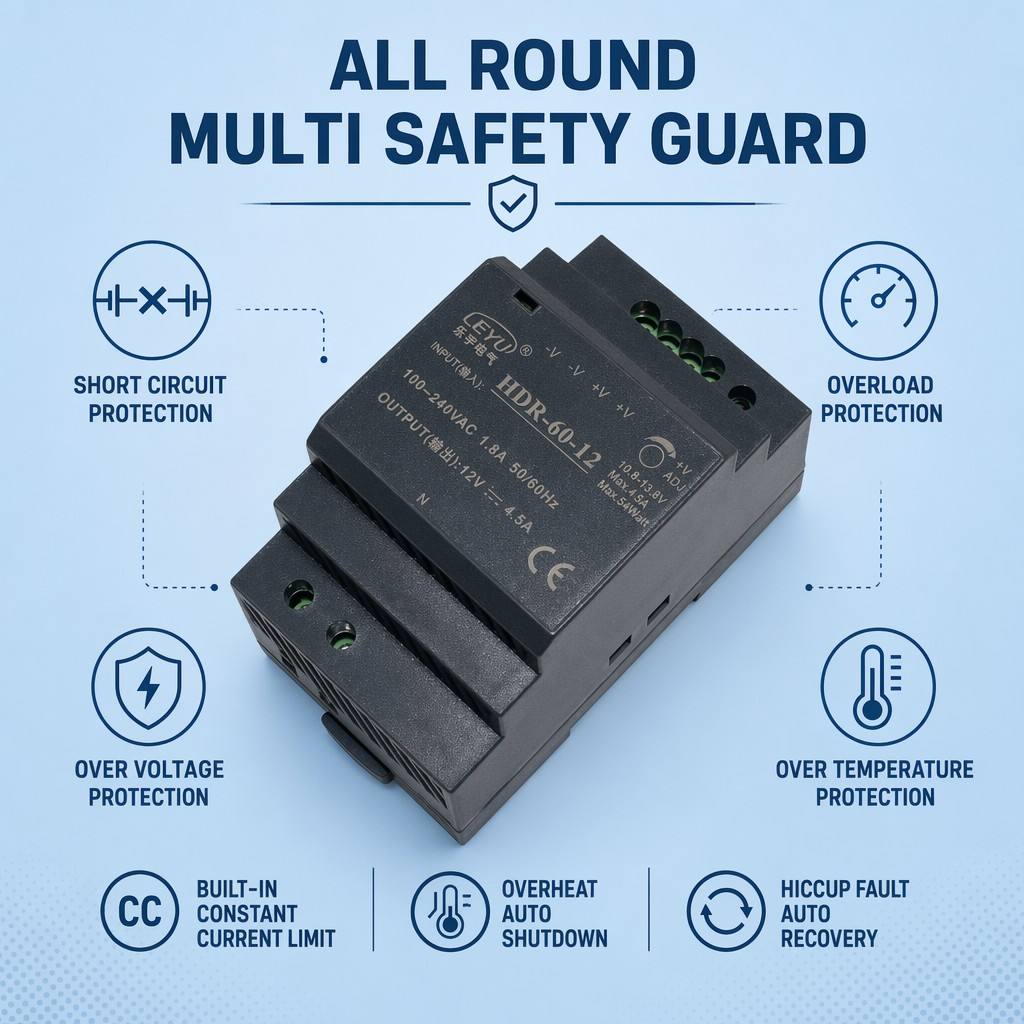

·Protections: Short circuit/ Over load/ Over voltage/ Over temperature
·DC output voltage adjustable
·Protections : Short circuit / Overload / Over voltage
·Cooling by free air convection (working temperature:-30~+70°C)
·DIN rail TS-35/7.5 or 15 mountable
·LED indicator for power on
·2 years warrant
Din Rail Power Supply
LEYU
| Availability: | |
|---|---|
| Quantity: | |

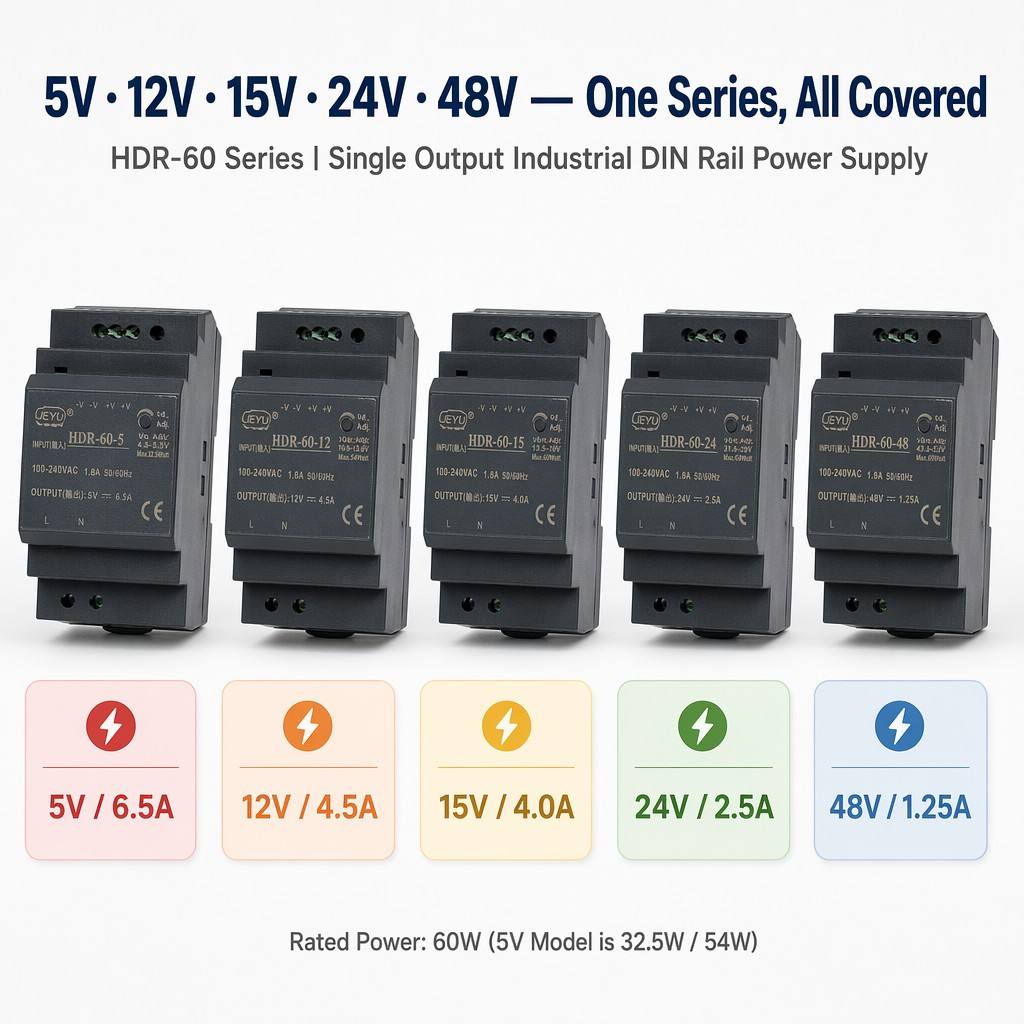

Model | HDR-60-5 | HDR-60-12 | HDR-60-15 | HDR-60-24 | HDR-60-48 |
DC Voltage | 5V | 12V | 15V | 24V | 48V |
Rated Current | 6.5A | 4.5A | 4A | 2.5A | 1.25A |
Current Range | 0 - 6.5A | 0 - 4.5A | 0 - 4A | 0 - 2.5A | 0 - 1.25A |
Rated Power | 32.5W | 54W | 60W | 60W | 60W |
Ripple & Noise (max.) | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 240mVp-p |
Voltage Adj. Range | 5.0 - 5.5V | 10.8 - 13.8V | 13.5 - 18V | 21.6 - 29V | 43.2 - 55.2V |
Voltage Tolerance | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
Line Regulation | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
Load Regulation | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
Setup, Rise Time | 500ms, 50ms/230VAC 500ms, 50ms/115VAC at full load | ||||
Hold Up Time | 30ms/230VAC 12ms/115VAC at full load | ||||
Voltage Range | 85 ~ 264VAC (277VAC operational ) 120 ~ 370VDC (390VDC operational ) | ||||
Frequency Range | 47 ~ 63Hz | ||||
Efficiency | 85% | 88% | 89% | 90% | 91% |
AC Current | 1.2A/115VAC 0.8A/230VAC | ||||
Inrush Current | COLD START 30A/115VAC 60A/230VAC | ||||

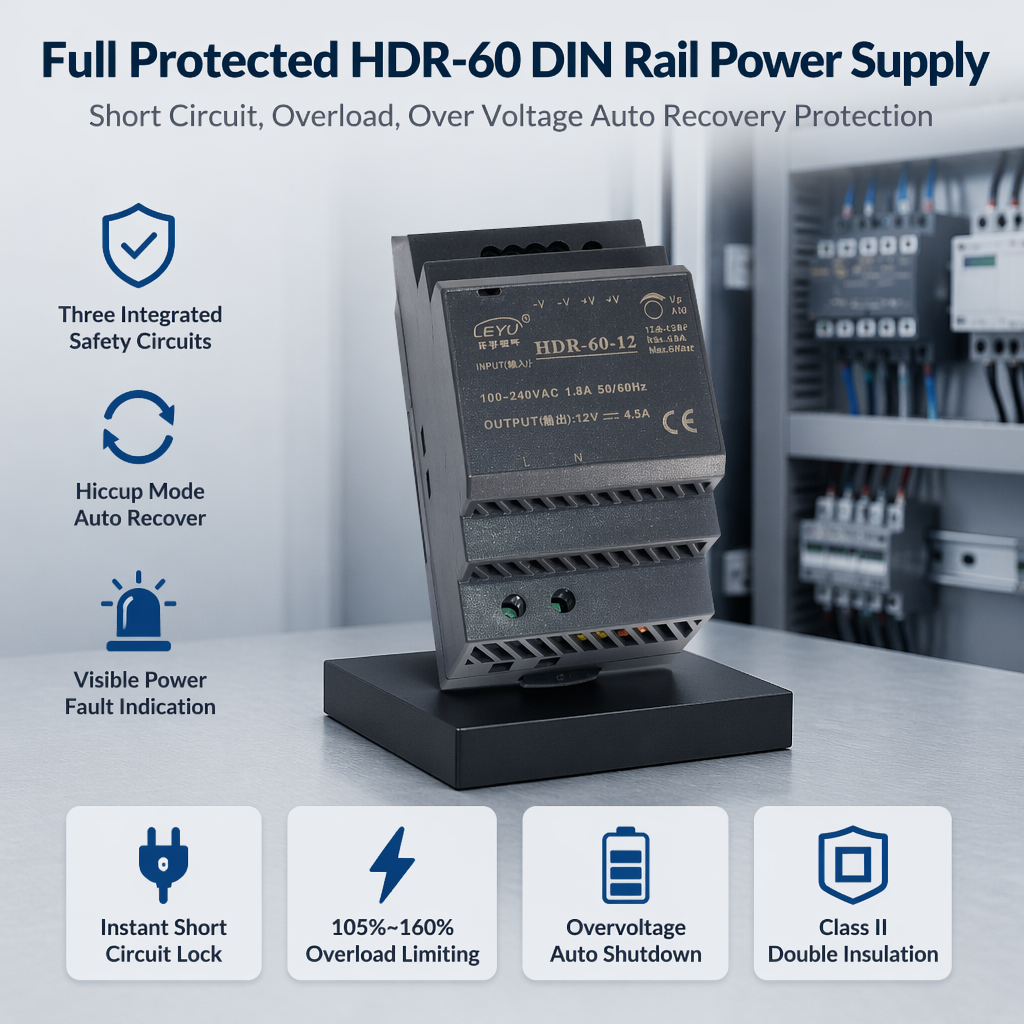

Over Load | 105 ~ 160% rated output power | ||||
Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed | |||||
Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed | |||||
Over Voltage | 5.75 ~ 6.75V | 14.2 ~ 16.2V | 18.8 ~ 22.5V | 30 ~ 36V | 56.5 ~ 64.8V |
Protection type : Shut down o/p voltage, re-power on to recover | |||||
Working Temp. | -30 ~ +70℃ (Refer to "Derating Curve") | ||||
Working Humidity | 20 ~ 90% RH non-condensing | ||||
Storage Temp., Humidity | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||
Temp. Coefficient | ±0.03%/℃ (0 ~ 50℃) RH non-condensing | ||||
Dimension | 53*90*54.5mm (L*W*H) | ||||
Packing | 60pcs/12.4Kg/0.97CUFT | ||||
The LEYU HDR-60 series is a flagship ultra-slim 60W industrial DIN rail power supply, specifically engineered for installation on TS-35/7.5 or TS-35/15 mounting rails. The unit features a compact 52.5mm (3SU) width design, which allows for significant space optimization inside control cabinets and distribution boards. Adopting the "Step Shape" architecture common in European building standards, the HDR-100 fits seamlessly alongside standard circuit breakers in shallow electrical panels. It supports a universal AC input range from 85VA to 264VAC (277VAC operational) and conforms to EN61000-3-2 harmonic current regulations.
Argument : The HDR-60 offers higher power density in a smaller mechanical envelope.

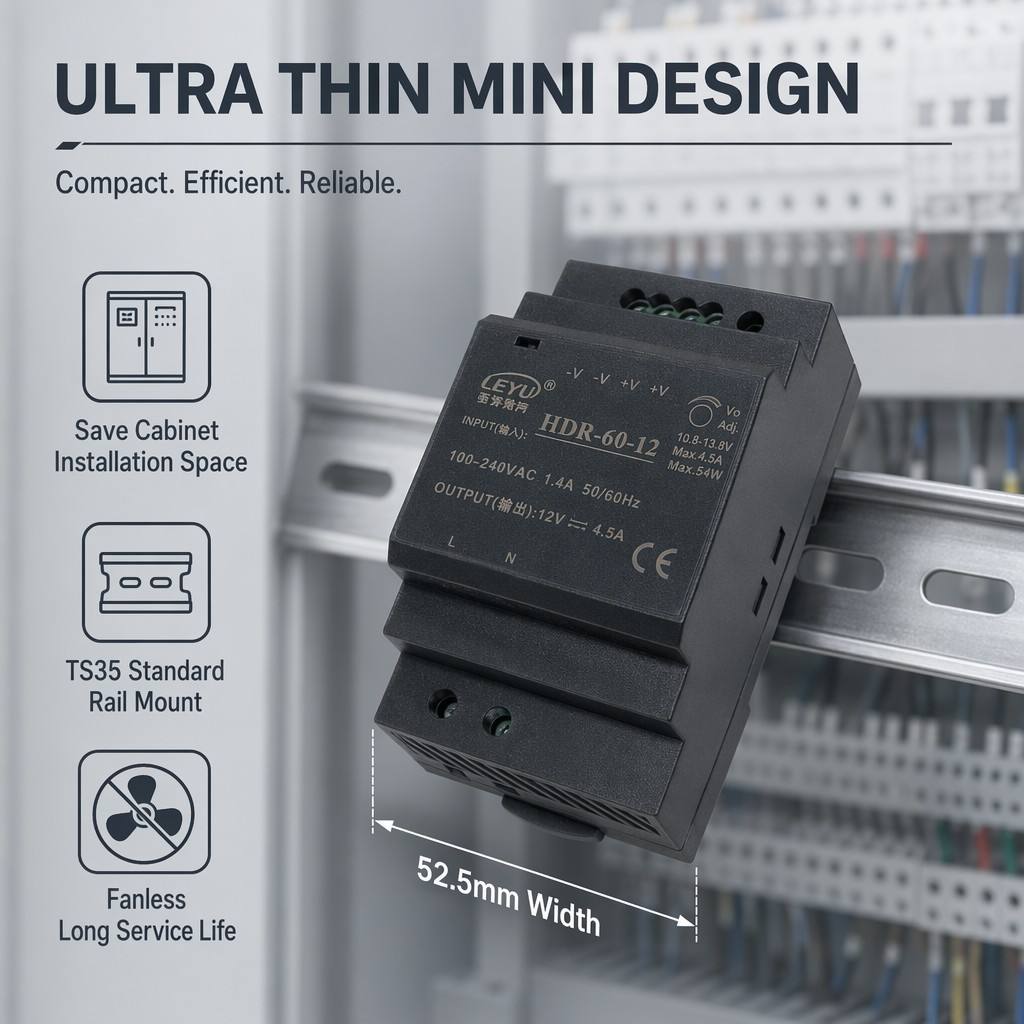

Evidence : With a width of only 52.5mm (3SU), the HDR-60 saves over 40% of rail space compared to traditional 60W metal-case industrial supplies. This enables engineers to specify smaller, more cost-effective enclosures without sacrificing performance.
Advantage 2: Enhanced Installation Safety (Class II)
Argument: Simplifies wiring and increases safety in hybrid civil/industrial environments.

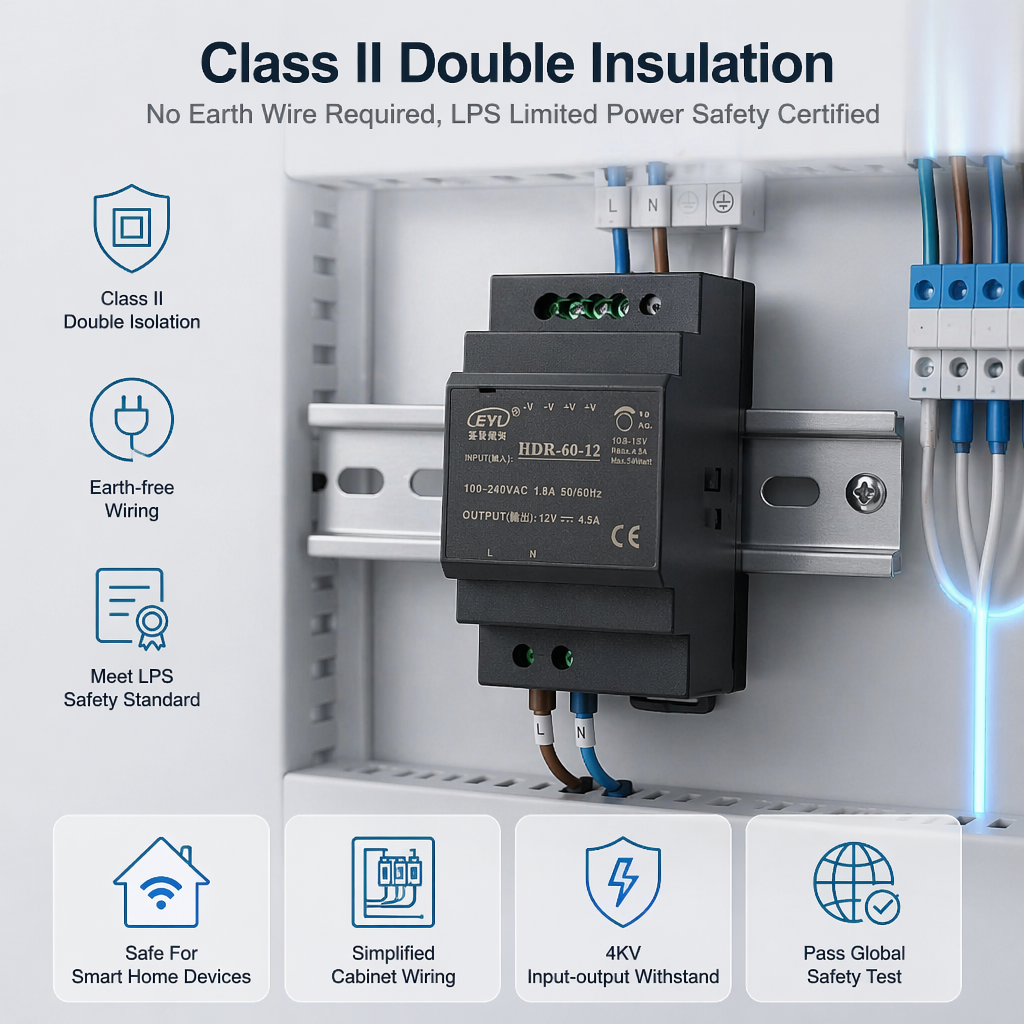

Evidence : As an Isolation Class II unit, it features a double-insulated chassis and does not require an FG (Frame Ground) connection. This prevents ground-loop noise and simplifies deployment in locations where a reliable safety ground is unavailable, such as smart home or older building automation systems.
Advantage 3: Superior Thermal Management and Energy Saving
Argument : Reduces long-term operational costs and maintenance risks.

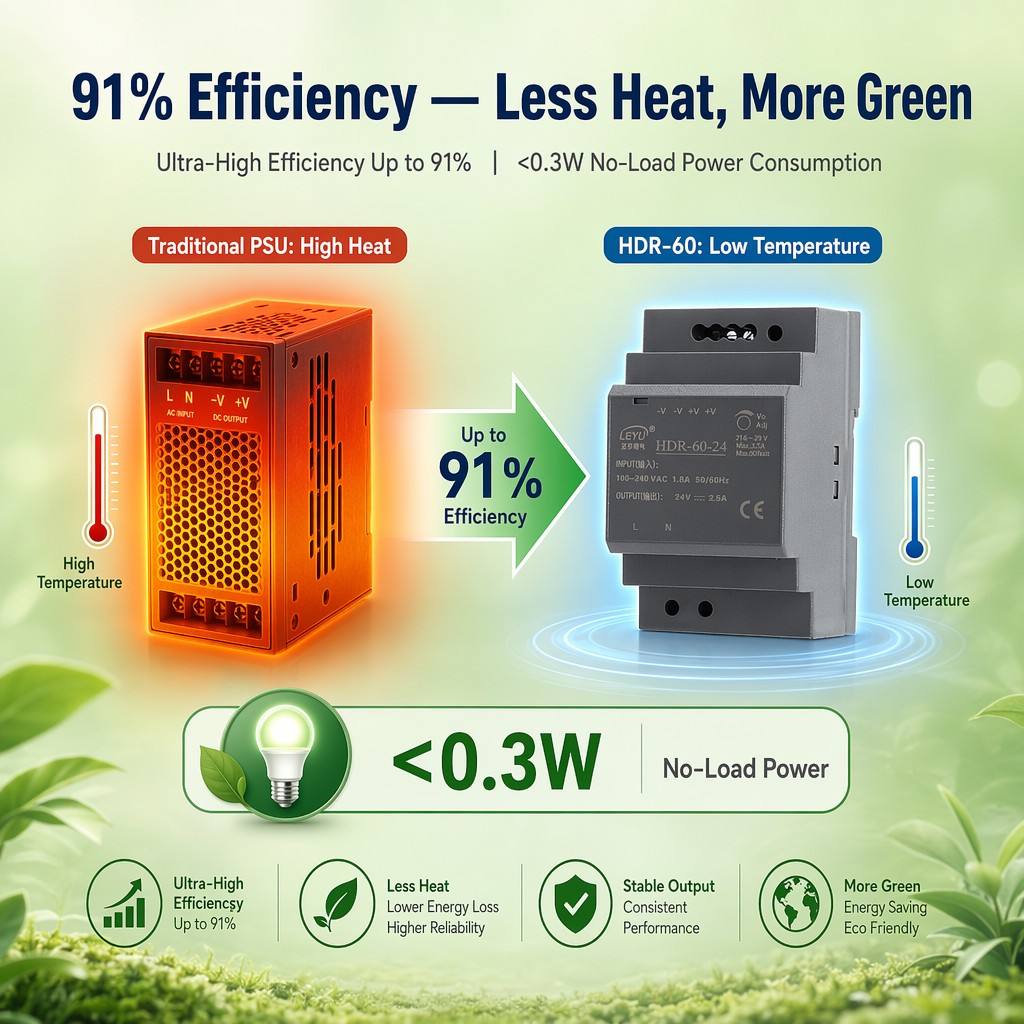

Evidence: The fanless natural convection cooling design combined with a wide operating temperature range (-30 to +70°C) ensures an extended MTBF (Mean Time Between Failures). Furthermore, the no-load consumption < 0.3W meets the stringent "ErP directive" for end-equipment power efficiency.
Building Automation:
Powering intelligent lighting controllers, HVAC systems, and security hubs.
Industrial Control:
Reliable DC source for PLCs, I/O modules, and HMIs in control cabinets.
Household Control:
Ideal for IoT gateways and smart home distribution boxes.
Telecommunications:
Compact power for small-cell stations and networking routers.
Q: Does the HDR-60 require a cooling fan for 60W output?
A: No, the HDR-60 is designed for natural convection cooling and can deliver full power up to 45-50°C ambient temperature without an external fan.
Q: Can this power supply be mounted in a standard breaker box?
A: Yes. Its "Step Shape" design is specifically optimized to fit alongside circuit breakers in standard residential and commercial distribution boxes.
Q: What happens if the output is accidentally short-circuited?
A: The HDR-60 features comprehensive short-circuit protection (Hiccup mode). The unit will automatically recover once the fault condition is removed.
