PS-45 SPECIFICATIONS

OUTPUT
MODEL	PS-45-5	PS-45-12	PS-45-15	PS-45-24
DC Voltage	5V	12V	15V	24V
Rated Current	8A	3.7A	3A	1.9A
Rated Power	40W	44.4W	45W	45.6W
Ripple&Noise	100mV	100mV	100mV	150mV
Voltage Tolerance	±3%	±2%	±2%	±2%
Line Regulation	±1%	±1%	±1%	±1%
Load Regulation	±3%	±2%	±2%	±2%
Set up,Rise,Hold Up Time	800ms,30ms,60msat full load
INPUT
Voltage Range	90-264VAC 47-440Hz;127-370VDC
Efficiency	74%	76%	77%	78%
Inrush Current	Cold-start current15A/115V 30A/230VAC
Leakage Current	<0.75mA/240VAC
PROTECTION
Over Load	53-75W rated output power
	Protection type:hiccup mode,recovery automatically after fault conditionis removed
ENVIRONMENT
Working Temp., Humidity	-10℃~+60℃(Refert ooutput derating curve),20%~90%RH non-condensing
Storage Temp., Humidity	-20℃~+85℃, 10%~95%RH
Vibration	10~500Hz,2G 10min,/1cycle,Period for 60min,Each along X, Y, Z axes
SAFETY
Withstand Voltage	I/P-O/P: 3KVAC I/P-FG: 2KVAC O/P-FG: 0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC/25℃/70% RH
STANDARD
Safety Standard	Meet UL60950-1.TUV EN60950-1 approved
EMC Standard	EN5022 CLASS B EN61000-3-2-3, EN61000-4-2,3,4,5,6,8,11,EN55024, light industry level, criteria A
OTHERS
Dimension	127*76.2*28mm(L*W*H)
Weight	0.19Kg
Packing	72PCS/15.6Kg/1.35CUFT



Product Overview

The PS-45 series from Leyu Electric (Yueqing Leyu Electric Automation Co., Ltd.) is a 45W single‑output open frame switching power supply,

available in four common models: 5V/8A, 12V/3.7A, 15V/3A, and 24V/1.9A.

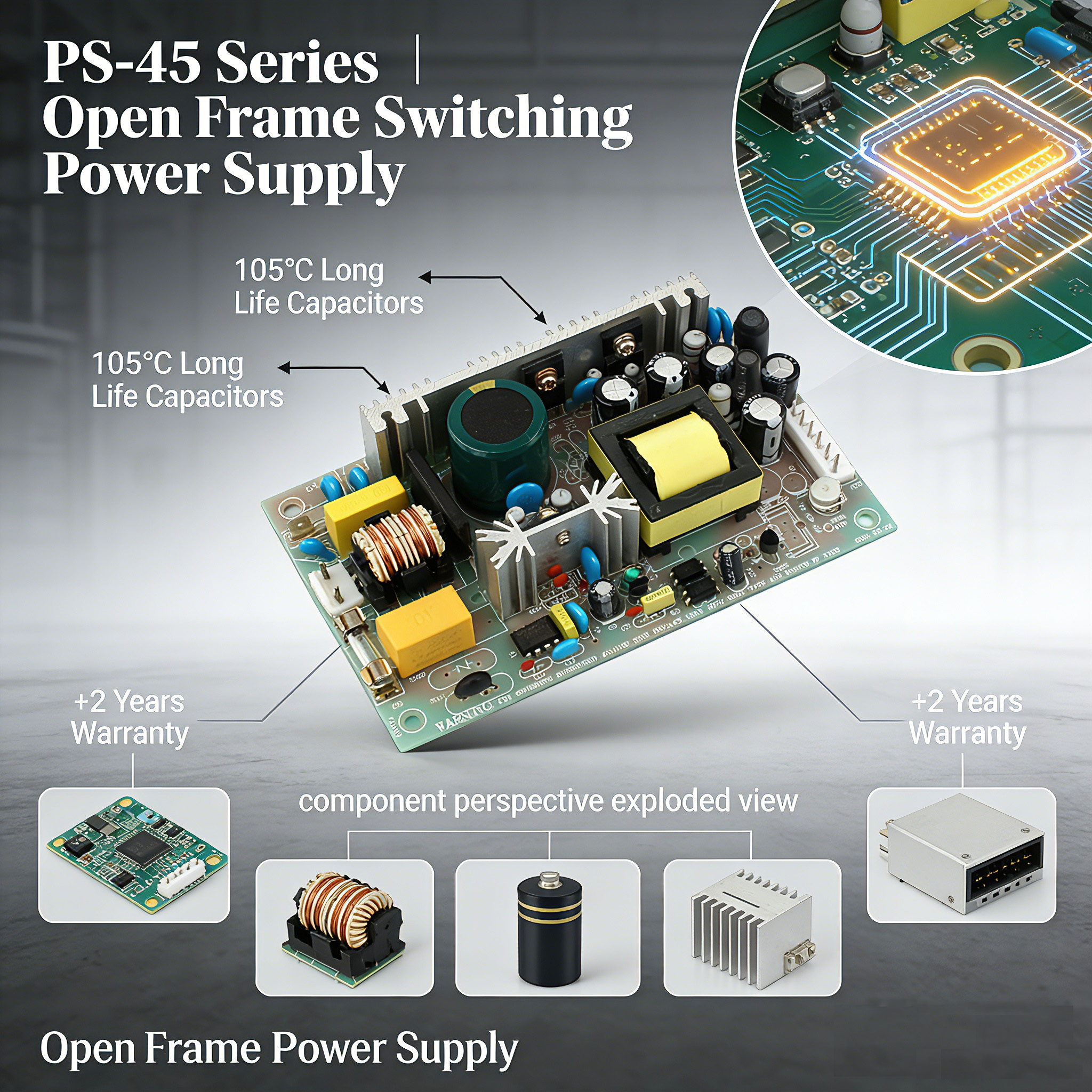

The series uses a bare‑board design with dimensions of 127×76.2×28mm

and weighs only 0.19kg, making it easy to integrate into end devices where space and cost are critical.

 Product Features

•  Universal AC input voltage

           90‑264VAC (47‑440Hz) and also compatible with 127‑370VDC input – no selector switch needed, suitable for various power grids.

• Low leakage current

           ≤0.75mA (at 240VAC), meeting safety requirements for medical and touch‑sensitive equipment.

• Full protection

           Built‑in short‑circuit, overload (53‑75W hiccup mode), over‑voltage, and over‑temperature protection with automatic recovery after fault removal.

• Natural cooling

           Fan‑less design relying on convection cooling – ideal for silent or enclosed environments.

• Low ripple & noise

      Typically 100‑150mVp‑p, satisfying general industrial electronics needs.

• 100% full‑load burn‑in

          Each unit is full‑load tested before shipment to eliminate early failures.

Product Advantages

Compared to similar open frame power supplies, the PS‑45 series offers:

• Stricter leakage current control

       ≤0.75mA, lower than many alternatives (typically 1‑2mA), reducing the risk of electric shock.

• Wide frequency adaptability

       Input frequency supports 47‑440Hz, suitable for 400Hz power applications such as marine and aviation.

• Full certifications

       Compliant with UL60950‑1, TUV EN60950‑1 safety standards, and EMC meeting EN55022 Class B and light industrial immunity levels –

     easy to export to Europe and America.

• Compact footprint

       28mm height, fits into 1U chassis installations.

• 2‑year warranty

       Covers material and workmanship defects.

Applications

The PS‑45 series is suitable for built‑in power supply in:

•  Industrial control boards, PLCs, relay modules

•  Communication equipment, network switches

• Instrumentation, test and measurement devices

•  Home appliance control circuits (e.g., washing machines, air conditioner control boards)

•  LED display drivers, commercial equipment

 FAQ

Q: What is the actual output power of the PS‑45‑12 – 44.4W or 45W?

A: The rated power is 45W. The 12V model has a rated current of 3.7A (44.4W)

     but works stably within its normal load range. We recommend keeping the continuous load at or below the rated value.

Q: Can the open frame power supply be touched directly on the circuit board?

A: No. The PS‑45 series is an open frame design with high‑voltage circuits on the board.

    It must be installed inside the final equipment enclosure, with the end device providing protection against electric shock.

Q: Why is the input voltage range marked as 90‑264VAC but also compatible with 127‑370VDC?

A: The internal rectifier circuit allows it to accept either AC or DC input. For DC input, the voltage must be from 127V up to 370V.

Q: Does the overload recovery require powering off?

A: No. After an overload or short‑circuit fault is removed, the power supply automatically recovers output (hiccup mode) without needing to cycle power.

Q: How long is the warranty for the Leyu PS‑45 series?

A: 2 years from the date of manufacture. Non‑artificial defects are covered by free repair or replacement.
