LPV-60
LEYU
| Availability: | |
|---|---|
| Quantity: | |

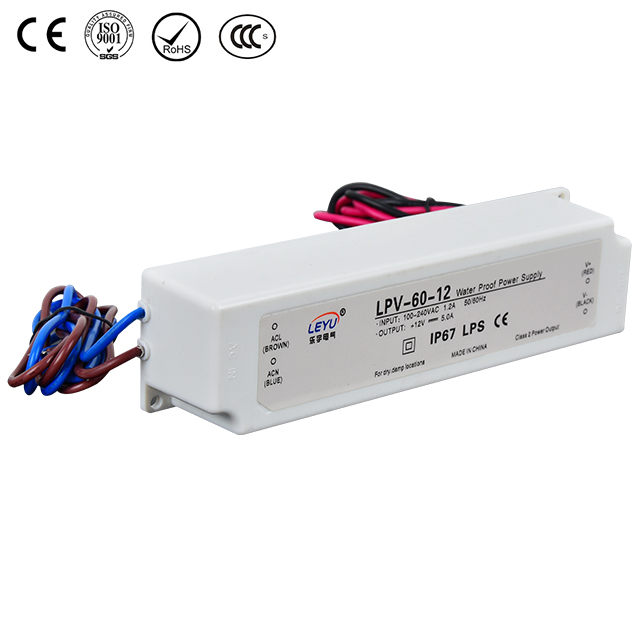

60W Waterproof Single Output Switching Power Supply LPV-60 series
Constant voltage design
Withstand 300VAC surge input for 5 seconds
Cooling by free air convection
Fully encapsulated with IP67 level
Fully isolated plastic case
100% full load burn-in test
SPECIFICATIONS | ||||||
OUTPUT | ||||||
Model | LPV-60-5 | LPV-60-12 | LPV-60-15 | LPV-60-24 | LPV-60-36 | LPV-60-48 |
DC Voltage | 5V | 12V | 15V | 24V | 36V | 48V |
Rated Current | 8A | 5A | 4A | 2.5A | 1.67A | 1.25A |
Current Range | 0-8A | 0-5A | 0-4A | 0-2.5A | 0-1.67A | 0-1.25A |
Rated Power | 40W | 60W | 60W | 60W | 60W | 60W |
Ripple & Noise | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 150mVp-p | 150mVp-p |
Voltage Tolerance | ±8% | ±5% | ||||
Line Regulation | ±1% | |||||
Load Regulation | ±6% | ±2% | ||||
Setup, Rise Time | 500ms, 20ms/230VAC 500ms, 20ms/115VAC at full load(for 5-36V) 500ms, 30ms/230VAC 500ms, 30ms/115VAC at full load(for 48V) | |||||
Hold Up Time | 50ms/230VAC 16ms/115VAC at full load | |||||
INPUT | ||||||
Voltage Range | 90~264VAC 47-63Hz; 127~370VDC | |||||
AC Current | 1.2A/115V 1A/230V | |||||
Efficiency | 76% | 83% | 83% | 86% | 86% | 86% |
Inrush Current | Cold Start 60A at 230VAC | |||||
Leakage Current | 0.25mA/240VAC | |||||
PROTECTION | ||||||
Over Load | 110-150% rated output power | |||||
Protection type: Hiccup mode, recovers automatically after fault condition is removed | ||||||
Over Voltage | 5.75-6.75V | 13.8-16.2V | 17.25-20.25V | 27.6-32.4V | 41.4-48.6V | 55.2-64.8V |
Protection type: Shut down o/p voltage, re-power on to recover | ||||||
ENVIRONMENT | ||||||
Working Temp.Humidity | -30 ~ +70℃ (Refer to “Derating Curve”) | |||||
Storage Temp.Humidity | -40℃~+80℃; 10%~95%RH | |||||
Temp.Coefficient | ±0.03%/℃(0～50℃) | |||||
Vibration | 10~500Hz,2G 10min,/1cycle,period for 60min,each along X,Y,Z axes | |||||
SAFETY | ||||||
Withstand Voltage | I/P-O/P:3KVAC | |||||
Isolation Resistance | I/P-O/P>100M Ohms / 500VDC / 25℃ / 70% RH | |||||
STANDARD | ||||||
Safety Standard | UL879(expect for LPV-60-5), UL1310(expect for LPV-60-5), CSA C22.2 No.207-M91(expect for LPV-60-5, LPV-60-48), IP67, IEC60950-1:2005+A2:2013 approved; design refer to TUV EN60950-1 | |||||
EMC Standard | EN61000-4-2,3,4,5,6,8,11,EN55024,light industry level, criteria A | |||||
OTHERS | ||||||
Dimension | 162.5*42.5*32mm(L*W*H) | |||||
Weight | 0.4kg;32pcs/13.8kg/0.56CUFT | |||||
NOTE | ||||||
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. Derating may not be needed under low input voltage. Please check the static characteristics for more details. | ||||||
This 60W waterproof power supply is a compact and efficient LED driver engineered for reliable outdoor and indoor use. Encased in a durable ABS plastic housing, this IP66-rated adapter offers superior protection against moisture and dust while ensuring electrical safety. It converts standard AC voltage (110V/220V) into a stable low DC output (5V/12V/15V/24V/36V/48V), making it the ideal choice for powering low-voltage electronics.
Waterproof & Dustproof (IP67): Fully sealed plastic enclosure allows for direct exposure to rain, snow, and dust. Suitable for harsh weather conditions.
Safety Insulation: Unlike metal chassis units, the non-corrosive plastic casing provides natural insulation, reducing the risk of electric shock and eliminating the need for grounding in many installations.
Wide Input Voltage: Universal AC input (90-2654) ensures global compatibility for international buyers and stable operation in unstable grid conditions.
Protection Mechanisms: Built-in safeguards against Short Circuit, Overload, and Over Voltage ensure the longevity of your connected devices.
Cooling & Longevity: Designed for natural convection cooling (no fan), ensuring silent operation and a longer lifespan.
Output Options: Available in common voltages including 12V DC and 24V DC to suit a variety of equipment.
The primary use for this weatherproof driver is in the lighting sector.
Signage & Channel Letters: Ideal for powering LED modules inside illuminated advertising signs, logo displays, and channel letters mounted on storefronts.
Outdoor Decoration: Perfect for supplying energy to LED strip lights used in landscape gardening, tree illumination, or party decorations.
The durability of the plastic waterproof transformer makes it suitable for industrial applications where moisture is present.
Security Systems: Provides stable power to CCTV cameras and IR illuminators installed in eaves or outdoor perimeters.
Telecommunication: Powers network switches, routers, or amplifiers located in damp basements or outdoor telecom cabinets.
Q: Is this driver compatible with dimmable LED strips?
A: The standard version is non-dimmable. If you require dimming, please check with our sales team for our dimmable series.
Q: Can I use this in a wet location like a fountain?
A: While it is IP67 rated against powerful water jets, it is not designed for submersion (which requires IP68). It can be splashed or rained on but should not be placed directly into water.
Q: Does the plastic case get hot?
A: The plastic housing dissipates heat differently than metal. It will become warm to the touch under full load (60W), which is normal. Ensure it is placed in a well-ventilated area to maintain optimal performance.
Switching to this 60W IP66 power supply means investing in a maintenance-free solution. The plastic body eliminates rusting issues common with painted metal drivers in coastal or humid climates. It is a lightweight, cost-effective, and high-efficiency solution for powering your low-voltage DC world.
