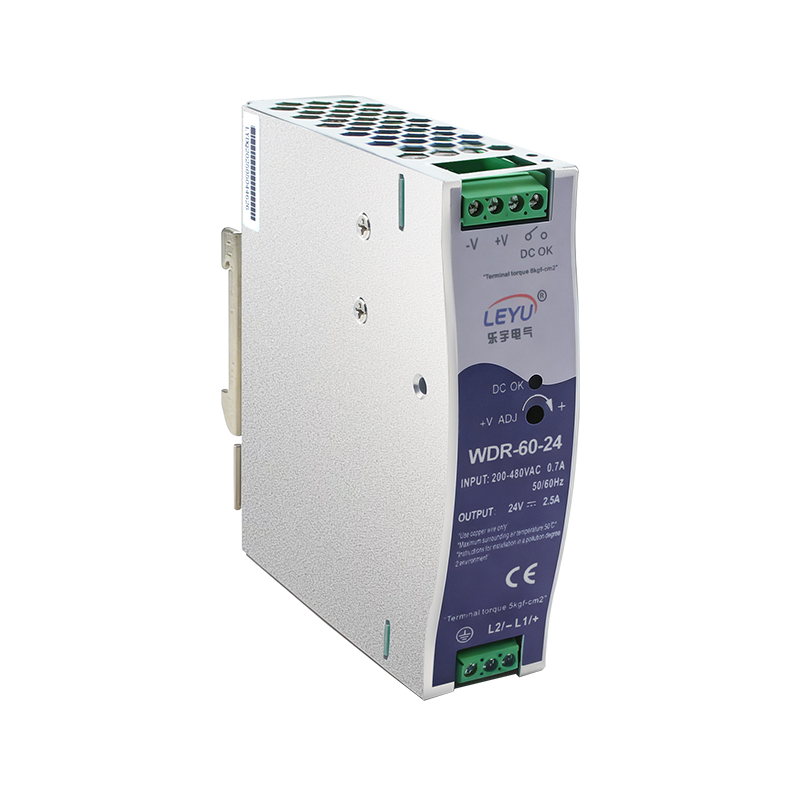

WDR-60-24 60W 24V DIN Rail Power Supply for Control Panel & Automation

OUTPUT

DC VOLTAGE

5V

12V

24V

48V

RATED CURRENT

10A

5A

2.5A

1.25A

CURRENT RANGE

0 ~ 10A

0 ~ 5A

0 ~ 2.5A

0 ~ 1.25A

RATED POWER

50W

60W

60W

60W

RIPPLE & NOISE (max.)

100mVp-p

120mVp-p

150mVp-p

200mVp-p

VOLTAGE ADJ. RANGE

5 ~ 6V

12 ~ 15V

24 ~ 29V

48 ~ 57V

VOLTAGE TOLERANCE

±2%

±1.5%

±1.0%

±1.0%

LINE REGULATION

±0.5%

±0.5%

±0.5%

±0.5%

LOAD REGULATION

±1.5%

±0.5%

±0.5%

±0.5%

SETUP, RISE, HOLD UP TIME

1000ms, 70ms, 20ms/400Vac 2000ms, 70ms, 10ms/230Vac at full load

INPUT

VOLTAGE RANGE

180 ~ 550Vac or 254 ~ 780Vdc

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

83.5% / 400Vac

86.5% / 400Vac

89% / 400Vac

90.5% / 400Vac

AC CURRENT

0.4A/400Vac 0.7A/230Vac

INRUSH CURRENT (max.)

COLD START 50A/400Vac 30A/230Vac

LEAKAGE CURRENT

<2mA / 530Vac

PROTECTION

OVERLOAD

105 ~ 135% rated output power

Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed

Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed

OVER VOLTAGE

6.2 ~ 7.2V

16 ~ 18V

31 ~ 37V

58 ~ 60.5V

Protection type : Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

Protection type : Shut down o/p voltage, re-power on to recover

FUNCTION

DC OK SIGNAL

Relay contact rating(max.) : 30V / 1A resistive

ENVIRONMENT

WORKING TEMP.

-30 ~ +85°C (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP.

-40 ~ +85°C

TEMP. COEFFICIENT

±0.03%/°C (0 ~ 60°C)

VIBRATION

Component: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes; Mounting clip: Compliance to IEC60068-2-6

OPERATING ALTITUDE

2000 meters

OVER VOLTAGE CATEGORY

III: According to EN61558, EN50178, EN60664-1, EN62477-1, EN60204-1; altitude up to 2000 meters

SAFETY & EMC

SAFETY STANDARDS

UL61010, EN61558-2-16, EAC TP TC 004 approved; design refer to GL and EN60204-1(By request)

WITHSTAND VOLTAGE

I/P-O/P:4.7KVAC I/P-FG:2.5KVAC O/P-FG:0.5KVAC O/P-DC OK:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH

EMC EMISSION

Parameter

Standard

Test Level / Note

Conducted

EN55032(CISPR32)

Class B

Radiated

EN55032(CISPR32)

Class B

Harmonic Current

EN61000-3-2

Class A

Voltage Flicker

EN61000-3-3

......

EMC IMMUNITY

EN55024, EN55035, EN61000-6-2, EN61204-3

Parameter

Standard

Test Level / Note

ESD

EN61000-4-2

Level 3, 8KV air; Level 2, 4KV contact, criteria A

Radiated Susceptibility

EN61000-4-3

Level 3, 10V/m, criteria A

EFT Bursts

EN61000-4-4

Level 3, 2KV/5KHz, criteria A

Surge

EN61000-4-5

Level 4, 2KV/Line-Line, 4KV/Line-Earth, criteria A

Conducted

EN61000-4-6

Level 3, 10V, criteria A

Magnetic Field

EN61000-4-8

Level 4, 30A/m, criteria A

Voltage Dips and interruptions

EN61000-4-11

>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF

313.68K hrs min. MIL-HDBK-217F (25°C)

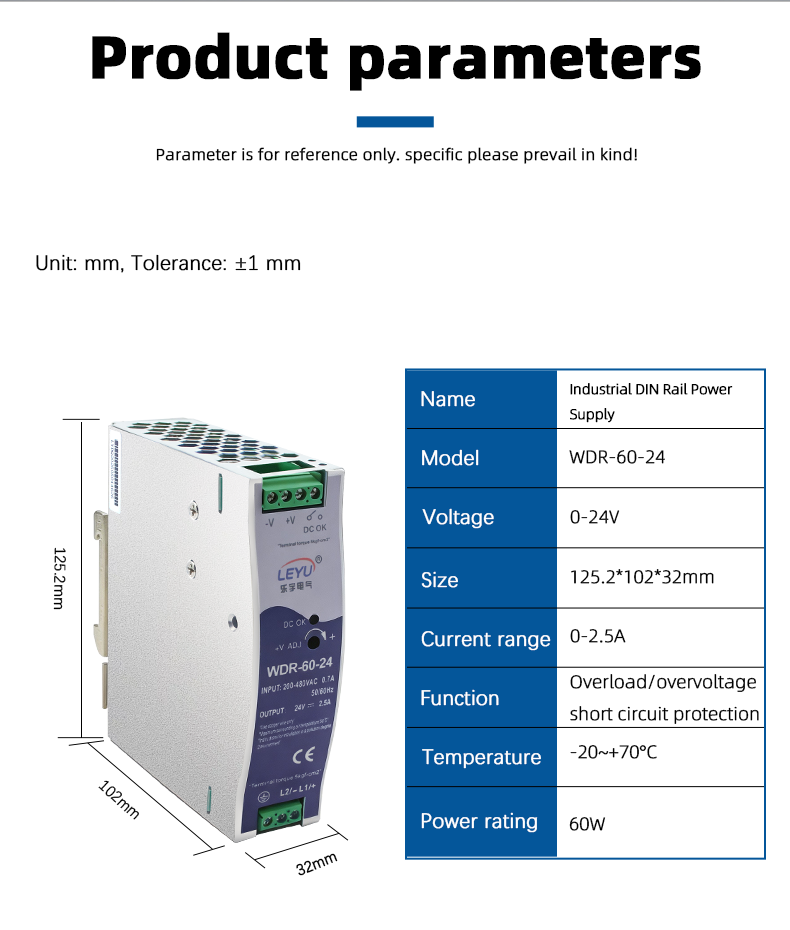

DIMENSION

32*125.2*102mm (W"H"D)

PACKING

0.45Kg; 28pcs/13.6Kg/1.24CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 400VAC input, rated load and 25°C of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
3. Tolerance : includes set up tolerance, fine regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the derating curve for more details.
5. The ambient temperature derating of 3.5°C/1000m with fanless models and of 5°C/1000m with fan models for operating altitude higher than 2000m(6500ft).
6. Installation clearances : 40mm on top, 20mm on the bottom, 5mm on the left and right side are recommended when loaded permanently with full power. In case the adjacent device is a heat source, 15mm clearance is recommended.
7. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies."
