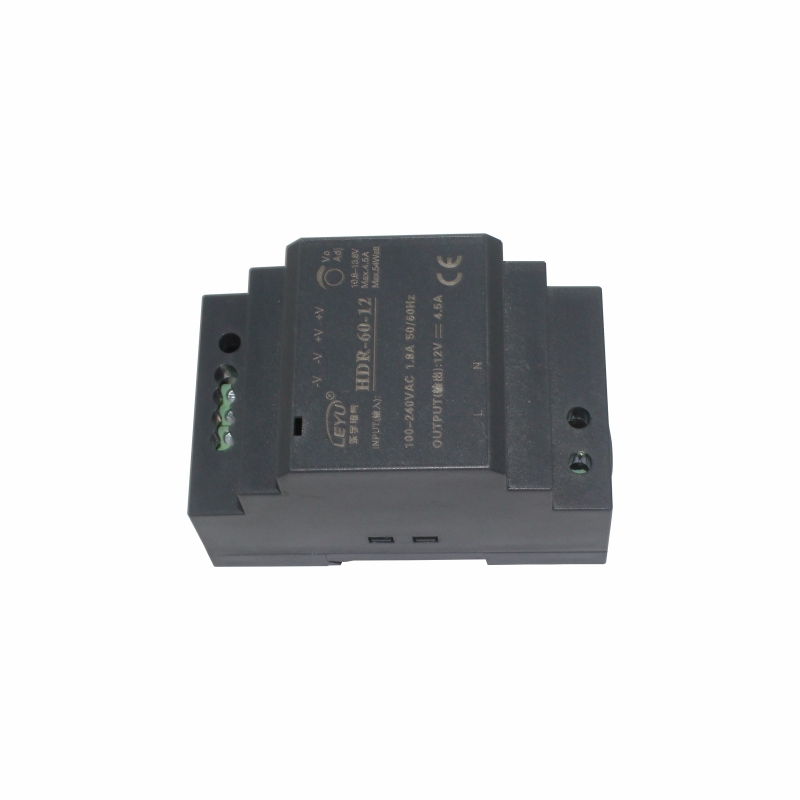

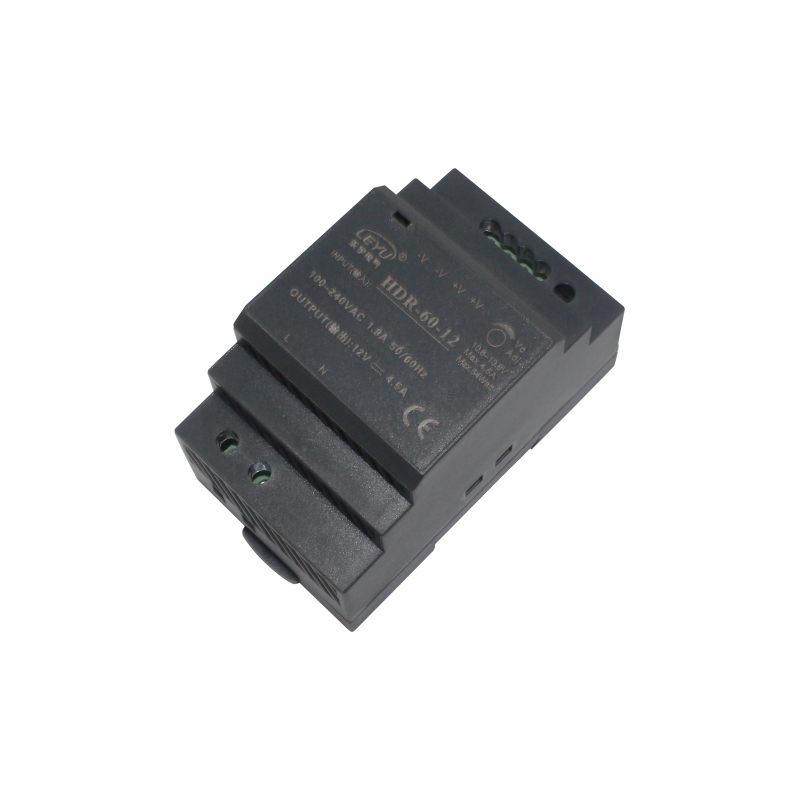

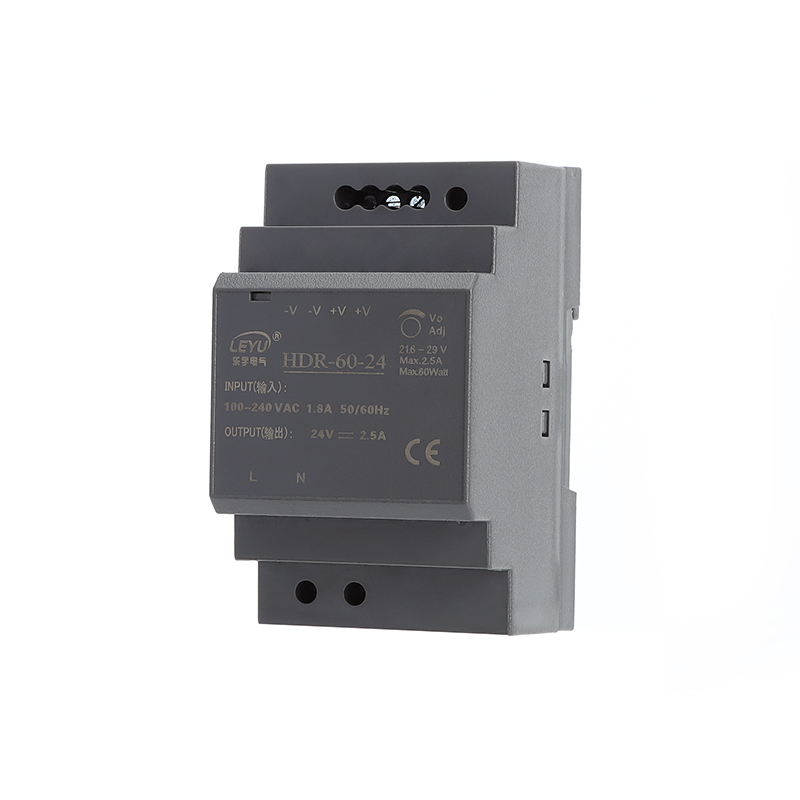

60W Single Output Industrial DIN Rail Power Supply HDR-60 series
HDR-60-5 | HDR-60-12 | HDR-60-15 | HDR-60-24 | HDR-60-48 | |
DC Voltage | 5V | 12V | 15V | 24V | 48V |
Rated Current | 6.5A | 4.5A | 4A | 2.5A | 1.25A |
Current Range | 0 ~ 6.5A | 0 ~ 4.5A | 0 ~ 4A | 0 ~ 2.5A | 0 ~ 1.25A |
Rated Power | 32.5W | 54W | 60W | 60W | 60W |
Ripple & Noise (max.) | 80mVp-p | 120mVp-p | 120mVp-p | 150mVp-p | 240mVp-p |
Voltage Adj. Range | 5.0 ~ 5.5V | 10.8 ~ 13.8V | 13.5 ~ 18V | 21.6 ~ 29V | 43.2 ~ 55.2V |
Voltage Tolerance | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
Line Regulation | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
Load Regulation | ±1.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
Setup, Rise Time | 500ms, 50ms/230VAC 500ms, 50ms/115VAC at full load | ||||
Hold Up Time | 30ms/230VAC 12ms/115VAC at full load | ||||
Voltage Range | 85 ~ 264VAC (277VAC operational ) 120 ~ 370VDC (390VDC operational ) | ||||
Frequency Range | 47 ~ 63Hz | ||||
Efficiency | 85% | 88% | 89% | 90% | 91% |
AC Current | 1.2A/115VAC 0.8A/230VAC | ||||
Inrush Current | COLD START 30A/115VAC 60A/230VAC | ||||
Over Load | 105 ~ 160% rated output power | ||||
Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed | |||||
Constant current limiting within 50% ～100% rated output voltage, recovers automatically after fault condition is removed | |||||
Over Voltage | 5.75 ~ 6.75V | 14.2 ~ 16.2V | 18.8 ~ 22.5V | 30 ~ 36V | 56.5 ~ 64.8V |
Protection type : Shut down o/p voltage, re-power on to recover | |||||
Working Temp. | -30 ~ +70℃ (Refer to "Derating Curve") | ||||
Working Humidity | 20 ~ 90% RH non-condensing | ||||
Storage Temp., Humidity | -40 ~ +85℃, 10 ~ 95% RH non-condensing | ||||
Temp. Coefficient | ±0.03%/℃ (0 ~ 50℃) RH non-condensing | ||||
Vibration | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6 | ||||
Operating Altitude | 2000 meters | ||||
Withstand Voltage | I/P-O/P:4KVAC | ||||
Isolation Resistance | I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH | ||||
MTBF | 927.6K hrs min. MIL-HDBK-217F (25℃) | ||||

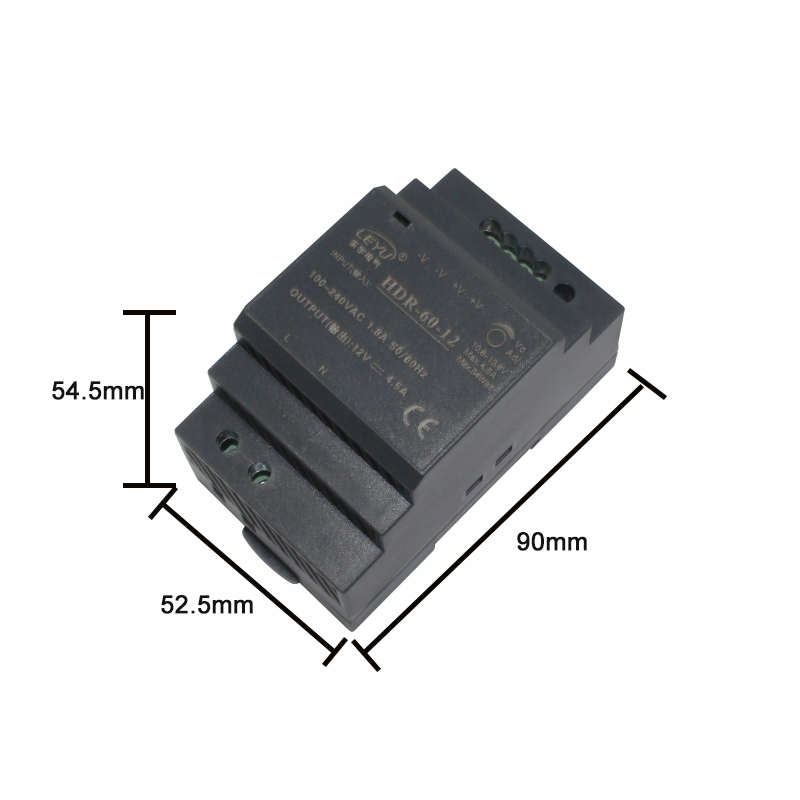

Dimension | 53*90*54.5mm (L*W*H) | ||||
Packing | 190g;60pcs/12.4Kg/0.97CUFT | ||||
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. | |||||
4. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” 5. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft). | |||||

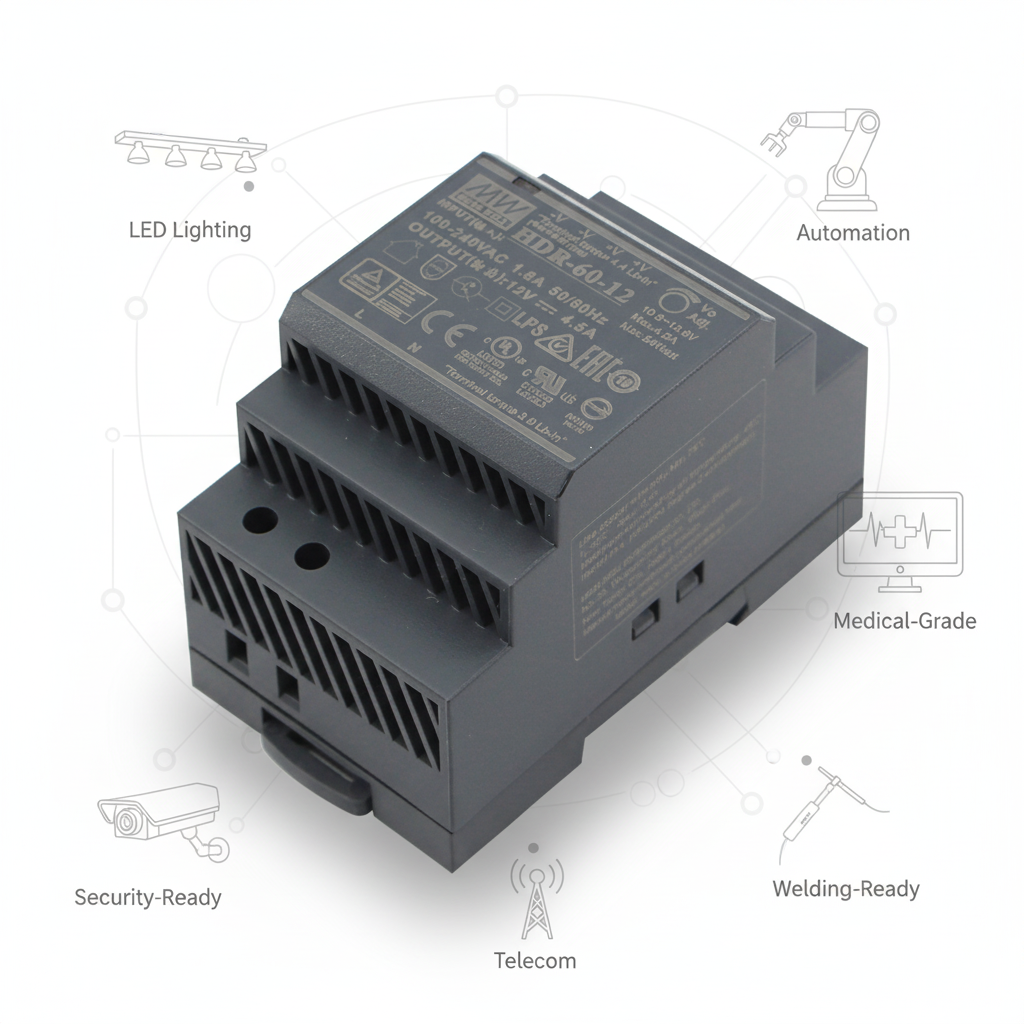

The HDR-60 series is an ultra-slim, industrial DIN rail power supply offering high efficiency, wide input range, and global safety approvals for reliable operation in control cabinets and automation systems.
At just 52.5mm wide, the HDR-60 series fits tight control panels, allowing more components and reducing system size and cost.

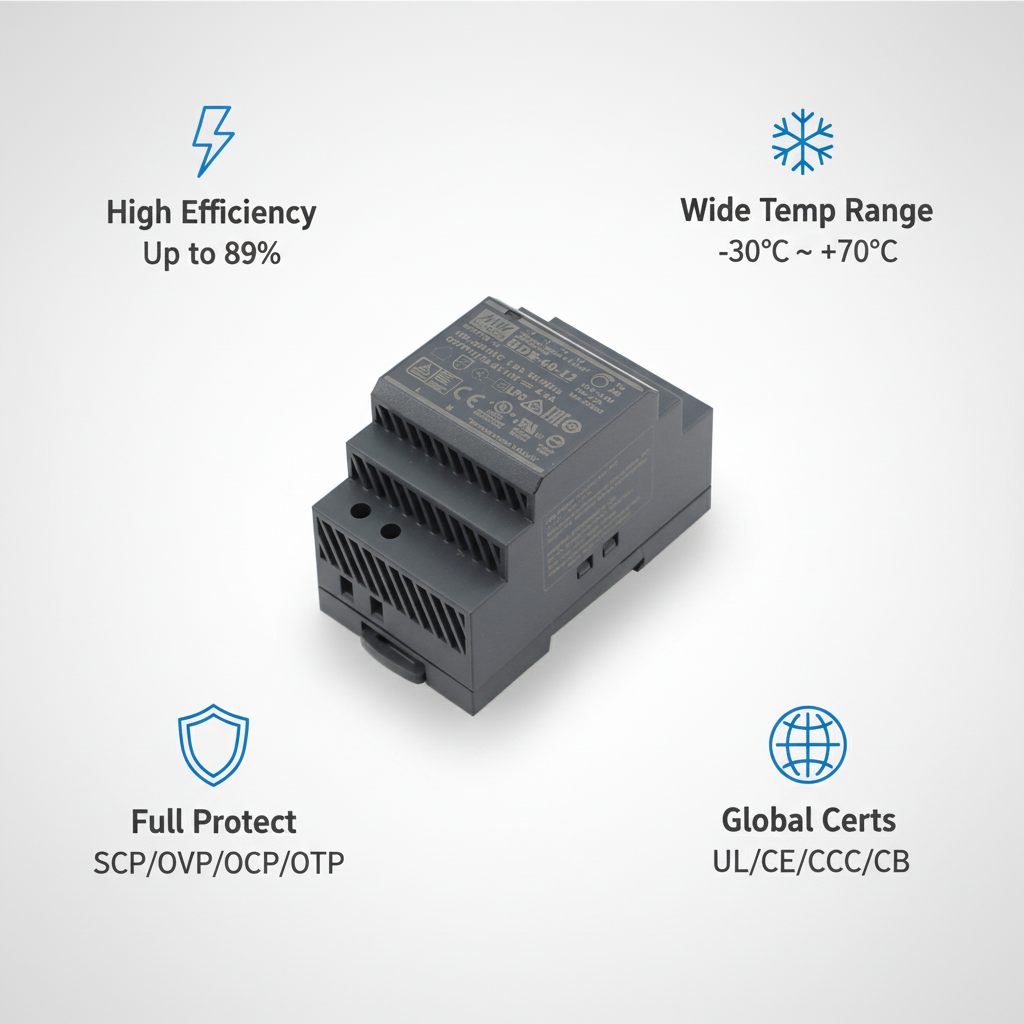

Universal 85–264VAC or 120–370VDC input needs no voltage selector. 90% efficiency reduces heat, energy use, and cooling needs.

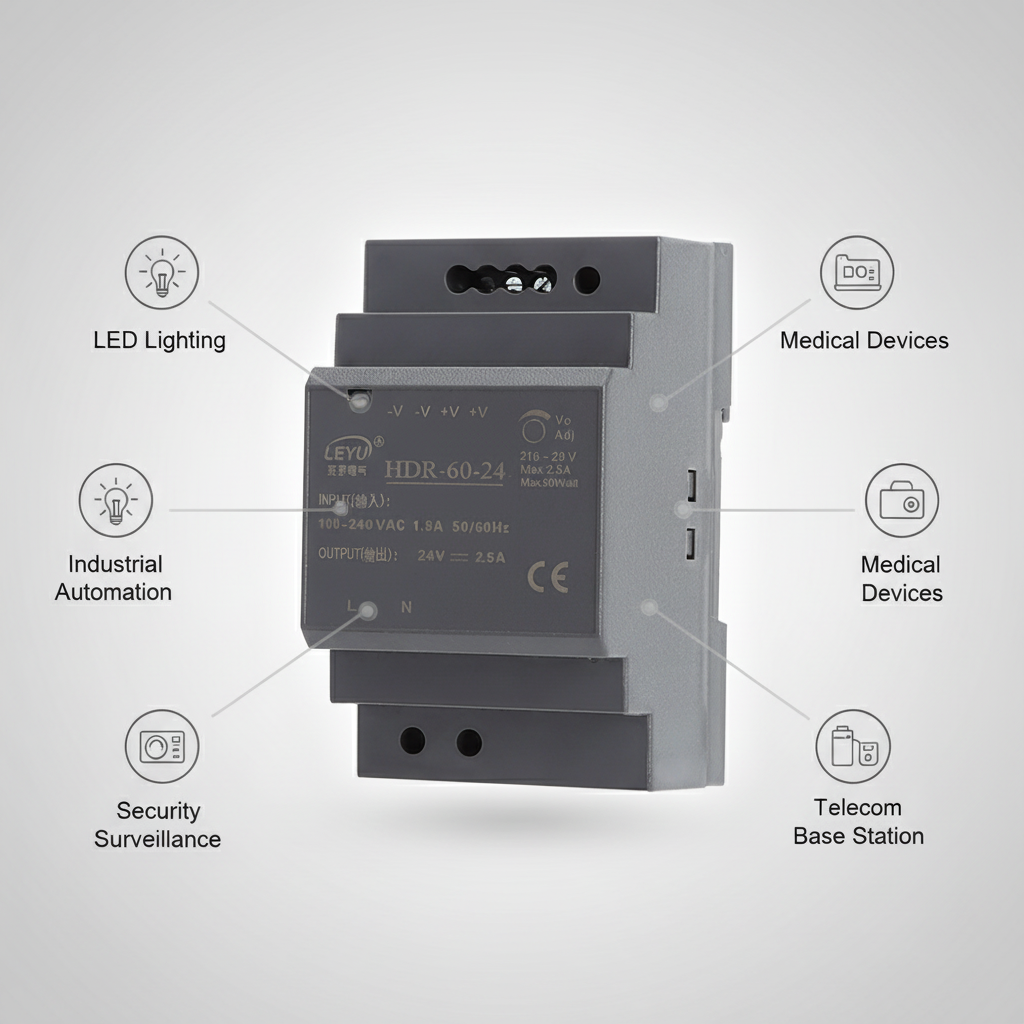

Wide -30°C to +70°C operation with UL508 & IEC62368-1 safety for factory automation and building management.
Overload, short circuit, and over-voltage protections auto-reset after fault removal, reducing downtime for unattended installations.
