OUTPUT | ||||
Model | MDR-60-5 | MDR-60-12 | MDR-60-24 | MDR-60-48 |
DC Voltage | 5V | 12V | 24V | 48V |
Rated Current | 10A | 5A | 2.5A | 1.25A |
Current Range | 0-10A | 0-5A | 0-2.5A | 0-1.25A |
Rated Power | 50W | 60W | 60W | 60W |
Ripple & Noise | 80mVp-p | 120mVp-p | 150mVp-p | 200mVp-p |
Voltage Tolerance | ±2% | ±1% | ±1% | ±1% |
Line regulation | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
Load regulation | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
Setup, Rise Time | 500ms,30ms/230VAC 200ms,30ms/115VAC at full load | |||
Hold Up Time | 50ms/230VAC 20ms/115VAC at full load | |||
INPUT | ||||
Voltage Range | 85~264VAC 47~63Hz; 120~370VDC | |||
AC Current | 1.8A/115VAC 1A/ 230VAC | |||
Efficiency | 78% | 86% | 88% | 87% |
Inrush Current | Cold start 30A/115VAC 60A/230VAC | |||
Leakage Current | <1mA/240VAC | |||
PROTECTION | ||||
Over Load | 105%~150% rated output power | |||
Protection type: Constant current limiting, recovers automatically after fault condition is removed | ||||
Over Voltage | 6.25-7.25V | 15.6-18V | 31.2-36V | 57.6-64.8V |
Protection type: Shut down o/p voltage, re-power on to recover | ||||
ENVIRONMENT | ||||
Working Temp., Humidity | -20℃~+70℃; 20%~90% RH non-condensing | |||
Storage Temp., Humidity | -40℃~+85℃; 10%~95%RH | |||
Temp. Coefficient | ±0.03%/℃(0~50℃) | |||
Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes | |||
SAFETY | ||||
Withstand Voltage | I/P-O/P: 3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC | |||
Isolation Resistance | I/P-O/P, I/P-FG, O/P-F/G: >100M Ohms / 500VDC/25℃/70% RH | |||
STANDARD | ||||
Safety Standard | Design refer to UL508, UL60950-1,TUV EN60950-1,EN50178 | |||
EMC Standard | Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-2，EN61204-3, heavy industry level, criteria A | |||
OTHERS | ||||
Dimension | 40*90*100mm(W*H*D) | |||
Weight | 0.33Kg | |||
Packing | 42pcs/carton/14.8kg/0.82CUFT | |||
NOTE | ||||
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. | ||||

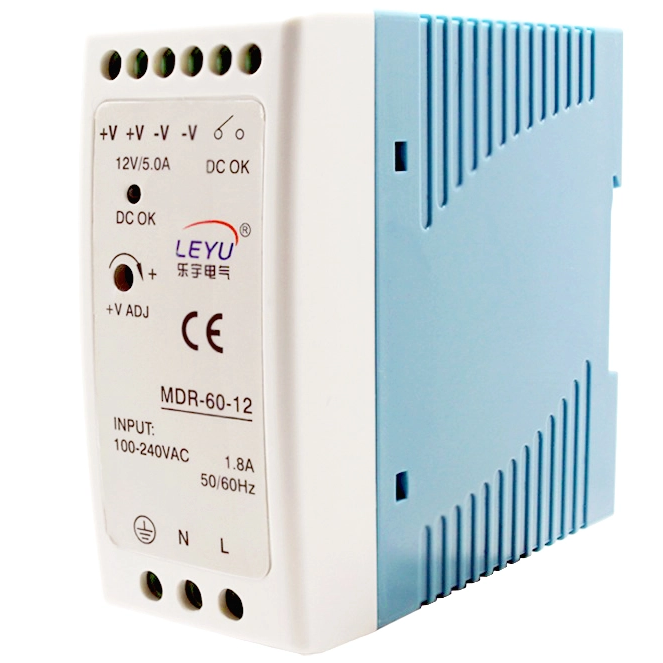

The Leyu MDR-60 series is a high-performance 60W single-output DIN rail switching power supply, designed specifically for industrial automation control cabinets, machinery, and various industrial electronic systems. The series features an ultra-slim plastic enclosure and can be directly mounted onto standard TS-35/7.5 or TS-35/15 DIN rails, making installation quick and easy while saving valuable space inside electrical cabinets.
The MDR-60 series offers four common output voltage options: 5V, 12V, 24V, and 48V, with a rated output power of up to 60W. It can be widely used to power PLCs, sensors, motor drives, relays, industrial control equipment, communication devices, and many other loads. With a universal 85~264VAC wide input range and compatibility with 120~370VDC input, the product adapts to power environments across different regions. Whether for factory automation lines, building automation systems, or new energy support equipment, the MDR-60 provides stable and reliable DC power.
Universal AC input: Supports 85~264VAC or 120~370VDC wide input range, covering global mainstream voltage standards.
Four output options: Available in 5V/10A, 12V/5A, 24V/2.5A, and 48V/1.25A models, with 60W rated power to meet diverse power supply needs.

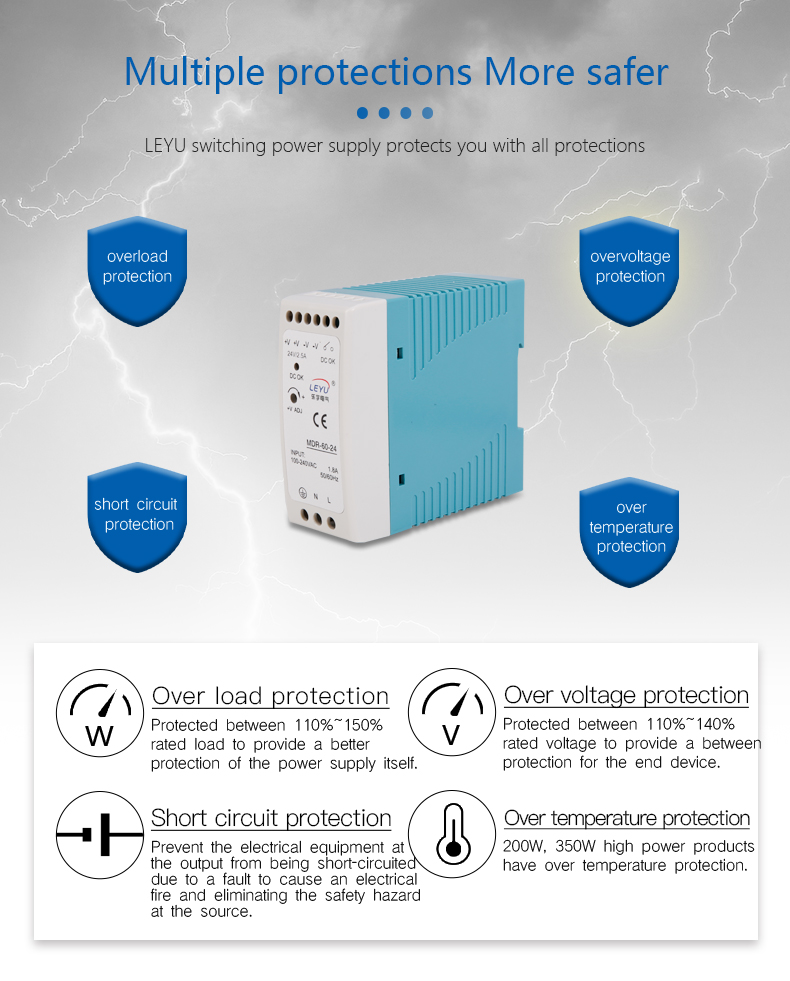

Multiple protections: Built-in short circuit, overload, and over-voltage protection. In overload condition, constant current limiting mode is activated, and output automatically recovers when fault is removed. Over-voltage protection shuts down output; re-power on to recover.

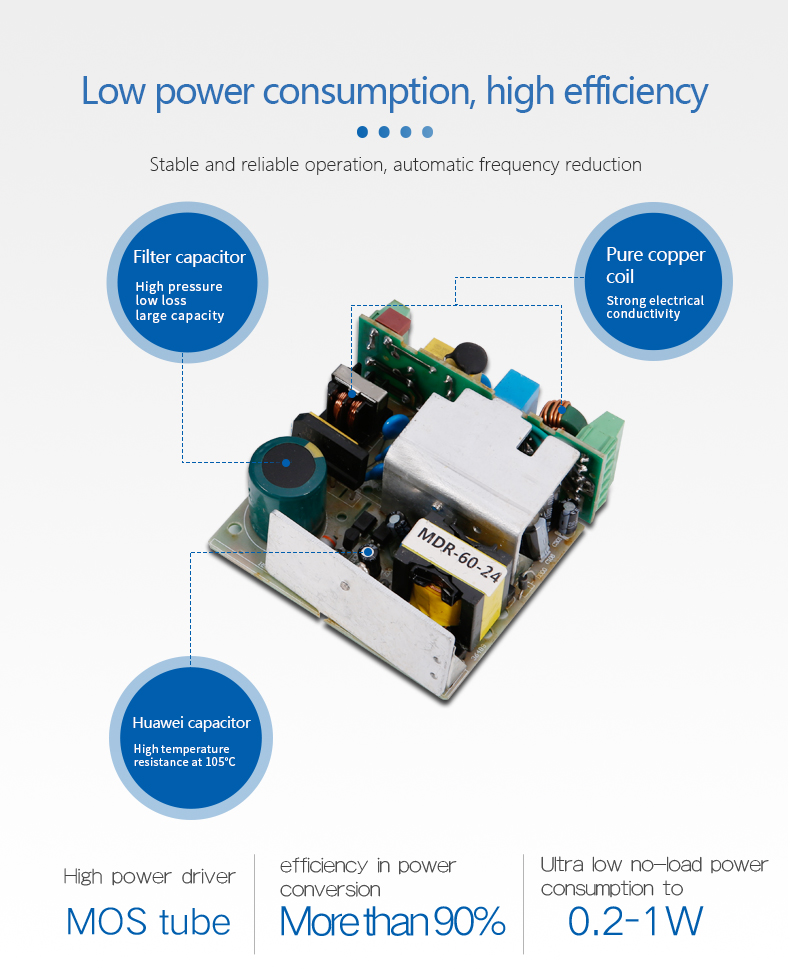

High efficiency: Efficiency up to 88% (24V model), reducing energy loss and heat generation, extending service life.
Free air convection cooling: Fanless design for quiet and reliable operation, significantly improving product lifespan.
LED indicator: Green LED on the front panel for clear power status indication.

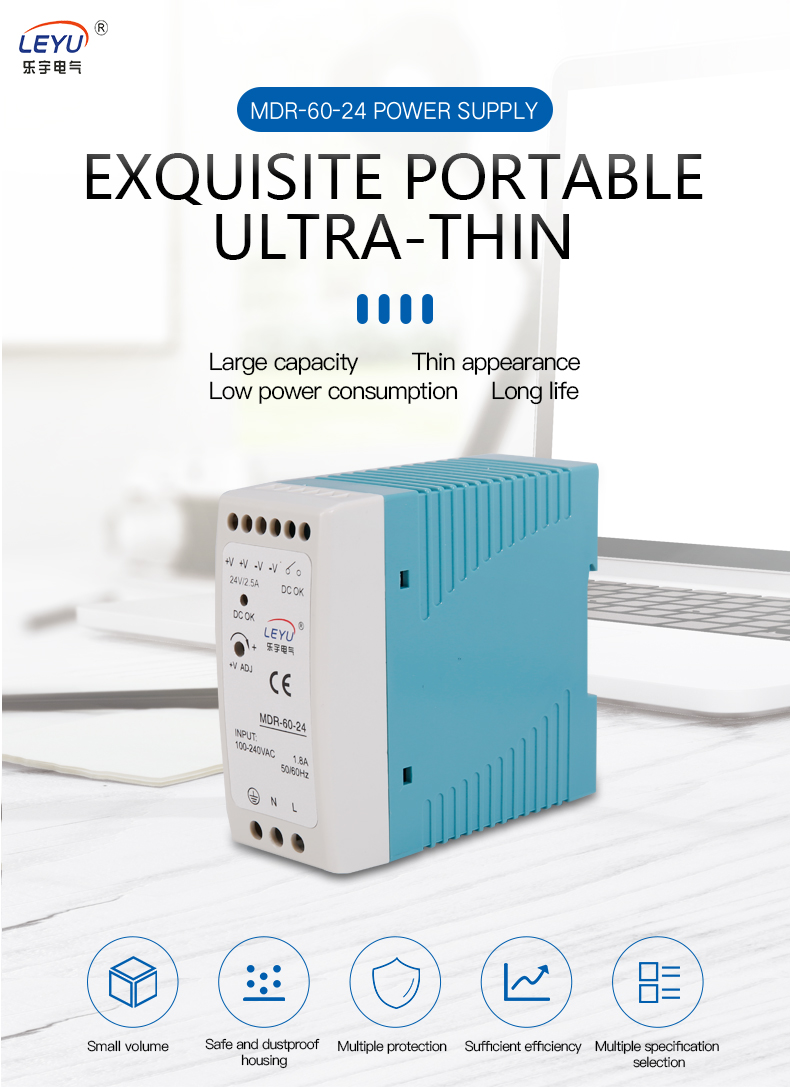

Compact DIN rail mounting: Ultra-slim dimensions of 40×90×100mm, fits TS-35/7.5 or TS-35/15 standard DIN rails for convenient installation.
100% burn-in test: Each unit undergoes 100% full-load burn-in test before shipment, ensuring consistent product quality.
2-year warranty: 2-year quality assurance provides solid support for long-term stable operation of your equipment.
Industrial-grade reliability: Operating temperature range of -20℃ to +70℃, storage temperature from -40℃ to +85℃, suitable for harsh industrial environments, ensuring stable output even under extreme conditions.
Low ripple & noise: Ripple as low as 80mVp-p (5V model), providing clean DC power for precision electronic equipment and protecting sensitive loads.
Stable output accuracy: Voltage regulation accuracy up to ±1% (±2% for 5V model), line regulation and load regulation both within ±1.0%, ensuring stable and reliable output quality.
Comprehensive safety certifications: Safety standards reference UL508, UL60950-1, TUV EN60950-1, EN50178; EMC standards reference EN55011, EN55022, EN61000-3-2, -3, EN61000-4-2,3,4,5,6,8,11, etc., meeting heavy industry level A criteria. Withstand voltage and insulation resistance tests are conducted before shipment, making it directly applicable to industrial scenarios with high electrical safety requirements.
Strong vibration resistance: Withstands 10~500Hz, 2G vibration testing, maintaining stable connection in vibrating environments such as logistics conveyors and wind power equipment.
High isolation voltage: Input-output isolation withstand voltage of 3KVAC, input-FG 2KVAC, output-FG 0.5KVAC; insulation resistance >100M Ohms, effectively ensuring system safety.
Plug-and-play design: Standard DIN rail clip design, no tools required for installation or removal, greatly reducing equipment assembly and maintenance time.
The MDR-60 series DIN rail power supply is suitable for a wide range of industrial and commercial applications, including:
Industrial automation control: Provides stable DC power for PLCs, HMIs, industrial control cabinets, servo drives, frequency converters, etc.
Factory automation equipment: Suitable for robotic arms, automated assembly lines, sorting systems, conveyor controls, smart warehousing equipment, robot control systems, etc.
Building automation systems: Provides reliable 24V DC power for access control systems, surveillance cameras, lighting control, HVAC controllers, smart meters, etc.
New energy and charging facilities: Can be used in small energy storage system power supplies, charging pile control board power, photovoltaic monitoring systems, and other new energy applications.
Communication and network equipment: Provides stable DC power for industrial switches, routers, base station equipment, network cabinets, etc.
Packaging and textile machinery: Suitable for packaging machines, sealing machines, labeling machines, textile machinery control boxes, and other equipment.
Q1: Can the MDR-60 series be used with DC input?
Yes. The MDR-60 series supports 85~264VAC AC input and also accepts 120~370VDC DC input. It works normally in DC input applications such as photovoltaic DC bus power or battery power supply.
Q2: Does the product have short circuit and overload protection?
Yes. The MDR-60 series features complete short circuit, overload, and over-voltage protection. During overload, the power supply enters constant current limiting mode and automatically recovers when the fault is removed. Over-voltage protection shuts down the output; re-power on to recover.
Q3: Can this product be mounted directly onto an existing DIN rail in a control cabinet?
Yes. The MDR-60 series uses a standard DIN rail mounting design and can be directly clipped onto TS-35/7.5 or TS-35/15 35mm DIN rails. No tools are required for installation or removal.
Q4: What are the derating requirements for different ambient temperatures?
The MDR-60 series can operate normally in the range of -20℃ to +70℃. However, when the ambient temperature exceeds 50℃, output power must be derated according to the derating curve in the specification sheet to ensure long-term stable operation. It is recommended to allow sufficient ventilation space when used in high-temperature environments.
Q6: How can the power supply status be monitored?
The MDR-60 series has a green LED power indicator on the front panel. When input power is applied, the LED lights up, indicating normal operation. Some models support a DC OK signal output for remote monitoring or interfacing with other equipment.
Q7: Is the MDR-60 series compatible with Mean Well's MDR-60 series?
The MDR-60 series maintains consistent electrical parameters, mounting dimensions, and interface definitions with similar international brands, making it a suitable alternative for existing equipment maintenance and project integration.
Q8: What is the warranty period for this product?
Leyu provides a 2-year quality warranty for the MDR-60 series DIN rail power supply. For any quality issues under normal use, please contact the Leyu after-sales team.
Downloads：
MDR-60.doc
