| Quantity: | |
|---|---|
| OUTPUT | ||
Model | EDR-240-24 | EDR-240-48 |
DC Voltage | 24V | 48V |
Rated Current | 10A | 5A |
Current Range | 0-10A | 0-5A |
Rated Power | 240W | 240W |
Ripple & Noise | 150mVp-p | 360mVp-p |
Voltage Adj. Range | 21-28V | 43-53V |
Voltage Tolerance | ±1% | ±1% |
Setup, Rise Time | 800ms,40ms/230VAC 800ms,40ms/115VAC at full load | |
Hold Up Time | 24ms/230VAC 24ms/115VAC at full load | |
INPUT | ||
Voltage Range | 176~264VAC 47~63Hz; 240~370VDC | |
AC Current | 2.8A/115V 1.4A/230V | |
Efficiency | 84% | 85% |
Inrush Current | Cold start 27A/115V 45A/230V | |
Leakage Current | <3.5mA/240VAC | |
PROTECTION | ||
Over Load | 105%~150% | |
Protection type: Constant current limiting, recovers automatically after fault condition is removed | ||
Over Voltage | 30-36V | 54-60V |
Protection type: Shut down o/p voltage, re-power on to recover | ||
Over Temp. | 100℃±5℃(TSW1) | |
Protection type: Shut down o/p voltage, recovers automatically after temperature goes down | ||
ENVIRONMENT | ||
Working Temp., Humidity | -10℃~+70℃; 20%~90%RH | |
Storage Temp., Humidity | -20℃~+85℃; 10%~95%RH | |
Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes | |
OTHERS | ||
Dimension | 63*115*125.2mm(L*W*H) | |
Weight | 0.85Kg | |
Packing | 20pcs/17.5Kg/1.2CUFT | |
NOTE | ||
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor. 3 .Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 5 . Derating may be needed under low input voltages. Please check the derating curve for more details. | ||

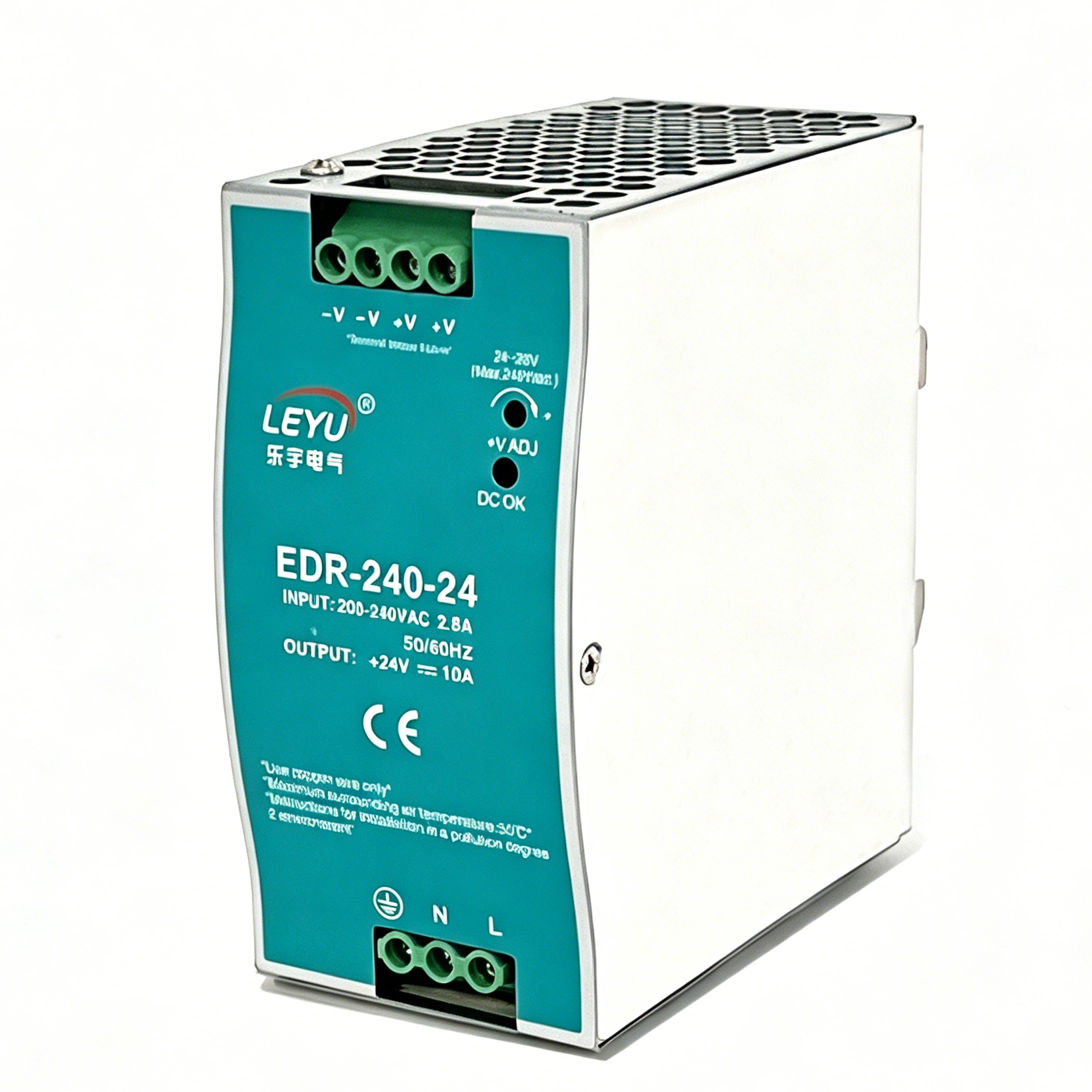

The Leyu EDR-240 series is a 240W single‑output DIN rail switching power supply designed specifically for industrial control cabinets. It is available in two mainstream DC output voltage versions: 24V/10A and 48V/5A, meeting the power supply requirements of various equipment from PLC control systems to automated production lines.
This series features a full‑range AC input (176–264VAC) and is also compatible with 240–370VDC input. An built‑in active PFC (power factor correction) ensures stable operation under global power grid fluctuations or unstable industrial site voltages. The EDR-240 series complies with DIN rail standards TS‑35/7.5 or 15 for easy mounting. Its compact metal housing (63×115×125.2mm) takes up little cabinet space, and 100% full‑load burn‑in testing guarantees high reliability for every unit shipped.
Whether you are an equipment manufacturer, system integrator, or plant maintenance engineer, the Leyu EDR-240 series provides clean, stable DC power for your 24V or 48V loads.
Dual models cover mainstream voltages
EDR‑240‑24 (24V/10A, ripple 150mVp‑p) and EDR‑240‑48 (48V/5A, ripple 360mVp‑p) precisely match different voltage requirements of industrial equipment.
Full‑range AC input + Active PFC
Supports 176–264VAC, 47–63Hz, and also accepts 240–370VDC input. Active PFC brings power factor close to 1, reduces line losses, and complies with EN61000‑3‑2 harmonic standard.

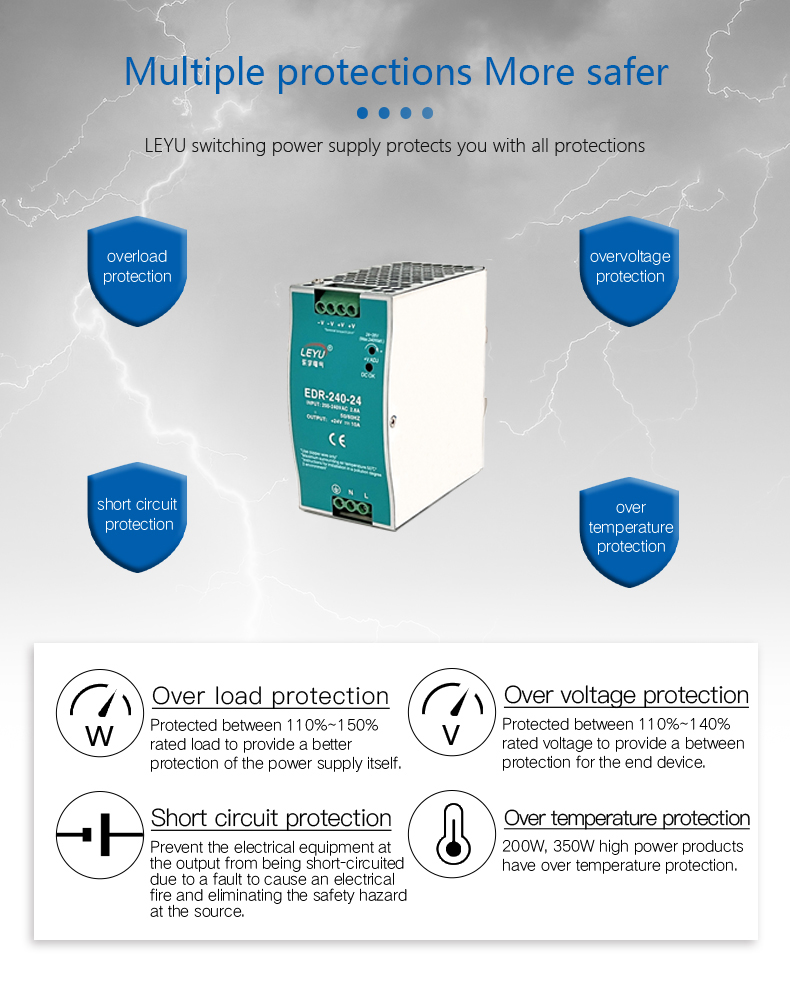

Complete protection functions
Overload protection: constant current limiting mode (105%–150%), automatically recovers after fault removal.
Over voltage protection: shutdown at 30–36V for 24V model, 54–60V for 48V model; re‑power on to recover.
Over temperature protection: 100℃±5℃ (detected on power switch tube), automatically restarts after temperature drops.
Short circuit protection: continuous short circuit does not cause damage; automatic recovery after fault removal.
Suitable for harsh environments
Operating temperature range –10℃ to +70℃, humidity 20%–90%RH; storage temperature –20℃ to +85℃, humidity 10%–95%RH. Passed 2G vibration test (10–500Hz), suitable for industrial sites with light vibration.

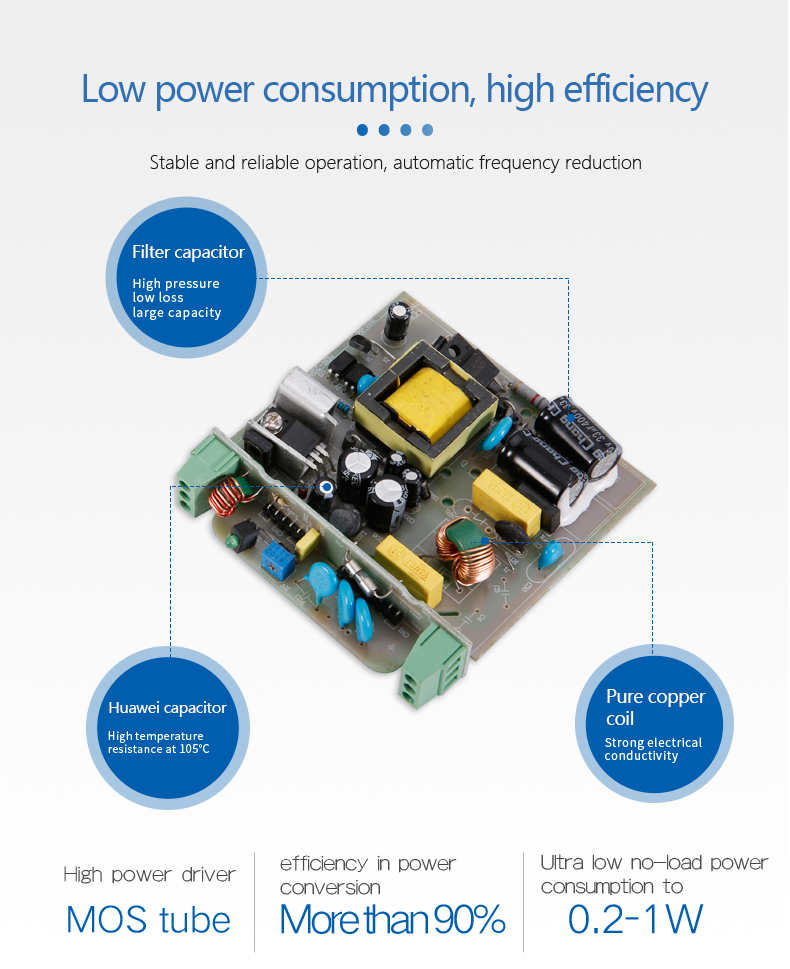

High efficiency & low ripple
84% efficiency for 24V version, 85% for 48V version. At 20MHz bandwidth, 24V ripple ≤150mVp‑p, 48V ripple ≤360mVp‑p, meeting the power demands of noise‑sensitive analog circuits and sensors.
Simple installation & indication
LED power‑on indicator; supports TS‑35/7.5 or 15 standard DIN rail, tool‑free snap‑on mounting saves installation time.
| Comparison | Leyu EDR‑240 Series | Ordinary DIN Rail Power Supply |
|---|---|---|
| Input adaptability | 176–264VAC wide range + DC input, active PFC | Narrow input (e.g. 200–240VAC), no PFC or passive PFC |
| Protection recovery | Overload auto‑recovery, over‑temp auto‑recovery; over‑voltage requires re‑power on | Some models need fuse replacement or manual restart |
| Temperature rise & lifetime | 100% full‑load burn‑in, fixed switching frequency 100kHz, balanced thermal design | Sample burn‑in, unstable switching frequency, prone to overheating |
| Mounting compatibility | Compatible with both TS‑35/7.5 and 15 rails | May support only one thickness |
| Certification & EMC | Complies with EN55011, EN55022, EN61000‑4 series, EN55024 industrial EMC standards | Lacks complete EMC testing, susceptible to site interference |
In addition, the Leyu EDR‑240 series comes with a 1‑year warranty, and every unit is 100% full‑load burn‑in tested before shipment, significantly reducing early failure rates. For bulk buyers, custom labeling and packaging services are available.
The Leyu EDR‑240 series is widely used in the following industrial scenarios:
PLC control cabinet power supply
Provides 24V DC working power for mainstream PLCs such as Siemens, Mitsubishi, Omron, ensuring logic control stability.
Automation production lines
Drives 24V loads like sensors, relays, small solenoid valves, indicator lights; the 48V model can be used for stepper motor drivers or certain dedicated controllers.
Machine vision systems
Low ripple makes it ideal for powering industrial cameras and light controllers, preventing image flicker.
Building management systems (BMS)
Centralised power supply for HVAC controllers, DDC controllers, fieldbus modules.
Packaging & logistics equipment
Conveyor control boards, sorting machine control units, barcode scanners, etc.
Replacement / retrofit
Directly replaces existing faulty 240W DIN rail power supplies (mounting holes compatible with mainstream brands), reducing retrofit costs.
Q1: Are the mounting dimensions of EDR‑240‑24 and EDR‑240‑48 the same?
Yes, both models share the same housing dimensions: 63mm (W) × 115mm (H) × 125.2mm (D), with identical DIN rail clip structure, so they can be interchanged in the same mounting position.
Q2: Can the input be 110VAC?
No, the specified input range is 176–264VAC; 110VAC systems are not supported. For 110VAC sites, please consider the Leyu EDR‑120‑24 (120W) or other wide‑input (90–264VAC) series.
Q3: How does overload protection recover?
This series uses constant current limiting protection. When the load returns to normal, the output voltage automatically recovers – no need to power off or manually reset. However, for over‑voltage protection (output exceeds 30‑36V or 54‑60V), you must disconnect the input, allow internal capacitors to discharge, and then reapply power to recover.
Q4: Can I parallel two units to increase output current?
Direct paralleling is not recommended. For redundancy or higher power, use a dedicated redundancy module (e.g. Leyu DR‑RD20) for load sharing. Direct paralleling may cause circulating currents and uneven load sharing.
Q5: How much clearance is needed for heat dissipation?
The power supply uses free air convection cooling. Leave at least 20mm of space above and below the unit, and 10mm on the sides, avoiding placement next to heat‑generating components. When operating above 60℃, refer to the derating curve (derate 2.5% per 1℃ rise).
Q6: Does the unit have UL or CE certification?
This series complies with EMC standards such as EN55011, EN55022, EN61000‑6‑2, and insulation withstand voltage meets I/P‑O/P: 3KVAC, I/P‑FG: 1.5KVAC, O/P‑FG: 0.5KVAC. Specific safety marks (e.g. CE, UL) depend on the production batch; please check with your Leyu sales representative for the latest certification status.
Q7: Do I need a capacitor to measure output ripple?
The ripple values in the specification (24V: 150mVp‑p, 48V: 360mVp‑p) are measured at 20MHz bandwidth using a 12‑inch twisted‑pair wire terminated with a 0.1μF and 47μF parallel capacitor. In actual applications, it is recommended to add an electrolytic capacitor at the load end to further filter high‑frequency noise.
Q8: Do I need extra accessories for DIN rail mounting?
No. The power supply has a built‑in metal clip on the back that snaps directly onto a TS‑35 standard DIN rail (7.5mm or 15mm thickness). To remove the unit, use a screwdriver to pry the clip downward.
EDR-240:
