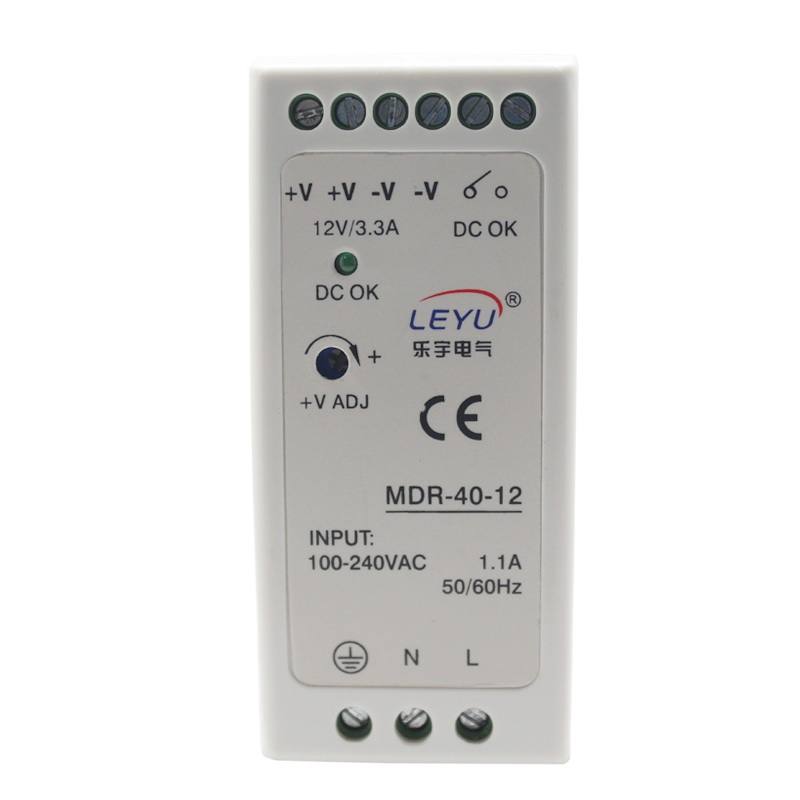

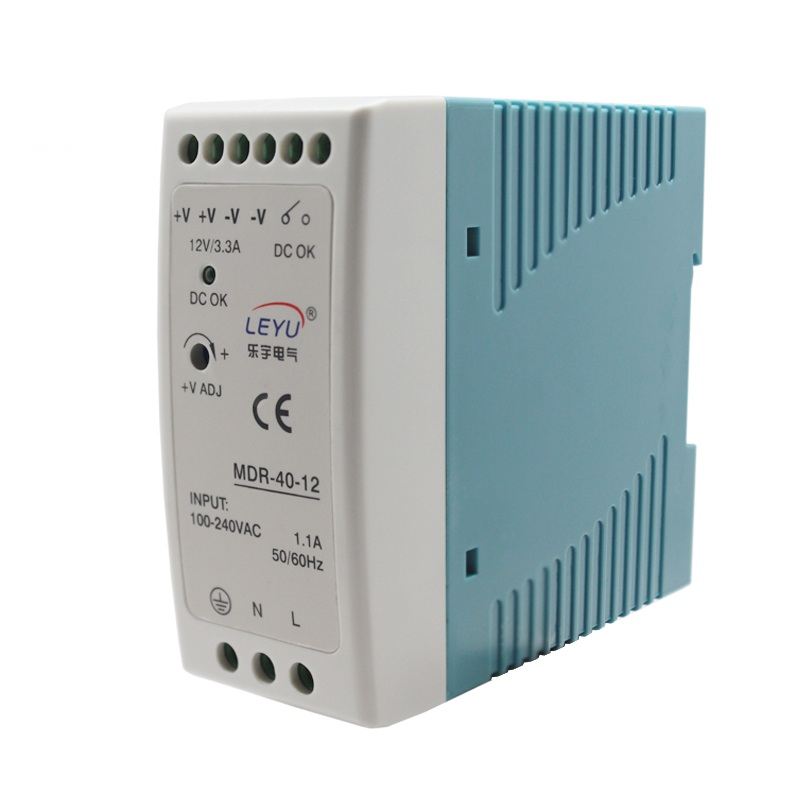

MDR-40-12 40W 12V 3.33A Industrial AC-DC DIN Rail Power Supply for Automation Control

MDR-40-12 40W 12V 3.33A Industrial AC-DC DIN Rail Power Supply for Automation Control

Name: MDR-40-12 40W 12V 3.33A Industrial AC-DC DIN Rail Power Supply for Automation Control
Brand: Leyu
Rating: 5.0 (57 reviews)

Features:

Universal AC input/ full range
Protections: Short circuit/ Over load/ Over voltage
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
LED indicator for power on
100% full load burn-in test
2 years warranty

Model:
MDR-40-12
Brand:
Leyu

Availability:

Quantity:



Inquire Add to Basket

Product Description

Company Introduction

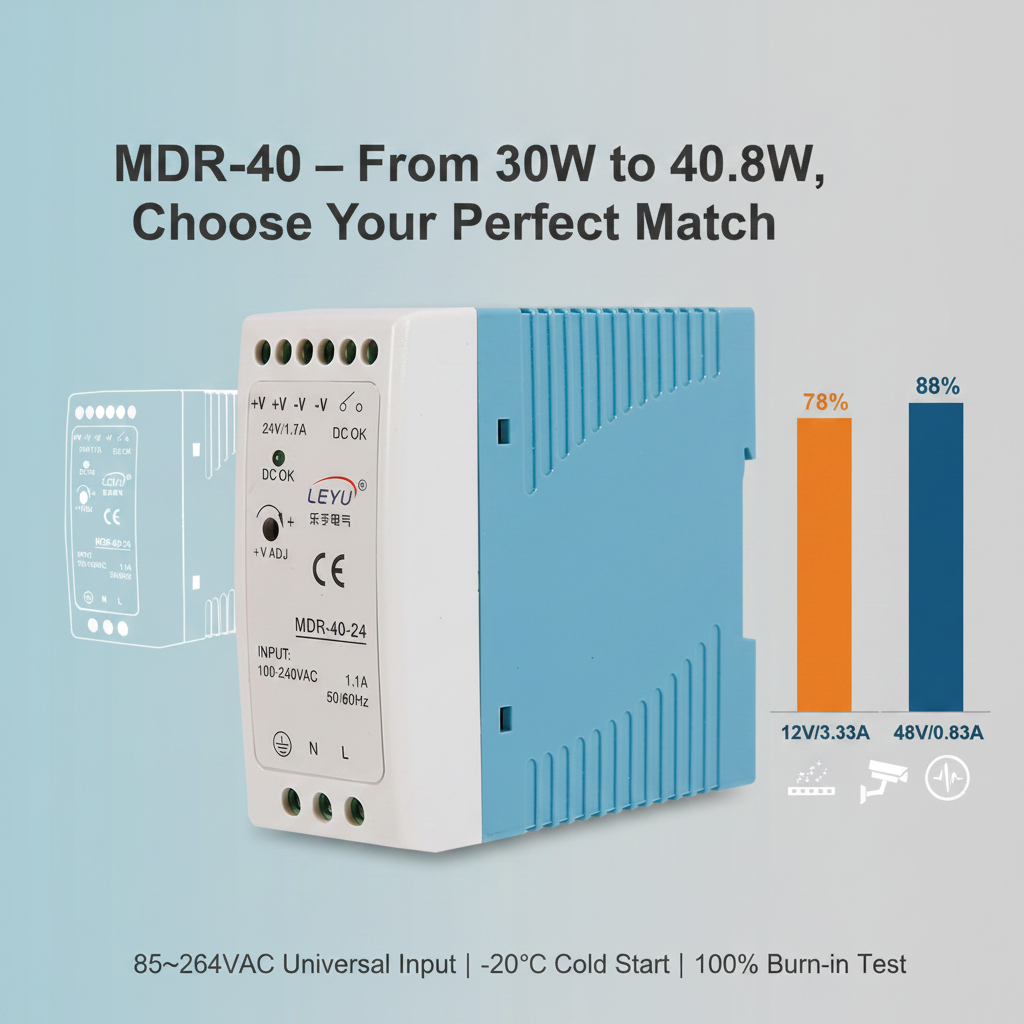

40W Single Output Industrial DIN Rail Power Supply MDR 40 series

SPECIFICATIONS
OUTPUT
Model	MDR-40-5	MDR-40-12	MDR-40-24	MDR-40-48
DC Voltage	5V	12V	24V	48V
Rated Current	6A	3.33A	1.7A	0.83A
Current Range	0-6A	0-3.33A	0-1.7A	0-0.83A
Rated Power	30W	40W	40.8W	39.8W
Ripple & Noise	80mVp-p	120mVp-p	150mVp-p	200mVp-p
Voltage Tolerance	±2%	±1%	±1%	±1%
Line regulation	±1.0%	±1.0%	±1.0%	±1.0%
Load regulation	±1.0%	±1.0%	±1.0%	±1.0%
Setup, Rise Time	500ms,30ms/230VAC 500ms,30ms/115VAC at full load
Hold Up Time	50ms/230VAC 25ms/115VAC at full load

INPUT
Voltage Range	85~264VAC 47~63Hz; 120~370VDC
AC Current	1.1A/115VAC 0.7A/ 230VAC
Efficiency	78%	86%	88%	88%
Inrush Current	Cold start 30A/115VAC 60A/230VAC
Leakage Current	<1mA/240VAC

PROTECTION
Over Load	105% ~ 150% rated output power
	Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage	6.27-7.25V	15.6-18V	31.2-36V	57.6-64.8V
	Protection type: Shut down o/p voltage, re-power on to recover

ENVIRONMENT
Working Temp., Humidity	-20℃~+70℃; 20%~90% RH non-condensing
Storage Temp., Humidity	-40℃~+85℃; 10%~95%RH
Temp. Coefficient	±0.03%/℃(0~50℃)
Vibration	10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes

SAFETY
Withstand Voltage	I/P-O/P: 3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
Isolation Resistance	I/P-O/P, I/P-FG, O/P-F/G: >100M Ohms / 500VDC/25℃/70% RH

STANDARD
Safety Standard	Design refer to UL508,TUV EN60950-1
EMC Standard	Design refer to EN55011,EN55022,EN61000-3-2,-3,EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-1，EN61204-3, heavy industry level, criteria A

OTHERS
Dimension	4090100mm(WHD)
Weight	0.3Kg
Packing	42pcs/carton/13.6kg/0.82CUFT

NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

Product Features

We always focus on customers, pay attention to their needs, provide high-quality products and excellent services to meet their expectations.

Universal Input & High Efficiency

Accepts 85–264VAC or 120–370VDC for global use; delivers 12V/3.33A with up to 86% efficiency and fanless convection cooling.

Industrial Protections & Reliability

Built-in short circuit, overload (105–150%), and over voltage protection; 100% full-load burn-in tested; UL508/TUV EN60950-1 approved.

DIN Rail Ready & Compact

Mounts on TS-35/7.5 or 15 rails; 40×90×100mm size, -20℃ to +70℃ operating range, LED indicator, and DC OK relay contact.

Space-Saving & Easy Installation

The ultra-slim design snaps directly onto standard TS-35 DIN rails without tools, freeing up valuable cabinet space and slashing installation time compared to chassis-mount alternatives

Product Advantages

The quality is very good, completely consistent with the seller's description, very satisfied, really like it, completely beyond expectations, the delivery speed is very fast, the packaging is very careful and strict, the service attitude of the logistics company is very good, the delivery speed is very fast, very satisfied with a shopping.

Trusted Brand & Cost-Effective

Leyu’s proven quality + competitive pricing + 3-year warranty deliver exceptional value for OEMs and panel builders.

Harsh Environment Ready

Withstands 2G vibration, -20℃ to +70℃ temperature, and features DC OK relay for remote monitoring — built for factories and outdoor enclosures.

Global Compliance & Easy Integration

UL, TUV, CE, CB, and Class 2/LPS certifications; compact DIN rail form factor fits seamlessly into new or existing systems..

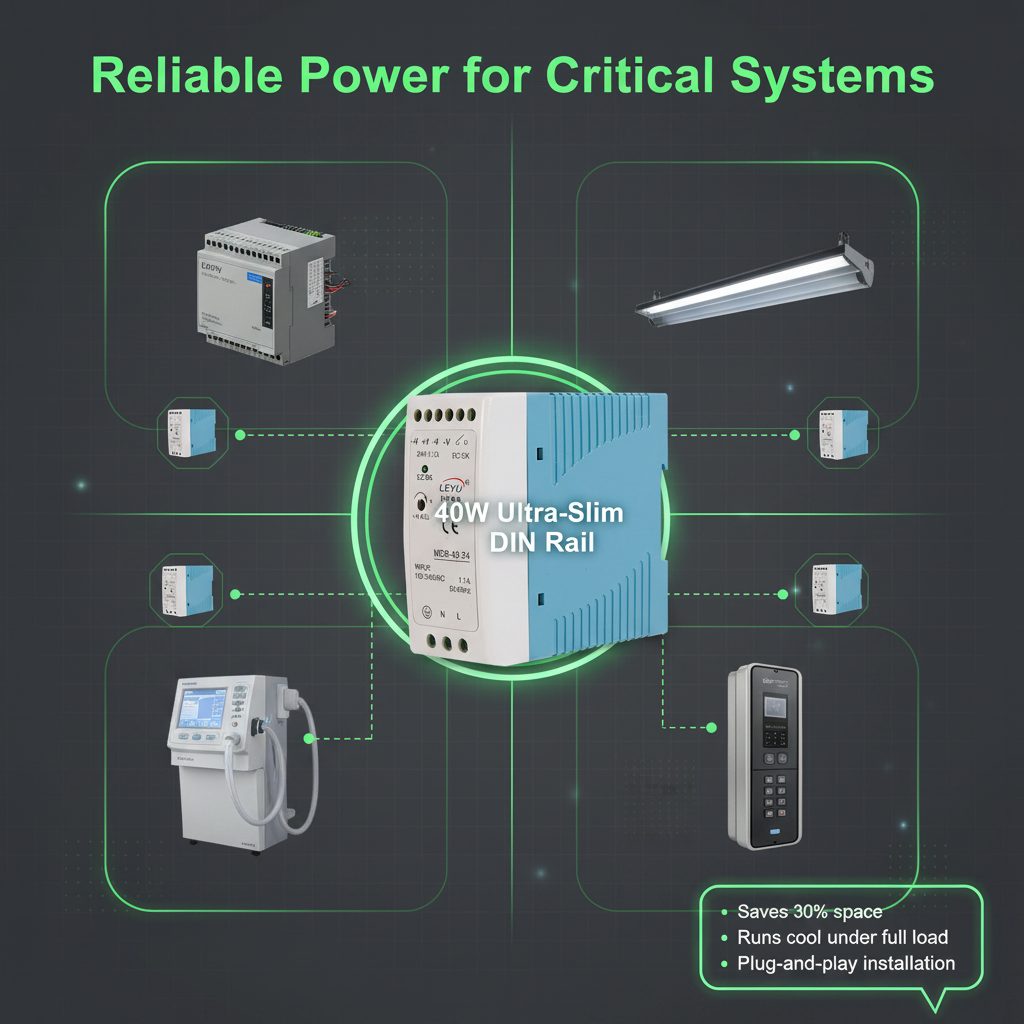

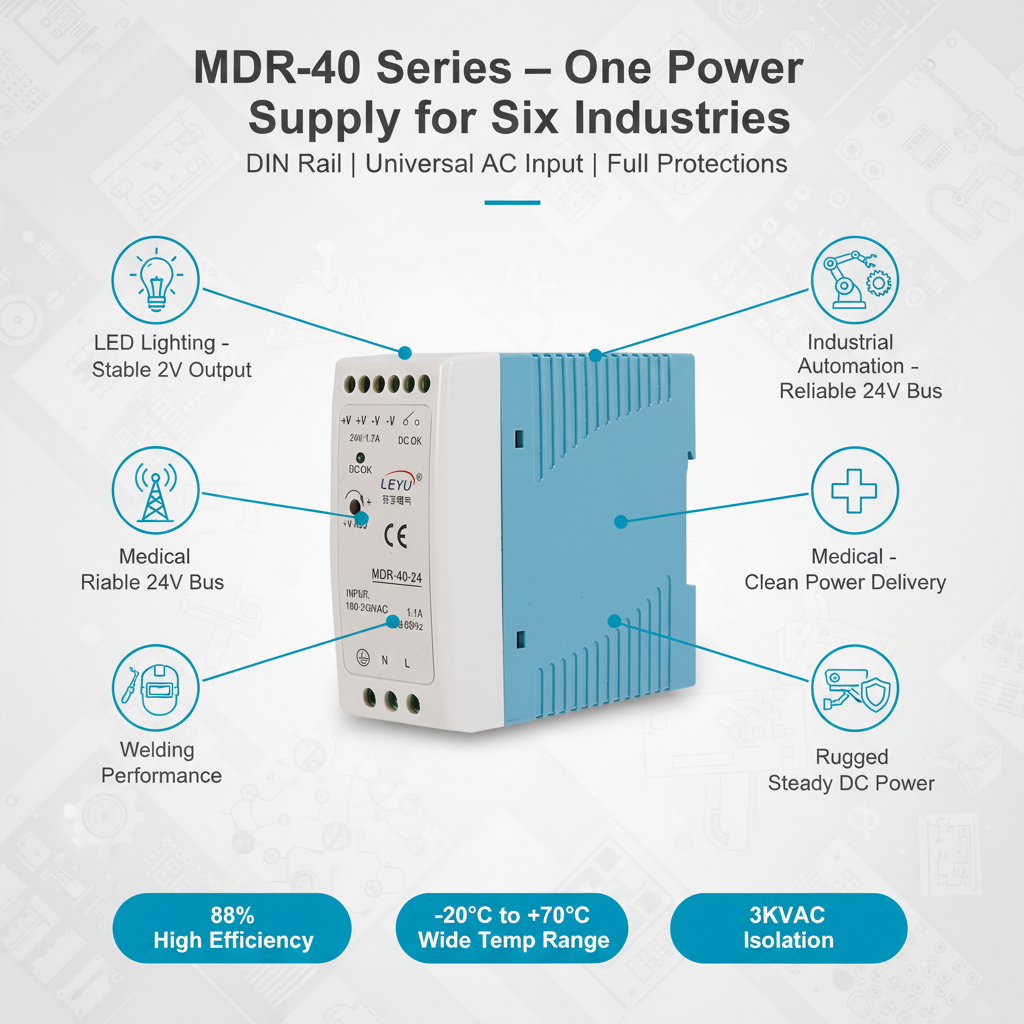

Industry Applications

Intelligent Warehousing

Biological Science

Medical Industry

New Energy Vehicles
