1000ms,60ms/230VAC 1800ms,60ms/115VAC at full load
Hold Up Time
60ms/230VAC 12ms/115VAC at full load
INPUT
Voltage Range
85~264VAC 47~63 Hz; 120~370VDC
AC Current
1.6A/115V 0.96A/230V
Efficiency
76%
80%
81%
Inrush Current
Cold start 20A/115VAC 40A/230VAC
Leakage Current
<1mA/240VAC
PROTECTION
Over Load
105%~150% rated output power
Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage
15-16.5V
29-34V
58-65V
Protection type: Shut down o/p voltage, re-power on to recover
Over Temp.
85℃±5℃ (TSW1) detect on heat sink of power transistor
Protection type: Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
Working Temp., Humidity
-10℃~+60℃; 20%~90% RH non-condensing
Storage Temp., Humidity
-20℃~+85℃; 10%~95%RH
Vibration
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage
I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
Isolation Resistance
I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC/25℃/70%RH
STANDARD
Safety Standard
Design refer to EN60950/UL60950
EMC Standard
ENIEC 61558-1:2019/EN61558-2-16:2009+A1:2013
EN62368-1:2020+A11:2020
EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019/EN62233:2008
OTHERS
Dimension
55.5*125.2*100mm(L*W*H)
Weight
0.6Kg
Packing
20pcs/13Kg/1.29CUFT
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

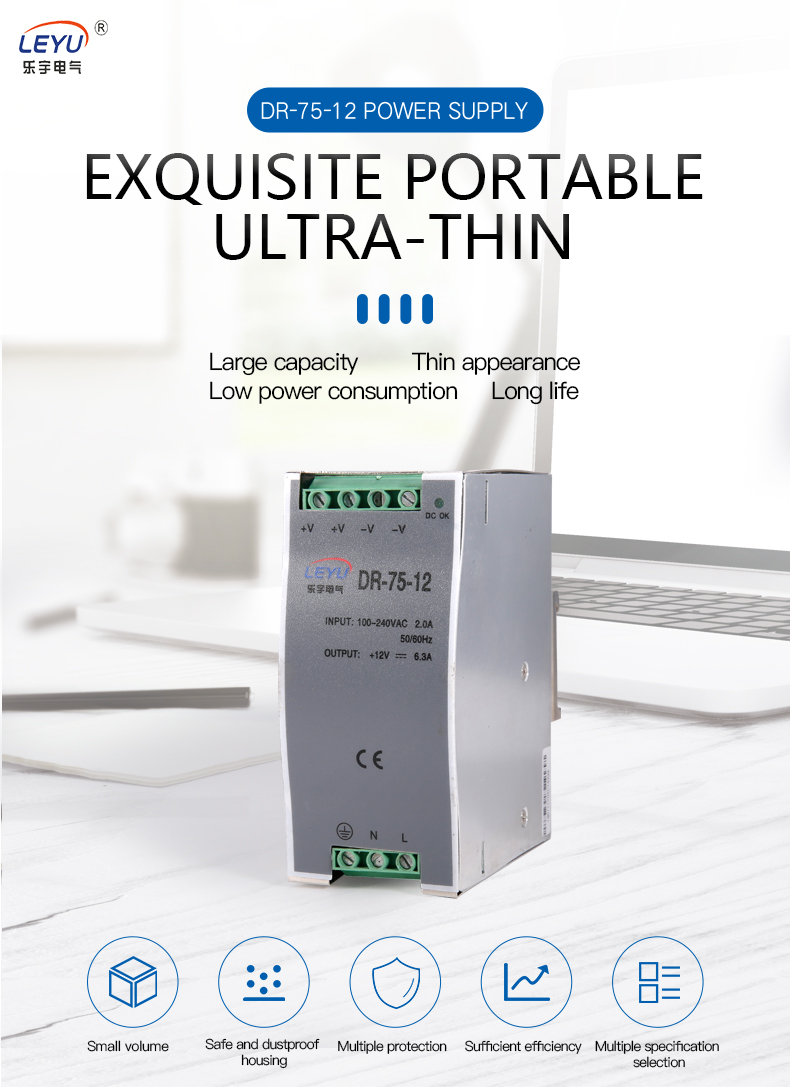

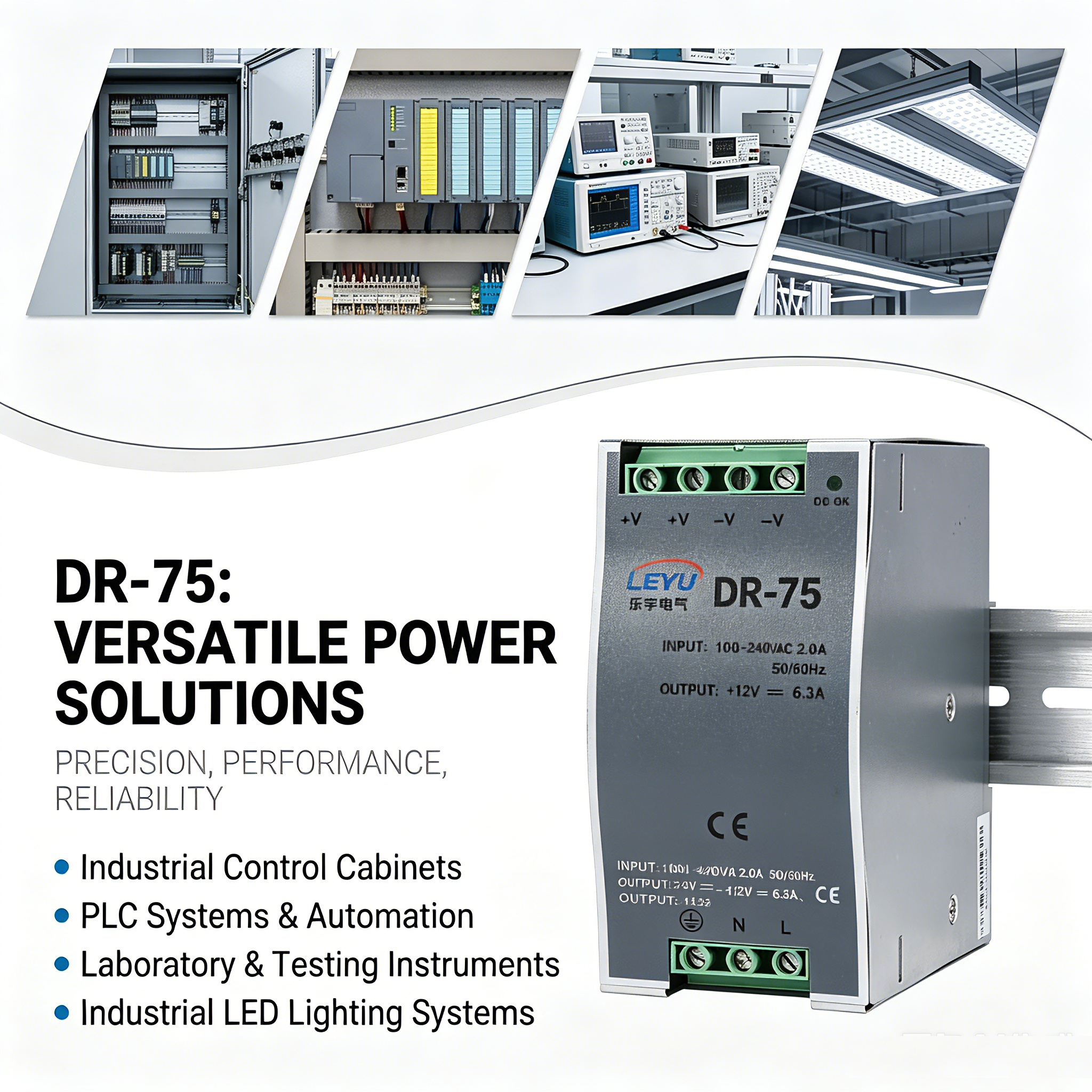

Product Overview

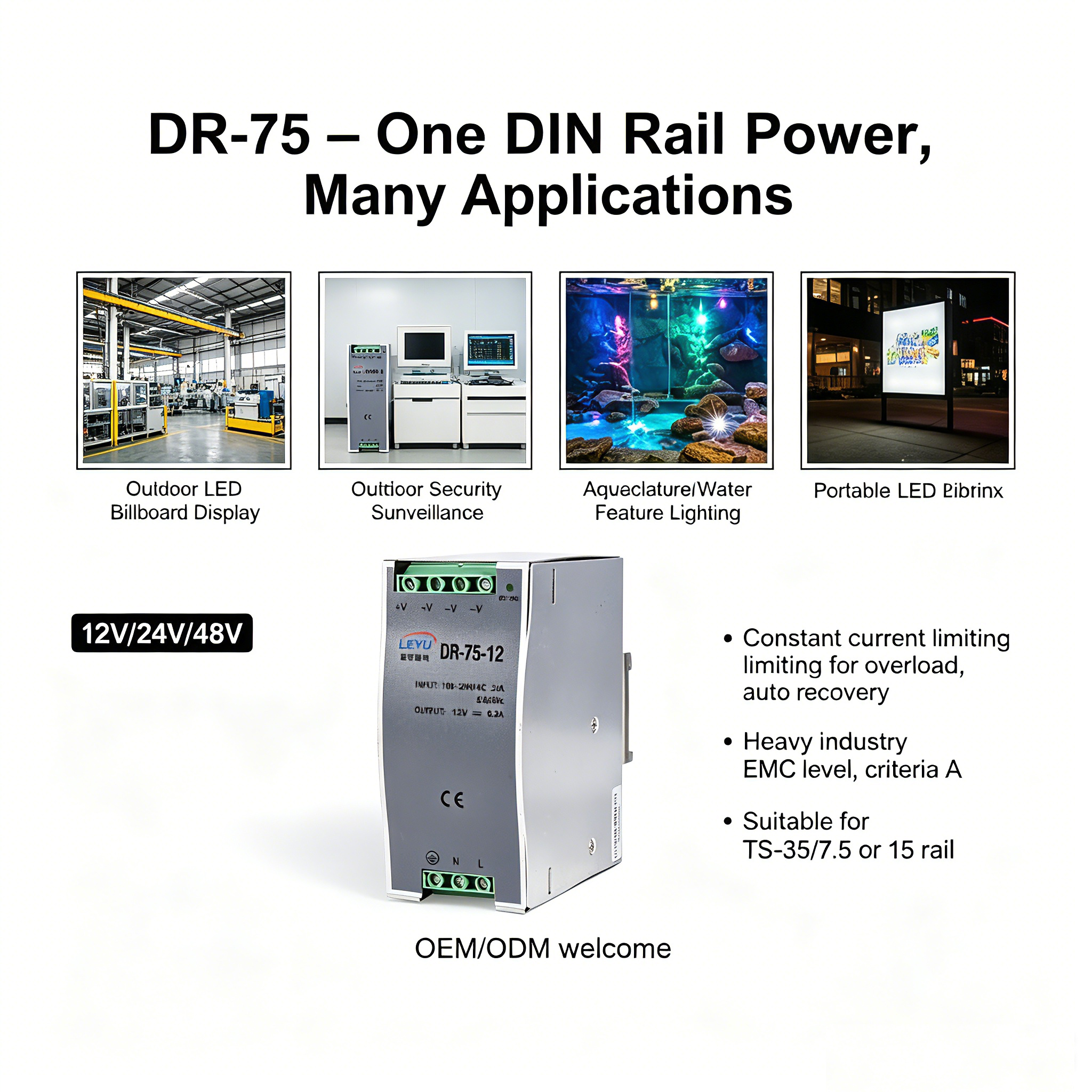

The DR-75 series adopts standard TS-35/7.5 or TS-15 DIN rail mounting. Its compact dimensions are only 55.5×125.2×100mm (W×H×D) and it weighs 0.6kg, making it easy to integrate into various compact control cabinets. It supports a full range of AC input from 85~264VAC (while also compatible with 120~370VDC DC input) without the need for manual voltage switching, adapting to most power grids worldwide.

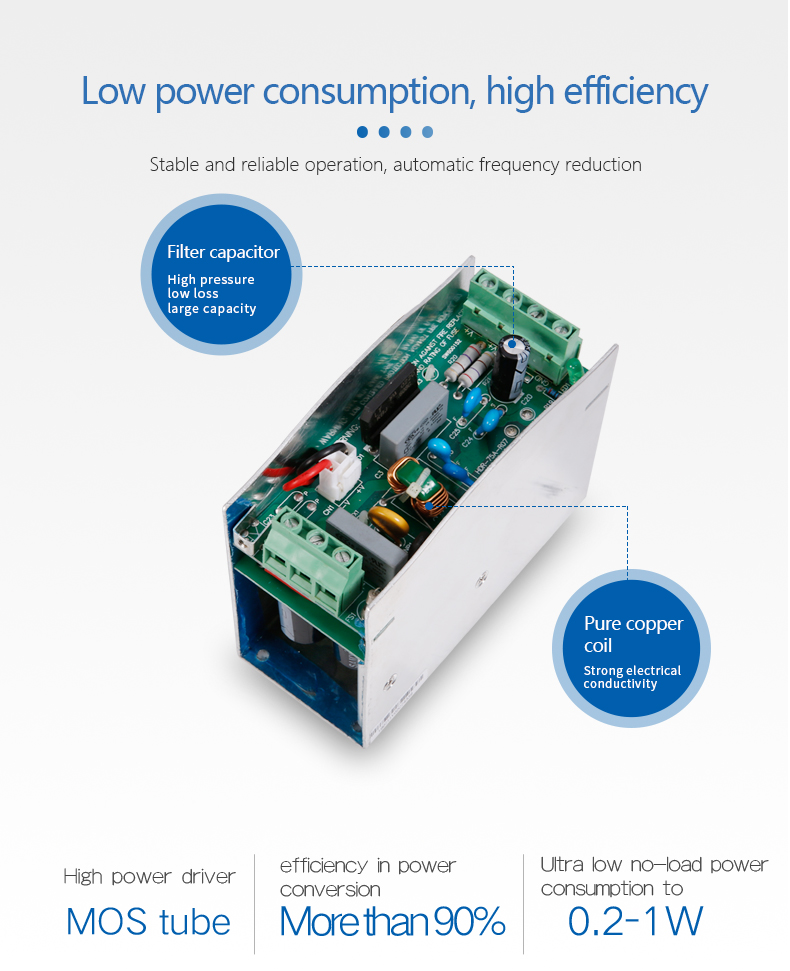

The internal topology uses a fixed 50kHz switching frequency, balancing efficiency and electromagnetic compatibility. Under 230VAC full load, typical efficiency reaches 76%~81% (depending on the model), with low standby power consumption, saving energy during long-term operation. Every DR-75 unit undergoes 100% full-load burn-in testing before leaving the factory, ensuring reliable “plug-and-play, long-term worry-free” operation.
Product Features
Full-range input, global use
AC input 85~264VAC covers 110V/220V levels; DC input 120~370VDC can be used in photovoltaic or battery backup scenarios.

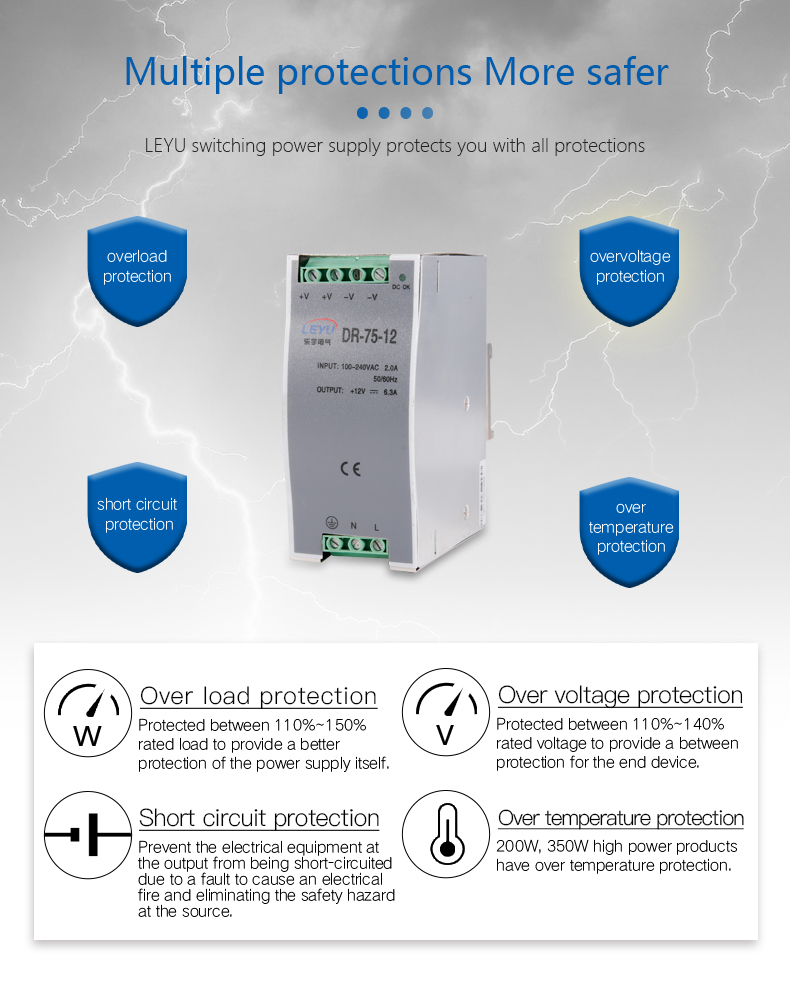

Five-fold intelligent protection
Short circuit protection:
constant current limiting mode, auto-recovers after fault removal.
Overload protection:
constant current limiting at 105%~150% rated power, no damage to the power supply.
Overvoltage protection:
output shutdown, requires power re‑cycling to recover (e.g., 24V model trip level 29~34V).
Overtemperature protection:
shuts down output when power transistor heatsink reaches 85°C±5°C, auto‑restarts after temperature drops.
Leakage current <1mA (240VAC), ensuring operator safety.
Harsh environment adaptability
Operating temperature -10°C to +60°C, fanless natural convection cooling avoids dust intake; storage temperature -20°C to +85°C. Vibration resistance up to 2G (10~500Hz), 60 minutes per axis along X, Y, Z directions, capable of withstanding transportation vibration and mechanical shock.
Low ripple & noise
12V model: 100mVp-p, 24V: 150mVp-p, 48V: 240mVp-p (measured at 20MHz bandwidth with a 0.1μF+47μF parallel capacitor). Suitable for powering sensitive instruments and sensors.
Fast start-up and hold-up time
At full load, 230VAC start-up time 1000ms, rise time 60ms; hold-up time 60ms (230VAC) or 12ms (115VAC), preventing system reset during brief grid fluctuations.
Product Advantages: Industrial DNA in Every Detail
Compared with ordinary power supplies, Luyu DR-75 offers three core advantages:
Standardized DIN rail mounting
Compatible with TS-35/7.5 and TS-35/15 standard rails. The snap-fit structure is robust and supports vertical/horizontal installation. Replacement can be done within 5 minutes, significantly reducing cabinet wiring time.
Safety & EMC certification readiness
Designed to meet UL508 and TUV EN60950-1 safety standards; EMC meets EN55011, EN55022, EN61000-4 series heavy industrial level (Criteria A). Even when installed in cabinets with variable frequency drives or large contactors, it resists misoperation. (Note: As a component, the final equipment must be re‑verified for EMC compliance.)
Flexible output voltage adjustment
Output voltage can be increased via the front‑panel potentiometer: 12V model up to 14V, 24V up to 28V, 48V up to 53V. Compensate for line drops or adapt to special loads without changing the power supply.
Q1: Can the DR-75 start up at -20°C? A: The guaranteed operating temperature lower limit is -10°C. For lower temperature startup, pre‑heating or selecting Luyu’s wide‑temperature series is recommended. However, the unit can be stored at -20°C and will start normally after warming up to above -10°C.
Q2: How does overload recovery work? A: When the load exceeds 105%~150% of rated power, the supply enters constant current limiting mode (output voltage drops, current is held constant). Once the load returns to normal range, the output voltage automatically recovers without power cycling. However, if overvoltage protection has triggered a shutdown, you must disconnect input power, wait 5 seconds, and then reapply power.
Q3: Can I directly parallel the +V and –V terminals of two units to increase output power? A: Direct paralleling is not recommended. The DR-75 does not have active current sharing, so paralleling may cause uneven load distribution. For redundancy or higher power, please use Luyu models with active current sharing or external diode redundancy modules.
Q4: What spacing should be kept during installation? A: Due to natural convection cooling, it is recommended to leave ≥20mm clearance on left/right sides and ≥30mm at top/bottom to avoid heat accumulation. When mounting multiple units side by side, keep ≥15mm between them.
Q5: Will excessive output capacitance cause startup failure? A: Capacitive load capability: 12V model ≥2000μF, 24V ≥1000μF, 48V ≥500μF. If external capacitance exceeds these values, overcurrent protection may trigger during startup. Consider soft‑start or staged power‑up.
Q6: How to select an external input fuse? A: Use a slow‑blow type fuse. For 230VAC, choose 2A/250V; for 115VAC, choose 3A/250V. Typical cold‑start inrush current is 20A at 115VAC / 40A at 230VAC – a slow‑blow fuse avoids nuisance blowing.
Q7: What is the warranty and after‑sales support? A: Luyu provides a 2‑year full warranty for the DR-75 series. Any manufacturing defect will be repaired or replaced free of charge. For specific procedures, please contact your local distributor or the Luyu technical support hotline.
