LEYU DRP 240 Provides 240W Stable DIN Rail Power 24V 10A for Industrial Automation Control System
Share to:
Features: Universal AC input/ full range Built-in active PFC function Protections: Short circuit/ Over load/ Over voltage/ Over temperature Coolingmethod : convectioncooing Can be installed on DIN rail TS-35/7.5 or 15 LED indicator for power on 100% full load burn-in test Fixed switching frequency at 100KHz 2 years warranty
Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage
30-36V
54-60V
Protection type: Shut down o/p voltage, re-power on to recover
Over Temp.
Protection type: Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
Working Temp., Humidity
-10℃~+70℃; 20%~90%RH non-condensing
Storage Temp., Humidity
-20℃~+85℃; 10%~95%RH
Vibration
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
OTHERS
Dimension
125.5*125.2*100mm(W*H*D)
Weight
1.2Kg
Packing
12pcs/15.5Kg/1.29CUFT
Product Overview
Leyu DRP‑240 Series is a high‑performance, single‑output industrial‑grade DIN‑rail switching power supply with a rated power of 240W. Designed specifically for demanding industrial automation environments, this series incorporates Active Power Factor Correction (Active PFC), ensuring excellent power efficiency across the full input voltage range (85–264 VAC). Its rugged metal housing and standard DIN rail TS‑35 mounting make it an ideal power core for industrial control cabinets, automated production lines, and communication base stations.
Technical Features

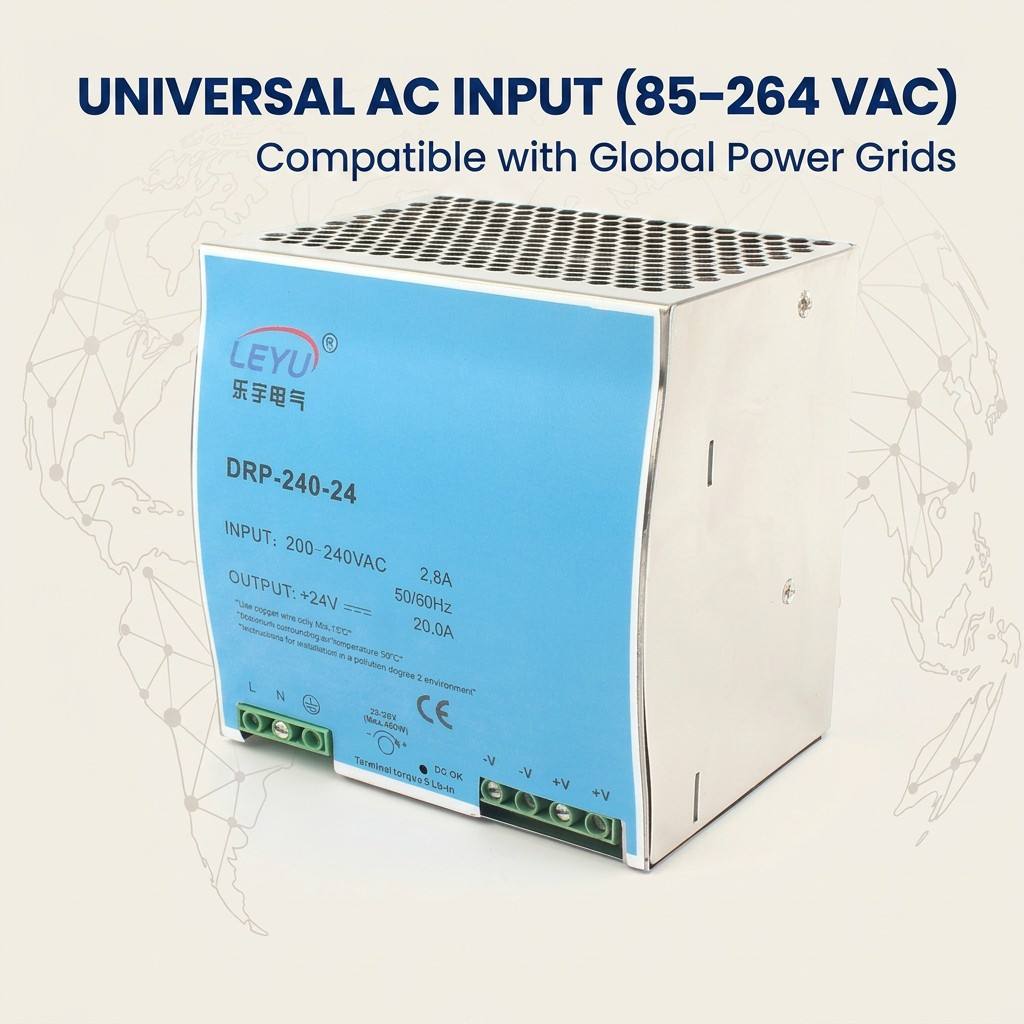

Universal AC input
Supports a wide input range of 85–264 VAC, compatible with power grids worldwide.

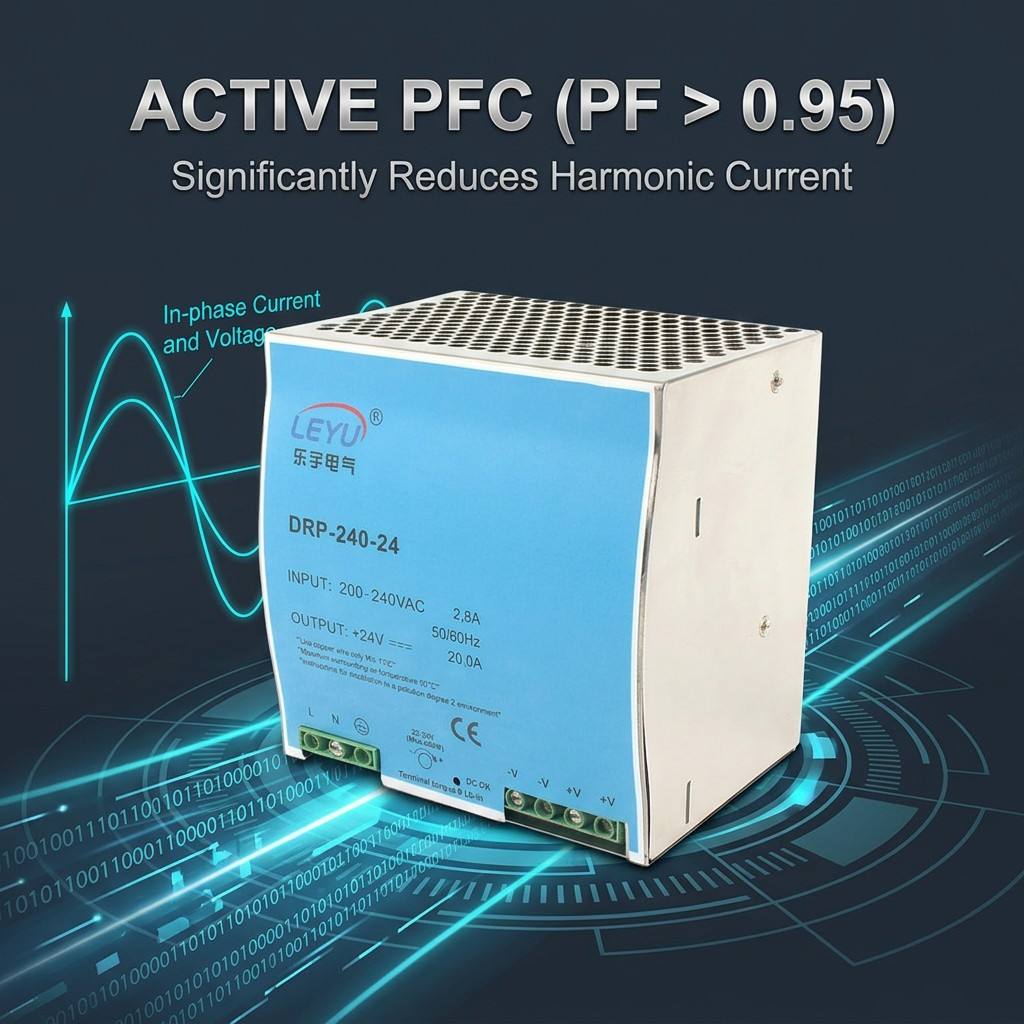

Active PFC
Built‑in active power factor correction circuit (PF > 0.95) significantly reduces harmonic current.

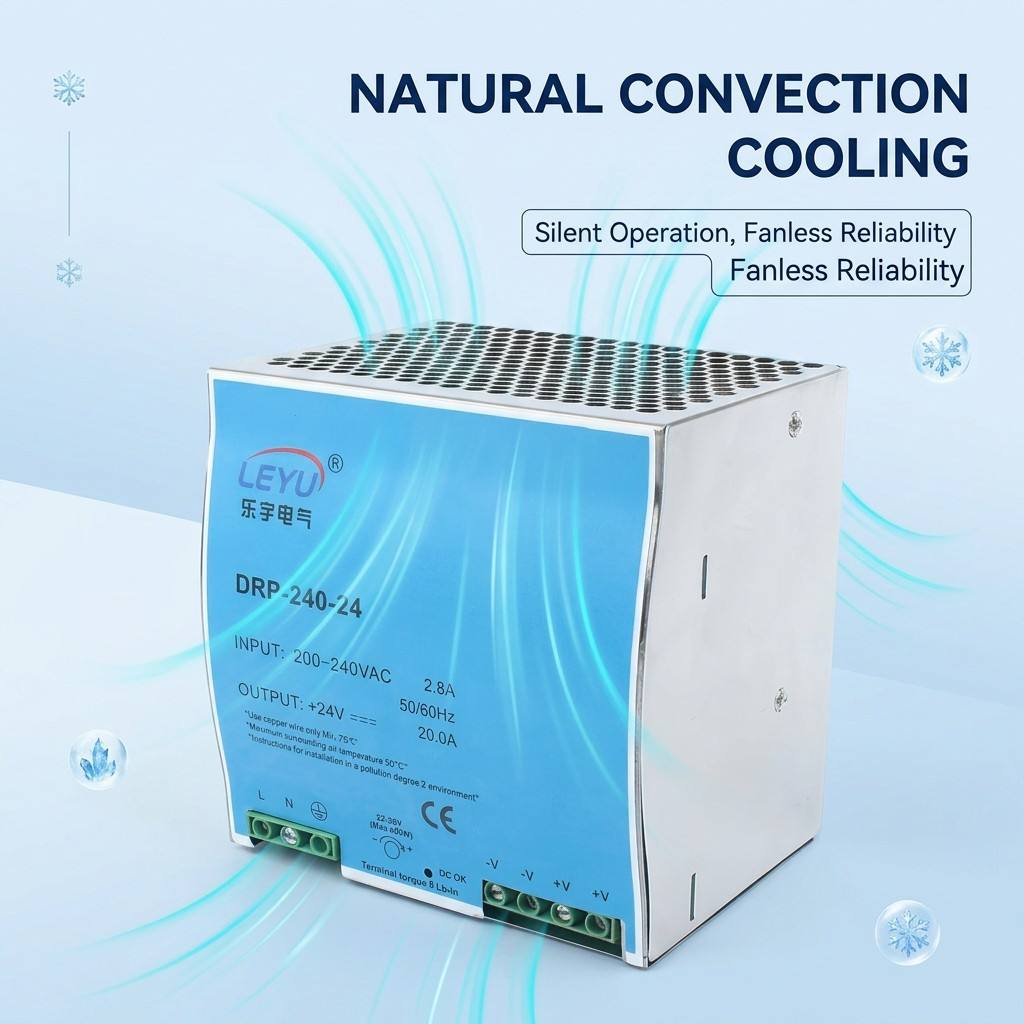

Natural convection cooling
Fanless design relies on free‑air convection for heat dissipation, resulting in silent operation and fewer mechanical failure points.

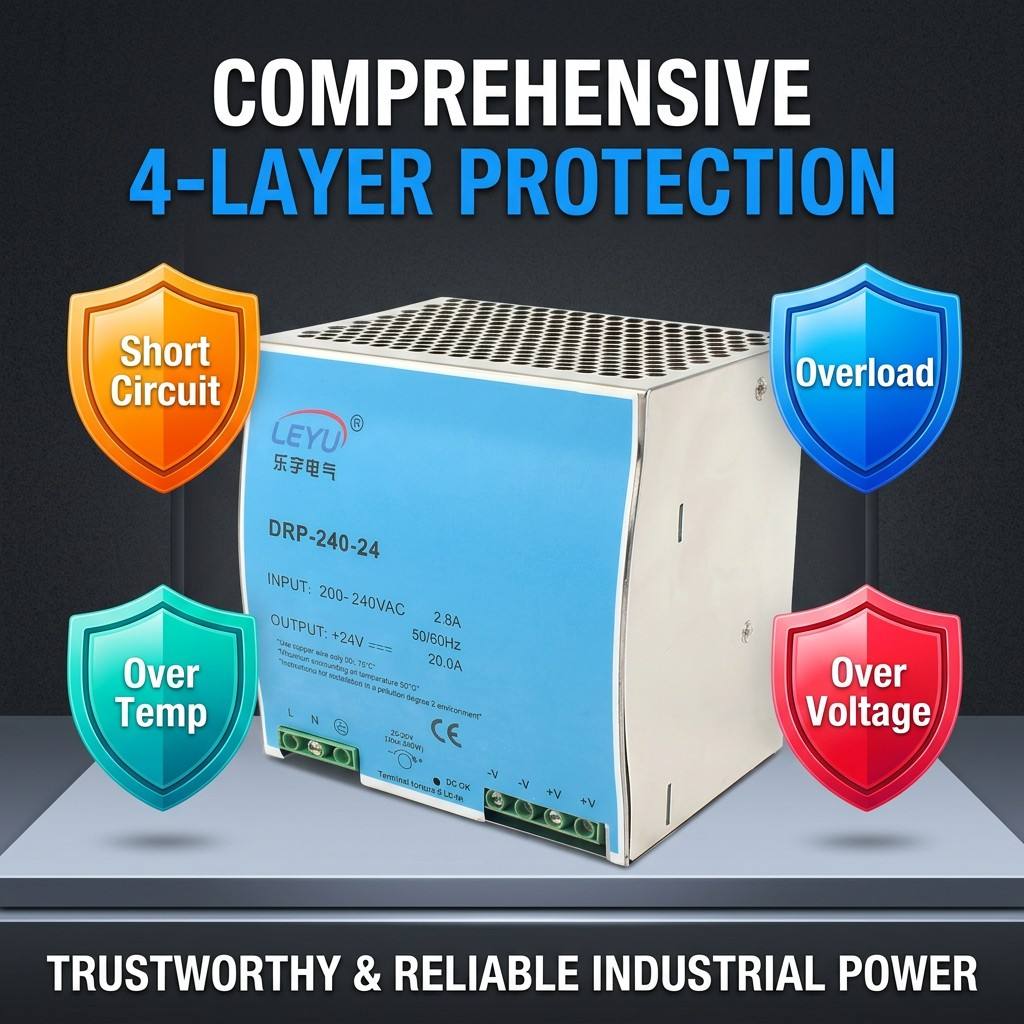

Comprehensive protection
Equipped with four layers of protection: short circuit, overload, over voltage, and over temperature.

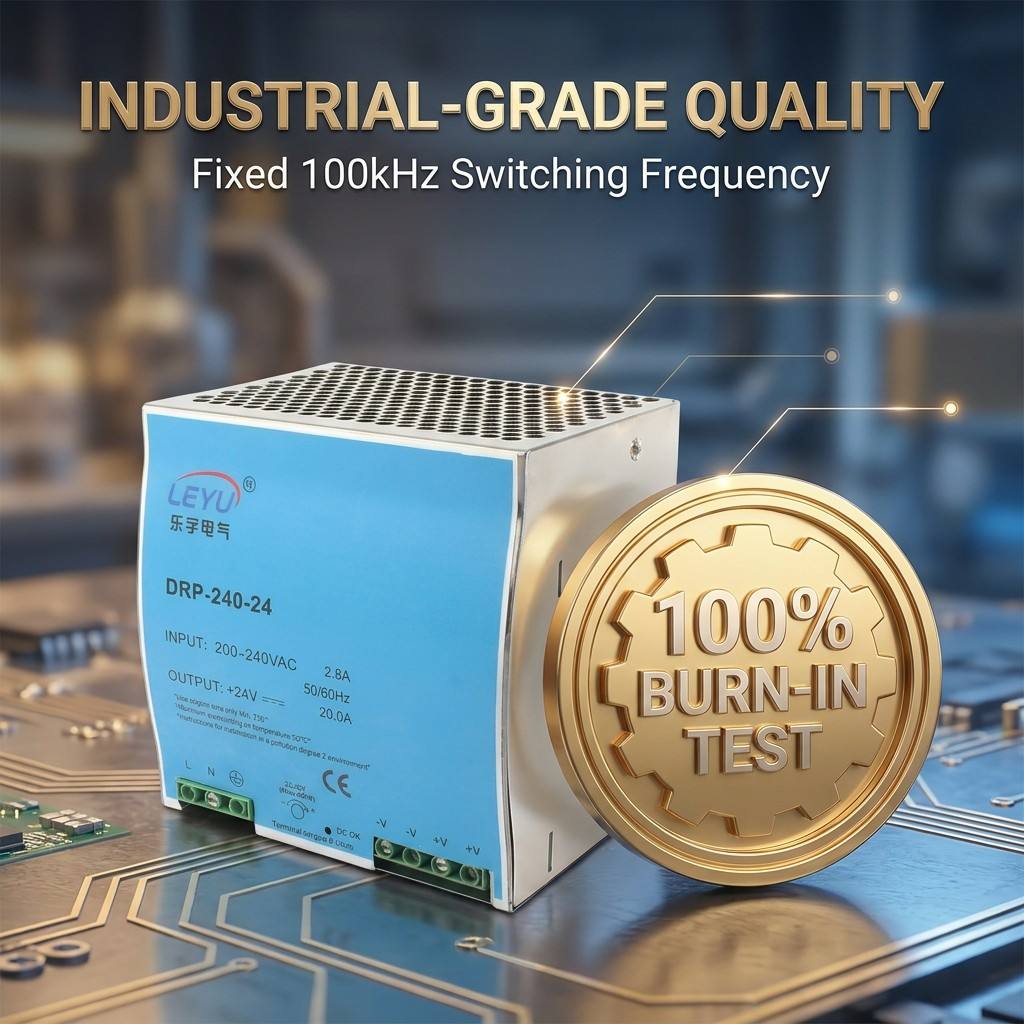

Industrial‑grade quality
100% full‑load burn‑in test performed on every unit; fixed switching frequency is controlled at 100 kHz.

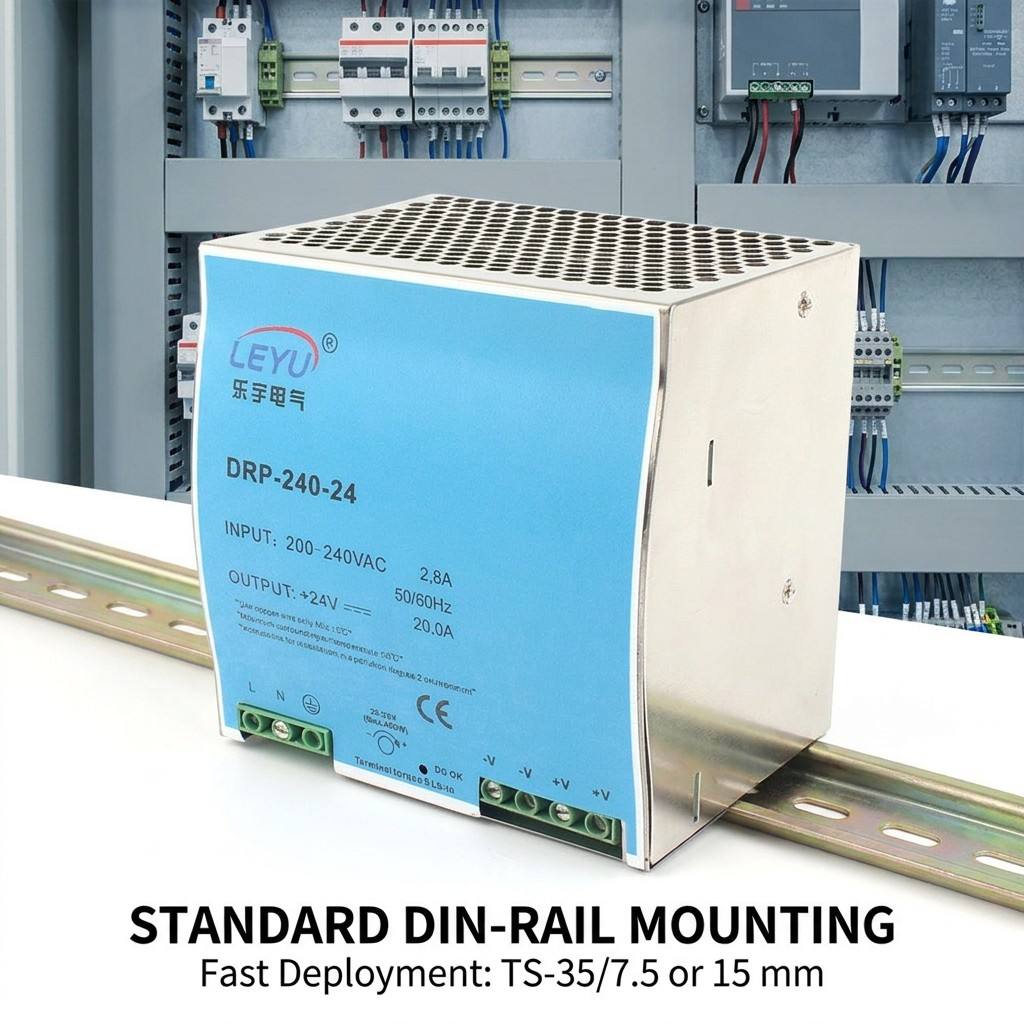

Standard DIN‑rail mounting
Can be directly snapped onto TS‑35/7.5 or 15 mm rails for fast and efficient deployment.
Product Advantages
Advantage 1: Superior Grid Compatibility and Energy Efficiency
Statement: The DRP‑240 delivers stable operation under complex grid conditions without introducing harmonic pollution to the power system.
Supporting evidence: Unlike conventional power supplies, this unit features active Power Factor Correction (PFC). It achieves a power factor of over 0.95, meeting the world's most stringent energy efficiency regulations (e.g., EN61000‑3‑2) and significantly reducing total reactive power losses in the system.
Advantage 2: High Reliability and Maintenance‑Free Design
Statement: This power supply offers an exceptionally long MTBF, substantially lowering factory maintenance costs.
Supporting evidence: We have adopted a fanless natural convection cooling architecture, completely eliminating vulnerable mechanical cooling fans. Combined with 105°C long‑life electrolytic capacitors and 100% full‑load burn‑in testing, the product ensures stable physical performance even under 24/7 continuous operation.
Advantage 3: Fully Compliant Safety Certification System
Statement: The product design fully complies with major international safety standards, helping customers' equipment pass system‑level certifications with ease.
Supporting evidence: The clearance and creepage distances of the DRP‑240 are designed with reference to UL508 (industrial control equipment), UL60950‑1, and TUV EN60950‑1. It has passed stringent dielectric withstand tests (input‑output 3KVAC), providing a reliable safety endorsement for integration into industrial infrastructure worldwide.
Product Applications
Factory Automation
– Provides stable power for PLC control systems, industrial HMI touch panels, and sensor arrays.
Machinery Manufacturing
– Drives DC actuators in packaging machinery, CNC machine tools, and automated assembly lines.
Building Control
– Used in intelligent lighting, HVAC (Heating, Ventilation, and Air Conditioning) control panels, and elevator control systems.
Renewable Energy
– Serves as the core power supply in auxiliary control circuits for wind power or solar monitoring systems.
FAQ
Q1: Can the DRP‑240 be used in parallel to increase output power? A: The DRP‑240 series employs a current‑limiting circuit and has some current‑limiting characteristics, but it does not support active current sharing. For power requirements above 480W, we recommend selecting our DRP‑480 series instead.
Q2: Can this power supply run on 400V industrial AC power? A: No. The maximum input voltage for this unit is 264 VAC. If your installation uses a three‑phase supply, you will typically need to connect one phase and neutral (220V/230V) to power this unit.
Q3: Will the power supply be damaged if the output is short‑circuited? A: No. The DRP‑240 features auto‑recovery short‑circuit protection. When a short circuit is detected, the power supply enters hiccup mode or current‑limiting mode. Once the fault is cleared, the output automatically returns to normal operation.
