Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage
5.75-6.75V
13.8-16.2V
17.25-20.25V
27.6-32.4V
Protection type: Shut down o/p voltage, re-power on to recover
ENVIRONMENT
Working Temp., Humidity
-20℃~+60℃; 20%~90% RH non-condensing
Storage Temp., Humidity
-40℃~+85℃; 10%~95%RH
Temp. Coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY
Withstand Voltage
I/P-O/P: 3KVAC
Isolation Resistance
I/P-O/P: 100M Ohms / 500VDC/25℃/70% RH
STANDARD
Safety Standard
Design refer to EN60950/UL60950
EMC Standard
Design refer to
ENIEC 61558-1:2019/EN61558-2-16:2009+A1:2013
EN62368-1:2020+A11:2020
EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019/EN62233:2008
, heavy industry level, criteria A
OTHERS

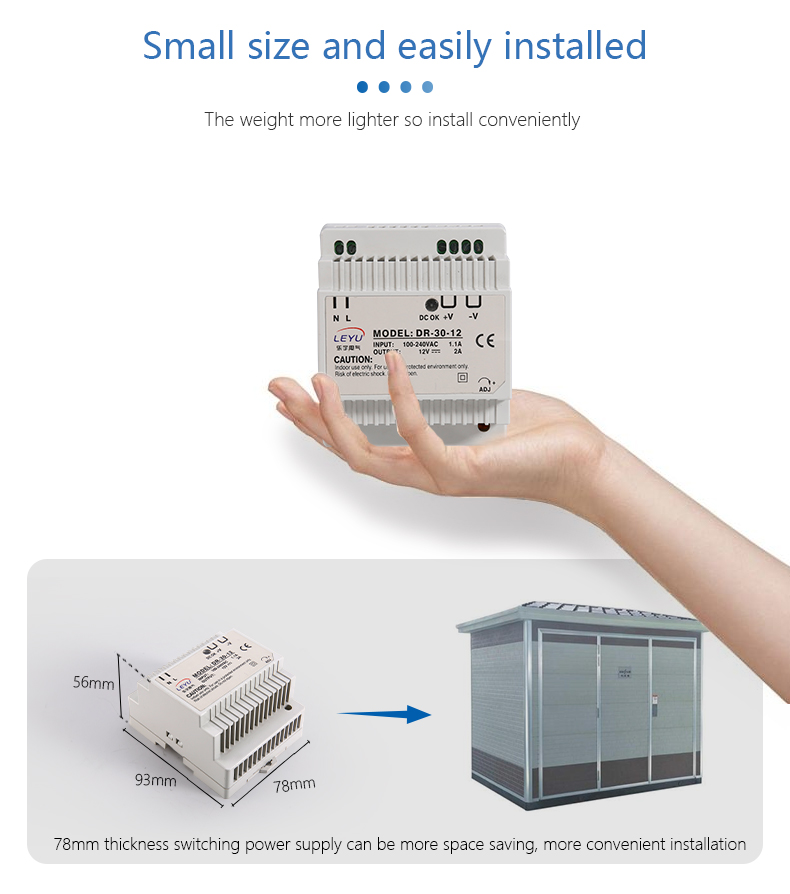

Dimension
78*93*56mm(W*H*D)
Weight
0.27Kg
Packing
48pcs/14Kg/1.02CUFT
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

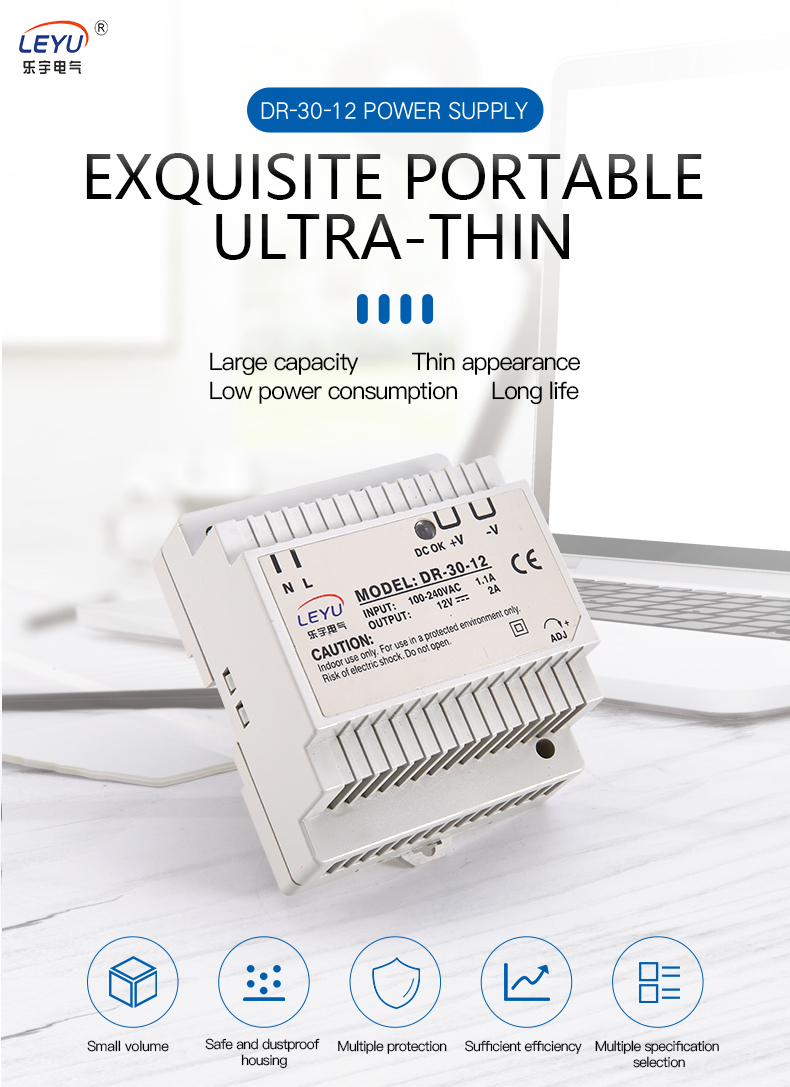

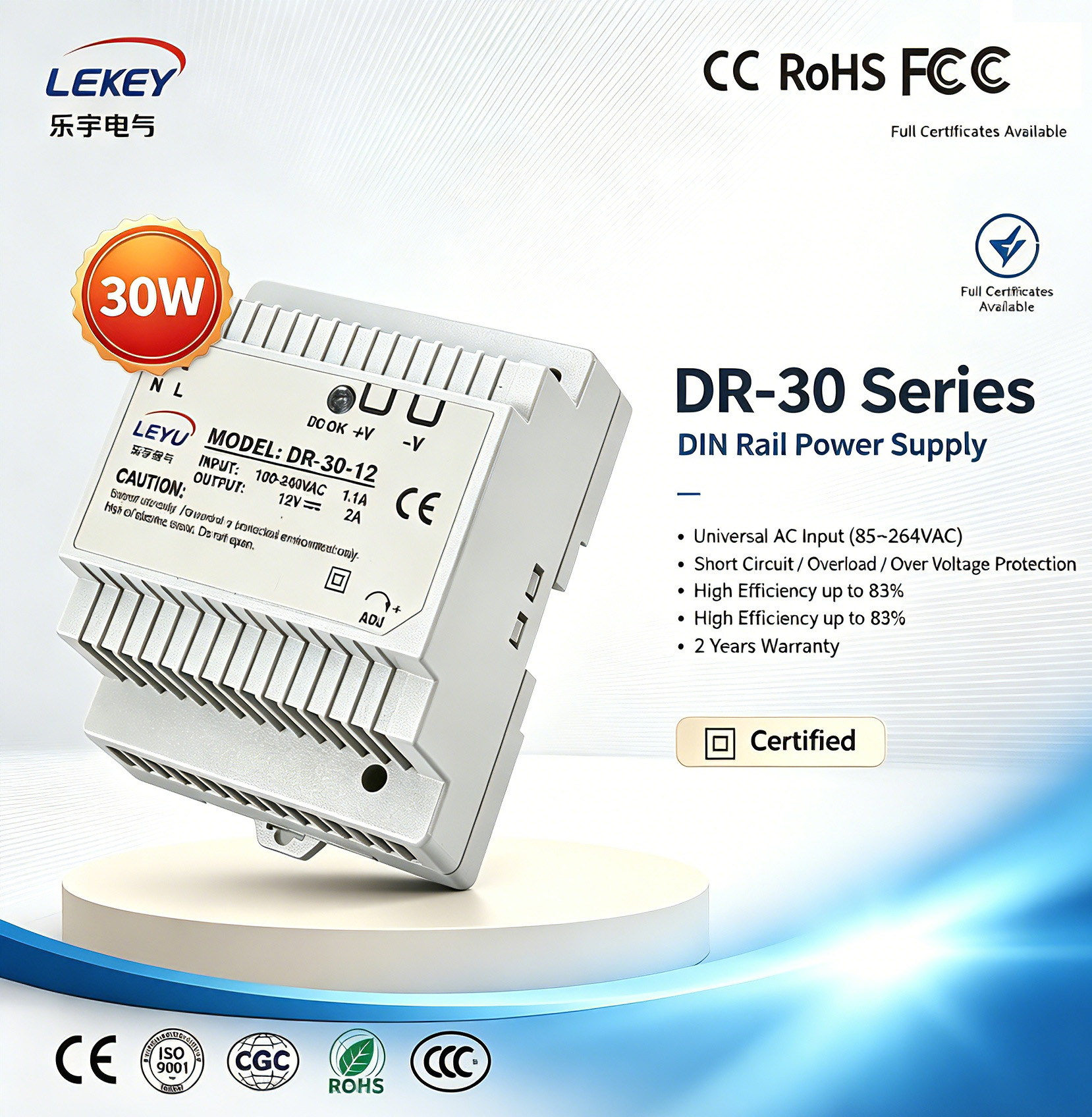

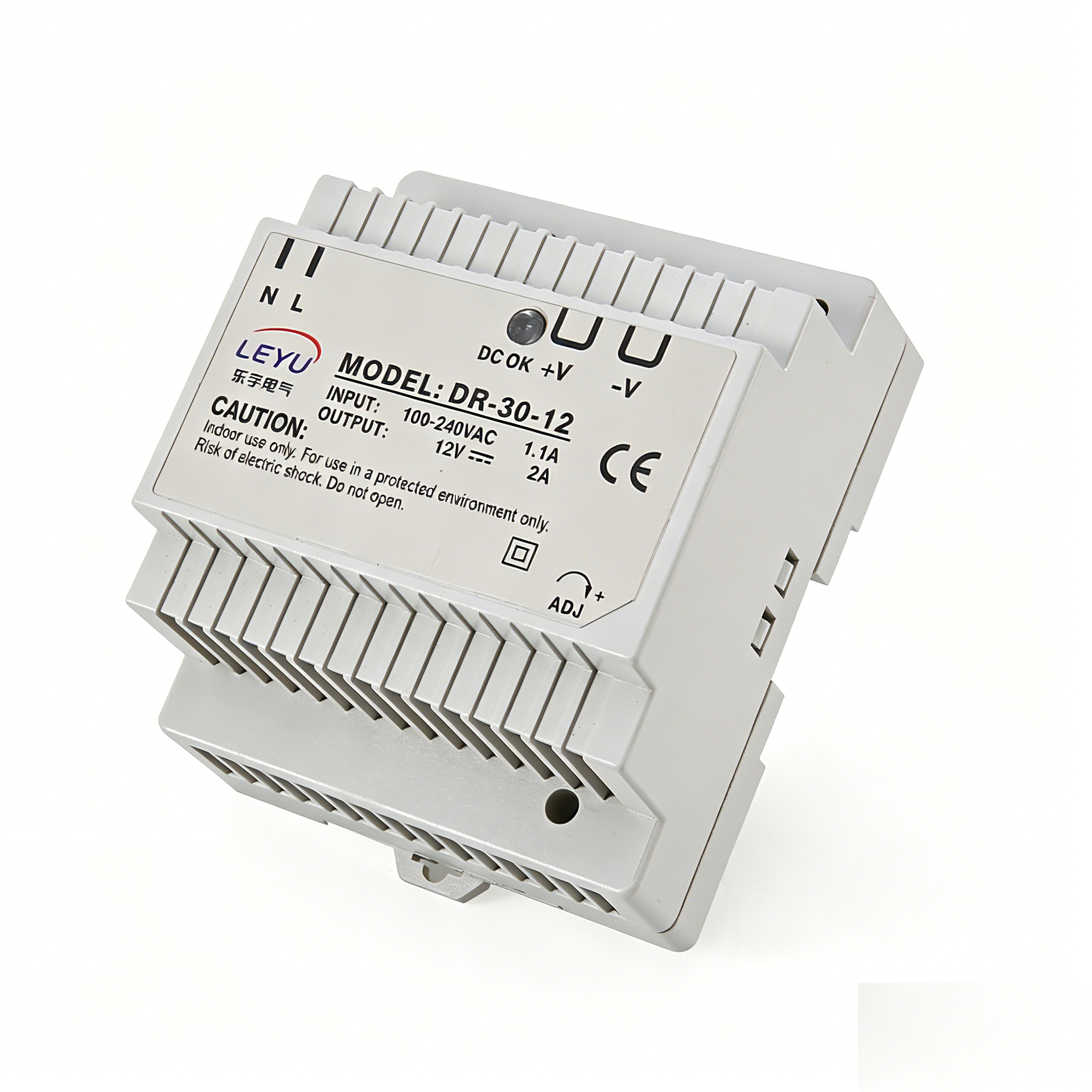

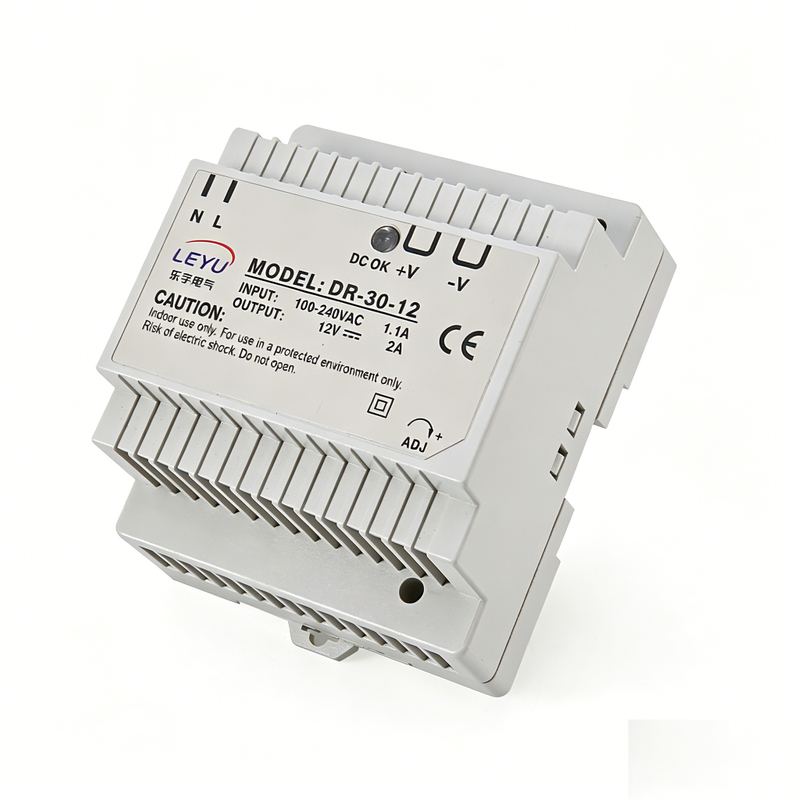

Product Introduction
The Leyu DR-30 series is a single-output rail power supply with a rated power of 30W, covering four common voltage options: 5V/3A, 12V/2A, 15V/2A, and 24V/1.5A. It is designed for auxiliary power inside control cabinets, small automation equipment, and distributed sensor nodes. The compact dimensions are 78×93×56mm, and it weighs only 0.27kg.
Unlike higher-power models in the same family, the DR-30 emphasizes "sufficient, reliable, easy to install." It supports a universal wide input of 85~264VAC and is also compatible with 120~370VDC for DC backup power. The unit uses fanless natural convection cooling and can be directly clipped onto a standard TS-35/7.5 or TS-35/15 DIN rail. Each unit undergoes 100% full-load burn-in testing before shipment and comes with a 2-year warranty.
Product Features
Four models covering low-voltage needs Provides 5V, 12V, 15V, and 24V output. The 5V model delivers 3A (15W), and the 24V model delivers 1.5A (36W), suitable for PLCs, relays, LED indicators, and other loads.
Constant current limiting overload protection When the load exceeds 105%~160% of rated power, the output automatically switches to constant current mode and the voltage drops. After the fault is removed, the voltage automatically recovers without needing to power cycle – very friendly for unattended cabinets.
Ultra-narrow width saves rail space Width is only 78mm, more than 15% narrower than many competitors of the same power rating. When multiple power supplies are mounted side by side, more space is left for ventilation and wiring.
Low ripple and low standby Ripple & noise ≤80mVp-p for 5V model, ≤120mVp-p for 12V/15V, and ≤150mVp-p for 24V. No-load power consumption is not explicitly listed (practically <0.3W), meeting energy efficiency requirements.
Wide temperature operation and vibration resistance Full load output from -20℃ to +60℃ (derating required above 60℃). Compliant with IEC60068-2-6 vibration standard (10~500Hz, 2G), suitable for factories, outdoor cabinets, and similar environments.
Safety and certifications Designed with reference to UL60950-1, TUV EN60950-1, EN50178. EMC meets heavy industry level (EN61000-6-2, Criteria A). Input-output isolation withstand voltage is 3KVAC.
Product Advantages
"Zero-operation" overload recovery Most cheap power supplies require a power cycle after overload. The DR-30’s constant current limiting mode automatically resumes output once the load returns to normal – virtually zero maintenance cost.
One series covers multiple low voltages 5V for microcontrollers or logic circuits, 12V for relays, 24V for sensors – different models within the DR-30 series cover all, eliminating the need to mix brands.
High tolerance for rail mounting The spring clip is carefully tuned – neither loose enough to detach nor so tight that it cracks the plastic housing. Even with slightly deformed rails, it still holds firmly.
Trustworthy measured data All parameters are measured at 230VAC, rated load, and 25℃ ambient. 100% burn-in test. Ripple is measured at 20MHz bandwidth using twisted-pair wire with a 0.1μF//47μF parallel capacitor – real and reliable.
Product Applications
Application Scenario
Recommended Model
Description
PLC expansion module power supply
DR-30-24
24V/1.5A can power 3–5 small I/O modules
Sensors and transmitters
DR-30-12 / 24
Pressure, temperature, proximity switches
Intermediate relays in control cabinets
DR-30-12
12V/2A can drive about 20 relays
5V logic systems (e.g., Arduino)
DR-30-5
5V/3A, ripple as low as 80mV
Small access controllers
DR-30-15
15V/2A (30W), suitable for some electromagnetic locks
Charging pile internal control board
DR-30-12
Wide input, compatible with DC bus
In addition, the DR-30 is also well suited for building automation, smart lighting distribution boxes, small robot control cabinets, and other applications requiring reliable low-power DC power.
Frequently Asked Questions
Q: The DR-30-5 is rated at 15W, but the series is called 30W. Is that misleading? A: No. The series name "DR-30" indicates that the highest power model in the series is close to 30W (DR-30-15 is 30W, DR-30-24 is 36W). Other models have lower power but share the same housing, rail clip, and PCB design, so they are grouped into the same series.
Q: Why doesn't the voltage come back after overload protection? A: Please confirm that the load has been completely removed. The DR-30 uses constant current limiting. If the load still has a short circuit or remains too heavy, the power supply will stay in current limit mode. Only when the fault completely disappears will the output voltage recover within 2–3 seconds.
Q: Can it be mounted horizontally? A: Yes. However, make sure the ventilation holes face up or down and are not blocked. When mounting horizontally, leave at least 20mm of space above and below.
Q: Can the 5V model be used to charge a mobile phone? A: Not recommended. Although the voltage is the same, industrial power supplies have slower transient response and no USB protocol detection on the output. Forcing it may damage the phone's charging circuit.
Q: When powered by DC 120V, does efficiency change? A: It drops slightly, about 2%~3% lower than with AC input. However, it still provides stable output within specifications and does not require additional derating at full load.
Q: Does it have UL or CE markings? A: The Leyu DR-30 is designed in reference to UL/TUV/EN standards, but it is sold as a component. Final equipment requires its own certification. We can provide relevant technical documents to assist customers with system certification.
Q: What if the operating temperature exceeds 60℃? A: Derate 2.5% per 1℃ increase. For example, 75% load at 65℃, 50% load at 70℃. Operation above 75℃ is prohibited.
Q: Can it be used for LED strip dimming? A: Yes, but dimming requires a PWM controller connected in series on the output side. The power supply itself does not support dimming. The constant voltage output is suitable for standard single-color LED strips.
