SPECIFICATIONS
| OUTPUT |
|
Model | DR-100-12 | DR-100-15 | DR-100-24 |
DC Voltage | 12V | 15V | 24V |
Rated Current | 7.5A | 6.5A | 4.2A |
Current Range | 0-7.5A | 0-6.5A | 0-4.2A |
Rated Power | 90W | 97.5W | 100.8W |
Ripple & Noise | 120mVp-p | 120mVp-p | 150mVp-p |
Voltage Adj. Range | 12-15V | 15-18V | 24-29V |
Voltage Tolerance | ±2% | ±1% | ±1% |
Line regulation | ±1% | ±1% | ±1% |
Load regulation | ±1% | ±1% | ±1% |
Setup, Rise Time | 2700ms,80ms/230VAC 2700ms,80ms/115VAC at full load |
Hold Up Time | 50ms/230VAC 18ms/115VAC at full load |
INPUT |
|
Voltage Range | 85~264VAC 47~63 Hz; 124~370VDC |
AC Current | 1.6A/115V 0.96A/230V |
Efficiency | 87% | 87% | 89% |
Inrush Current | Cold start 30A/115VAC 45A/230VAC |
Leakage Current | <1mA/240VAC |
PROTECTION |
|
Over Load | 105%~135% rated output power |
Protection type: Constant current limiting, recovers automatically after fault condition is removed |
Over Voltage | 16-20V | 19-23V | 30-35V |
Protection type: Shut down o/p voltage, re-power on to recover |
Over Temp. | Protection type: Shut down o/p voltage, recovers automatically after temperature goes down |
ENVIRONMENT |
|
Working Temp., Humidity | -20℃~+60℃; 20%~90% RH non-condensing |
Storage Temp., Humidity | -40℃~+85℃; 10%~95%RH |
Vibration | 10~500Hz, 2G 10min./1cycle, 60min, each along X, Y, Z axes |
SAFETY |
|
Withstand Voltage | I/P-O/P: 3KVAC |
Isolation Resistance | I/P-O/P>100M Ohms / 500VDC/25℃/70%RH |
STANDARD |
|
Safety Standard | Design refer to EN60950/UL60950 |
EMC Standard | ENIEC 61558-1:2019/EN61558-2-16:2009+A1:2013 EN62368-1:2020+A11:2020 EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019/EN62233:2008 ,heavy industry level, criteria A
|
OTHERS |
|
Dimension | 100*93*56mm(L*W*H) |
Weight | 0.35Kg |
Packing | 36pcs/13.6Kg/0.89CUFT |
NOTE |
|
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor. 3.Tolerance: includes set up tolerance, line regulation and load regulation. 4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |

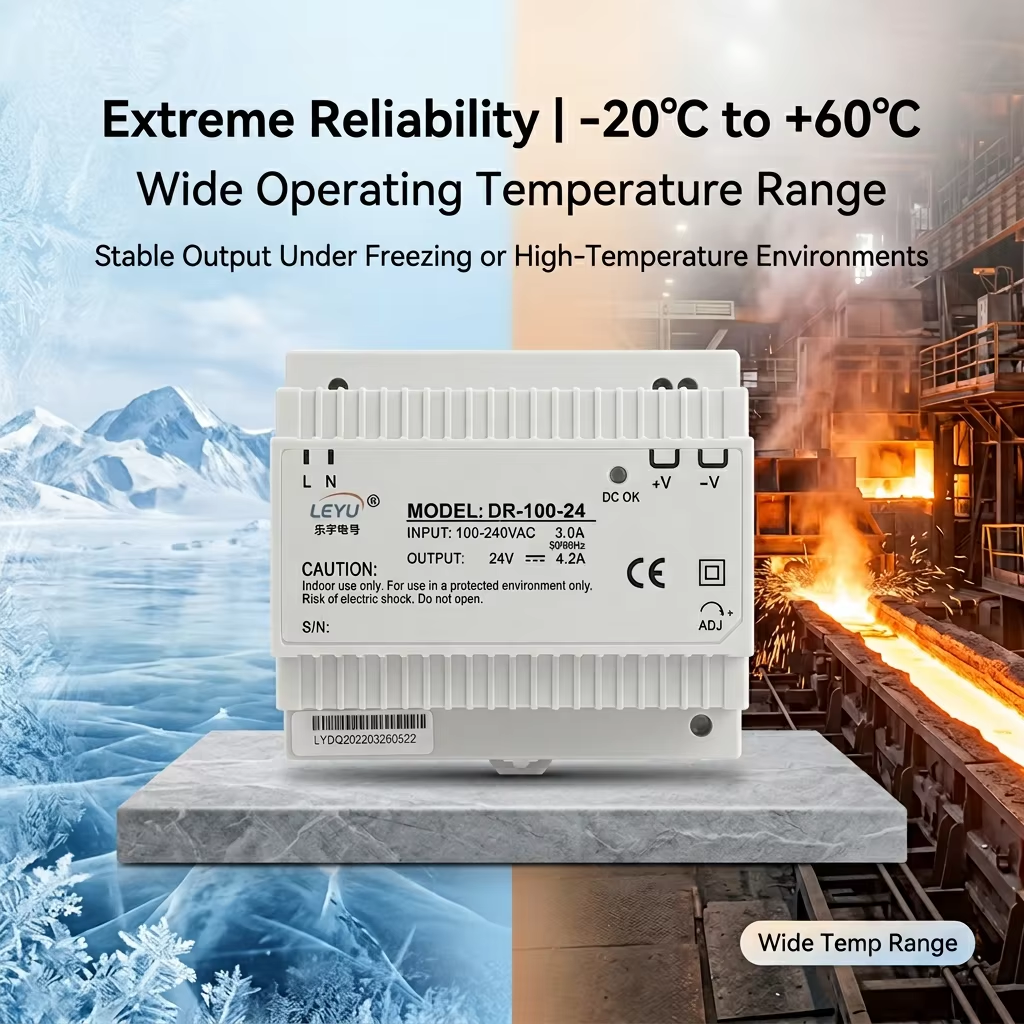

Product Introduction
The Leyu DR-100 series is a 100W single-output industrial DIN rail switching power supply, designed for control cabinets, automation equipment, and industrial field power supply. This series includes three common models: DR-100-12, DR-100-15, and DR-100-24, providing 12V/7.5A, 15V/6.5A, and 24V/4.2A respectively. It supports a wide input range of 85~264VAC and is also compatible with 124~370VDC input, adapting to various power grids and DC backup power scenarios.
The DR-100 series uses fanless natural convection cooling and can be mounted on standard TS-35/7.5 or TS-35/15 DIN rails. The unit undergoes 100% full-load burn-in testing, features no-load power consumption below 1W, complies with Class II insulation, and comes with a 2-year warranty.
Product Features
Universal wide input voltage, no selector switch needed
Four protections: short circuit, overload (constant current limiting), over voltage, over temperature (auto recovery)
Low ripple & noise: ≤120mVp-p for 12V/15V models, ≤150mVp-p for 24V model
High efficiency: 87% for 12V/15V models, 89% for 24V model
Setup and hold time: at full load, 230VAC setup time 2700ms, hold time 50ms; 115VAC setup time 2700ms, hold time 18ms
Operating temperature range -20℃ to +60℃, withstands 2G vibration (10~500Hz)
Safety design references UL60950-1, TUV EN60950-1, EN50178
EMC meets heavy industry level (EN61000-6-2, Criteria A)
Product Advantages
Compared to ordinary power supplies of the same power rating, the Leyu DR-100 series offers three core advantages in industrial environments:
Space-saving DIN rail mounting:
Standard DIN rail clip-in design, no screws needed, easy maintenance and replacement. Dimensions: 100×93×56mm, weight only 0.35kg, ideal for compact control cabinets.
Low standby power consumption:
No-load power consumption below 1W, meeting energy efficiency requirements for long-term standby or intermittent operation, reducing temperature rise inside the cabinet.
Reliability in harsh environments:
Starts without issues at -20℃ and still delivers full load at 60℃. Overload protection uses constant current limiting mode, automatically recovers after fault removal without affecting production continuity. Additionally, input-output isolation withstand voltage is 3KVAC, insulation resistance >100MΩ, eliminating leakage risks.
Product Applications
Power supply for PLCs, sensors, and relays on automation production lines
Auxiliary power for industrial control cabinets and distribution panels
Machine vision lighting and small motor drives
Security monitoring systems and access controllers
Internal control board power for charging stations
Factory automation equipment and robot control cabinets
The DR-100 series is especially suitable for industrial scenarios that require stable 24V or 12V DC with constraints on space and energy efficiency.
Frequently Asked Questions
Q: Can DR-100 series be connected in parallel to increase output current?
A: Direct parallel connection is not recommended. This series does not have a current sharing function, so parallel operation will lead to uneven load distribution. For higher power requirements, please choose higher power models from Leyu (e.g., DR-150 or DR-240 series).
Q: Can the output be directly connected to a battery?
A: No. This power supply has a constant voltage output. Direct connection to a battery may cause reverse current that can damage the power supply. For battery charging, please use a dedicated charger module.
Q: What is the voltage adjustment range and how to adjust?
A: The 12V model can be adjusted from 12V to 15V, the 15V model from 15V to 18V, and the 24V model from 24V to 29V. There is a potentiometer on the front panel; use a small flathead screwdriver to turn clockwise to increase voltage or counterclockwise to decrease.
Q: How to recover after overload protection?
A: This series uses constant current limiting protection. When the load exceeds 105%~135% of rated power, the output current is clamped at a safe value and the voltage drops. After removing the overload, the output automatically returns to normal without needing to power cycle the unit.
Q: Can it be mounted on a metal DIN rail?
A: Yes. It is compatible with standard TS-35/7.5 or TS-35/15 aluminum or steel DIN rails. Good contact between the power supply housing and the rail helps with heat dissipation, though grounding is not mandatory.
Q: Can it still be used when the operating temperature exceeds 60℃?
A: Above 60℃, derating is required. Refer to the product manual for the specific derating curve. As a general rule, derate 2.5% per 1℃ increase, with a maximum of 50% load at 70℃. Adding a fan inside the control cabinet is recommended.
Q: Does it have UL and CE certification?
A: The Leyu DR-100 series is designed with reference to UL60950-1, TUV EN60950-1, and EN50178 safety standards. Its EMC meets EN55022 Class B and heavy industry immunity standards. The unit can be used as a component for final equipment certification.
