Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage
5.75-6.9V
13.8-16.2V
17.25-20.25V
27.6-32.4V
Protection type: Shut down o/p voltage, re-power on to recover
ENVIRONMENT
Working Temp., Humidity
-20℃~+60℃; 20%~90% RH non-condensing
Storage Temp., Humidity
-40℃~+85℃; 10%~95% RH
Temp. Coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
SAFETY
Withstand Voltage
I/P-O/P: 3KVAC
Isolation Resistance
I/P-O/P: 100M Ohms / 500VDC
STANDARD
Safety Standard
Design refer to EN60950/UL60950
EMC Standard
Design refer to
ENIEC 61558-1:2019/EN61558-2-16:2009+A1:2013
EN62368-1:2020+A11:2020
EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019/EN62233:2008
, heavy industrial level, criteria A
OTHERS

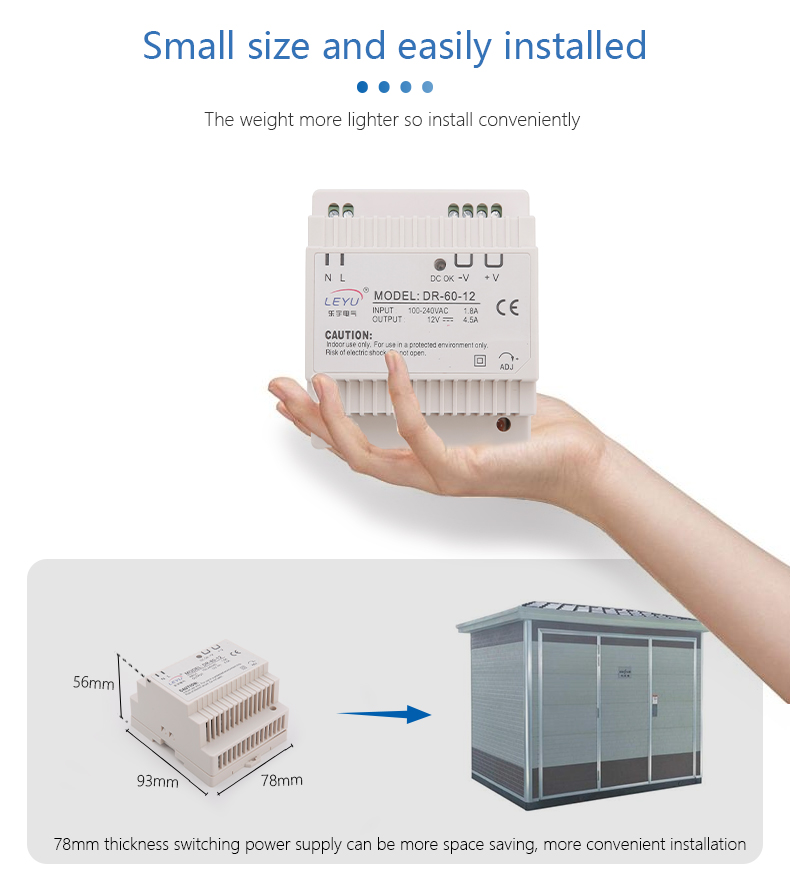

Dimension
78*93*56mm(W*H*D)
Weight
0.3Kg
Packing
48 pcs/carton/15.4KG/1.02CUFT
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μ & 47μ parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

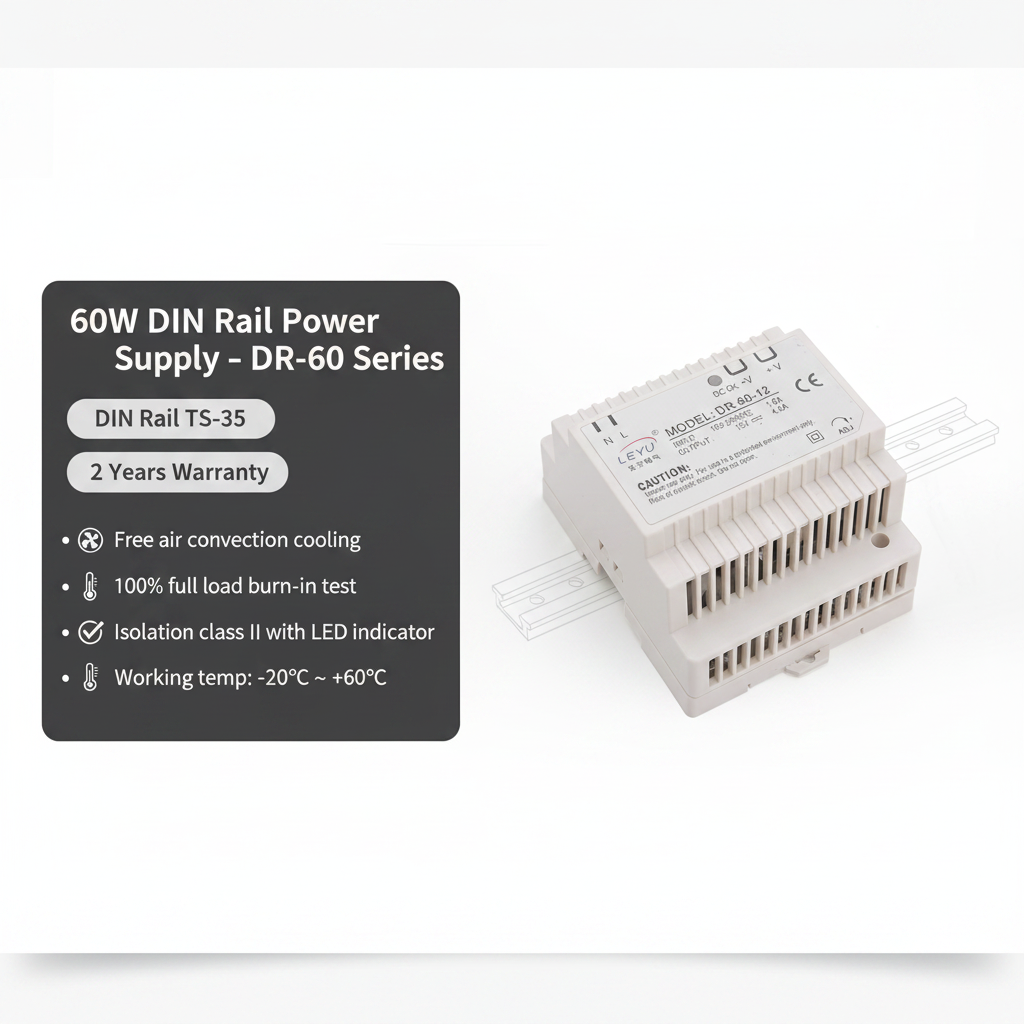

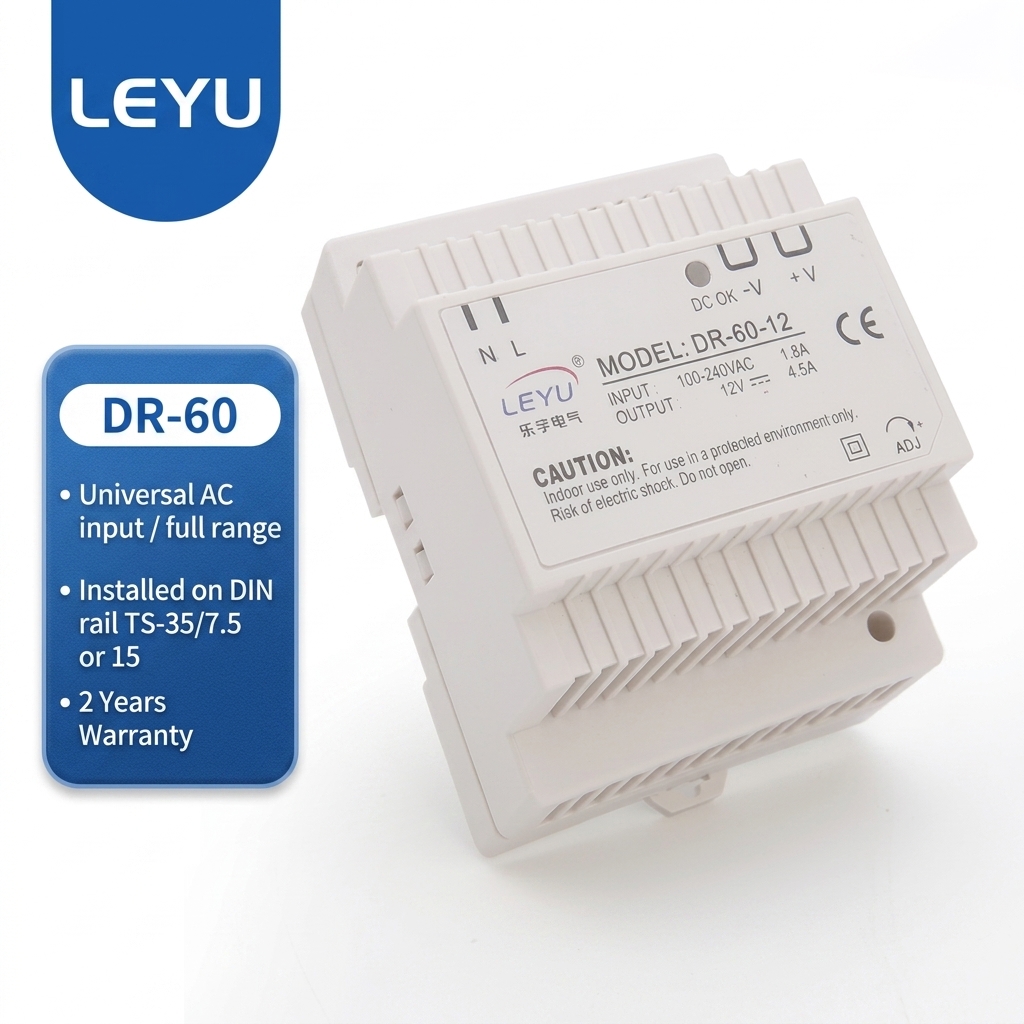

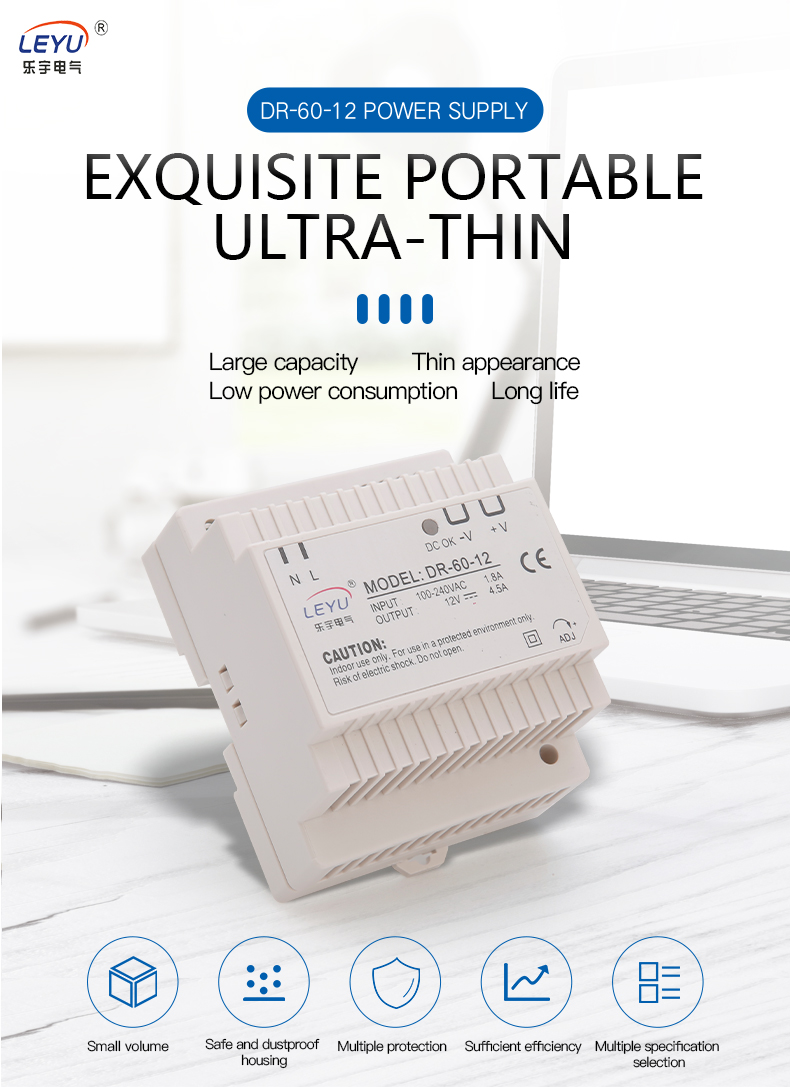

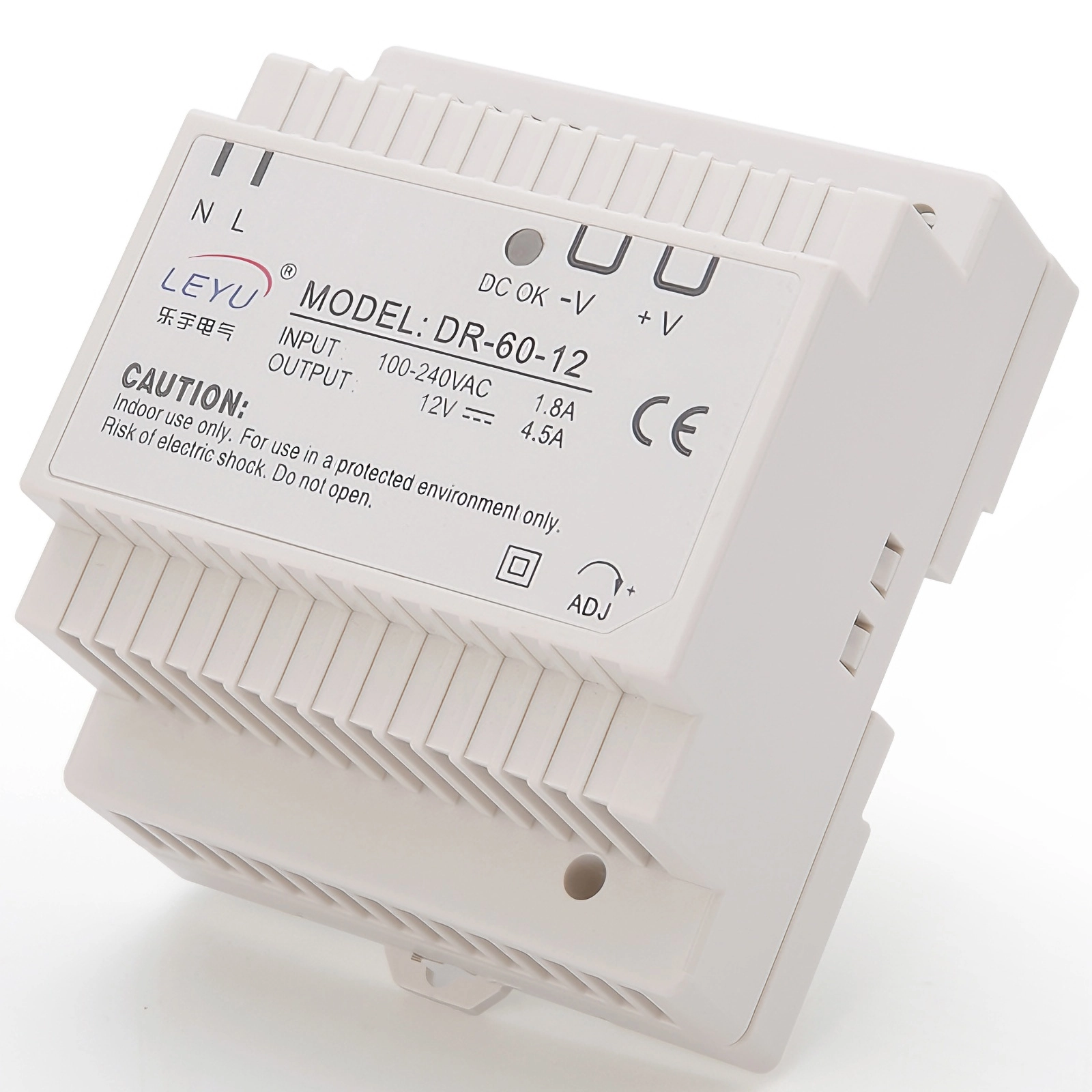

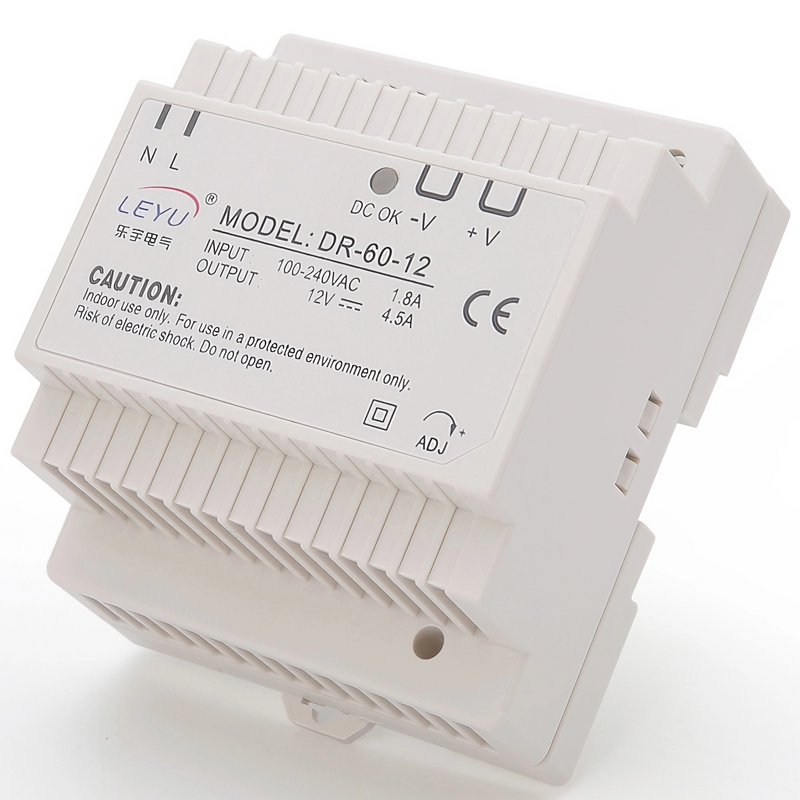

Product Introduction
In factory automation, control cabinet integration, and various industrial sites, the stability and ease of installation of the power supply module often determine the operating efficiency of the entire system. Based on years of power supply manufacturing experience, Leyu Electric introduces the DR‑60 series DIN rail switching power supply.
Designed specifically for industrial control environments, this series has a body width of only 78mm and can be directly snapped onto TS‑35/7.5 or TS‑15 standard DIN rails without additional mounting brackets, significantly saving space inside control cabinets. It currently offers four mainstream output voltages: 5V / 12V / 15V / 24V. Among them, the 24V model (DR‑60‑24) delivers 60W of power and 2.5A current, sufficient to drive common loads such as small PLCs, relays, and sensors.
The DR‑60 features a 88–264VAC wide voltage input, adapting to power grid conditions in different regions worldwide (single‑phase 110V or 220V) while maintaining stable output during voltage fluctuations. The entire series has passed safety certifications such as UL60950‑1 and TUV EN60950‑1, and meets EN55022 Class B electromagnetic compatibility requirements, making it suitable for heavy industrial environments.
Product Features
True “plug‑and‑play” installation
The rail clip uses a metal spring structure, allowing removal and fixing without tools, saving 60% installation time compared to screw‑fixed power supplies.
Full‑range AC input No switch needed – automatically adapts to 88–264VAC or 124–370VDC, suitable for both 110V and 220V power scenarios, reducing inventory models.
Multiple electrical protections
Short circuit protection: current limiting, auto‑recovery after fault removal
Overload protection: enters constant current mode at 105%–160% rated power
Over voltage protection: output shut down, requires power‑on reset All protection actions will not damage the power supply itself.

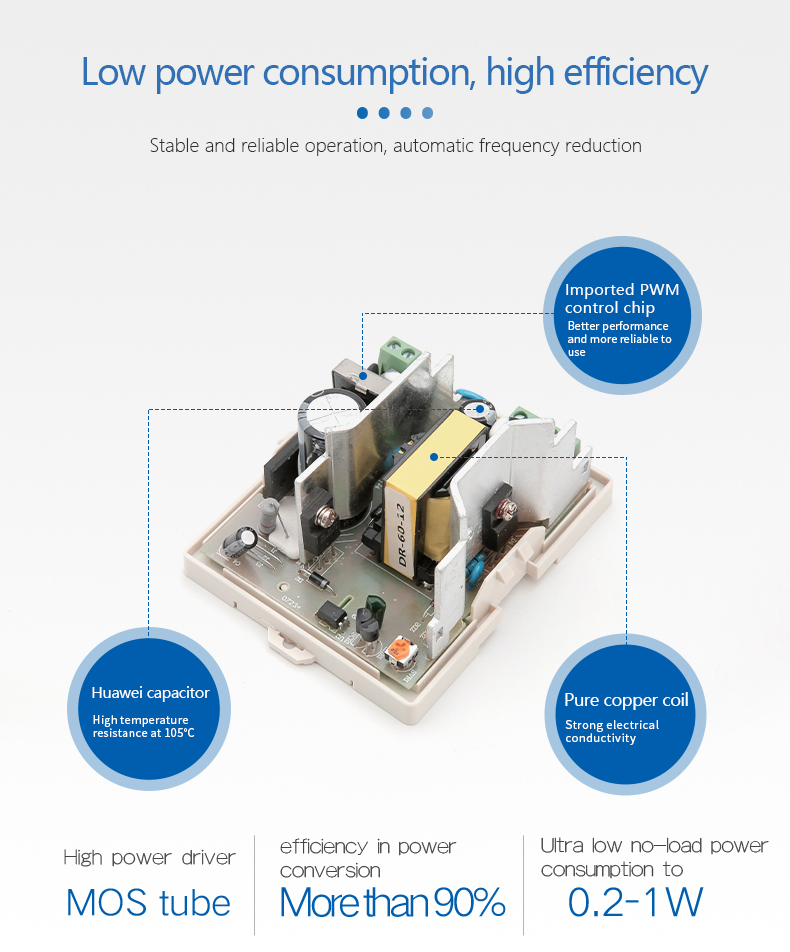

Free air convection cooling No built‑fan, relies on natural heat exchange between housing and air – zero noise, no dust accumulation risk, ideal for clean rooms or quiet environments.
100% full load burn‑in test Every DR‑60 undergoes a 2‑hour full load burn‑in at 60℃ before leaving the factory, eliminating early failure risks.
2‑year free warranty Covers material and process defects – direct replacement for non‑human damage.
Product Advantages
Comparison
Ordinary DIN Rail Supply
Leyu DR‑60
Mounting compatibility
Only 35mm rail
Compatible with both TS‑35/7.5 and TS‑15 rails
Wide voltage adaptation
Manual 110/220V switch
Auto wide range 88–264VAC
Overload recovery
Requires power cycle
Auto constant current, auto‑restart after fault removal
Efficiency (24V model)
80%–82%
84% (measured)
Leakage current
>1.5mA
<1mA (safer, lower ground leakage risk)
Certifications
CE only
UL / TUV / CE / EN50178 (heavy industrial level)
In addition, the Leyu DR‑60 adopts Class II isolation design, eliminating the need for an earth ground to meet safety regulations, simplifying field wiring.
Typical Applications
PLC control cabinets Provides clean 24V operating power for small PLCs from many brands.
Automation production lines Drives photoelectric switches, proximity switches, relay modules, solenoid valves, etc.
Building automation systems Used for HVAC control panels, lighting dimming modules, access controllers.
Industrial machine vision Pairs with 24V LED light source controllers; output ripple only 150mVp‑p ensures flicker‑free image acquisition.
Packaging machinery Provides stable power for counters and labeler control boards, adapting to frequent start‑stop load changes.
FAQ
Q1: What is the actual output power of the DR‑60‑24? Can it be overloaded? A: Rated power is 60W. Short‑term (<3 seconds) peak load up to 90W is allowed (overload protection point approx. 105%–160%). Long‑term overload is not recommended as it may trigger over‑temperature protection or shorten lifespan.
Q2: What should I pay attention to when installing on a DIN rail? A: First hook the upper clip onto the top edge of the rail, then press downward to snap the lower spring clip onto the rail. To remove, use a screwdriver to pry the spring clip downward. Ensure the rail is properly grounded (if system requires).
Q3: Why is the input voltage range specified as 88–264VAC instead of 100–240VAC? A: The Leyu DR‑60 has a larger design margin, maintaining stable operation even when rural grid voltage drops to 88V or industrial voltage rises to 264V, offering better compatibility than industry standards.
Q4: Can the output voltage be adjusted via a potentiometer? A: Yes. The 24V model has an adjustment range of 21.6–26.4V, used to compensate for long cable voltage drops or to drive devices that require higher voltage (e.g., 24V solenoid valves sometimes operate more reliably at 26V).
Q5: Operating temperature is -20℃ to +60℃. Does derating start at +50℃? A: No derating needed at +50℃. Linear derating to 80% load occurs from +50℃ to +60℃. Refer to the “derating curve” on the product label for actual use.
Q6: Are CE and UL certifications for the whole unit or just components? A: Whole unit certification. The DR‑60 series has passed TUV lab EN60950‑1 testing and UL 60950‑1 certification (documents available from Leyu sales).
Q7: How to handle a failure during the warranty period? A: Contact Leyu after‑sales support with proof of purchase. After inspection confirming a product quality issue, a free replacement of the same or upgraded model will be provided within 2 years.
Why Choose Leyu?
Leyu Electric (Yueqing Leyu Electric Automation Co., Ltd.) is located in Yueqing, the electrical capital of China, with 15 years of industrial power supply R&D experience. The DR‑60 series was designed with reference to global benchmark brands (e.g., Mean Well), but further optimised in wide voltage range, leakage current control, and rail compatibility. Every power supply undergoes temperature cycling tests, ripple tests, and dielectric withstand voltage tests before leaving the factory, ensuring long‑term reliable operation even under harsh conditions.
Note: All technical parameters in this document are measured at 230VAC input, rated load, and 25℃ ambient temperature. Leyu Electric reserves the right to continuously improve its products. The latest specifications are subject to the official website.
