| Quantity: | |
|---|---|
| Pure Sine Wave Inverter | |||
Rated Power: | 4000W | Frequency: | 50Hz / 60Hz |
Peak Power: | 8000W | Unit Size: | 455*205*165mm |
Waveform: | Pure Sine Wave | Unit Weight / G.W.: | 8600g / 10000g |
DC Input Voltage: | 12V / 24V | Box Size: | 505*267*210mm |
AC output Voltage: | 110V / 220V | Quantity/CTN: | 1PCS |
| Model | OPIP-4K-1 | OPIP-4K-1 | OPIP-4K-1 | OPIP-4K-2 | OPIP-4K-2 | OPIP-4K-2 | |
Rated power | 4000W | ||||||
Peak power | 8000W | ||||||
Input voltage | DC12V | DC24V | DC48V | DC12V | DC24V | DC48V | |
Output voltage | 100VAC or 110VAC or 120VAC±5% | 220VAC or 230VAC or 240VAC±5% | |||||
Unload current less than | 1.3A | 0.8A | 0.6A | 1.3A | 0.8A | 0.6A | |
Output frequency | 50Hz±0.5Hz or 60Hz±0.5Hz | ||||||

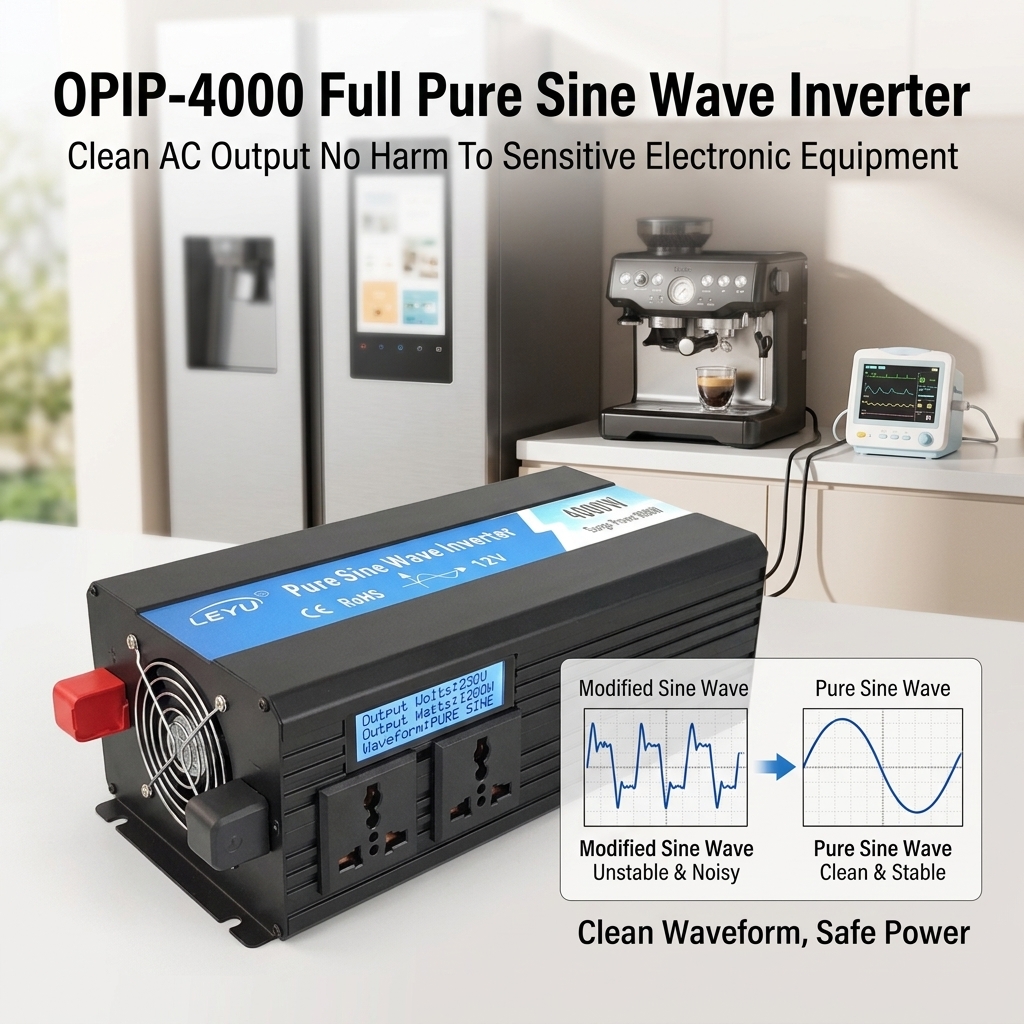

Output waveform | Pure Sine Wave | ||||||
Waveform distortion | THD<3%(Linear load) | ||||||
USB port | 5V 1A | ||||||
Max.efficiency | 90% | ||||||
Input voltage range | 10-15.5V | 20-31V | 40-61V | 10-15.5V | 20-31V | 40-61V | |
Low voltage alarm | 10.5±0.5V | 21±0.5V | 42±1V | 10.5±0.5V | 21±0.5V | 42±1V | |
Low voltage protection | 10±0.5V | 20±0.5V | 40±15V | 10±0.5V | 20±0.5V | 40±15V | |
Over voltage protection | 15.5±0.5V | 31±0.5V | 61±1V | 15.5±0.5V | 31±0.5V | 61±1V | |
Low voltage recover | 13±0.5V | 24±0.5V | 48±1V | 13±0.5V | 24±0.5V | 48±1V | |
Over voltage recover | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | 14.8V±0.5V | 29.5V±0.5V | 59V±1V | |

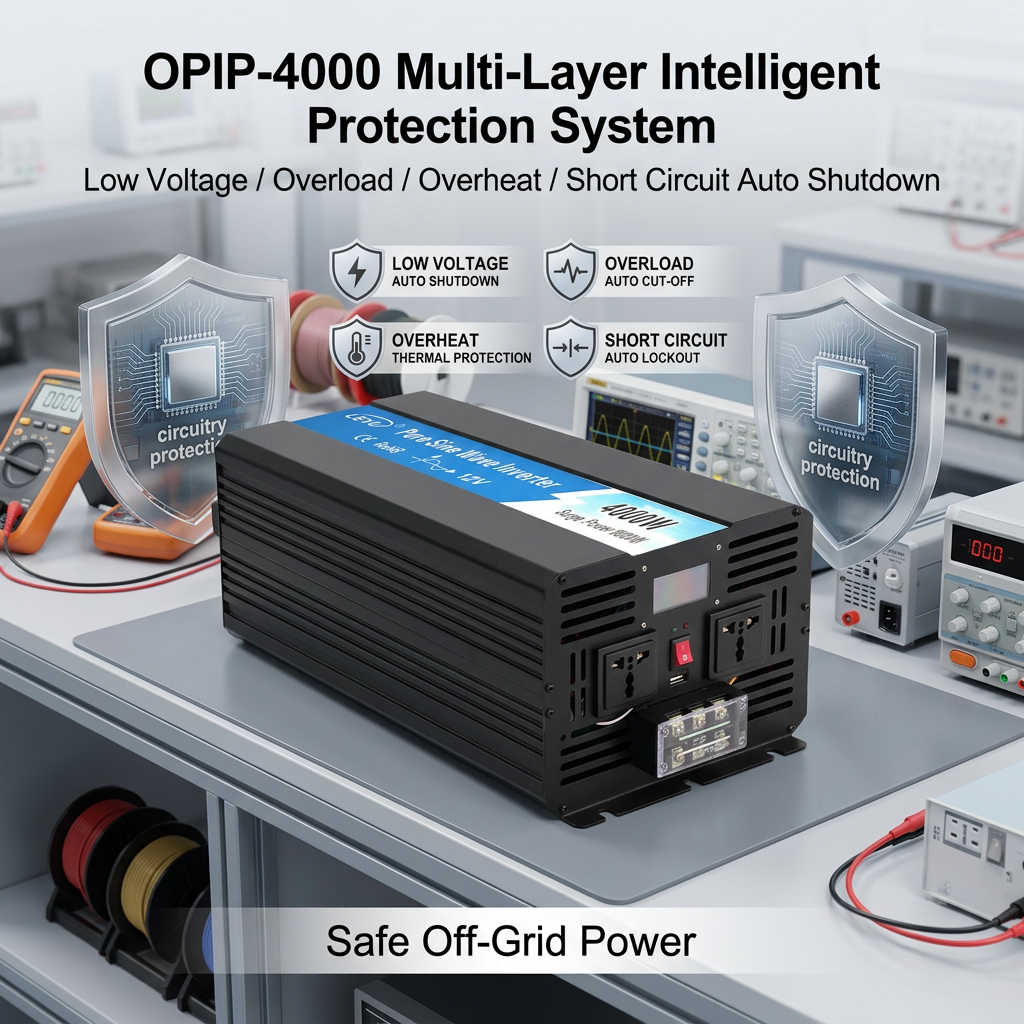

Protection function | Low voltage | Alarm at first, voltage continously reduce. LED Red light on & shut sown. | |||||
Over voltage | LED Red light on, shut down | ||||||
Over load | LED Red light on, shut down | ||||||
Over temperature | Alarm at first, tempurature continously rise.LED Red light on & shut sown | ||||||
Short circuit | LED Red light on | ||||||
Input reverse polarity | Fuse burn-out | ||||||
Working temperature | -10°- +50° | ||||||
Storage temperature | -30°- +70° | ||||||
Dimension(mm) | 455×205×165mm | ||||||
Packing(mm) | 505×267×210mm | ||||||
Net./gross weight(g) | 8600g / 10000g | ||||||
QTY/Ctn | 1 Pcs | ||||||
Meas./Ctn(mm) | 505×267×210mm | ||||||
Gross weight/Ctn(g) | 10000g | ||||||
Warranty | 1 years | ||||||
Configuration | Standard | ||||||
Cooling method | Intelligent air cooling | ||||||
Note | Our products update constantly.The technical parameter is for reference only.Please refer to our real product. | ||||||
Wanjia Industrial Park, Beibaixiang Town, Yueqing City, Zhejiang Province, CHINA | |||||||

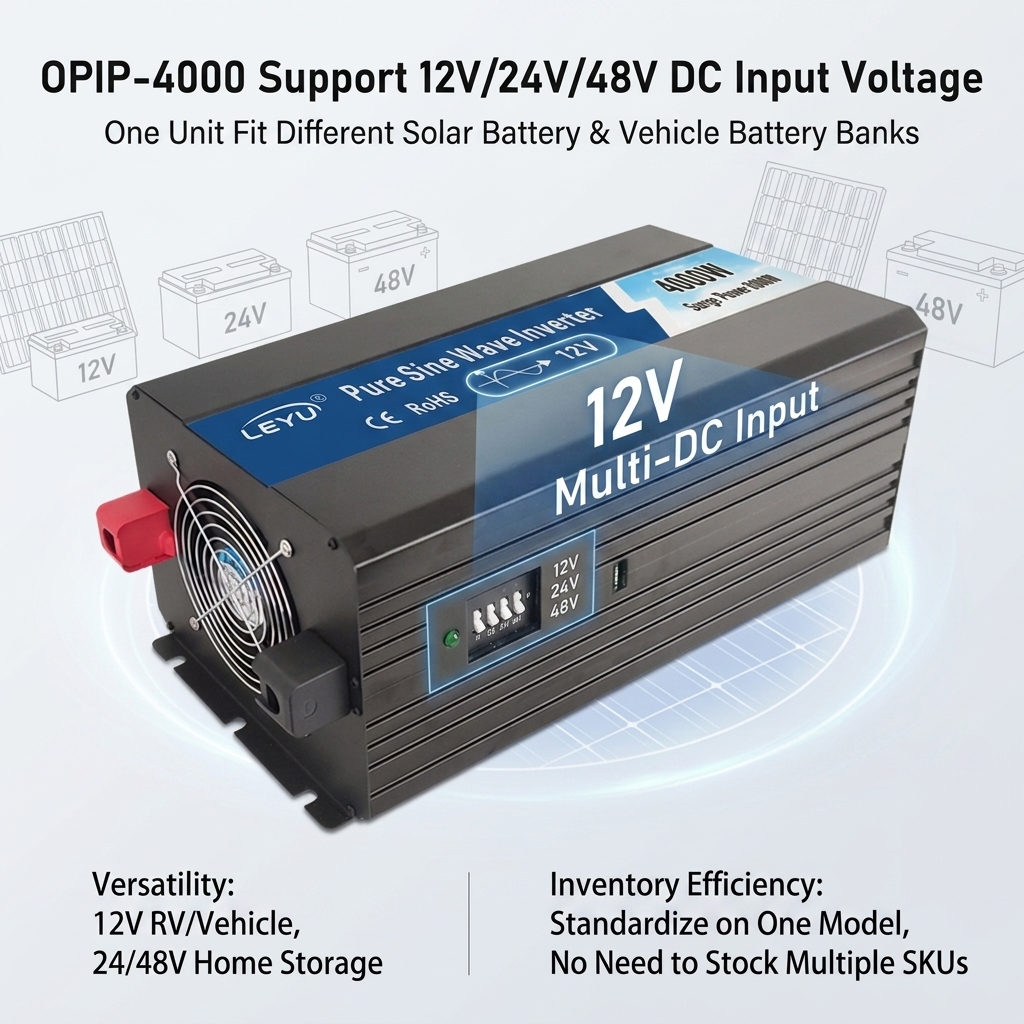

Multiple Voltage Options
Available in DC12V, DC24V, and DC48V input configurations. Output AC voltage can be configured from 100V to 240V
Intelligent Temperature-Controlled Fan
Automatically adjusts fan speed based on operating temperature and load for optimal cooling and efficiency
High Conversion Efficiency：
Achieves ≥85% conversion efficiency, reducing energy loss and extending battery runtime.
High Surge Capacity：
8000W peak power rating ensures reliable startup of motor loads without shutdown due to transient current spikes.
Wide Input Voltage Range：
Accommodates battery voltage fluctuations (DC12V: 9.5-15.5V; DC24V: 19-31V; DC48V: 40-61V).
Low No-Load Consumption：
Low no-load current (DC48V version ≤0.8A) minimizes standby power consumption.
Safety Compliance：
Manufactured to international quality standards with relevant safety certifications.
Factory Direct Supply：
Leyu Electric, established in 2007, is a professional manufacturer offering OEM/ODM services with customization options for voltage and outlet configurations
Complete Accessories：

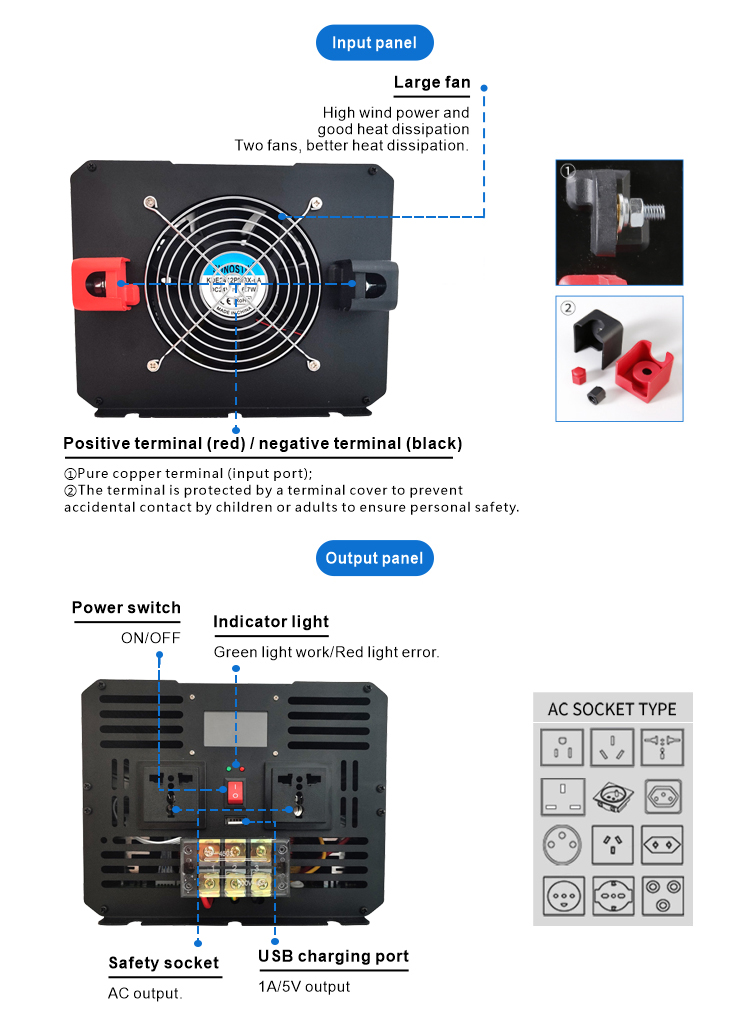

Includes pure copper connection cables and a spare fuse in the standard package for immediate installation

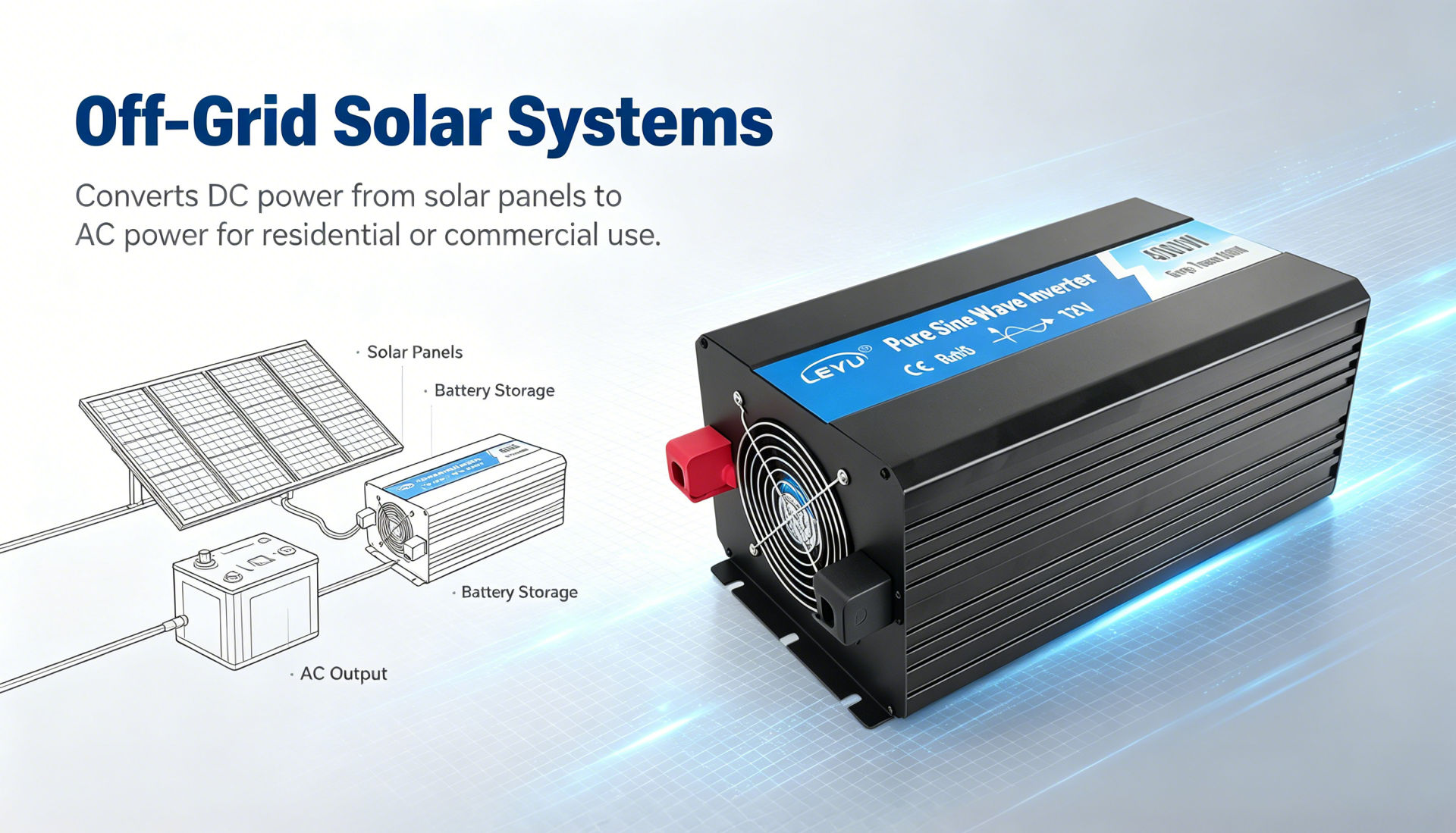

Off-Grid Solar Systems：
Converts DC power from solar panels to AC power for residential or commercial use.
Home Backup Power：
Paired with batteries to provide temporary power for high-wattage appliances during grid outages.
RVs and Camping：
Powers RVs and campers, supporting microwaves, air conditioners, televisions, and other appliances.

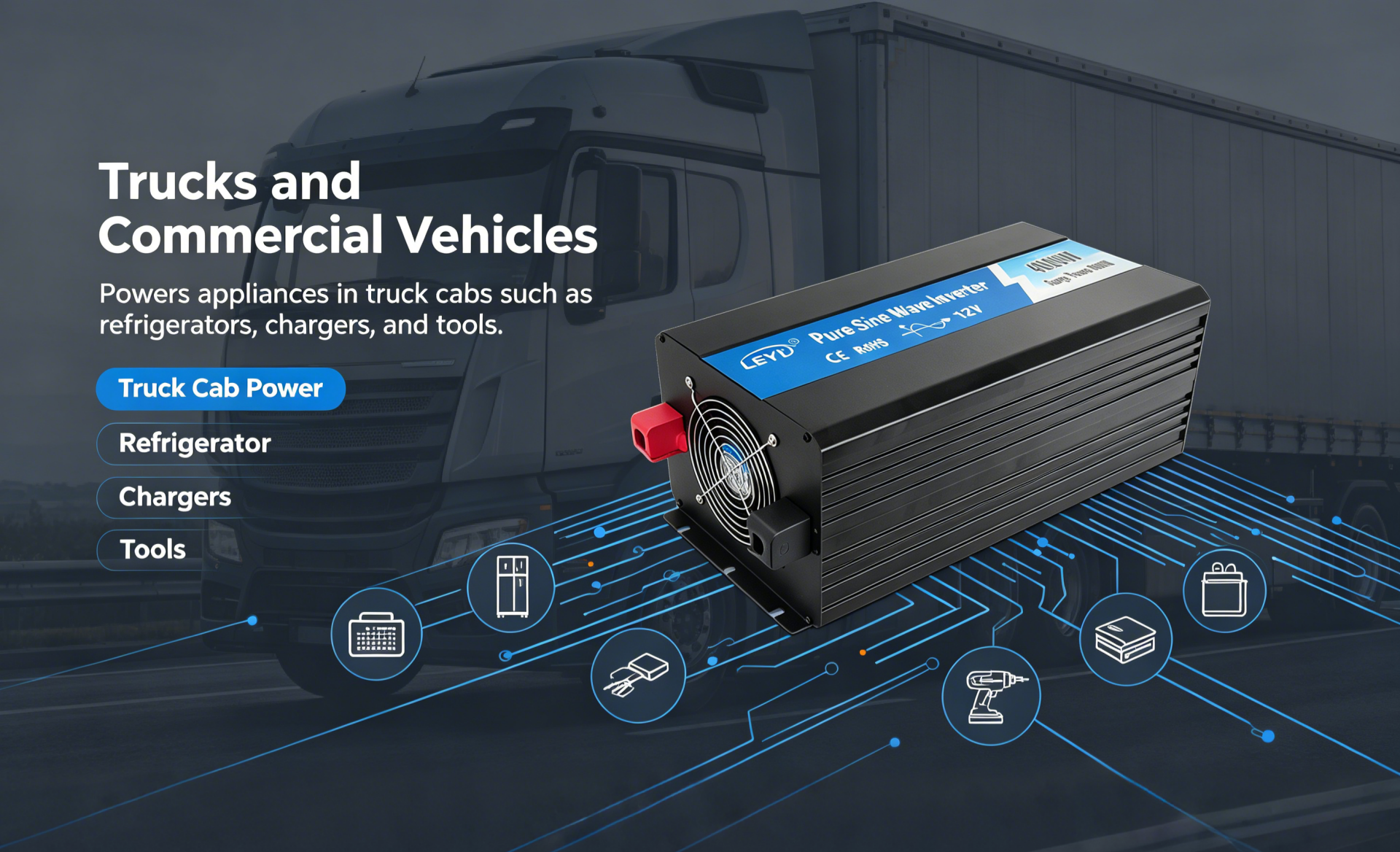

Trucks and Commercial Vehicles：
Powers appliances in truck cabs such as refrigerators, chargers, and tools.
Outdoor Work Sites：
Provides temporary power for construction sites, field surveys, emergency response, and similar applications.
Marine Applications：
Supplies AC power for appliances on yachts and workboats
What loads can the OPIP-4000 support?
A: The OPIP-4000 is a pure sine wave inverter with THD ≤3%, capable of driving various loads including resistive loads (lights, heaters) and inductive loads (motors, compressors, air conditioners, refrigerators, water pumps, etc.). The 8000W surge capacity handles the high inrush current during motor startup.
Q2: How do I choose the input voltage?
A: Select the model that matches your battery system voltage: DC12V for 12V battery systems, DC24V for 24V battery systems, and DC48V for 48V battery systems.
Q3: Can the output voltage be customized?
A: Yes. Output AC voltage can be configured to 100V, 110V, 120V, 220V, 230V, or 240V at the factory. Output frequency supports either 50Hz or 60Hz.
Q4: What happens if the inverter overheats?
A: The inverter features built-in over-temperature protection. When temperature exceeds the threshold, an audible alarm sounds (three "bibibi" beeps in a cycle), the LED flashes red, and the unit shuts down automatically. It can be restarted after the temperature drops. The intelligent temperature-controlled fan continuously regulates cooling.
Q5: How long can the 8000W surge power be sustained?
A: The 8000W rating is instantaneous surge power for handling startup current spikes from motors, compressors, and similar equipment. Continuous operation at peak power is not recommended.
Q6: What is the warranty period?
A: The OPIP-4000 comes with an 18-month warranty.
Q7: What is included in the package?
A: The standard package includes 2 pure copper connection cables and 1 spare fuse.
Q8: Is Leyu Electric a factory or a trading company?
A: Leyu Electric is a professional manufacturer established in 2007, based in Yueqing, Zhejiang, with ISO quality management systems in place. OEM/ODM customization services are available.
