| Quantity: | |
|---|---|

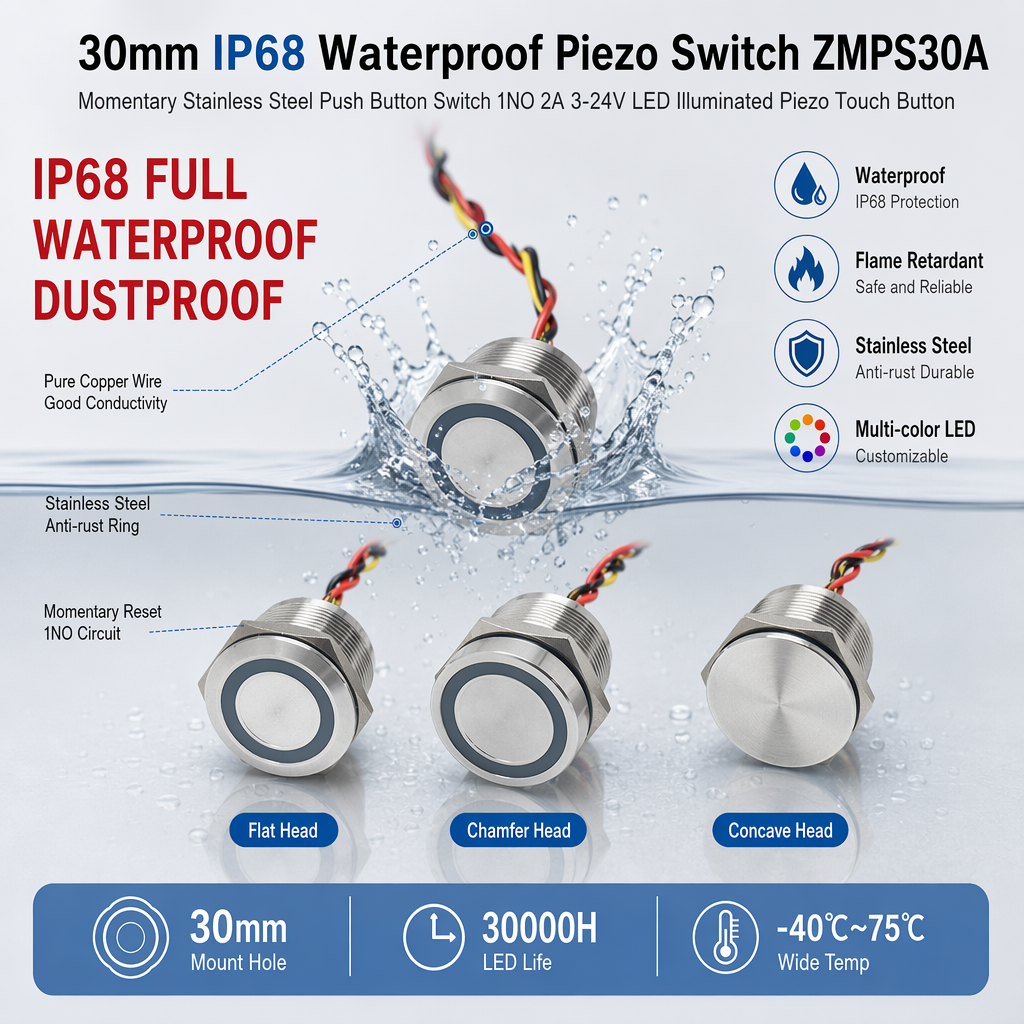

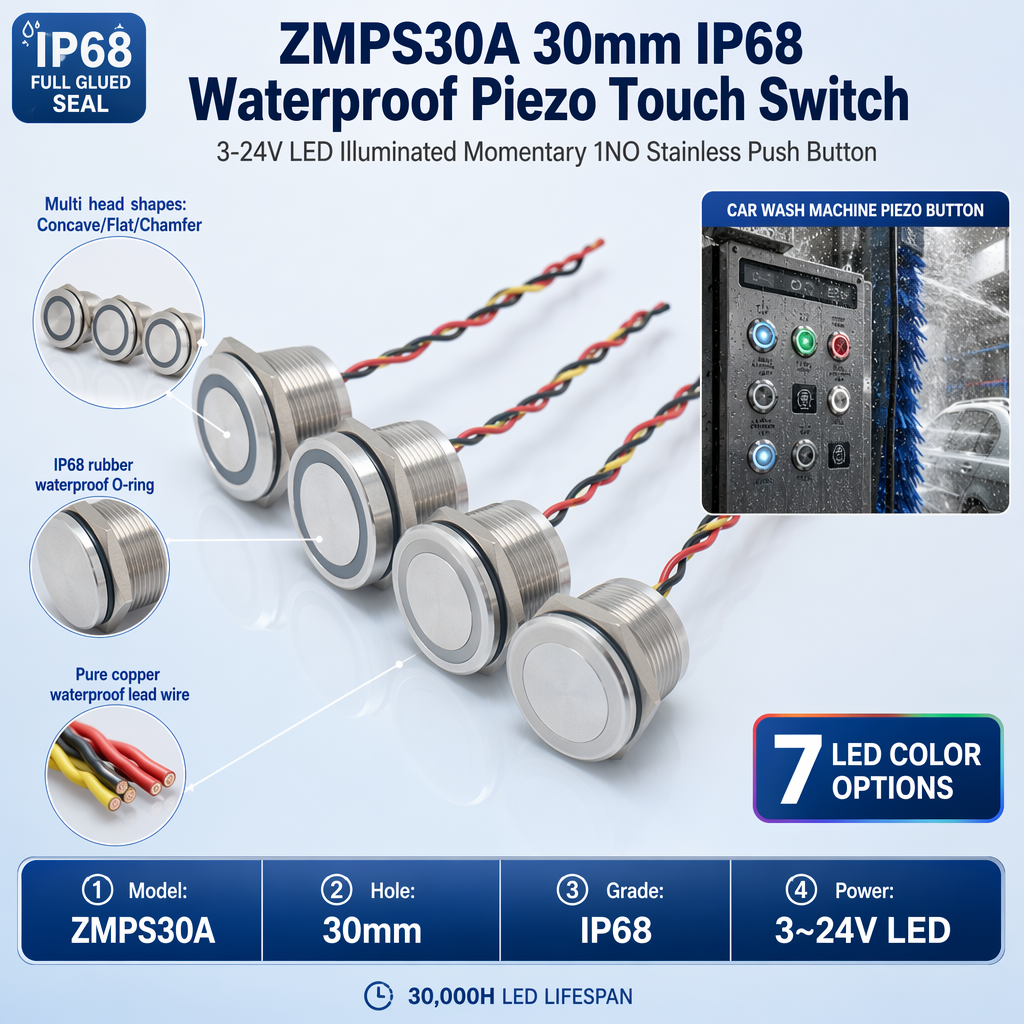

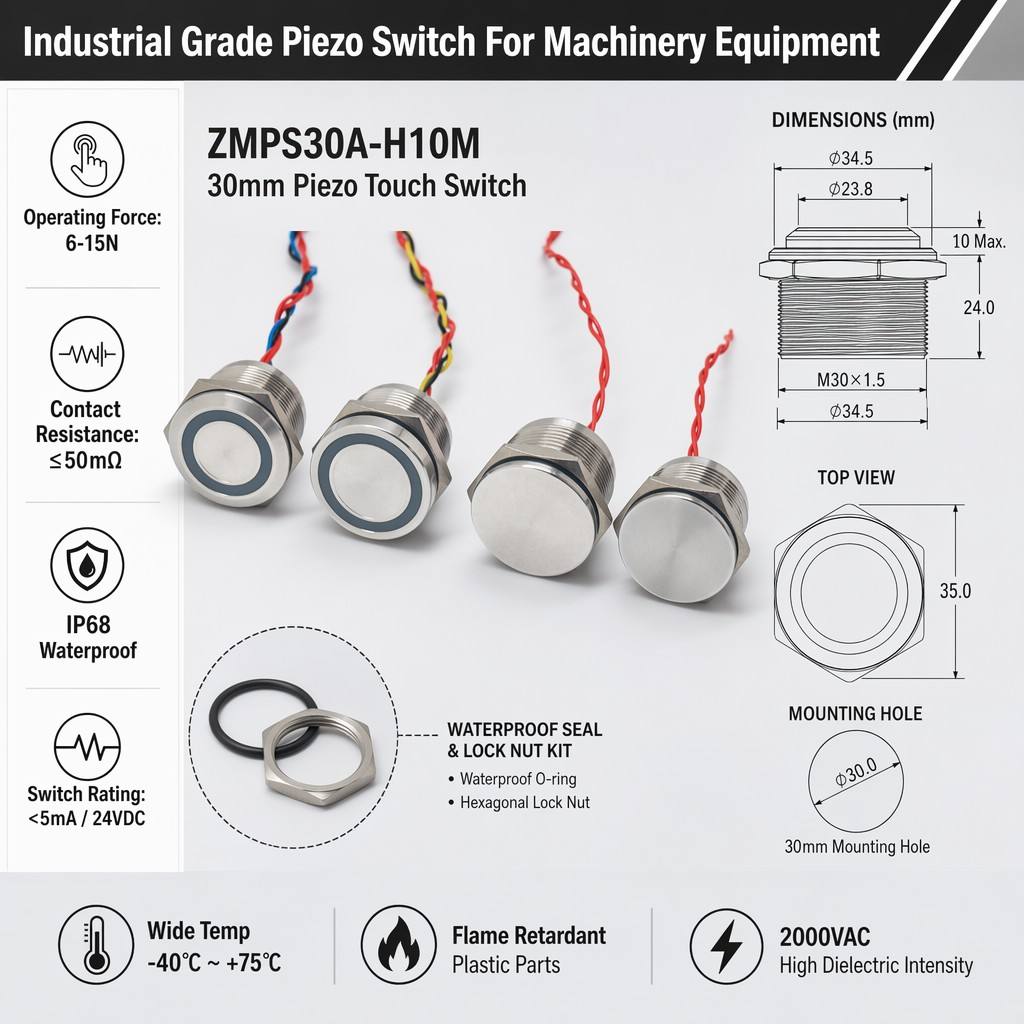

Product Name | IP68 Waterproof Piezo Switch | |||

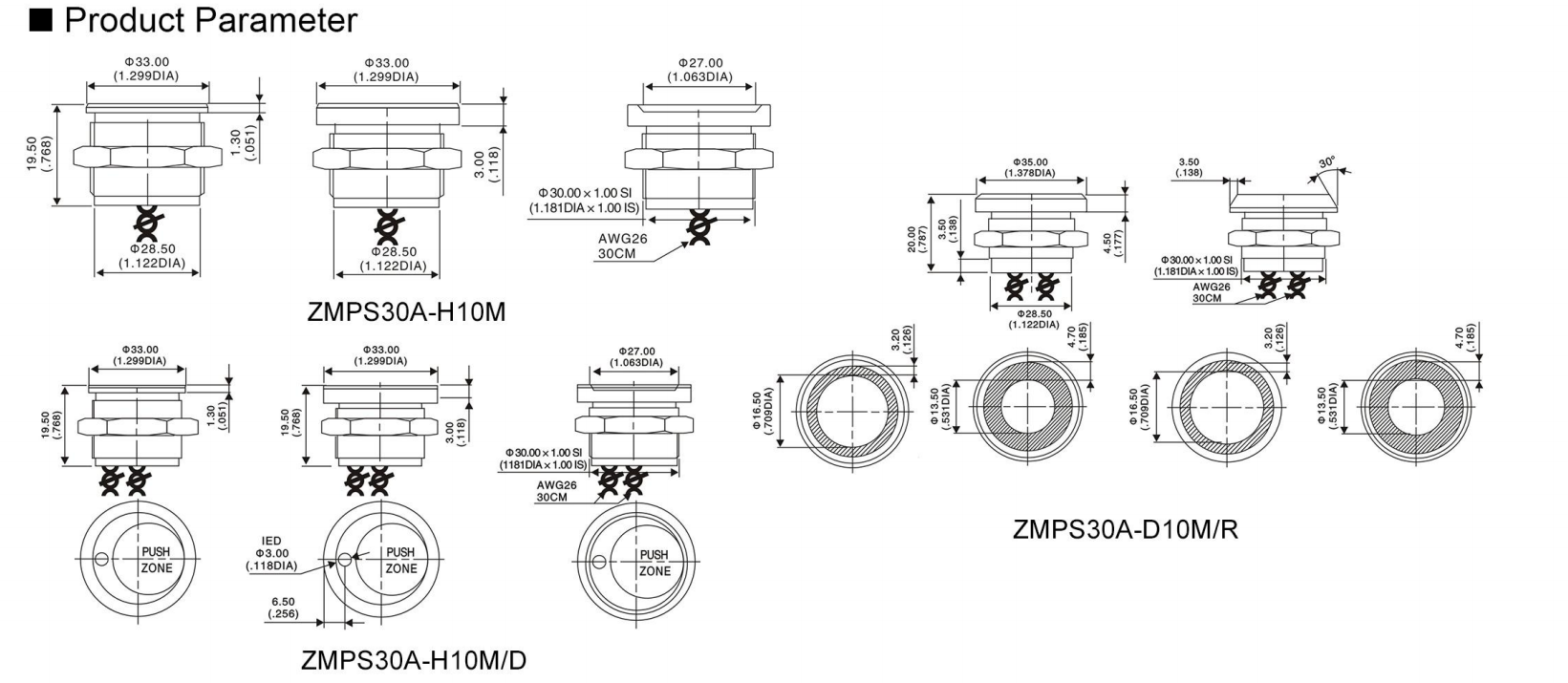

Model | ZMPS30A-H1OM | ZMPS30A-H10M/D | ZMPS30A-D10M/R | |
Mounting Hole Size | 30mm | |||
Operation Types | Momentary (Reset) | |||
Switch Combination | 1NO | |||
Actuator Shape | Flat/Chamfer/Concave/High Flat | |||
Terminal type | Wired lead | |||
Illuminated or not | Yes or NO | |||
Led Voltage | 3-24V | |||

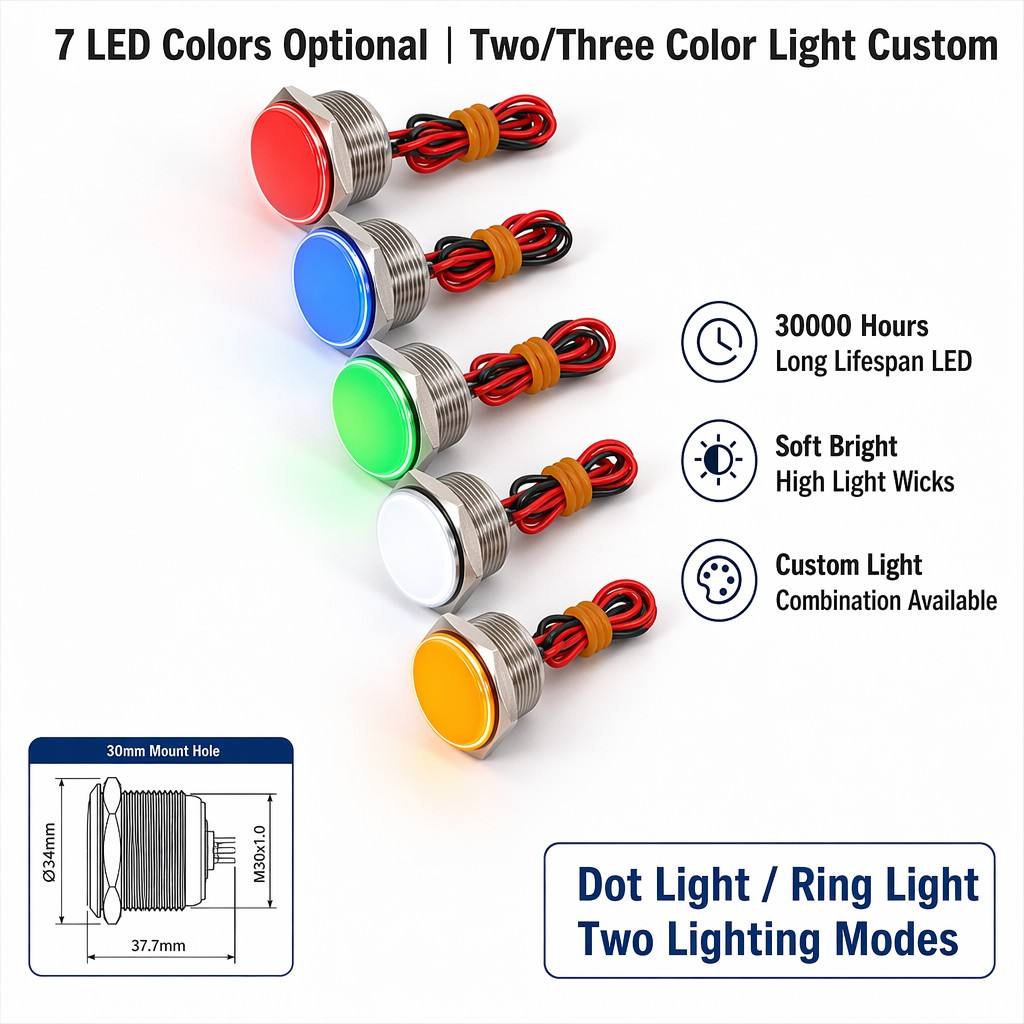

Led Color | Blue (Red,Green, Yellow,White,Orange,Purple available) | |||
Illuminated Type | Ring/Dot | |||

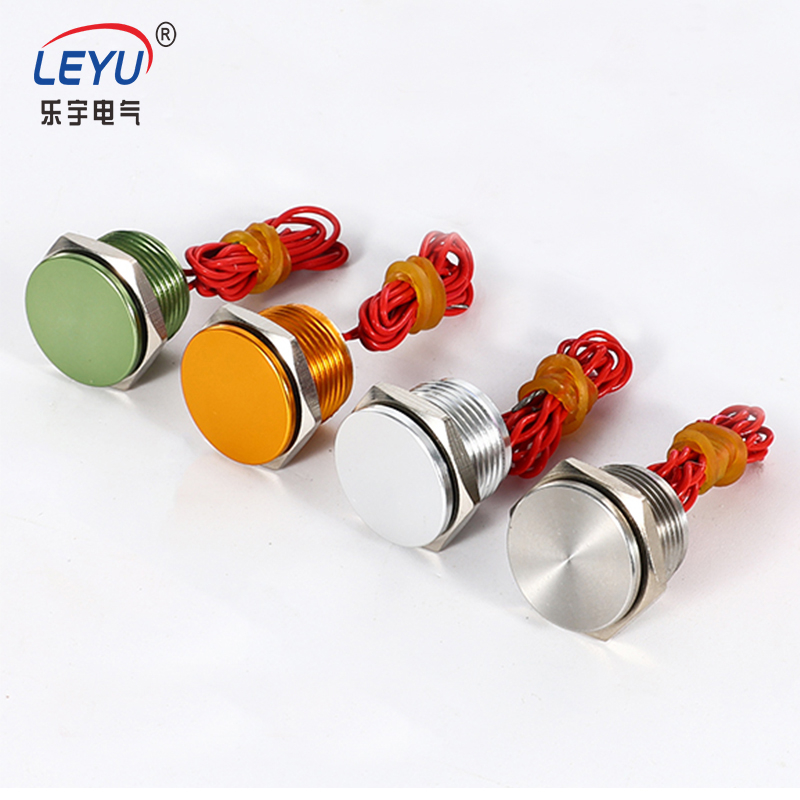

Enclosure Material | Stainless Steel/ Aluminum | |||
Rated Current | 2A | |||
Contact Resistance | 50 mn max | |||
Operating Force | 6 to 15N | |||
Dielectric Intensity | 2000VAC | |||
Operating Temperature | -40°C to +75°C | |||
Accessories | Nut, Rubber Waterproof O-ring | |||
Customized symbol,colored housing or Connector | Acceptable and with fast shipping | |||
| Choose 2/3 colors from two-color/three-color light combination (above colors) | ||||
Solid-State Technology
No moving parts inside, ensuring millions of operating cycles without mechanical fatigue.
Argument : The ZMPS-30A provides a significantly lower Total Cost of Ownership (TCO) compared to mechanical alternatives.
Evidence : Because the switch utilizes a piezoelectric ceramic element instead of a mechanical spring-and-contact mechanism, there is zero friction during activation. Field data indicates that while high-quality mechanical switches fail after 500k to 1M cycles, the ZMPS-30A maintains signal integrity for over 50 million cycles, virtually eliminating replacement costs in high-traffic industrial interfaces.
Adantage 2: Extreme Hermetic Sealing for Sanitary & Marine Compliance
Argument : Ensures reliable performance in environments where moisture and chemicals destroy standard switches.
Evidence : The ZMPS-30A is constructed as a one-piece metal housing with vacuum-potted internal electronics. This provides an IP68/IP69K rating, allowing the switch to withstand 100-bar water pressure at 80°C. This level of sealing is essential for food processing washdown and marine salt-spray environments, where standard seals would typically harden and crack over time.
Q: Can the ZMPS-30A be operated with thick industrial gloves?
A: Yes. The piezoelectric sensor detects pressure (typically 3-5N), not electrical capacitance, allowing reliable activation with any type of glove or tool.
Q: Is the switch Momentary or Latching?
A: The standard ZMPS-30A is a Momentary switch (pulse signal). For latching functions, an external relay or controller logic is required.
Q: Does the LED require a separate power source?
A: The LED operates on 3-24V DC. It can be wired independently of the switch signal to indicate system status (e.g., Standby vs. Running).
