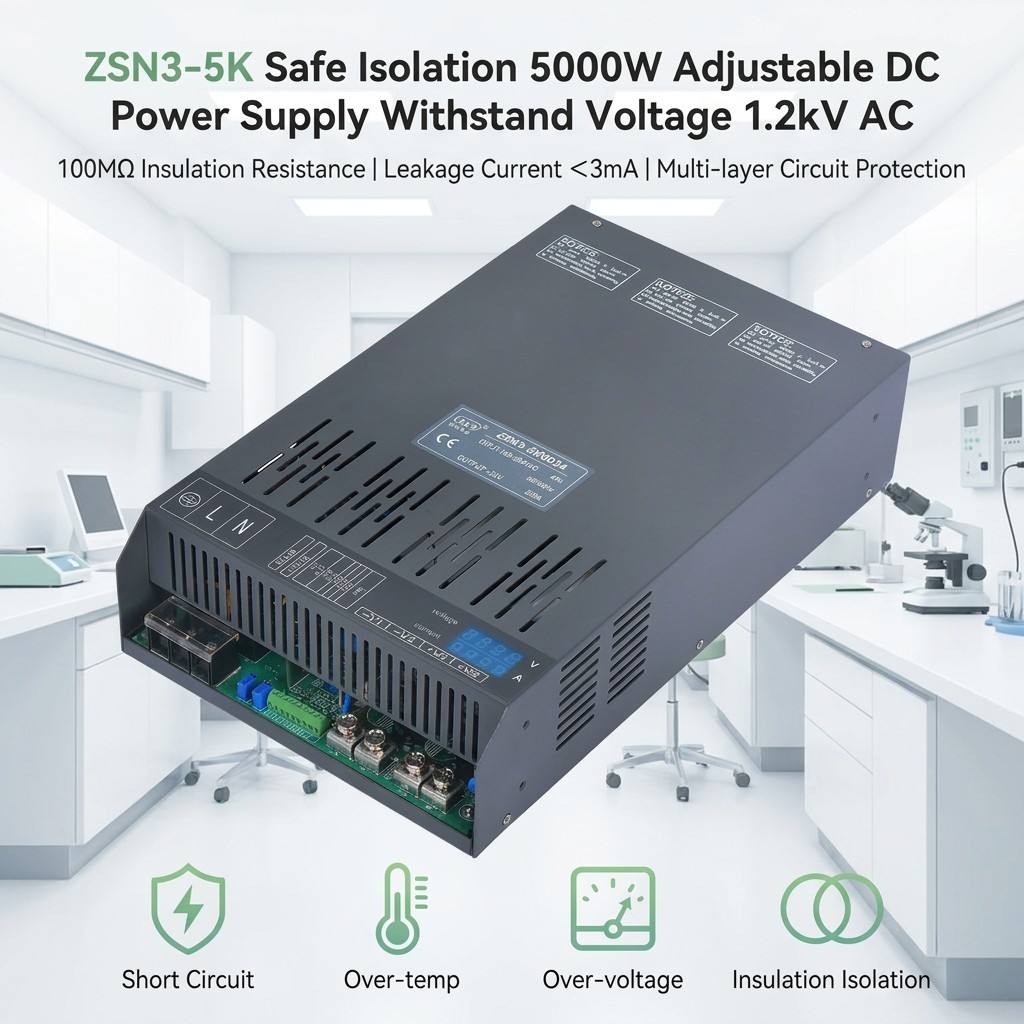

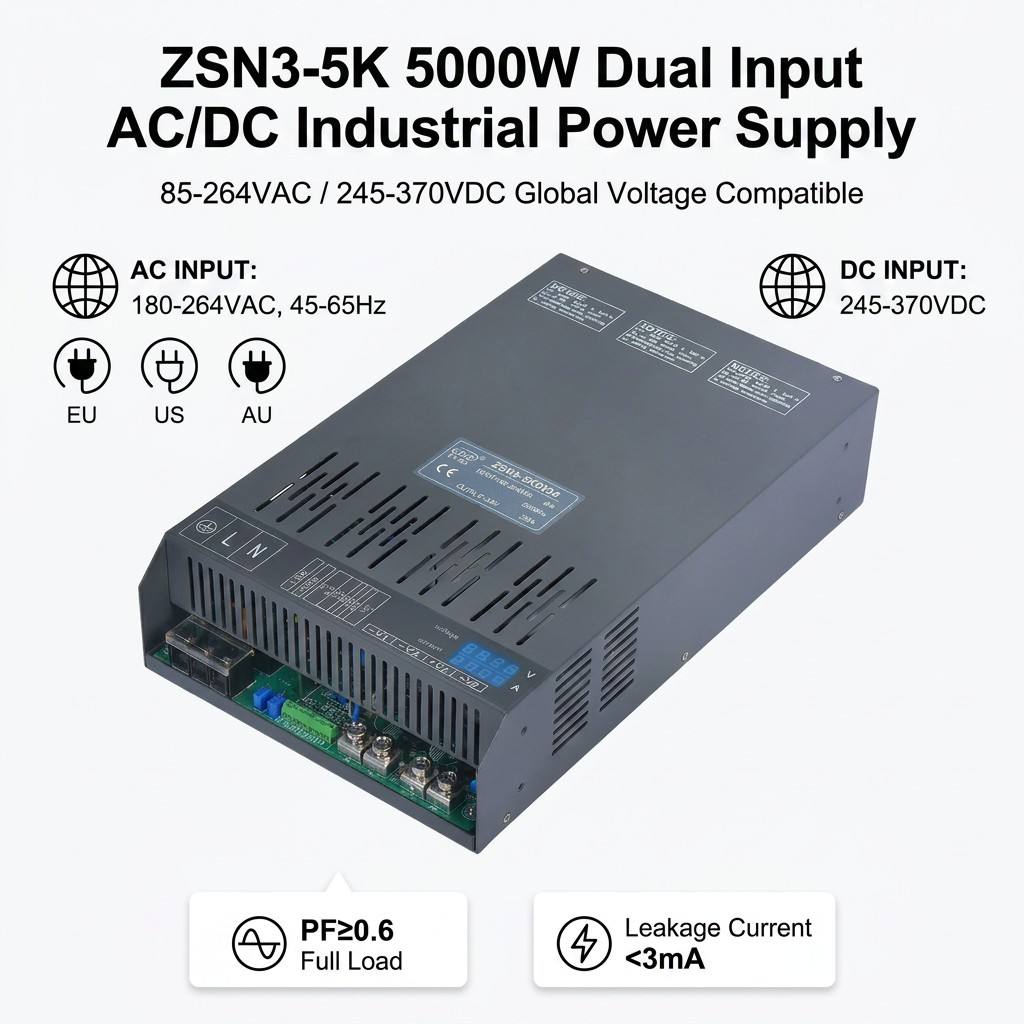

ZSN3-T5K
LEYU
| Availability: | |
|---|---|
| Quantity: | |

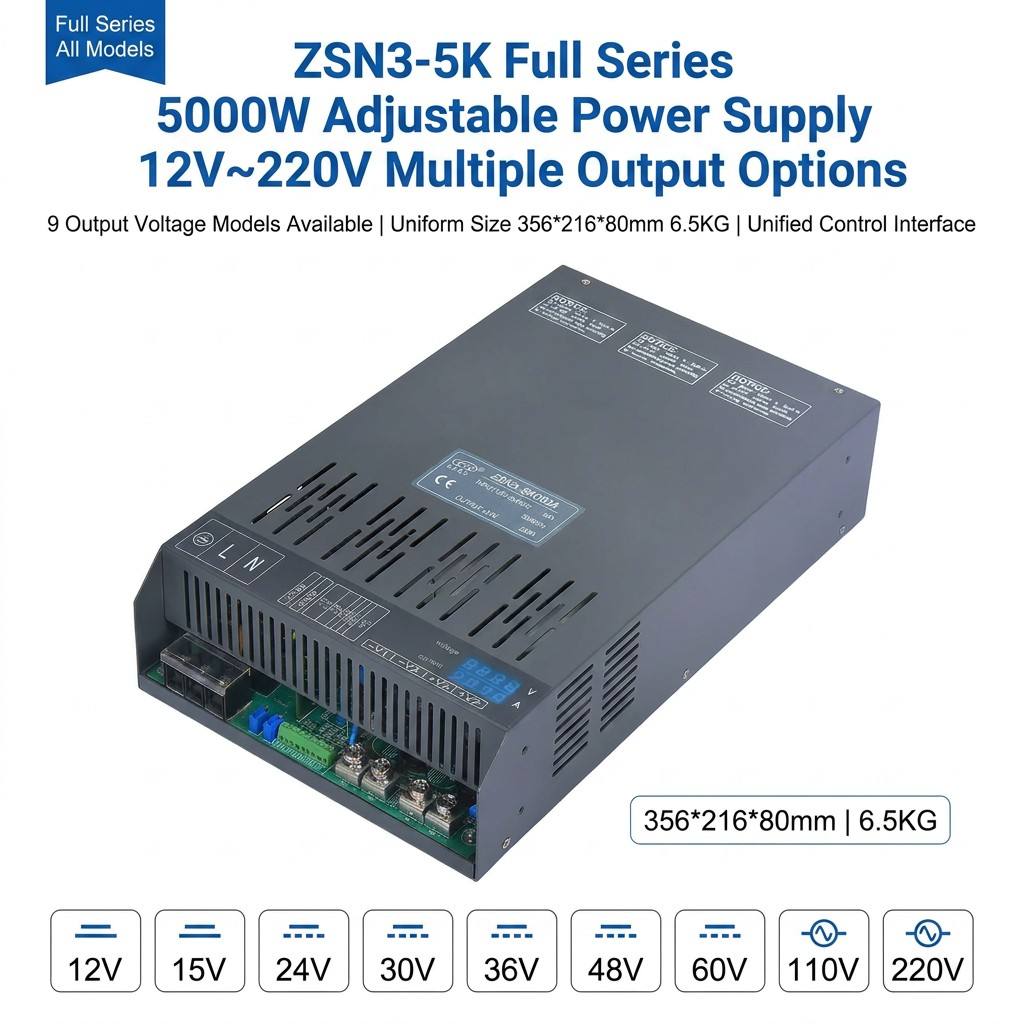

| Model | ZSN3-5K0-12 | ZSN3-5K0-24 | ZSN3-5K0-36 | ZSN3-5K0-48 | ZSN3-5K0-72 | ZSN3-5K0-96 | ZSN3-5K0-110 | ZSN3-5K0-150 | ZSN3-5K0-220 |
| Output | |||||||||
| DC Voltage | 12V | 24V | 36V | 48V | 72V | 96V | 110V | 150V | 220V |
| Rated Current | 0-333A | 0-280A | 0-138.8A | 0-104A | 0-69A | 0-52A | 0-45A | 0-33A | 0-22.7A |
| Rated Power | 4000w | 5000w | |||||||
| Ripple | 250mV | 270mV | 300mV | 400mV | 500mV | 600mV | 850mV | 900mV | 1000mV |
| Optimal Range of Constant Current | 6 - 12V | 12-24V | 18-36V | 24V-48V | 36 - 72V | 48 - 96V | 55 - 110V | 75 - 150V | 110 - 220V |
| voltage accuracy | ± 1.0% | ||||||||
| linear adjustment rate | ± 1.0% | ||||||||
| load regulation | ± 1.0% | ||||||||
| Setup, Rise, Hold Up Time | 1500mS,100mS/230VAC(at full load) | ||||||||
| Input | |||||||||
| Voltage Range | 180 - 264VAC / 245 - 370VDC | ||||||||
| Frequency Range | 45Hz - 65Hz | ||||||||
| Power factor | PF≧0.6/230VAC(at full load) | ||||||||
| Efficiency | 83 % | 86 % | 87 % | 89 % | 90 % | 90 % | 90 % | 91 % | 91 % |
| AC Current | < 55A | ||||||||
| Leakage Current | < 3.0mA / 240VAC | ||||||||
| Protection | |||||||||
| Short circuit | Enter a constant current | ||||||||
| Over Temp | The output is turned off, and it automatically resumes or restarts when the temperature drops | ||||||||
| FUNCTION | |||||||||
| output voltage adjustment | 0 - 13.2V | 0 - 26.4V | 0 - 39.6V | 0 - 52.8V | 0 - 79.2V | 0 - 105.6V | 0 - 121V | 0 - 165V | 0 - 242V |
| constant current output adjustment | 0 - 333A | 0 - 208A | 0 - 138.8A | 0 - 104A | 0 - 69A | 0 - 52A | 0 - 45A | 0 - 33A | 0 - 22.7A |
| External potentiometer | External potentiometer control (voltage, current) | ||||||||
| Analog voltage control | 0 - 5V / 0 - 10V Control (voltage, current) | ||||||||
| Auxiliary power supply | 12V 0.5A | ||||||||
| remote control switch | By default, it will be powered on and powered off at a high level (3V-12V) | ||||||||
| ENVIRONMENT | |||||||||

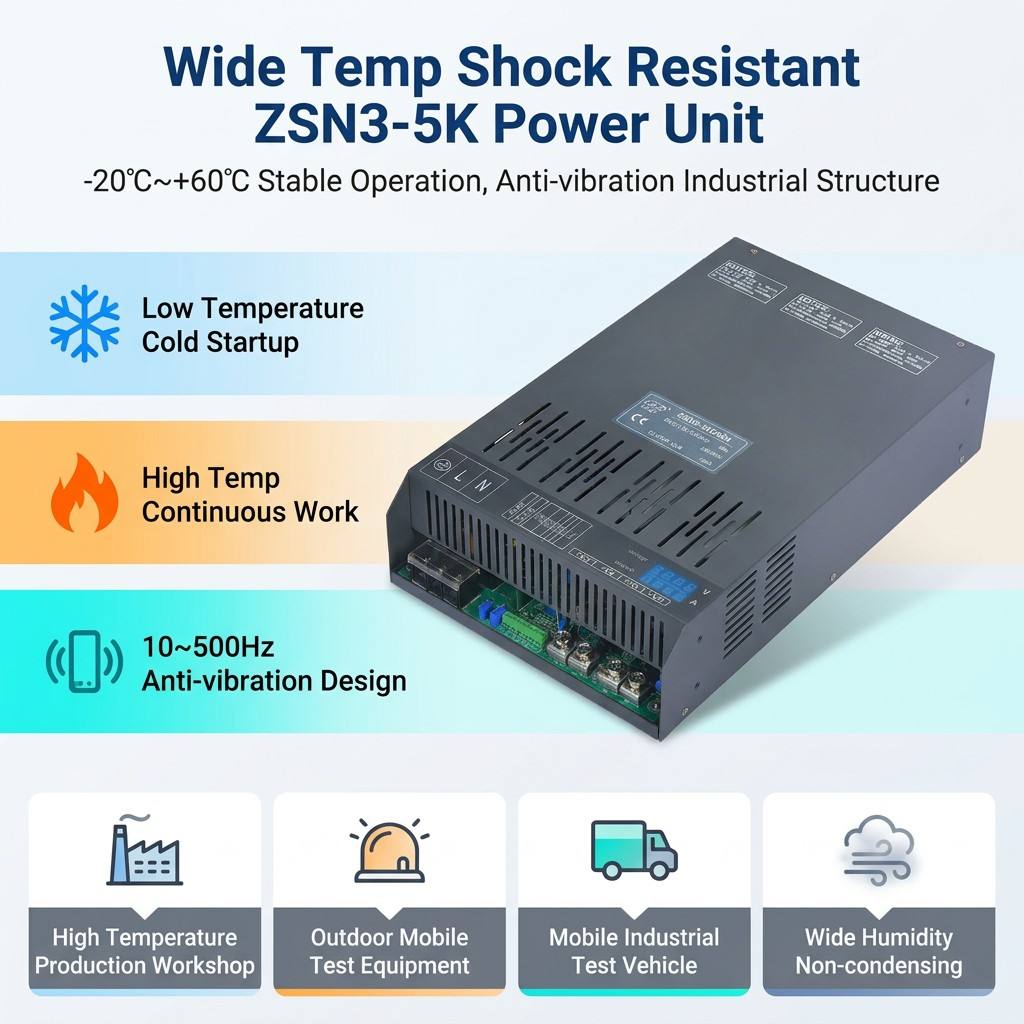

| Working Temp | -20 - +60℃ | ||||||||
| Working Humidity | -20 - 90% RH No condensation | ||||||||
| Storage Temp., Humidity | -40 - +85℃, 10 - 95% RH No condensation | ||||||||
| vibration resistance | 10 - 500Hz, 2G 10 min/cycle, 60 minutes each in X, Y, and Z axes | ||||||||
| OTHERS | |||||||||
| Dimension | 356*216*80mm(L*W*H) | ||||||||
| Weight | 6.5 KG | ||||||||

The LEYU ZSN3-5K0 series represents the next generation of intelligent industrial power supplies, delivering a robust 5000W output for high-demand applications. This programmable DC source offers precise voltage and current regulation, starting from 0V to its rated capacity. Engineered with high-density switching technology, it ensures up to 91% efficiency and superior stability for continuous heavy-duty operations in automated production lines and research facilities.
Intelligent Digital Control
Features high-precision CV/CC (Constant Voltage/Constant Current) output adjustment.
Analog Signal Integration
Supports 0-5V or 0-10V analog voltage control for seamless system integration.
High Current Output
photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction photo introduction..

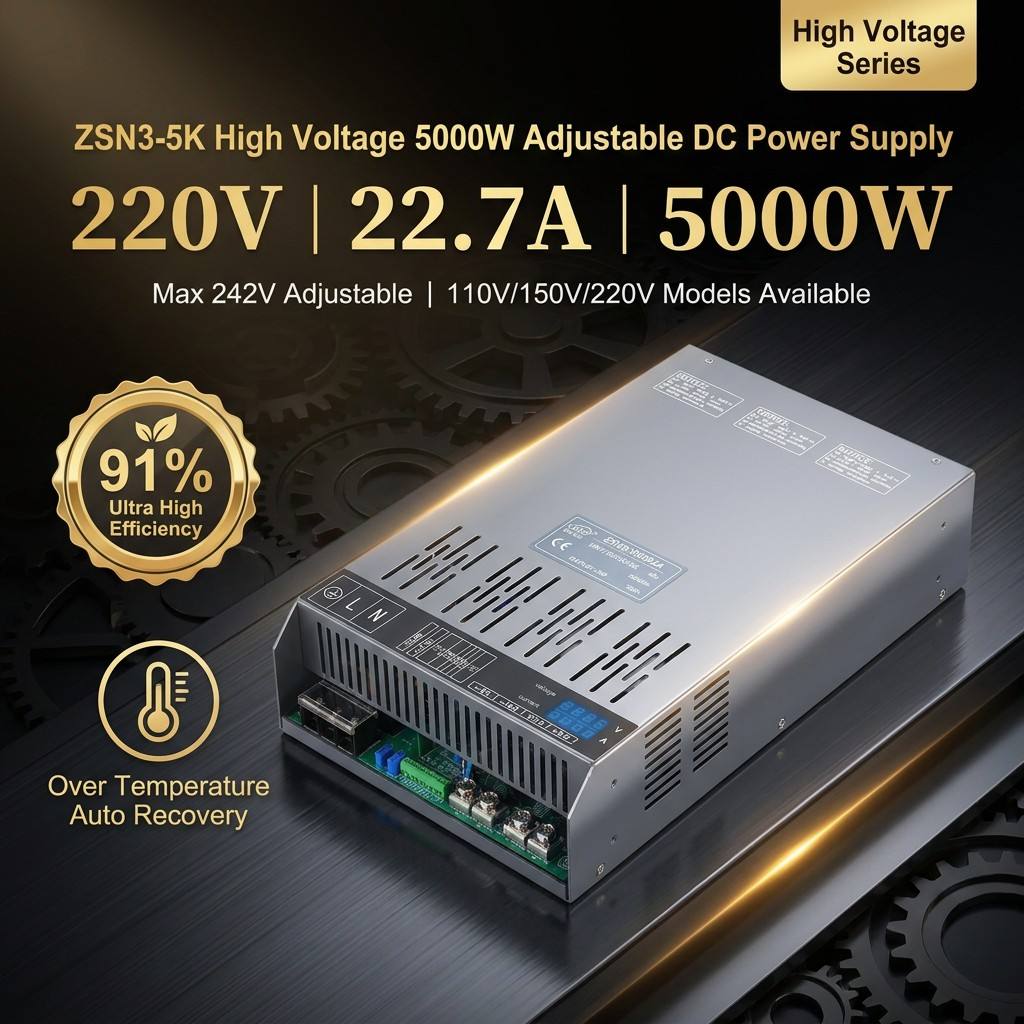

Energy Efficiency:
Optimized switching architecture achieves 91% efficiency, reducing operating costs and heat dissipation.
Versatile Control Modes:
Supports both external potentiometer adjustment and remote ON/OFF control for maximum flexibility.
Industrial Grade Reliability:
Built with high-grade industrial components to ensure a long service life under 24/7 workloads.
Wide Input Range:
Compatible with 180-264VAC input, making it suitable for global industrial power grids.

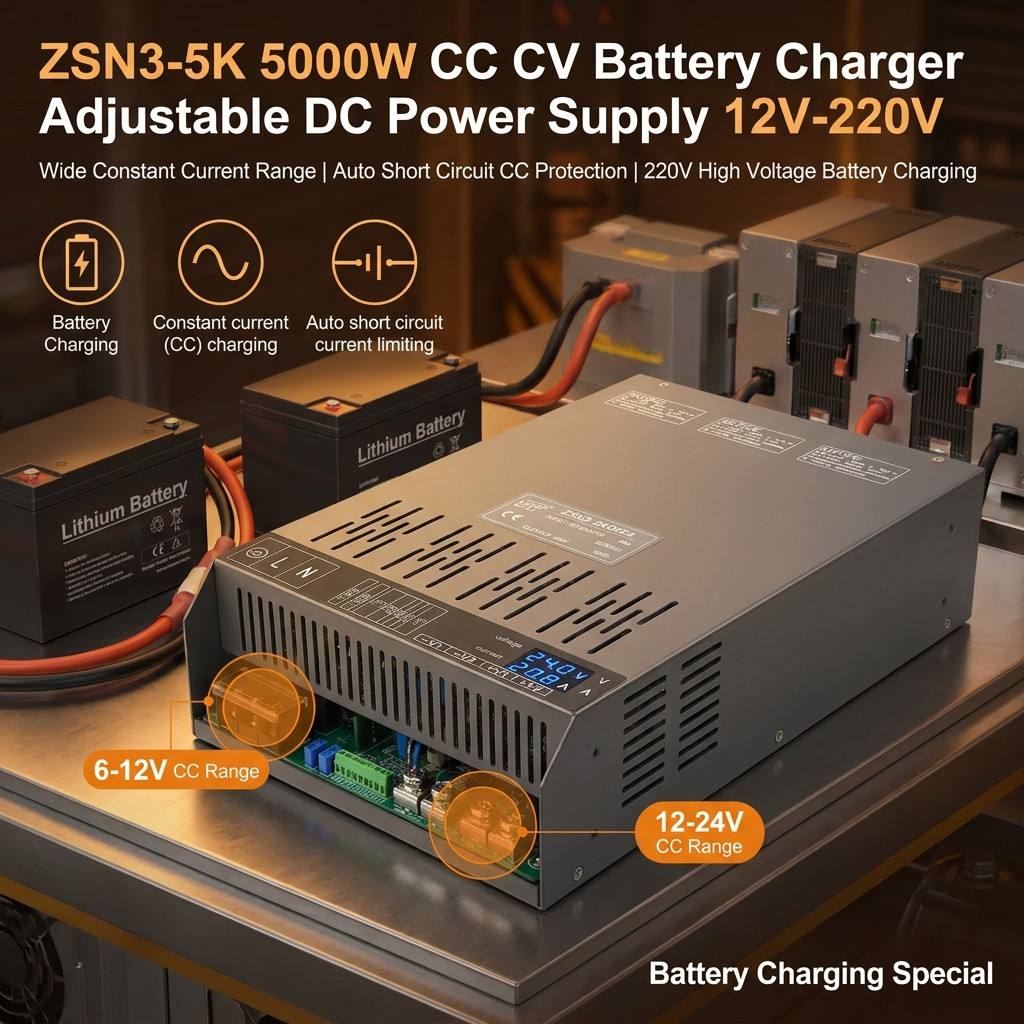

Battery Testing:
High-precision charging and discharging simulation for EV battery packs and storage systems.
Electroplating & Electrolysis:
Stable high-current output for industrial surface treatment and chemical processing.
Factory Automation:
Reliable power for heavy-duty DC motors, high-power PLCs, and manufacturing machinery.
Laboratory R&D:
Versatile DC source for large-scale electronic component aging and performance testing.
Q: Can the output voltage be adjusted remotely via a PLC?
A: Yes, the ZSN3-5K0 supports 0-5V or 0-10V analog signals, allowing it to be controlled directly by a PLC or external controller.
Q: What is the response time for short-circuit protection?
A: The unit enters a constant current (CC) mode immediately upon detecting a short circuit to protect internal components and the load.
Q: Does it require 3-phase power for the 5000W output?
A: This specific model is designed for a single-phase 180-264VAC input to deliver the full 5000W power.
