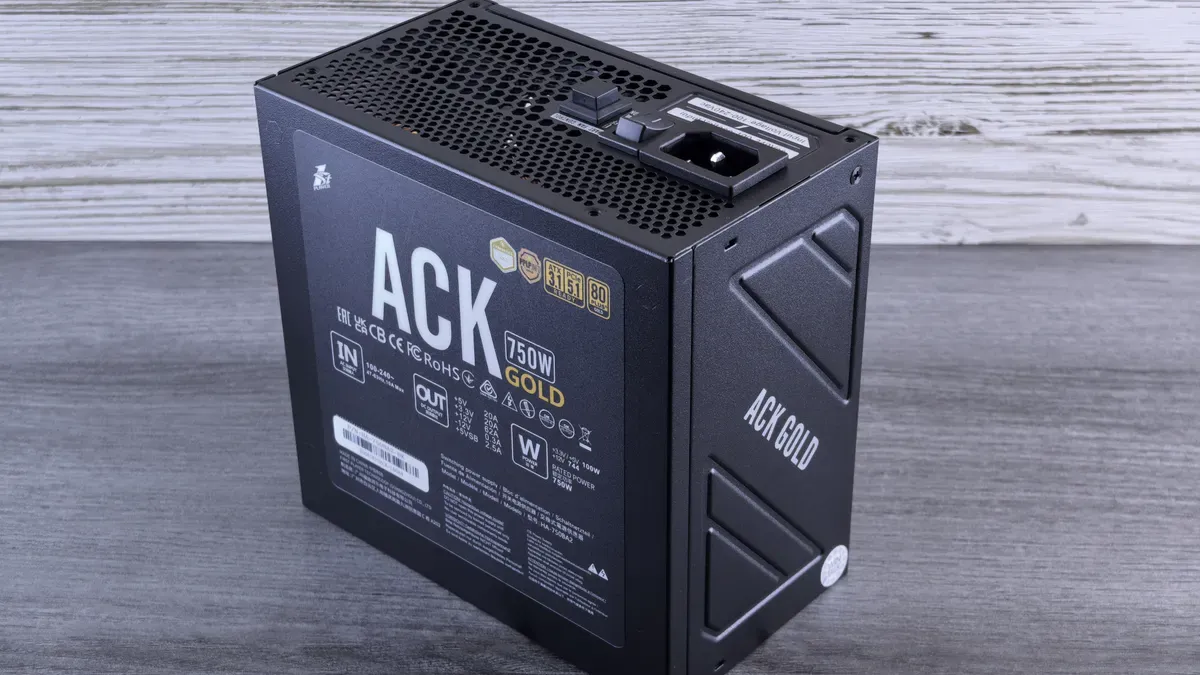

Linear Power Supply vs Switching Power Supply: Key Differences Explained

You will notice key differences when you compare linear and switching power supply designs. Linear types often run with 20% to 40% efficiency, while switching models reach 60% to 80% or higher. The table below shows that switching units are much smaller and lighter, but they may create more noise. You need to understand these differences so you can choose the right supply for your project and make sure your device works well.

Key Takeaways

• Linear power supplies work best for sensitive devices. These devices need low noise, like audio equipment and medical machines.

• Switching power supplies use energy better. They save power and make less heat. This makes them good for modern electronics.

• Pick a linear power supply for steady voltage and low noise. Choose a switching power supply if you want a small size and high efficiency.

• Switching power supplies can make more noise. Use filters if you need clean power for sensitive electronics.

• Think about what your project needs. Look at size, efficiency, and noise levels when you pick a power supply.

Linear Power Supply Overview

Linear Power Supply Operation

A linear power supply changes AC from the wall into DC. It uses a transformer first. The transformer lowers the voltage to a safer level. Then, a rectifier turns AC into DC. The filter capacitor makes the DC smoother. Next, the voltage regulator keeps the output steady. It works even if the input or load changes. The output capacitor cuts down leftover noise. This gives you a clean DC output.

Here is a table that shows what each stage does:

Tip: Linear power supplies give stable voltage. This is good for sensitive electronics.

Linear Power Supply Components

A linear power supply has several important parts. Each part helps your device get the right voltage. The transformer lowers voltage and keeps you safe. The rectifier lets current go one way. The filter capacitor stores energy and releases it when needed. This keeps the output smooth. The voltage regulator keeps voltage steady. It works even if the input or load changes. The output capacitor cuts down any last bits of noise.

Here is a table that explains what each part does:

A linear power supply uses two main ways to keep voltage steady. Load regulation checks if the output stays the same when the device uses more or less current. Line regulation checks if the output stays steady when the input voltage changes. These methods help you get stable voltage, even when things change.

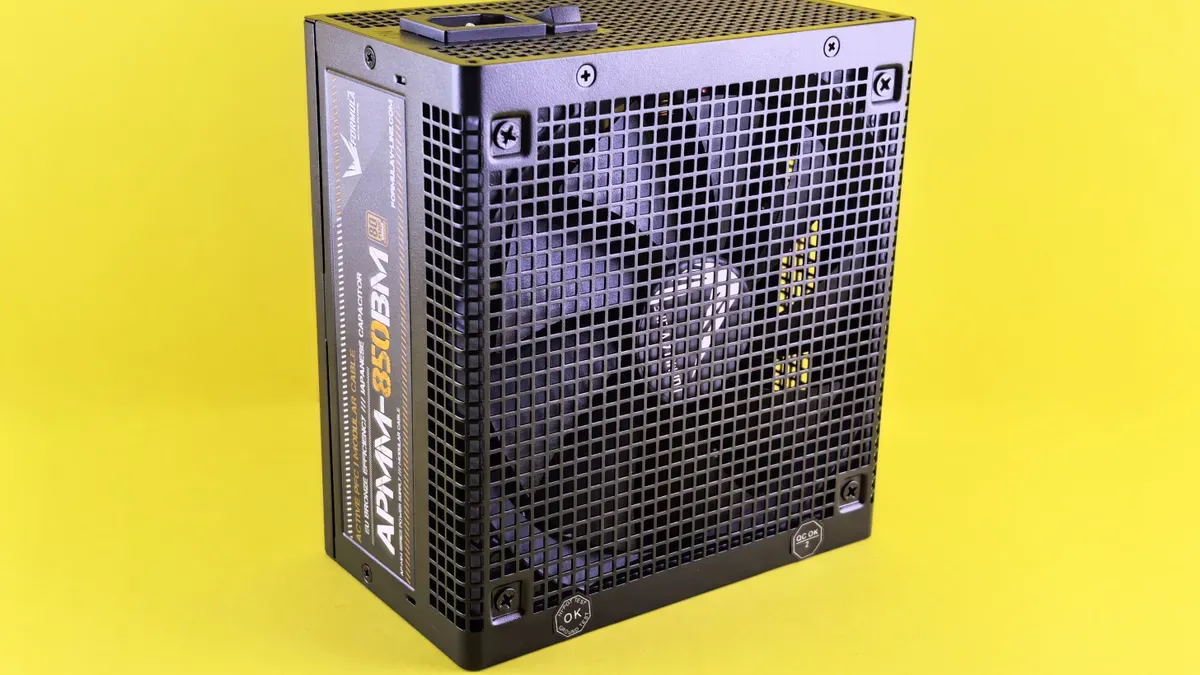

Switching Power Supply Overview

Switching Power Supply Operation

A switching power supply works in a different way than a linear one. It uses solid-state parts to turn the voltage on and off very fast. This happens many times each second, sometimes thousands or more. When the switch is on, energy builds up in an inductor or transformer. When the switch turns off, the energy moves to the output. A control circuit sends signals like PWM or PFM to keep the voltage steady.

This method does not waste much energy as heat. The switching power supply uses energy better than a linear supply. It is good for devices that need to save space and stay cool. But fast switching can cause EMI. Sharp changes in voltage and current can make noise. This noise may affect other electronics nearby. Good design and filters help lower these problems.

Note: The switching circuit can make voltage spikes and harmonics. You need proper filtering to protect your devices.

Switching Power Supply Components

There are several important parts inside a switching power supply. Each part helps make it efficient and work well:

• High-frequency transformer: This part lets the supply be smaller and lighter. It works well at fast switching speeds.

• Ferrite core: This material helps the transformer work better at high frequencies. It also lowers power loss.

• PWM control circuit: This circuit changes the timing of the switching. It keeps the output voltage steady.

• Advanced control algorithms: These help the supply stay efficient. They work even when your device uses less power.

• Modern materials: SiC and GaN parts let the supply run faster and hotter. This makes it more efficient.

A switching power supply also has input and output filters. These filters block unwanted noise and keep the output clean. All these parts work together to give you a small, efficient, and reliable power source.

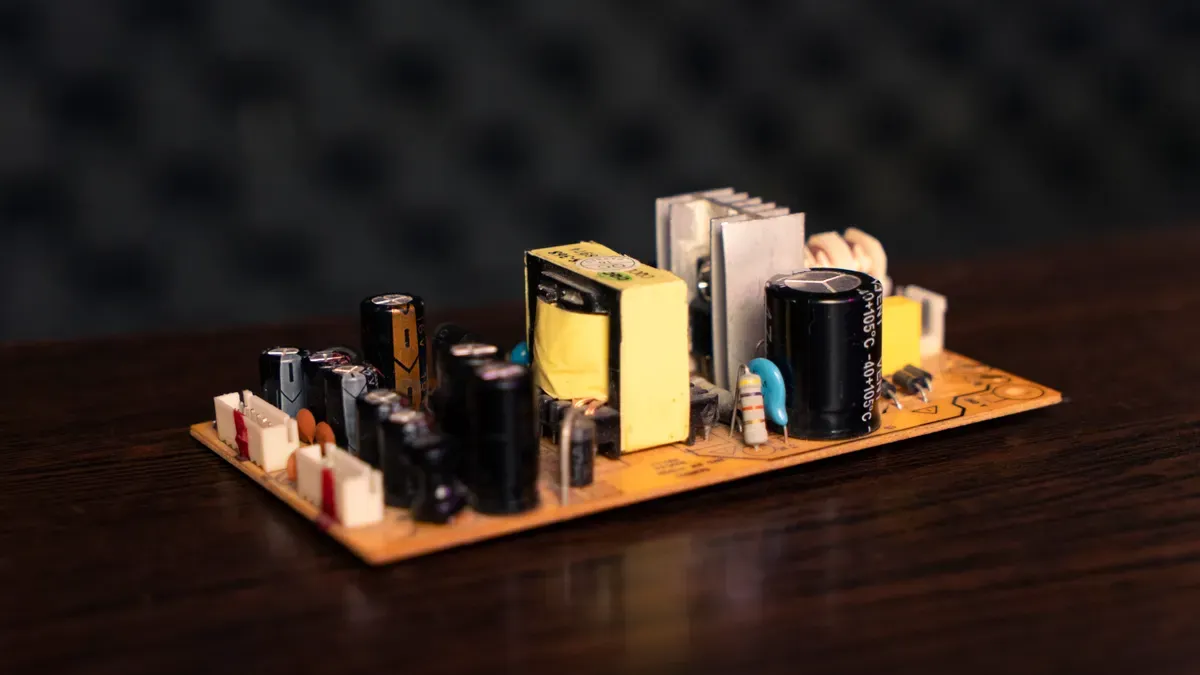

Key Differences: Linear vs Switching

When you look at linear and switching power supplies, you can see they work in different ways. These differences change how much energy they use, how hot they get, their size, weight, and how much noise they make. Knowing these things helps you pick the best power supply for what you need.

Efficiency and Heat

Efficiency is a big difference between linear and switching power supplies. Linear types use a simple way to control voltage, but they waste a lot of energy as heat. Switching designs turn power on and off very fast, so they save more energy and make less heat.

Here is a table that shows how well each type uses energy:

Switching power supplies can be 85% to 95% efficient. Linear power supplies are usually only 30% to 60% efficient. This means linear types lose more energy as heat. You need big heatsinks or fans to cool them down. Switching power supplies only lose 5% to 30% of their power as heat. They stay cooler and do not need as much cooling.

Here is a table that shows how much heat each type makes and how they cool down:

If you want a power supply that does not get too hot and saves energy, a switching type is a good choice. Linear types are fine for small jobs, but they get hot and waste more energy.

Tip: If your power supply is efficient, it will not get as hot and will save you money.

Size and Weight

Size and weight are also important differences. Linear power supplies use big transformers and heavy parts. This makes them large and hard to move. Switching power supplies use small transformers and high-frequency circuits. They are smaller and lighter, which is good if you need to save space or carry them.

Here is a table that shows how big and heavy each type is:

Switching power supplies are about six times lighter and much smaller than linear ones. You can put them in small places or carry them easily. Linear power supplies take up more room and add more weight to your project.

Note: If you want something small and light, switching power supplies are a great choice for new electronics.

Noise and Ripple

Noise and ripple are other big differences. Linear power supplies make very little noise in their output. This is good for things like medical machines, audio systems, and lab tools. Switching power supplies can make more noise because they turn on and off very fast. This can cause noise and ripple that might bother some devices.

Here is a table that shows the noise levels:

You should use a linear power supply if you need clean power for things like audio gear, test tools, or medical machines. These need low noise to work right. Switching power supplies need extra filters to make the output cleaner. They are best for things that do not need perfect power.

• Medical machines need steady, quiet power to work right.

• Audio systems need clean power so the sound is not messed up.

• Lab tools need steady voltage to give correct results.

Switching power supplies can make electromagnetic interference, but good design and filters can help stop this. Linear power supplies are best if you want the lowest noise and ripple.

Remember: Pick a linear power supply for the quietest output. Choose a switching power supply if you want high efficiency and a small size.

Pros and Cons: Linear Power Supply

Linear Power Supply Advantages

A linear power supply has many good points. People like it for sensitive devices. Here are some main advantages:

• Low noise means you can use it with analog devices. It does not cause interference.

• The design is simple, so it is easy to fix and understand.

• It works well for a long time, so you can trust it.

• It makes less ripple and noise. This helps your audio gear and lab tools work better.

• It does not make much electromagnetic interference. This keeps medical equipment safe.

• There are fewer parts, so less can break. You do not have to fix it often.

• There is no switching noise, so your power stays clean and steady.

Tip: If you need steady and clean power for audio, lab, or medical devices, a linear power supply is a great pick.

Linear Power Supply Disadvantages

You should know the bad sides before you choose. A linear power supply has some problems that may not work for every project.

1. Linear power supplies waste more energy as heat. You need big heatsinks or fans to cool them.

2. They are big and heavy. The large transformer takes up space and is hard to move.

3. They are not as efficient as switching types. You might pay more for electricity if you use them for high-power devices.

4. They may not be good for powering many devices at once. They are not the best for portable use.

Note: Think about how much space, cooling, and energy you need before you pick a linear power supply.

Pros and Cons: Switching Power Supply

Switching Power Supply Advantages

Switching power supplies have many good points. They work very well and can be up to 90% efficient. This means they do not waste much energy as heat. Your device will stay cooler and use less power. These supplies are also small and light. They use high-frequency transformers and tiny parts. This helps them fit in small spaces.

Switching power supplies can use many different input voltages. You do not need to worry if the power changes. The supply keeps the output steady. This helps your device work well almost anywhere. Because of this, switching power supplies are great for new electronics.

• High efficiency (up to 90%) saves energy and makes less heat.

• Small and light, so they fit in tight spots.

• Can use many input voltages and still work well.

• Good for lots of different uses.

• Tiny parts make them easy to carry.

Tip: If you want to save space and energy, a switching power supply is a smart pick.

Switching Power Supply Disadvantages

There are some problems with switching power supplies. Their circuits are more complicated than linear ones. More parts mean they can break more easily. They are also harder to fix. Fast switching can make electromagnetic interference, or EMI. This noise can bother other electronics close by. This is bad for devices that need quiet power.

Switching power supplies usually cost more at first. The special design and extra features make them pricier. You might need an expert to build or repair them. If you need very clean power, a switching supply may not be best.

• Complicated circuits can break more and are tough to fix.

• Fast switching makes EMI, which can bother other devices.

• Not good for places that need very quiet power.

• Cost more than linear power supplies.

• You may need an expert for safe design and repair.

Note: Make sure your project can handle the extra noise and tricky design before you choose a switching power supply.

Choosing Between Linear and Switching

Linear Power Supply Applications

A linear power supply is best when you need clean power. It gives steady voltage and does not make much noise. People use linear designs for sensitive electronics. Here are some common uses:

• Audio equipment needs low noise to keep sound clear.

• Devices with sensitive sensors use linear supplies to avoid signal problems.

• Laboratory tools and test gear need steady voltage for accurate results.

Linear power supplies help stop electrical noise. They are used in places where even small interference can cause trouble.

Switching Power Supply Applications

Switching power supplies are good for devices that need high efficiency and small size. You will find switching designs in many modern gadgets. The table below shows where they are used and why they work well:

Switching power supplies save space and energy. They are used in high power devices where efficiency is important.

Selection Factors

When you pick between linear and switching power supplies, you should think about your needs, cost, efficiency, and safety rules. The table below helps you compare:

Pick a linear power supply if you need low noise and steady voltage. Choose a switching power supply if you want high efficiency and small size, and can handle some extra noise. Always check safety marks and certifications like UL, RCM, or SIRIM to make sure your power supply is safe and meets standards.

You have seen that choosing the right power supply depends on your needs. Linear power supplies give you low noise and simple design, but they are heavy and waste more power as heat. Switching power supplies save space and use power better, but they can make more noise. The table below shows the main differences:

Always match your power supply to your device. This helps your system work well and stay reliable.

FAQ

What is the main reason to pick a linear power supply?

You should pick a linear power supply when you need very low noise. Audio gear, lab tools, and medical devices work best with clean, steady power.

Can you use a switching power supply for sensitive electronics?

You can use a switching power supply, but you must add good filters. Sensitive electronics may pick up noise. Always check your device’s needs before you choose.

Why do switching power supplies save energy?

Switching power supplies turn power on and off quickly. This method wastes less energy as heat. You get more power for your device and less heat to manage.

Are linear power supplies safer than switching types?

Both types can be safe if you use them correctly. Linear supplies have simple designs, which makes them easy to understand and repair. Always follow safety rules.

Tip: Always check the safety marks on your power supply before you use it.
