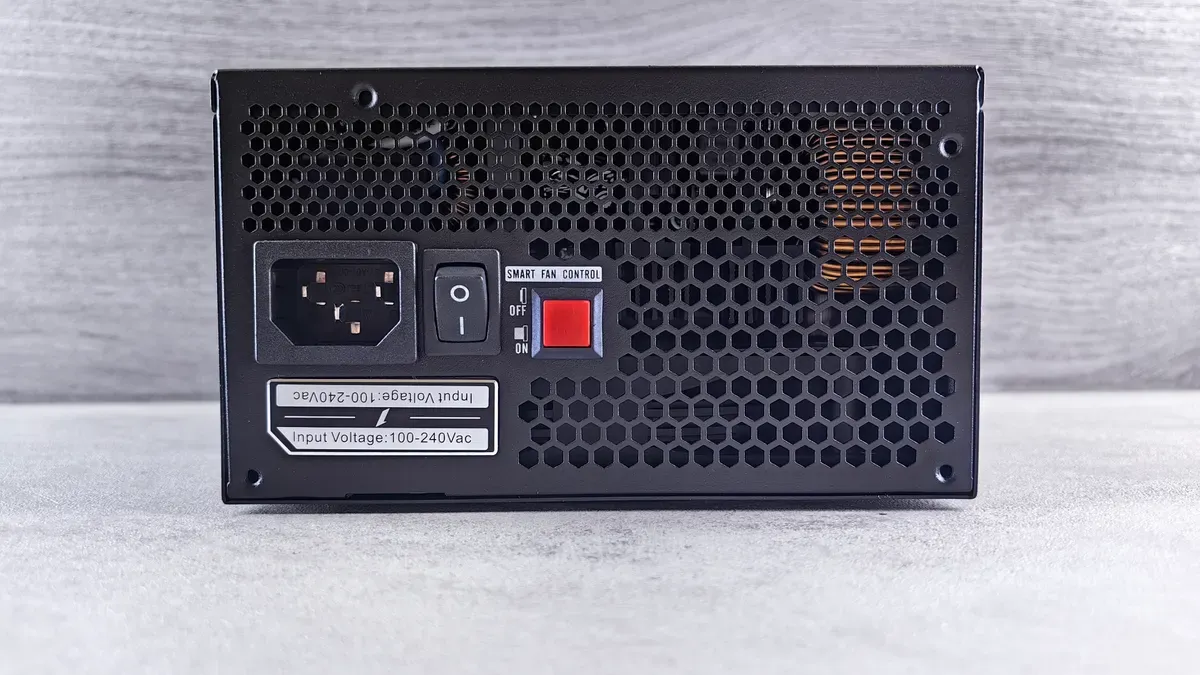

What Is a Switching Power Supply?

You use many devices each day that need a switching power supply. In electrical engineering, a switching power supply is an electronic power supply. It uses a switching regulator to change electrical power efficiently. This gives you a steady output voltage even if the input voltage changes. You get high efficiency because a switching power supply loses less energy as heat. When you pick a device with an smps, you get a small size and good performance. These things are important when you want your electronics to work well and last longer.

Key Takeaways

• Switching power supplies work well. They waste less energy as heat. Their efficiency is often over 90%.

• They are smaller and lighter than linear power supplies. This makes them good for portable devices. Devices like smartphones and laptops use them.

• Switching power supplies help modern electronics perform better. They also help devices last longer.

• Think about electromagnetic interference (EMI) when using switching power supplies. Good filtering can help stop problems.

• Always check safety rules and standards when picking power supplies. This is very important for sensitive things like medical devices.

Switching vs. Linear Power Supplies

Key Differences in Operation

Switching power supplies and linear power supplies work in different ways. A linear power supply uses a transformer to lower voltage. Then, it uses a transistor to control the output. The transistor acts like a resistor. It turns extra energy into heat. This makes the output smooth and quiet. But, it wastes a lot of energy.

A switching power supply works in another way. It is also called a switched-mode power supply. It turns the input voltage on and off very fast with a transistor. This is called pulse width modulation (PWM). The fast switching sends energy through parts like inductors or transformers. You get the voltage you need with less wasted energy.

Here is a table that shows the main differences:

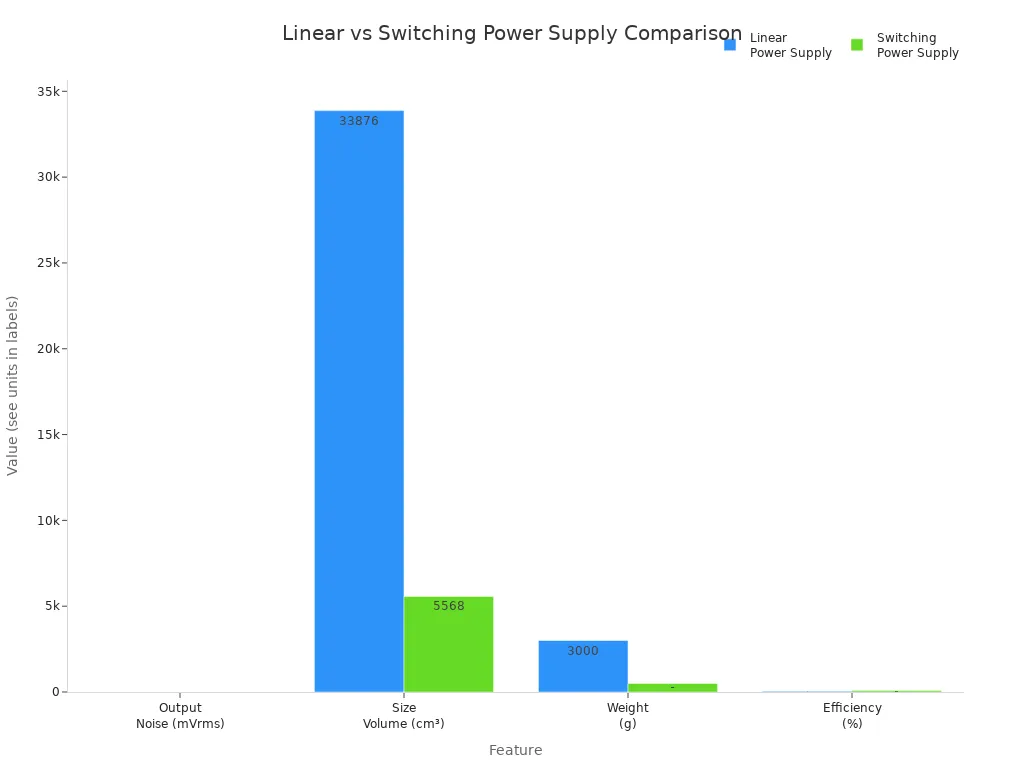

Efficiency and Size Comparison

There is a big difference in efficiency and size. A linear power supply is only 30% to 60% efficient. It loses a lot of energy as heat. A switching power supply can be 70% to 95% efficient. It uses high-speed switching to save energy.

Switching power supplies are smaller and lighter. For example, a 250W linear power supply can weigh 26 pounds. It can take up 600 cubic inches. A switch mode power supply with the same power can weigh only 2 pounds. It uses just 60 cubic inches. This makes switching power supplies better for small or portable devices.

Typical Use Cases

You use linear power supplies when you need very clean power. Audio equipment and lab tools use them because they have low noise. Most modern electronics use switching power supplies. They work in smartphones, laptops, TVs, and cars. You also find them in machines, telecom systems, and medical devices. These power supplies are efficient, small, and reliable.

Tip: If you want a small, cool device, pick a switching power supply.

How a Switching Power Supply Works

Main Components

A switching power supply has many important parts. Each part does a special job. The table below shows the main parts and their jobs:

All these parts work together in every smps. The input EMI filter blocks unwanted signals. The rectifier filter circuit changes AC from the wall into DC. The power conversion circuit uses magnetic parts to change the voltage. The PWM controller circuit manages the switching. The output rectifier filter circuit smooths the voltage again. Protection circuits keep your device safe.

PWM and High-Frequency Switching

Pulse width modulation (PWM) is very important in a switching power supply. You control the output voltage by changing how long the transistor stays on. Here is how PWM works in an smps:

• PWM signals decide how much power goes to the output.

• You change the pulse width to adjust the output voltage. Longer pulses give higher voltage. Shorter pulses lower the voltage.

• The feedback loop checks the output voltage and changes the pulse width to keep it steady.

• PWM helps you keep constant current or constant voltage, depending on what your device needs.

• The duty cycle can change from about 1% to 50%. If the current draw goes up, the duty cycle increases. If the voltage gets too high, the duty cycle drops.

Modern switching power supplies use high switching frequencies. You can see frequencies up to 1.5 MHz. Higher frequencies make the passive parts smaller. You get better efficiency and faster response when the load changes. Zero-voltage switching (ZVS) helps reduce losses, so you can use high frequencies without extra heat.

Tip: Higher switching frequencies make power supplies smaller and lighter. You get more efficient devices that respond quickly to changes.

EMI and Filtering

Switching power supplies create electromagnetic interference (EMI). You see different types of EMI in these circuits. The table below shows the main sources:

You need filters to stop EMI from causing problems. Bypass capacitors work best when placed close to the noise source. Electrolytic and ceramic capacitors handle both low and high frequencies. Inductors in series with the power feed create an L-C low pass filter. Bypass capacitors between power lines and ground help with common mode currents. Coupled choke inductors add more suppression by blocking unwanted signals.

Note: Good filtering keeps your devices safe and stops interference with other electronics.

SMPS Advantages & Drawbacks

Efficiency and Size Benefits

When you use smps, your device works better. These power supplies do not waste much energy as heat. Your device stays cool and does not use much electricity. This helps you save power and money. The table below shows how efficient these power supplies are:

These power supplies are also small in size. You can put them in tight spaces. This is great for things you carry, like phones or tablets. Your electronics become lighter and easier to move. Here are some ways the small size helps you:

• Compact Design: Smaller parts fit well in tiny devices.

Tip: Pick a power supply with high efficiency if you want a cool and light device.

Complexity and EMI Issues

These power supplies are harder to build than linear ones. They need more parts and careful planning. If they break, fixing them can be tough.

Another problem is electromagnetic interference, or EMI. These power supplies switch on and off very fast. This makes more EMI that can bother other devices. Here are some facts about EMI:

• These power supplies make more electromagnetic interference because of how they work.

• They send out signals at many frequencies that can mess with other devices.

• Rules from groups like the FCC and CISPR set strict EMI limits.

• Class B equipment must meet tougher rules than Class A, about three times stricter.

Note: Always check if your power supply follows EMI rules, especially for home or office use.

SMPS Applications & Considerations

Common Uses for Power Supplies

You see smps almost everywhere in your life. These power supplies help devices work well and last longer. You find them at home, in factories, in cars, and in hospitals. Here is a table that shows where you use power supplies most:

You also use power supplies in renewable energy systems. These systems must handle changing input voltages. Smps help by giving a steady output. This means solar panels and wind turbines can give more energy with less waste.

Tip: When you pick a power supply, think about where and how you will use it.

Technical Factors to Consider

You must think about safety and rules when picking power supplies. Medical devices need extra care. You want to keep patients safe from electric shock. Here are some important safety points for medical power supplies:

• You must keep the patient away from dangerous voltages.

• You need isolation on both the input and output sides.

• Low leakage current is important for safety.

• Extra insulation helps protect users.

• You must follow IEC 60601 standards for medical devices.

• Good electromagnetic compatibility stops interference.

You also need to know about international rules. These rules help you pick safe and efficient power supplies. Here is a table with some important standards:

Note: Always check the rules before you buy or design a power supply. This keeps your devices safe and legal.

You can find power supplies in almost all modern electronics. They help make devices smaller and use less energy. Devices also stay cooler with these power supplies. The table below shows why people pick them instead of older designs:

• These power supplies work well and save energy.

• Small designs make devices light and simple to move.

• You can use them in many places because they handle different voltages.

Try using power supplies in your next project if you want something small and efficient.

FAQ

What is the main advantage of a switching power supply?

You get better efficiency and a smaller size. Switching power supplies do not waste much energy as heat. Your device stays cooler and uses less power.

Can you use a switching power supply for sensitive electronics?

You can use switching power supplies for most things. Sensitive electronics might need extra filtering. You should check the noise level before picking one.

How do you reduce EMI in a switching power supply?

You can use filters, shielded wires, and good grounding. Putting bypass capacitors close to the noise source helps stop interference.

What happens if your power supply fails?

Your device might turn off or restart. Protection circuits help stop damage. You should change the power supply if it stops working.
