Protection type: Constant current limiting, recovers automatically after fault condition is removed
Over Voltage
6.27-7.25V
15.6-18V
31.2-36V
57.6-64.8V
Protection type: Shut down o/p voltage, re-power on to recover
ENVIRONMENT
Working Temp., Humidity
-20℃~+70℃; 20%~90% RH non-condensing
Storage Temp., Humidity
-40℃~+85℃; 10%~95%RH
Temp. Coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz, 2G 10min./1cycle, period for 60min, each along X, Y, Z axes
OTHERS
Dimension
40*90*100mm(W*H*D)
Weight
0.3Kg
Packing
42pcs/carton/13.6kg/0.82CUFT
NOTE
1.All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2.Ripple & noise are measured at 20MHz of bandwidth by using a 12” twisted pair-wire terminated with a 0.1μf & 47μf parallel capacitor.
3.Tolerance: includes set up tolerance, line regulation and load regulation.
4.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
Product Overview

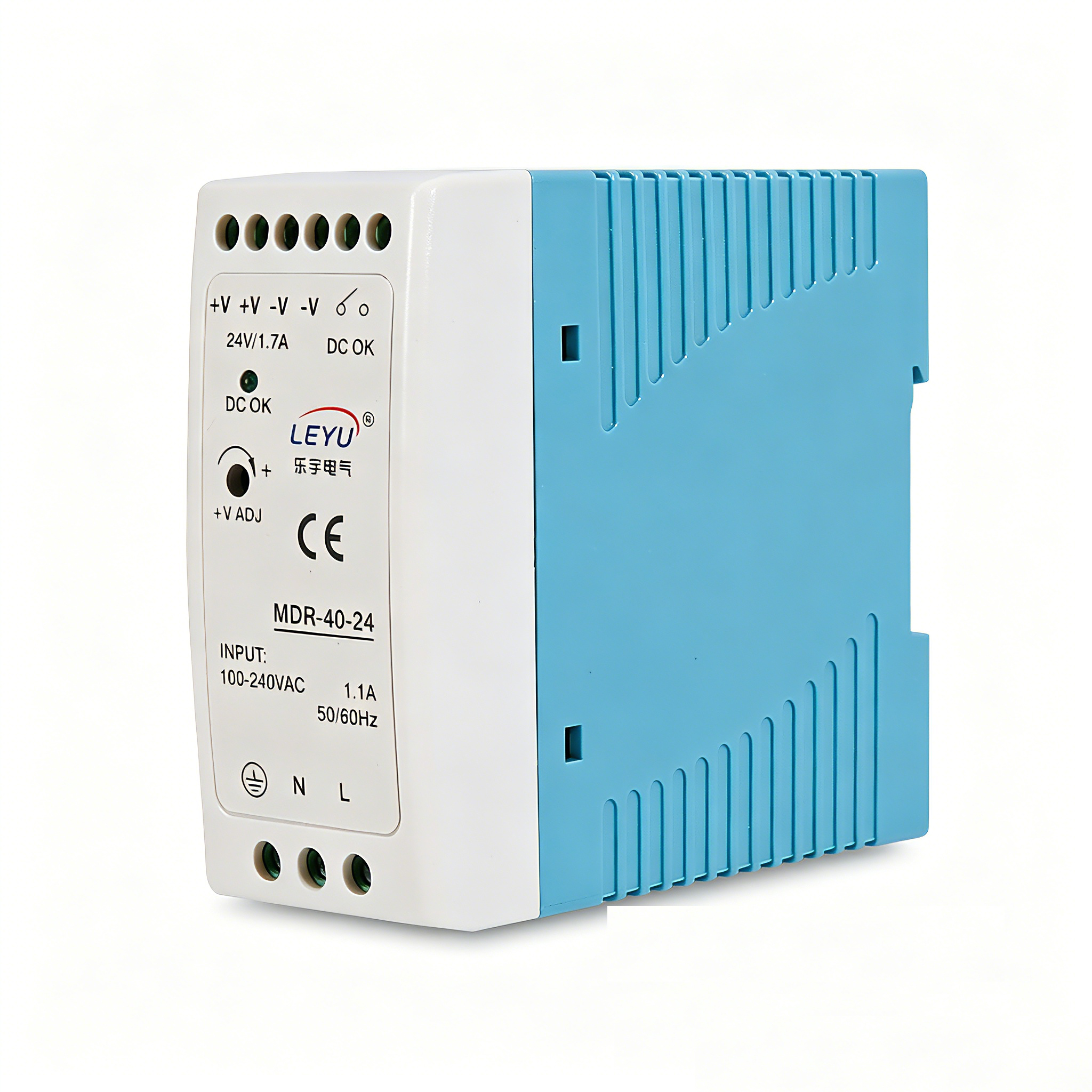

The Luyu MDR-40W series is a 40W single-output industrial DIN rail switching power supply, designed for standard rail mounting and directly installable on TS-35/7.5 or TS-35/15 DIN rails. As a representative product in the 40W power class, this series is widely used in industrial automation control systems, instrumentation, communication equipment, security monitoring, LED lighting, building intercom systems, and other fields, providing users with a stable, efficient, and reliable DC power solution.
This series includes four sub-models: MDR-40-5, MDR-40-12, MDR-40-24, and MDR-40-48, with output voltages covering 5V, 12V, 24V, and 48V to meet the diverse power supply requirements of different industrial devices. The products are strictly quality-controlled in accordance with the ISO9001:2000 international quality management system standard and comply with EU RoHS and CE certification requirements. They are ideal companion power supplies for industrial control cabinets, PLC systems, contactors, relays, and similar equipment.
Core Product Features
1. Wide-Range Universal AC Input for Global Use The Luyu MDR-40W series supports a full-range AC input of 85–264VAC, while also accepting 120–370VDC input, with a frequency range of 47–63Hz. It can be used directly in any power grid environment, whether in China, Europe, the United States, or other countries, without any switching adjustments. The AC input current is 1.1A at 115VAC or 0.7A at 230VAC.
2. Multiple Intelligent Protections for Safe and Reliable Operation
This series features three core built-in protection mechanisms:
Short Circuit Protection: When the output is short-circuited, the power supply automatically enters a protected state. Once the short circuit fault is removed, the power supply automatically resumes normal output.
Overload Protection: When the load power reaches 105%–150% of the rated output power, the power supply automatically enters constant current limiting protection mode. Output automatically recovers after the fault is cleared.
Overvoltage Protection: The overvoltage protection trip points vary by output voltage model: 6.25–7.25V for the 5V model, 15.6–18V for the 12V model, 31.2–36V for the 24V model, and 57.6–64.8V for the 48V model. When overvoltage occurs, the power supply automatically shuts down output and recovers after a power cycle.
Adopts natural convection cooling design, eliminating the need for an additional fan and reducing mechanical failure points. The product dimensions are 40×90×100mm (W×H×D) and it weighs only 0.3kg. It can be directly mounted on TS-35/7.5 or TS-35/15 standard DIN rails, occupying minimal space inside the control cabinet.
4. 100% Full Load Burn-In Test
Each power supply undergoes a 100% full load burn-in test before leaving the factory, ensuring stability and reliability under actual load conditions.
5. High Conversion Efficiency
Efficiency varies by output voltage: 78% for the 5V model, 86% for the 12V model, and 88% for both the 24V and 48V models.
6. LED Indicator for Power-On Status
Equipped with an LED power indicator that lights up when power is applied, allowing on-site maintenance personnel to quickly verify the power supply’s operating status.
Product Advantages
1. Stable Output, High Voltage Accuracy
In terms of output voltage accuracy, the 5V model achieves ±2%, while the 12V, 24V, and 48V models all achieve ±1%. Both line regulation and load regulation are controlled within ±1.0%. The setup and rise time are 500ms/30ms (230VAC, full load), and the hold-up time can reach 50ms under 230VAC conditions. This means that during brief grid fluctuations, downstream equipment will not restart due to power loss, ensuring uninterrupted industrial production.
2. Wide Temperature Operation, Broad Adaptability
The operating temperature range is -20℃ to +70℃, and the storage temperature range is -40℃ to +85℃. Combined with a humidity range of 20% to 90% non-condensing, the power supply operates stably under various climatic conditions. The temperature coefficient is ±0.03%/℃ (0~50℃), ensuring stable output voltage even in high-temperature environments.
3. Strict Electrical Isolation and Dielectric Strength
The withstand voltage is 3KVAC for input to output, 2KVAC for input to ground (FG), and 0.5KVAC for output to ground (FG). The isolation resistance is greater than 100MΩ under conditions of 500VDC / 25℃ / 70% RH.

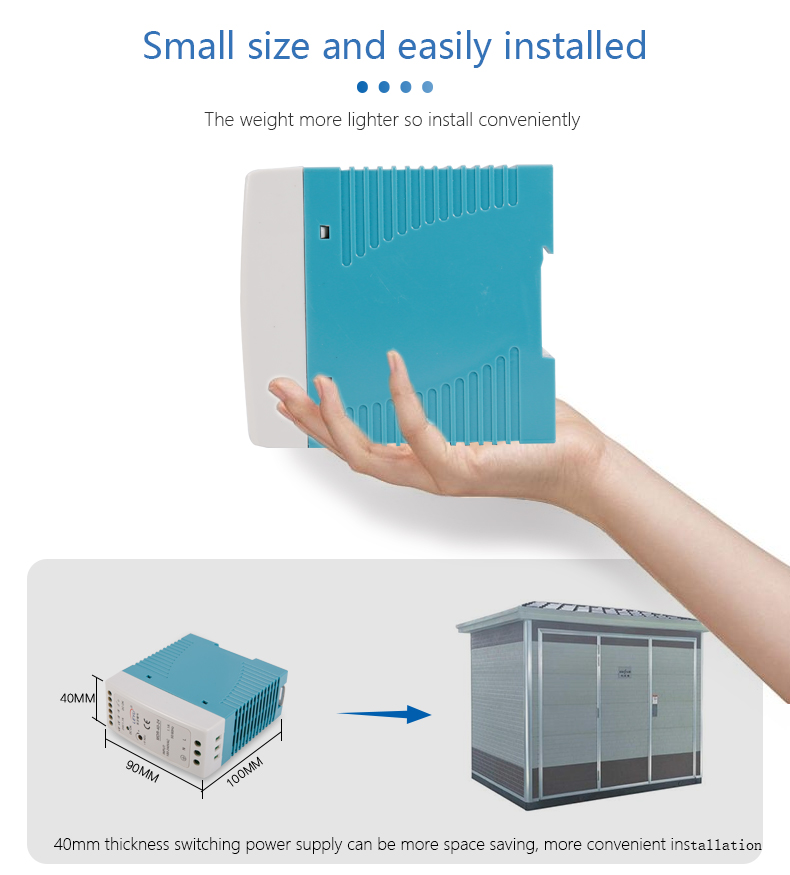

4. Small Size, Light Weight
The 40mm ultra-slim body design is narrower than many products with the same power rating. Its weight of only 0.3kg facilitates logistics transportation and on-site installation. For bulk purchasers, the packaging of 42 units per carton also facilitates warehouse management.
5. Comprehensive Safety Certifications
The design references UL508 and TUV EN60950-1 safety standards, and the electromagnetic compatibility design references EN55011, EN55022, EN61000 series standards, as well as EN61204-3 heavy industry level. The product has passed relevant certifications and can be directly used for supporting power supply in various industrial export equipment.
Product Applications
The MDR-40W series DIN rail power supplies are widely used in the following scenarios:
Industrial Control Cabinets: Provide stable DC power for PLCs, HMIs (Human-Machine Interfaces), temperature controllers, and sensors (such as proximity switches and photoelectric switches). The control cabinet is the core application scenario for this power supply.
Automated Production Lines: Used to power various electronic control devices on automated assembly lines, meeting the requirement of 24-hour continuous operation.
Security & Surveillance Systems: Power access control systems, surveillance cameras, alarm controllers, and other security devices. Stable 24V or 12V output is the foundation for reliable operation of security systems.
Communication Base Stations: Suitable for powering base station equipment, network switches, fiber optic transceivers, and other communication facilities.
Machinery & Equipment Support: The electrical control systems of CNC machine tools, packaging machinery, textile machinery, etc., all require reliable power supply modules. The MDR-40 series can be embedded into equipment control cabinets.
Case Study Reference: A small automation equipment integrator chose the MDR-40-24 for a PLC control cabinet to power a Siemens S7-1200 series PLC and touchscreen. The customer reported that after six months of operation, there was no system reset or unexpected shutdown caused by power supply issues, and the DIN rail mounting method kept the control cabinet layout neat and tidy.
Frequently Asked Questions
Q1: How do I choose the right model?
Select the model based on the DC voltage and total power required by your system. For example: For 12V equipment, choose the MDR-40-12 (rated current 3.33A); for 24V equipment, choose the MDR-40-24 (rated current 1.7A). Be sure to leave a 20%-30% power margin to handle inrush currents during equipment startup.
Q2: What should I pay attention to during installation?
Install the power supply in a well-ventilated environment, avoiding high temperature and humidity to extend its service life. Before installation, confirm that the input voltage and output voltage meet the equipment requirements, and that the output terminals are securely connected. It is recommended to reserve adequate space for heat dissipation inside the control cabinet.
Q3: What should I do if the power supply has no output?
First, check whether the input voltage is normal by measuring the mains voltage with a multimeter to ensure it is within the 85~264VAC range. Then check whether the power supply input terminal connections are secure. Confirm whether the LED indicator is lit. If there is still no output, it may be due to over-load or over-voltage protection being triggered. Disconnect the load and try powering on again to recover.
Q4: Can this power supply be used in parallel?
The MDR-40 series uses a constant current limiting type over-load protection design, so parallel current sharing performance is limited. If higher output power is required, it is recommended to choose a higher power series from Leyu or consult technical support for parallel connection solutions.
Q5: Can this power supply be used in parallel?
The MDR-40W series uses a constant current limiting type over-load protection design, so direct parallel connection is not recommended due to limited current sharing. If higher output power is required, it is recommended to choose a higher power series from Leyu (such as MDR-60W, EDR-75W, EDR-120W, etc.) or consult technical support for guidance on parallel connection.
Q6: Can it power inductive loads (e.g., motors, relays)?
It can power small inductive loads such as relay coils, but ensure that the inductive load is within the rated current range. It is recommended to leave a larger power margin for inductive loads than for resistive loads. If necessary, add a freewheeling diode or snubber circuit at the output.
Q7: What happens if the operating temperature exceeds 70°C?
When the product operates outside the -20°C to +70°C temperature range, it may cause performance degradation, shorten service life, and increase the risk of failure. Be sure to use the power supply within its rated operating temperature range. In high-temperature environments, it is recommended to derate the power or add cooling measures.
