ZDR5-60
LEYU
| Availability: | |
|---|---|
| Quantity: | |

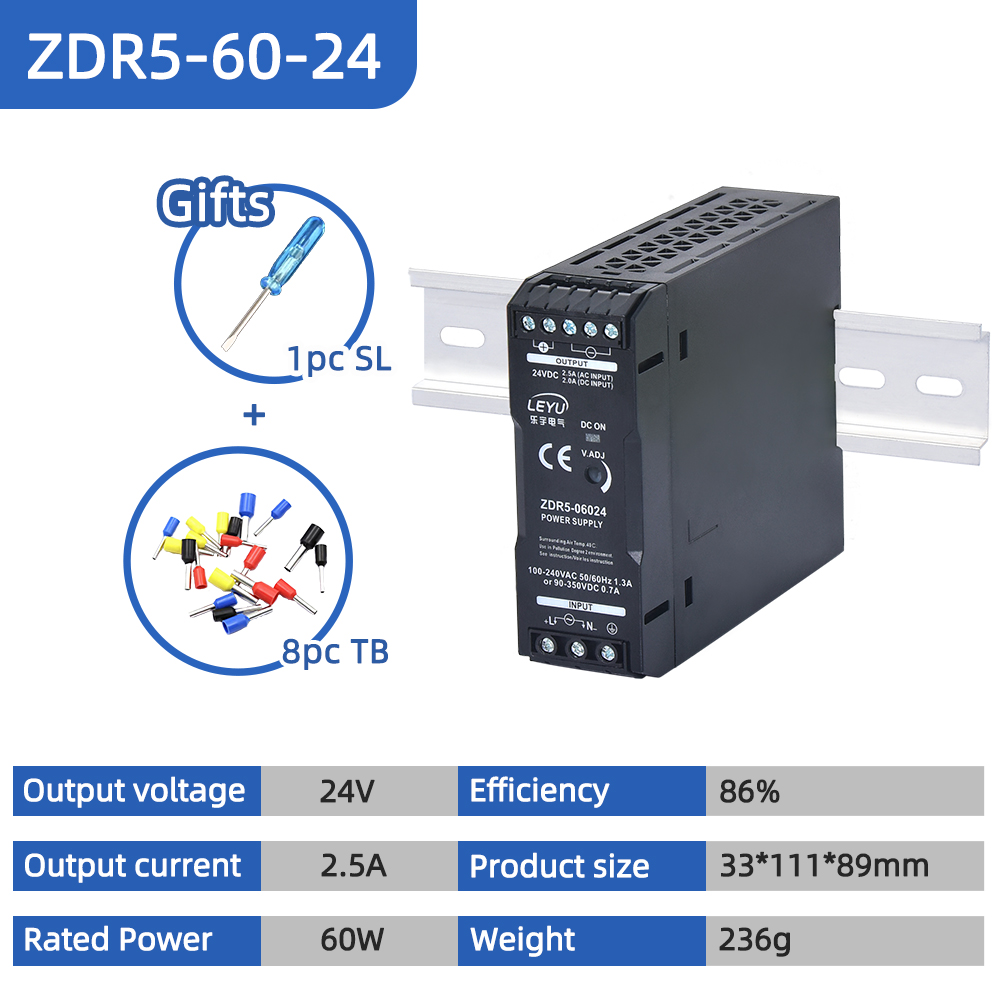

Model | ZDR5-60-12 | ZDR5-60-24 |
DC Voltage | 12V | 12V |
Rated Current | 5A | 2.5A |
Current Range | 0 ~ 5A | 0 ~ 2.5A |
Rated Power | 60W | 60W |
Voltage Adj. Range | 10.8 ~ 13.8V | 21.6 ~ 29V |
Voltage Tolerance Note.3 | ±2.0% | ±1.0% |
Line Regulation | ±1.0% | ±1.0% |
Load Regulation | ±1.0% | ±1.0% |
Setup, Rise Time | 600ms/230VAC 600ms/115VAC at full load | |
Hold Up Time (Typ.) | 120ms/230VAC 30ms/115VAC at full load | |
Voltage Range | 85 ~ 264VAC (277VAC operational ) 120 ~ 370VDC (390VDC operational ) | |
Frequency Range | 50 ~ 60Hz | |
Efficiency (Typ.) | 82% | 86% |
AC Current (Typ.) | 1.3A/115VAC 0.7A/230VAC | |

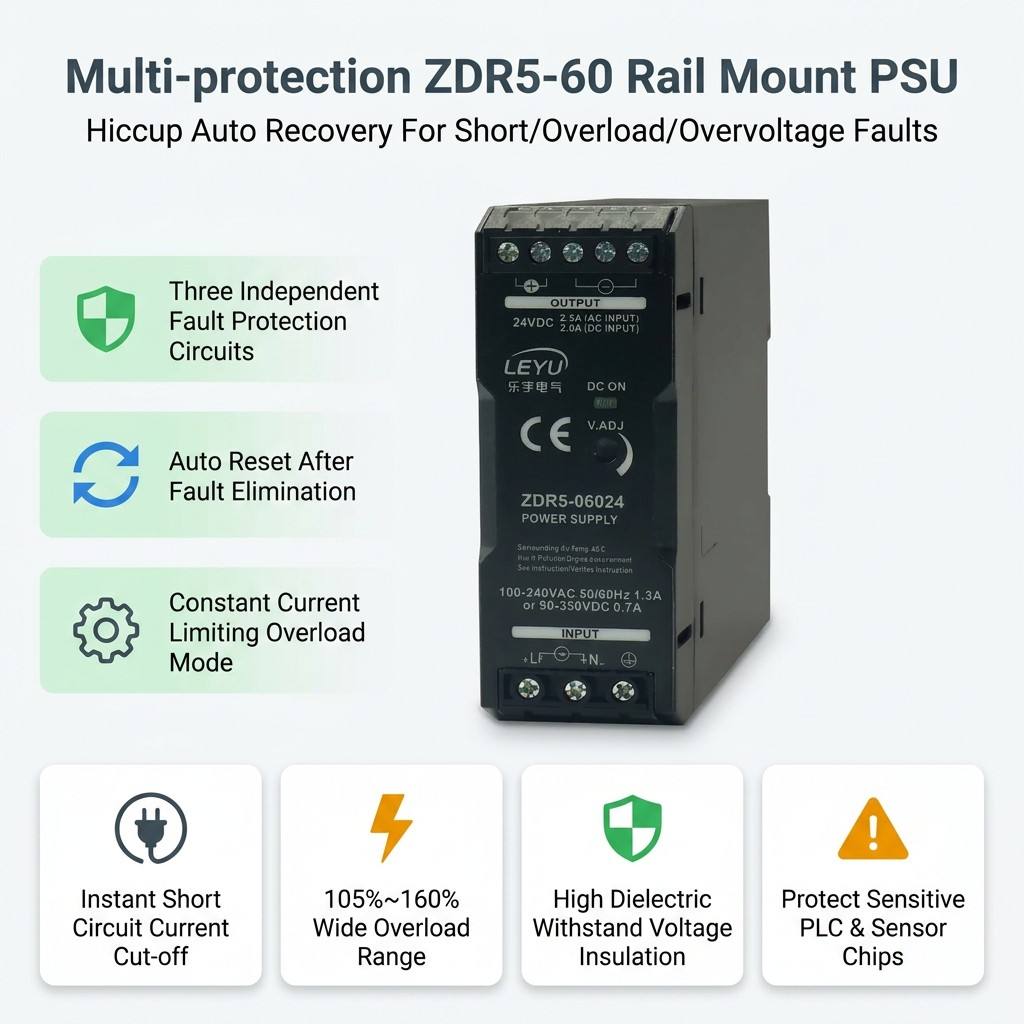

Over Load | 105 ~ 160% rated output power | |
| Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed | ||
| Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed | ||
Over Voltage | 14.2 ~ 16.2V | 18.8 ~ 22.5V |
| Protection type : Shut down o/p voltage, re-power on to recover | ||

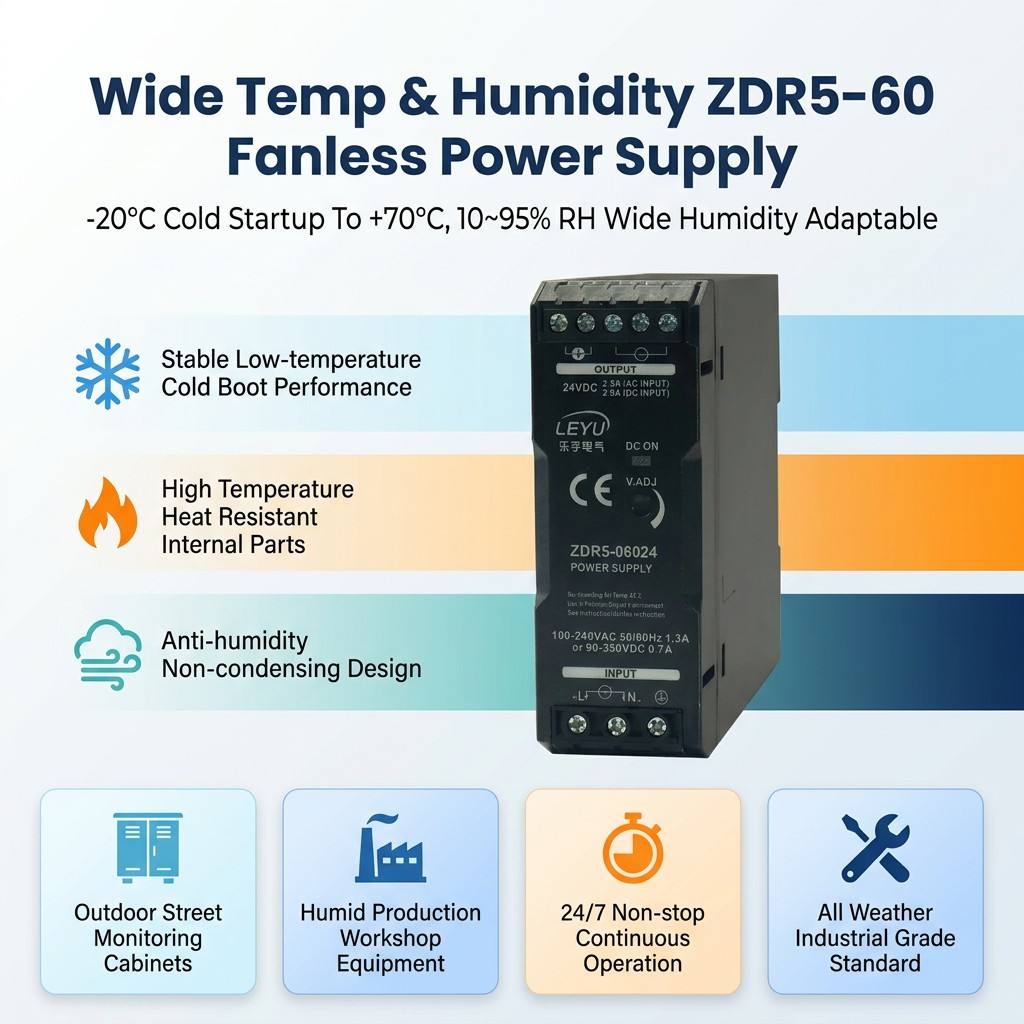

Working Temp. | -20 ~ +70℃ (Refer to "Derating Curve") | |
Working Humidity | 10% ~ 95% | |
Storage Temp., Humidity | -30 ~ +85℃, 10 ~ 95% RH non-condensing | |
Safety Standards | UL62368-1, UL508, TUV EN61558-2-16, IEC62368-1, EAC TP TC 004, BSMI CNS14336-1 approved; Design refer to EN62368-1 | |
Dimension | 90×32×110 | |
Weight | 260g | |

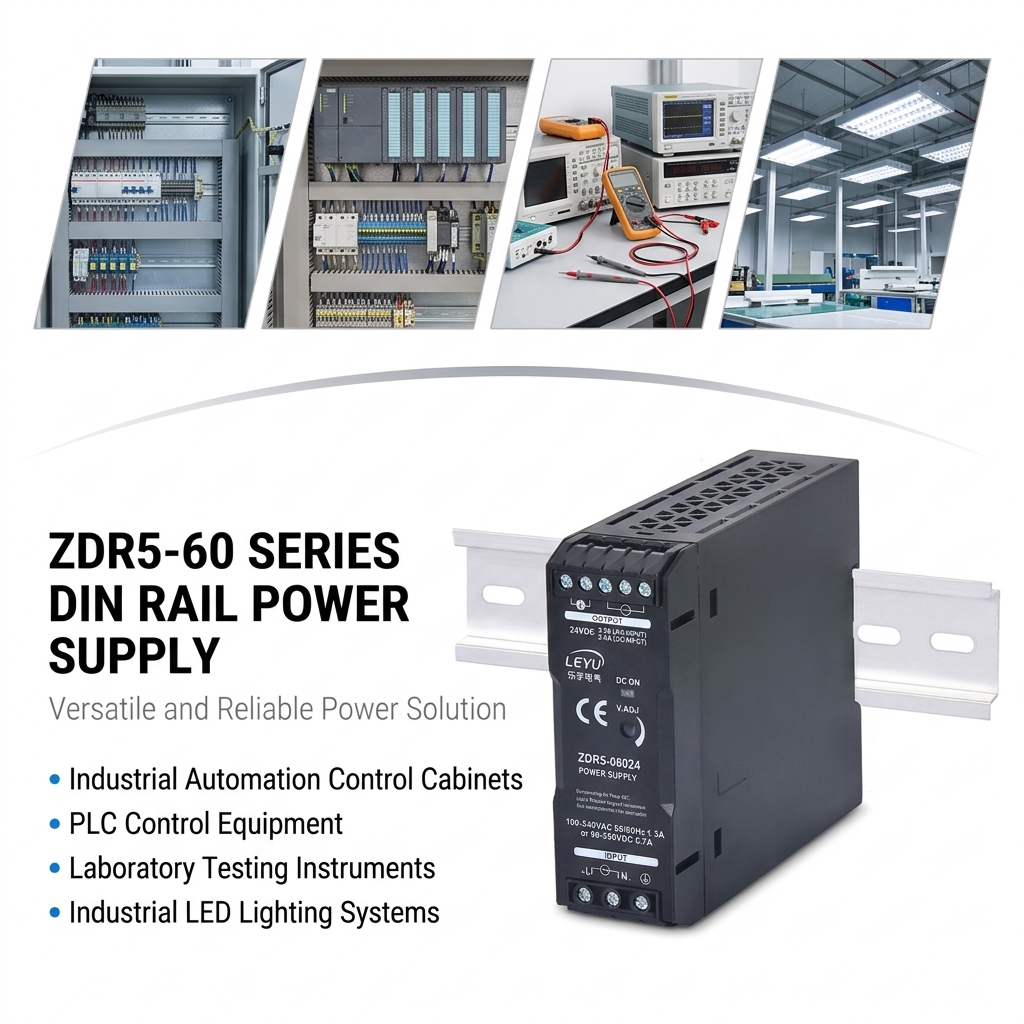

The LEYU ZDR5-60 series is a flagship ultra-slim DIN rail switching power supply engineered for modern industrial environments where cabinet space is at a premium. With a compact 33mm width design, this 60W power source delivers high-stability performance for building automation and household control systems. It adopts a universal AC input range and is designed to fit perfectly into standard distribution boxes without requiring additional mounting hardware.

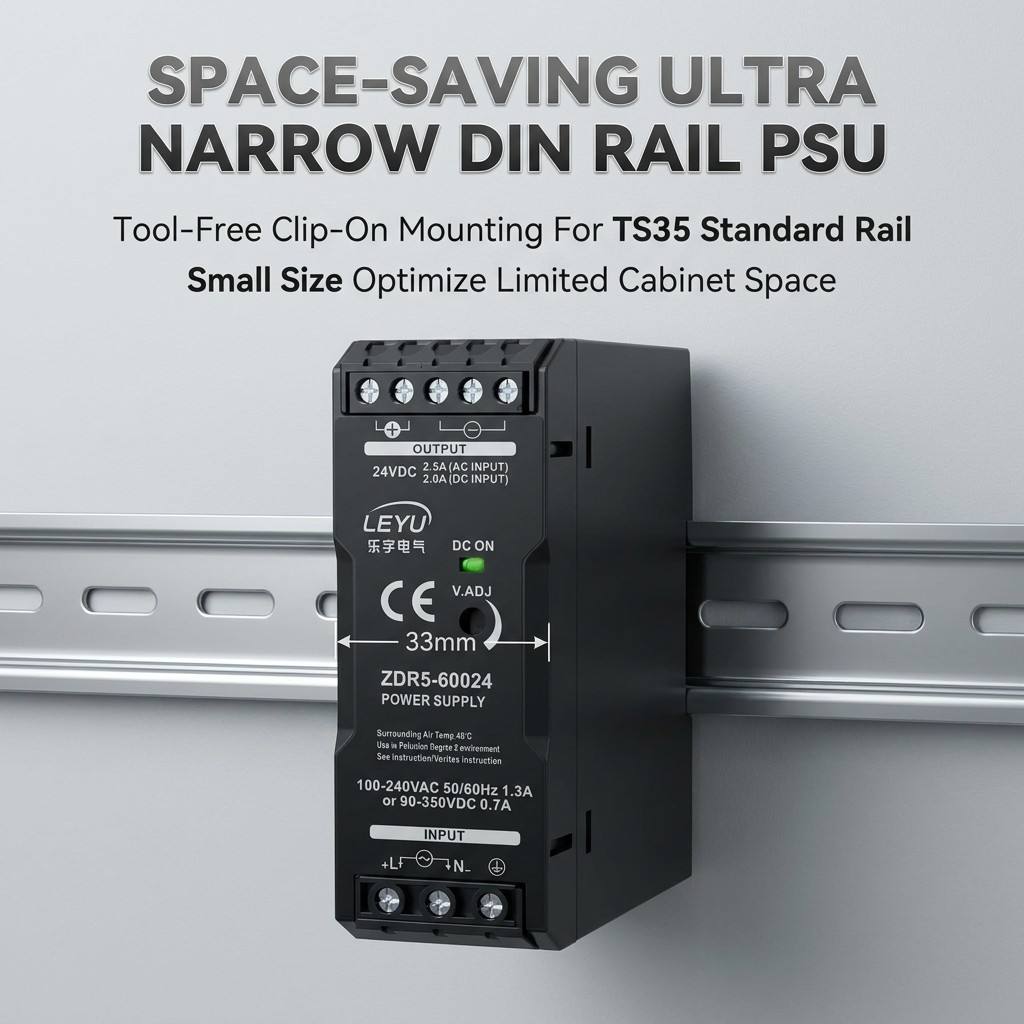

Ultra-Slim Design
33mm width saves over 50% of rail space compared to traditional PSUs.

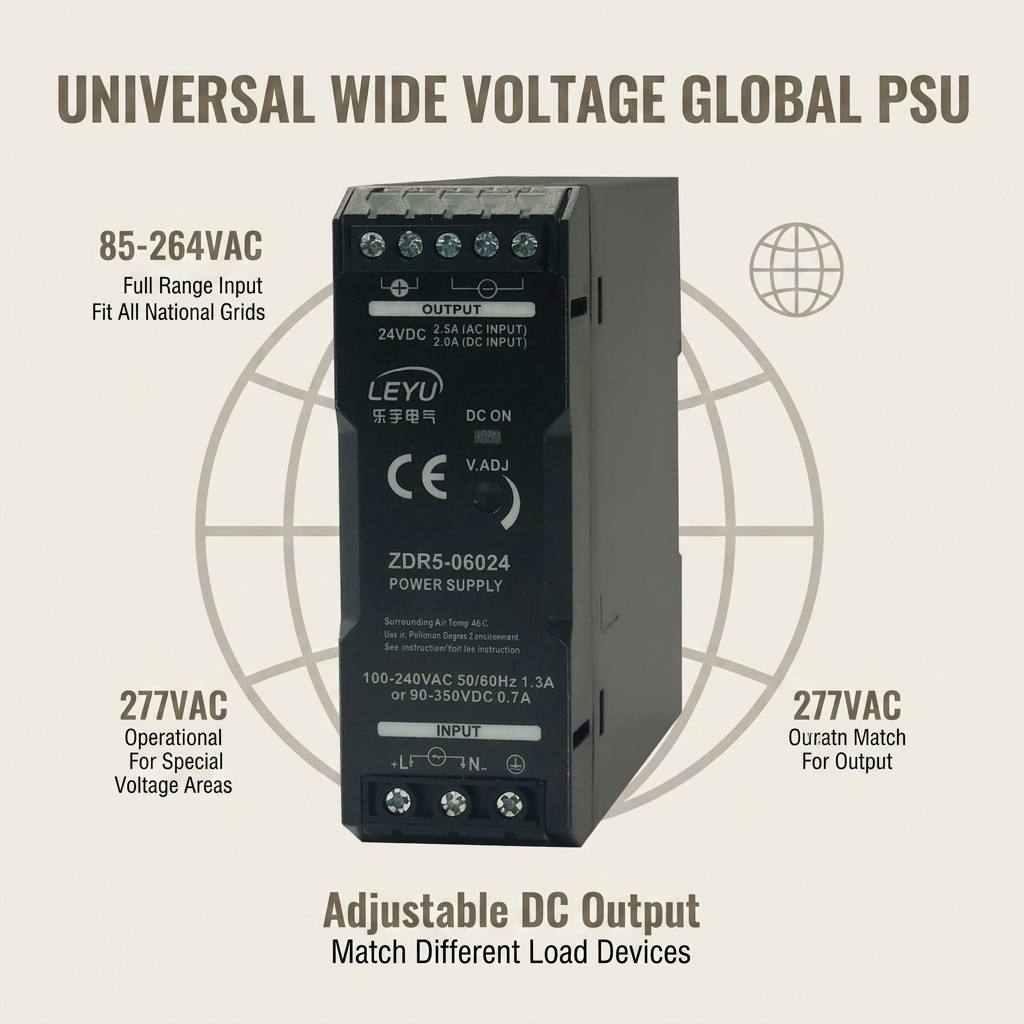

Universal Input
Wide input range of 85-264VAC (277VAC operational) for global compatibility.
Certified Reliability:
Compliant with UL508, UL62368-1, and TUV EN61558-2-16 standards for industrial safety.
Industrial Grade Build:

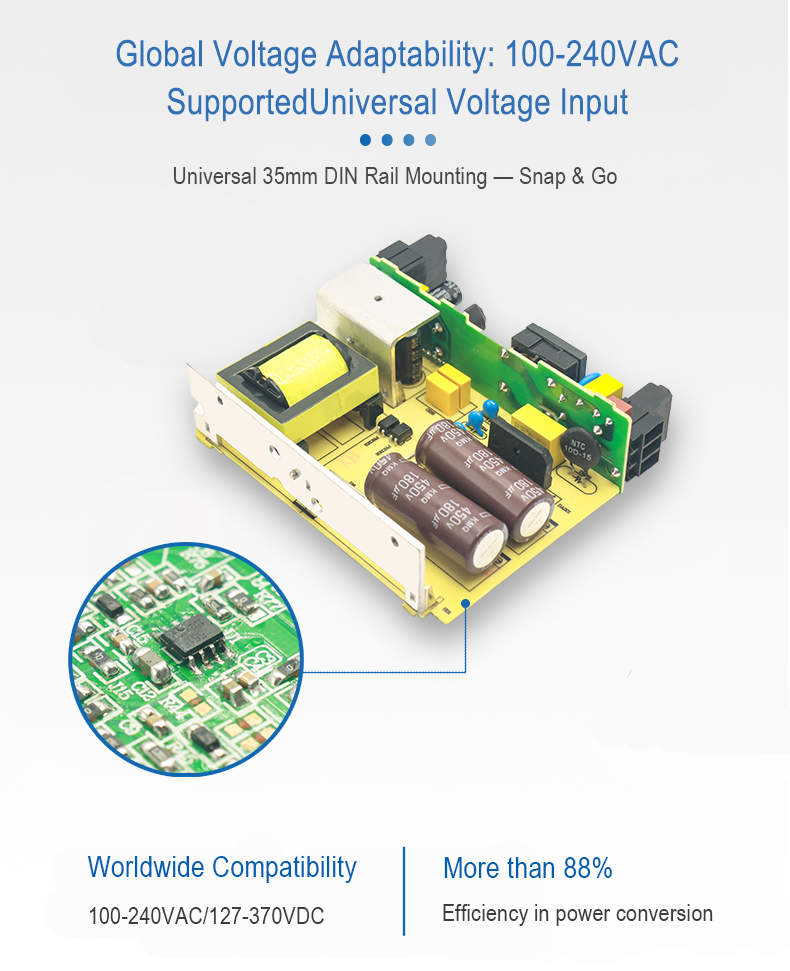

Uses high-quality capacitors to ensure a long lifecycle even in harsh operating temperatures.
Silent Operation:
Convection cooling design eliminates the need for noisy fans, increasing MTBF (Mean Time Between Failures).
Distribution Box Optimized:
Specifically shaped to fit into shallow distribution boards common in smart home and factory setups.
Industrial Automation:
PLCs, sensors, and motor control systems.
Building Control:
Smart home lighting, HVAC systems, and security surveillance.
IoT & Networking:
Powering gateways, routers, and communication modules.
Distribution Panels:
Ideal for compact sub-panels in commercial and residential buildings.

Q: Can this power supply be used in extreme temperatures?
A: Yes, the ZDR5-60 is designed for industrial use with a wide operating temperature range; however, de-rating may apply at the upper limits.

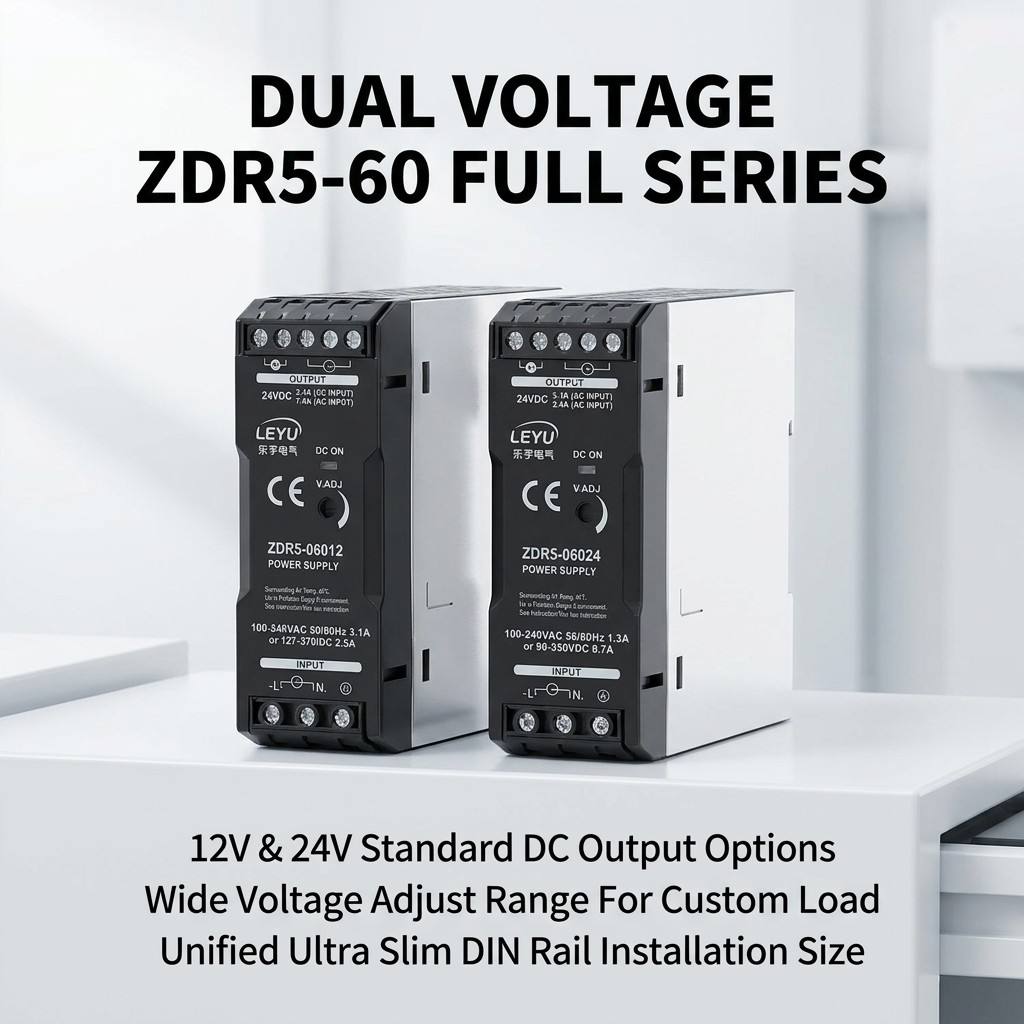

Q: Does it support both 12V and 24V in one unit?
A: No, the ZDR5-60 series offers dedicated models for 12V (5A) and 24V (2.5A). Please select the specific model based on your voltage requirements.
Q: Is it compatible with international AC voltages?
A: Absolutely. It supports a universal input range from 85V up to 264V AC, making it suitable for US, EU, and Asian power grids.
DOWNLOAD:
ZDR5 - 60,120.docx
Leyu , based in Wenzhou Leqing, enjoys a developed economy and convenient air, water, rail, and road transport. For 14 years, we have specialized in designing and producing switching power supplies and off-grid solar inverters, with CE, ROHS, CCC, IP67, and ISO9001 certifications. Our modern production and testing equipment ensure reliable performance—our 0.3‰ defect rate far exceeds the national 3% standard.
We offer OEM/ODM services (design, prototyping, production, testing, delivery) backed by senior engineers and strong R&D partnerships. Leyu products are exported to over 50 countries across Europe, the Americas, Southeast Asia, South America, and Africa. Our young, energetic foreign trade team (avg. 3 years’ experience) and our commitment to sincere, attentive service have built a trusted brand. As a high-tech enterprise integrating R&D, production, sales, and technical support, Leyu strives to become a national-class electrical company.
2021
Late 2020
Taking Another Step Forward
The company obtained multiple intellectual property rights (patents/trademarks, etc.) and established a new company, continuously expanding its business landscape and moving toward a higher stage of development.
A New Era of Operations
An International Operations Department was formed by seven people, covering multiple platforms The establishment of the Operations Department marked the beginning of a new digital, multi channel era for "Leyu".
Moving to New Premises
The Foreign Trade Department moved entirely out of the factory into a brand new office building, neighboring Yueqing Ali and Times Square, upgrading both the working environment and brand image.
Shenzhen Presence
Foreign trade business expanded to Shenzhen with the establishment of a branch office, getting closer to cutting-edge markets and resources.
Factory Upgrade
The factory underwent comprehensive renovation and relocation, improving production capacity and environmental standards.
Independent Department & Market Expansion
The Foreign Trade Department was formally established, extending the sales network from Southeast Asia to Europe and accelerating internationalization.
Stepping into Foreign Trade
The company shifted its focus to foreign trade, successfully obtained foreign trade qualification certification, and officially started its overseas market journey.
Renaming and New Beginning
To expand capital scale and explore broader markets, the original "Yueqing Leyu Electric Co., Ltd." was officially renamed "Zhejiang Leyu Electric Co., Ltd.", laying the foundation for the company's upgrading and development.
Eco Friendly Bathroom Products - Plastic Free, Organic & Zero Waste
There's nothing that gathers so much plastic packaged products as our bathrooms!
Having a zero-waste sustainable toiletry collection is completely possible and affordable. From essentials such as toothpaste and toothbrushes, to creams, shampoos and solid soaps, and much more, EarthBits have collected the most trustworthy green brands out there to help you in your eco bathrooms mission!
The OPIP-1000 Pure Sine Wave Inverter is a compact, user-friendly power solution tailored for both off-grid and backup power needs. Measuring just 310×165×90mm and weighing 2820g (net) / 3260g (gross), it fits easily in tight spaces—from RV storage compartments to home utility closets. Its robust construction ensures durability, with a working temperature range of -10°C to +50°C and storage temperature range of -30°C to +70°C, suitable for harsh environments.
■ Features
·Universal AC input/ full range
·Universal input 85~264VAC(277VAC operational)
·No load power consumption<0.3W
·Isolation class Ⅱ
·Protections: Short circuit/ Over load/ Over voltage/ Over temperature
·DC output voltage adjustable
·Protections : Short circuit / Overload / Over voltage
·Cooling by free air convection (working temperature:-30~+70°C)
·DIN rail TS-35/7.5 or 15 mountable
·LED indicator for power on
·2 years warrant
■ Features
·Universal AC input/ full range
·Universal input 85~264VAC(277VAC operational)
·No load power consumption<0.3W
·Isolation class Ⅱ
·Protections: Short circuit/ Over load/ Over voltage/ Over temperature
·DC output voltage adjustable
·Protections : Short circuit / Overload / Over voltage
·Cooling by free air convection (working temperature:-30~+70°C)
·DIN rail TS-35/7.5 or 15 mountable
·LED indicator for power on
·2 years warrant
Industrial Automation
IT & Telecommunications
Security & Surveillance
Building Automation
PLC & Control Systems: Provides stable DC power for programmable logic controllers and industrial PC modules.
Sensors & Actuators: Reliable power source for factory floor sensors and precision motor actuators.

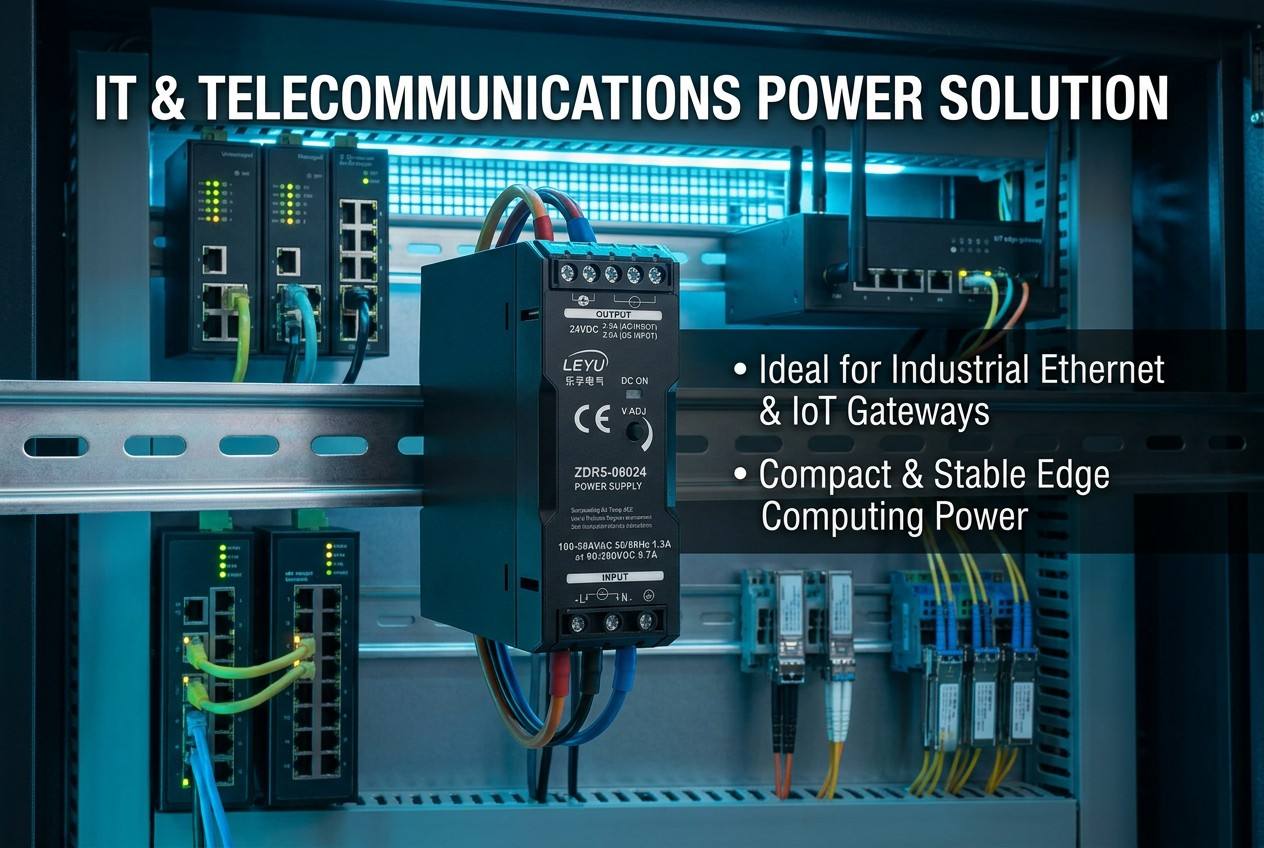

Networking Hardware: Ideal for powering industrial Ethernet switches, routers, and wireless gateways.
IoT Edge Devices: Compact footprint supports power requirements for Internet of Things (IoT) edge computing nodes

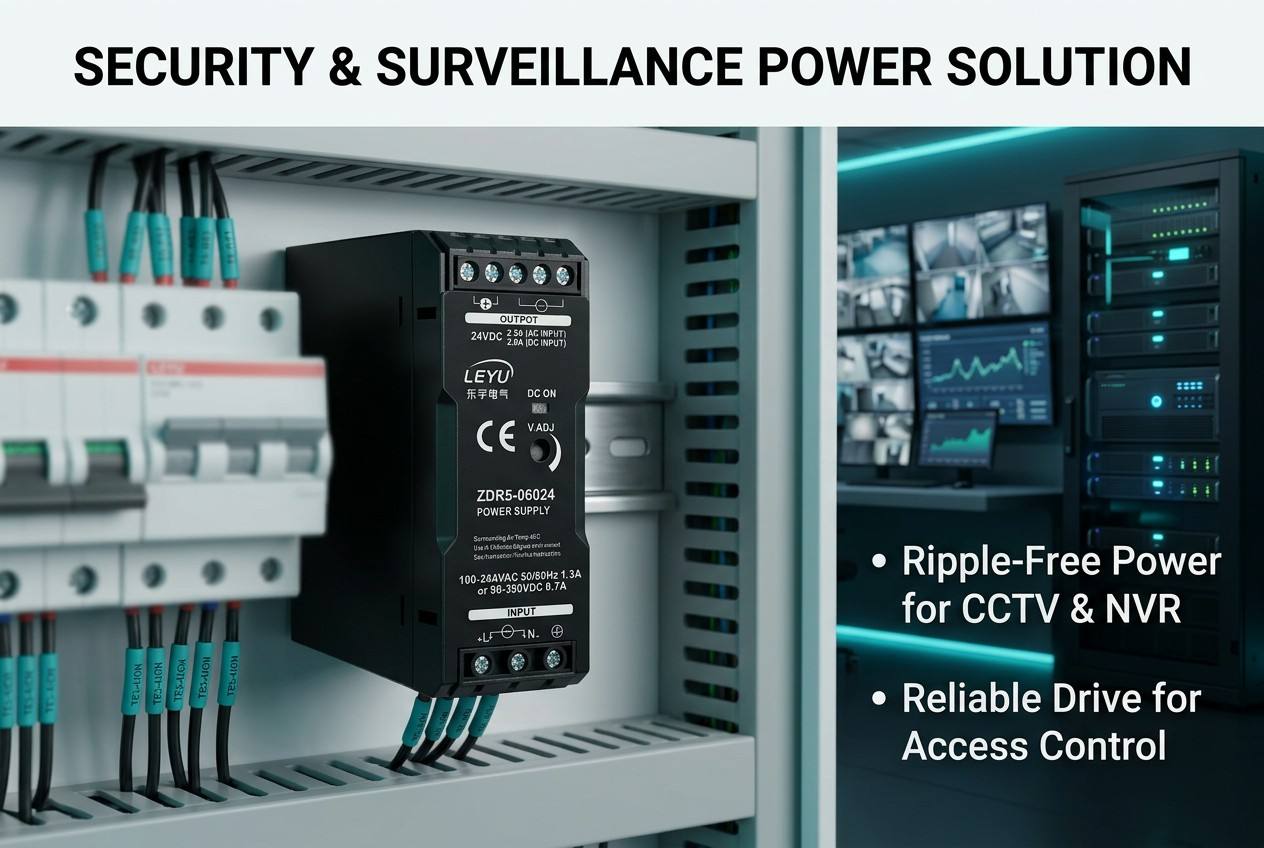

CCTV Camera Systems: Ensures continuous, ripple-free power for high-definition security cameras and NVR units.
